Microchip晶振,7050贴片晶振,DSC1001AE1-027.0000-ND,6G接收器晶振

频率：27MHZ

尺寸：7.0mm x 5.0mm

Microchip晶振,7050贴片晶振,DSC1001AE1-027.0000-ND,6G接收器晶振,美国Microchip晶振,7050贴片晶振,DSC1001是一款基于硅MEMS的CMOS振荡器系列,在广泛的电源电压和温度范围内提供出色的抖动和稳定性性能,设备从1 MHz至150 MHz,电源电压在1.8至3.3V,温度范围-40℃~105°C,是坚固耐用,工业和便携式应用的理想选择,有源晶振,进口贴片晶振,石英晶体振荡器,6G接收器晶振.
订购热线：0755-27876565
QQ咨询 点击这里给我发消息

yijin-1

Microchip晶振,7050贴片晶振,DSC1001AE1-027.0000-ND,6G接收器晶振,美国Microchip晶振,7050贴片晶振,DSC1001是一款基于硅MEMS的CMOS振荡器系列,在广泛的电源电压和温度范围内提供出色的抖动和稳定性性能,设备从1 MHz至150 MHz,电源电压在1.8至3.3V,温度范围-40℃~105°C,是坚固耐用,工业和便携式应用的理想选择,有源晶振,进口贴片晶振,石英晶体振荡器,6G接收器晶振.

Microchip晶振,7050贴片晶振,DSC1001AE1-027.0000-ND,6G接收器晶振特点：

•工业用插销“插入式”替代插销标准的振荡器

•半导体级可靠性，显著高于石英

•短的批量生产交货期

•更长的电池寿命/更低的功耗

•紧凑的塑料包装

•成本效益高

yijin-2

Microchip晶振,7050贴片晶振,DSC1001AE1-027.0000-ND,6G接收器晶振规格表

项目 规格说明 条件
额定频率 27MHz 请联系我们以便获取其它可用频率的相关信息
电源电压 3.3V
储存温度 -55℃~+150℃ 裸存
工作温度 -20℃~ +70℃
频率稳定度 ±50ppm 包括由初始公差、温度和电源电压引起的频率变化
老化 ±5ppm
 1 year @ +25°C
电流 8.0mA Max T = +25°C
负载 15pf
空载电流 16.6mA 150 MHz
输出逻辑电平低（Vol） 0.2x VDD  Max –4 mA, DSC1001, CL = 15 pF
输出逻辑电平高（Voh） 0.8x VDD  Max –4 mA, DSC1001, CL = 15 pF
输出上升下降时间
 2ns Max
 DSC1001, CL = 15 pF
起始时间 10ms Max
抖动最大Cycle-to-Cycle 50ps Typ f = 100 MHz
周期抖动
 10ps 100MHz,RMS

yijin-3

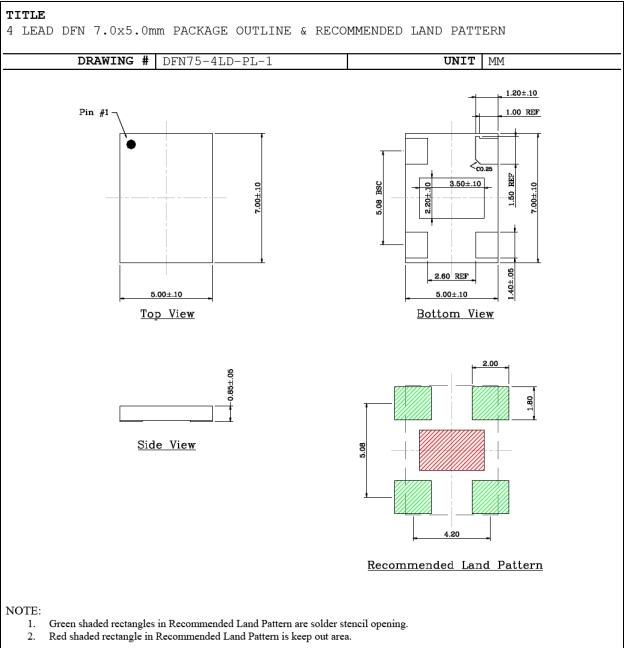

Microchip晶振,7050贴片晶振,DSC1001AE1-027.0000-ND,6G接收器晶振尺寸图

DSC1001-7050

DSC1001-1

DSC1001-2

原厂代码 品牌 型号 频率 输出 电压 频率稳定度 工作温度
DSC1001AI2-050.0000 Microchip Technology DSC1001 50MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AL2-027.0000 Microchip Technology DSC1001 27MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 105°C
DSC1001AC1-027.0000 Microchip Technology DSC1001 27MHz CMOS 1.8 V ~ 3.3 V ±50ppm 0°C ~ 70°C
DSC1001AC1-008.0000 Microchip Technology DSC1001 8MHz CMOS 1.7 V ~ 3.6 V ±50ppm 0°C ~ 70°C
DSC1001AE1-027.0000 Microchip Technology DSC1001 27MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE1-014.3182 Microchip Technology DSC1001 14.3182MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE1-024.5761 Microchip Technology DSC1001 24.5761MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE1-054.0000 Microchip Technology DSC1001 54MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE1-003.6864 Microchip Technology DSC1001 3.6864MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE1-055.0000 Microchip Technology DSC1001 55MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AI2-064.0000 Microchip Technology DSC1001 64MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI1-033.0000 Microchip Technology DSC1001 33MHz CMOS 1.8 V ~ 3.3 V ±50ppm -40°C ~ 85°C
DSC1001AI2-001.0000 Microchip Technology DSC1001 1MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AE2-002.0480 Microchip Technology DSC1001 2.048MHz CMOS 1.8 V ~ 3.3 V ±25ppm -20°C ~ 70°C
DSC1001AI2-011.7000 Microchip Technology DSC1001 11.7MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-012.3667 Microchip Technology DSC1001 12.3667MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AE1-111.0000 Microchip Technology DSC1001 111MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AI2-096.0000 Microchip Technology DSC1001 96MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-100.0000 Microchip Technology DSC1001 100MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AE5-040.0000 Microchip Technology DSC1001 40MHz CMOS 1.8 V ~ 3.3 V ±10ppm -20°C ~ 70°C
DSC1001AI5-027.0000 Microchip Technology DSC1001 27MHz CMOS 1.7 V ~ 3.6 V ±10ppm -40°C ~ 85°C
DSC1001AI5-033.0000 Microchip Technology DSC1001 33MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-040.0000 Microchip Technology DSC1001 40MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AL5-033.0000 Microchip Technology DSC1001 33MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-048.0000 Microchip Technology DSC1001 48MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-060.0000 Microchip Technology DSC1001 60MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-040.0000 Microchip Technology DSC1001 40MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-033.3333 Microchip Technology DSC1001 33.3333MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-024.0000 Microchip Technology DSC1001 24MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-050.0000 Microchip Technology DSC1001 50MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-027.0000 Microchip Technology DSC1001 27MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-100.0000 Microchip Technology DSC1001 100MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AE1-006.1440 Microchip Technology DSC1001 6.144MHz CMOS 1.7 V ~ 3.6 V ±50ppm -20°C ~ 70°C
DSC1001AE1-019.6608 Microchip Technology DSC1001 19.6608MHz CMOS 1.7 V ~ 3.6 V ±50ppm -20°C ~ 70°C
DSC1001AI1-055.3330 Microchip Technology DSC1001 55.333MHz CMOS 1.7 V ~ 3.6 V ±50ppm -40°C ~ 85°C
DSC1001AI2-066.6670 Microchip Technology DSC1001 66.667MHz CMOS 1.7 V ~ 3.6 V ±25ppm -40°C ~ 85°C
DSC1001AI2-010.0000 Microchip Technology DSC1001 10MHz CMOS 1.7 V ~ 3.6 V ±25ppm -40°C ~ 85°C
DSC1001AI2-054.0000 Microchip Technology DSC1001 54MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-016.3840 Microchip Technology DSC1001 16.384MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI5-012.0000 Microchip Technology DSC1001 12MHz CMOS 1.7 V ~ 3.6 V ±10ppm -40°C ~ 85°C
DSC1001AI5-032.0000 Microchip Technology DSC1001 32MHz CMOS 1.7 V ~ 3.6 V ±10ppm -40°C ~ 85°C
DSC1001AI5-048.0000 Microchip Technology DSC1001 48MHz CMOS 1.7 V ~ 3.6 V ±10ppm -40°C ~ 85°C
DSC1001AI5-033.3330 Microchip Technology DSC1001 33.333MHz CMOS 1.7 V ~ 3.6 V ±10ppm -40°C ~ 85°C
DSC1001AI5-029.4912 Microchip Technology DSC1001 29.4912MHz CMOS 1.7 V ~ 3.6 V ±10ppm -40°C ~ 85°C
DSC1001AC2-125.0025 Microchip Technology DSC1001 125.0025MHz CMOS 1.8 V ~ 3.3 V ±25ppm 0°C ~ 70°C
DSC1001AL5-001.8432 Microchip Technology DSC1001 1.8432MHz CMOS 1.7 V ~ 3.6 V ±10ppm -40°C ~ 105°C
DSC1001AL5-008.0000 Microchip Technology DSC1001 8MHz CMOS 1.7 V ~ 3.6 V ±10ppm -40°C ~ 105°C
DSC1001AL5-004.0000 Microchip Technology DSC1001 4MHz CMOS 1.7 V ~ 3.6 V ±10ppm -40°C ~ 105°C
DSC1001AI5-080.0000 Microchip Technology DSC1001 80MHz CMOS 1.7 V ~ 3.6 V ±10ppm -40°C ~ 85°C
DSC1001AI5-125.0060 Microchip Technology DSC1001 125.006MHz CMOS 1.7 V ~ 3.6 V ±10ppm -40°C ~ 85°C
DSC1001AI5-100.0000 Microchip Technology DSC1001 100MHz CMOS 1.7 V ~ 3.6 V ±10ppm -40°C ~ 85°C
DSC1001AE5-024.5760 Microchip Technology DSC1001 24.576MHz CMOS 1.8 V ~ 3.3 V ±10ppm -20°C ~ 70°C
DSC1001AE5-024.5760T Microchip Technology DSC1001 24.576MHz CMOS 1.8 V ~ 3.3 V ±10ppm -20°C ~ 70°C
DSC1001AC1-008.0000T Microchip Technology DSC1001 8MHz CMOS 1.8 V ~ 3.3 V ±50ppm 0°C ~ 70°C
DSC1001AC1-024.0000 Microchip Technology DSC1001 24MHz CMOS 1.8 V ~ 3.3 V ±50ppm 0°C ~ 70°C
DSC1001AC1-033.3333 Microchip Technology DSC1001 33.3333MHz CMOS 1.8 V ~ 3.3 V ±50ppm 0°C ~ 70°C
DSC1001AC1-040.0000 Microchip Technology DSC1001 40MHz CMOS 1.8 V ~ 3.3 V ±50ppm 0°C ~ 70°C
DSC1001AE1-016.6667 Microchip Technology DSC1001 16.6667MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE1-016.6667T Microchip Technology DSC1001 16.6667MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE1-024.0000 Microchip Technology DSC1001 24MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE1-024.0000T Microchip Technology DSC1001 24MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE1-033.3333T Microchip Technology DSC1001 33.3333MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE1-048.0000 Microchip Technology DSC1001 48MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AC2-025.0000T Microchip Technology DSC1001 25MHz CMOS 1.8 V ~ 3.3 V ±25ppm 0°C ~ 70°C
DSC1001AE1-006.1440T Microchip Technology DSC1001 6.144MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE1-014.3182T Microchip Technology DSC1001 14.3182MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE1-025.0000T Microchip Technology DSC1001 25MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE1-054.0000T Microchip Technology DSC1001 54MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AC2-027.0000 Microchip Technology DSC1001 27MHz CMOS 1.8 V ~ 3.3 V ±25ppm 0°C ~ 70°C
DSC1001AE1-033.0000 Microchip Technology DSC1001 33MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE1-050.0000 Microchip Technology DSC1001 50MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE1-025.0000 Microchip Technology DSC1001 25MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE1-019.6608T Microchip Technology DSC1001 19.6608MHz LVCMOS 1.7 V ~ 3.6 V ±50ppm -20°C ~ 70°C
DSC1001AE1-027.0000T Microchip Technology DSC1001 27MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE1-003.6864T Microchip Technology DSC1001 3.6864MHz LVCMOS 1.7 V ~ 3.6 V ±50ppm -20°C ~ 70°C
DSC1001AE1-024.5761T Microchip Technology DSC1001 24.5761MHz LVCMOS 1.7 V ~ 3.6 V ±50ppm -20°C ~ 70°C
DSC1001AI1-025.0000T Microchip Technology DSC1001 25MHz CMOS 1.8 V ~ 3.3 V ±50ppm -40°C ~ 85°C
DSC1001AI1-050.0000T Microchip Technology DSC1001 50MHz CMOS 1.8 V ~ 3.3 V ±50ppm -40°C ~ 85°C
DSC1001AI2-001.0000T Microchip Technology DSC1001 1MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-006.0000T Microchip Technology DSC1001 6MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-010.0000T Microchip Technology DSC1001 10MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-012.0000T Microchip Technology DSC1001 12MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-012.2880T Microchip Technology DSC1001 12.288MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-016.0000T Microchip Technology DSC1001 16MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-016.3840T Microchip Technology DSC1001 16.384MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-024.0000T Microchip Technology DSC1001 24MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-025.0000T Microchip Technology DSC1001 25MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-025.0007T Microchip Technology DSC1001 25.0007MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-032.0000T Microchip Technology DSC1001 32MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-050.0000T Microchip Technology DSC1001 50MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-054.0000T Microchip Technology DSC1001 54MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-066.0000T Microchip Technology DSC1001 66MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI1-005.0000 Microchip Technology DSC1001 5MHz CMOS 1.8 V ~ 3.3 V ±50ppm -40°C ~ 85°C
DSC1001AI1-050.0000 Microchip Technology DSC1001 50MHz CMOS 1.8 V ~ 3.3 V ±50ppm -40°C ~ 85°C
DSC1001AI2-025.0000 Microchip Technology DSC1001 25MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-014.7456 Microchip Technology DSC1001 14.7456MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-006.0000 Microchip Technology DSC1001 6MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-024.0000 Microchip Technology DSC1001 24MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-026.0000 Microchip Technology DSC1001 26MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-026.0000T Microchip Technology DSC1001 26MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-033.3333 Microchip Technology DSC1001 33.3333MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-048.0000 Microchip Technology DSC1001 48MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-012.0000 Microchip Technology DSC1001 12MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-027.0016T Microchip Technology DSC1001 27.0016MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-027.0016T Microchip Technology DSC1001 27.0016MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-027.0016T Microchip Technology DSC1001 27.0016MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI1-055.3330T Microchip Technology DSC1001 55.333MHz LVCMOS 1.7 V ~ 3.6 V ±50ppm -40°C ~ 85°C
DSC1001AI2-066.6670T Microchip Technology DSC1001 66.667MHz LVCMOS 1.7 V ~ 3.6 V ±25ppm -40°C ~ 85°C
DSC1001AI2-064.0000T Microchip Technology DSC1001 64MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI1-033.0000T Microchip Technology DSC1001 33MHz LVCMOS 1.7 V ~ 3.6 V ±50ppm -40°C ~ 85°C
DSC1001AE2-002.0480T Microchip Technology DSC1001 2.048MHz CMOS 1.8 V ~ 3.3 V ±25ppm -20°C ~ 70°C
DSC1001AE1-066.6660 Microchip Technology DSC1001 66.666MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE1-066.6660T Microchip Technology DSC1001 66.666MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AI2-027.0000T Microchip Technology DSC1001 27MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-027.0000 Microchip Technology DSC1001 27MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-011.7000T Microchip Technology DSC1001 11.7MHz LVCMOS 1.7 V ~ 3.6 V ±25ppm -40°C ~ 85°C
DSC1001AI2-012.3667T Microchip Technology DSC1001 12.3667MHz LVCMOS 1.7 V ~ 3.6 V ±25ppm -40°C ~ 85°C
DSC1001AE2-125.0000T Microchip Technology DSC1001 125MHz CMOS 1.8 V ~ 3.3 V ±25ppm -20°C ~ 70°C
DSC1001AI1-120.0000T Microchip Technology DSC1001 120MHz CMOS 1.8 V ~ 3.3 V ±50ppm -40°C ~ 85°C
DSC1001AE1-125.0000 Microchip Technology DSC1001 125MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE1-133.0000 Microchip Technology DSC1001 133MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE2-100.0000 Microchip Technology DSC1001 100MHz CMOS 1.8 V ~ 3.3 V ±25ppm -20°C ~ 70°C
DSC1001AE2-125.0000 Microchip Technology DSC1001 125MHz CMOS 1.8 V ~ 3.3 V ±25ppm -20°C ~ 70°C
DSC1001AC1-075.0000 Microchip Technology DSC1001 75MHz CMOS 1.8 V ~ 3.3 V ±50ppm 0°C ~ 70°C
DSC1001AE5-098.3040T Microchip Technology DSC1001 98.304MHz CMOS 1.8 V ~ 3.3 V ±10ppm -20°C ~ 70°C
DSC1001AI2-098.3040T Microchip Technology DSC1001 98.304MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-100.0000T Microchip Technology DSC1001 100MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-125.0000T Microchip Technology DSC1001 125MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-133.0000T Microchip Technology DSC1001 133MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-080.0000 Microchip Technology DSC1001 80MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-083.3330 Microchip Technology DSC1001 83.333MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-120.0000T Microchip Technology DSC1001 120MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-125.0000 Microchip Technology DSC1001 125MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-096.0000T Microchip Technology DSC1001 96MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AE1-111.0000T Microchip Technology DSC1001 111MHz LVCMOS 1.7 V ~ 3.6 V ±50ppm -20°C ~ 70°C
DSC1001AE5-040.0000T Microchip Technology DSC1001 40MHz LVCMOS 1.7 V ~ 3.6 V ±10ppm -20°C ~ 70°C
DSC1001AI5-008.0000T Microchip Technology DSC1001 8MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-012.0000T Microchip Technology DSC1001 12MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-025.0000T Microchip Technology DSC1001 25MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-027.0000T Microchip Technology DSC1001 27MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-029.4912T Microchip Technology DSC1001 29.4912MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-032.0000T Microchip Technology DSC1001 32MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-033.3330T Microchip Technology DSC1001 33.333MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-048.0000T Microchip Technology DSC1001 48MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-008.0000 Microchip Technology DSC1001 8MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-016.0000T Microchip Technology DSC1001 16MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-016.0000 Microchip Technology DSC1001 16MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-002.4576 Microchip Technology DSC1001 2.4576MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-002.4576T Microchip Technology DSC1001 2.4576MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-011.0592 Microchip Technology DSC1001 11.0592MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-011.0592T Microchip Technology DSC1001 11.0592MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-025.0000 Microchip Technology DSC1001 25MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-033.0000T Microchip Technology DSC1001 33MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-024.0000 Microchip Technology DSC1001 24MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-024.0000T Microchip Technology DSC1001 24MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-040.0000T Microchip Technology DSC1001 40MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AL5-007.3728 Microchip Technology DSC1001 7.3728MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-007.3728T Microchip Technology DSC1001 7.3728MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-016.3840 Microchip Technology DSC1001 16.384MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-016.3840T Microchip Technology DSC1001 16.384MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-001.8432T Microchip Technology DSC1001 1.8432MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-004.0000T Microchip Technology DSC1001 4MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-008.0000T Microchip Technology DSC1001 8MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-016.0000T Microchip Technology DSC1001 16MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-024.0000T Microchip Technology DSC1001 24MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-025.0000T Microchip Technology DSC1001 25MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-032.0000T Microchip Technology DSC1001 32MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-040.0000T Microchip Technology DSC1001 40MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-050.0000T Microchip Technology DSC1001 50MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-016.0000 Microchip Technology DSC1001 16MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-032.0000 Microchip Technology DSC1001 32MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-012.0000 Microchip Technology DSC1001 12MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-012.0000T Microchip Technology DSC1001 12MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-018.4320 Microchip Technology DSC1001 18.432MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-018.4320T Microchip Technology DSC1001 18.432MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-024.5760 Microchip Technology DSC1001 24.576MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-060.0000T Microchip Technology DSC1001 60MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-033.0000T Microchip Technology DSC1001 33MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-027.0000T Microchip Technology DSC1001 27MHz LVCMOS 1.7 V ~ 3.6 V ±10ppm -40°C ~ 105°C
DSC1001AI5-150.0000 Microchip Technology DSC1001 150MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-150.0000T Microchip Technology DSC1001 150MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-080.0000T Microchip Technology DSC1001 80MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-100.0000T Microchip Technology DSC1001 100MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-125.0000T Microchip Technology DSC1001 125MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-125.0060T Microchip Technology DSC1001 125.006MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-125.0000 Microchip Technology DSC1001 125MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-072.0000 Microchip Technology DSC1001 72MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-144.0000 Microchip Technology DSC1001 144MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AL5-080.0000T Microchip Technology DSC1001 80MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-100.0000T Microchip Technology DSC1001 100MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-080.0000 Microchip Technology DSC1001 80MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-125.0000 Microchip Technology DSC1001 125MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-125.0000T Microchip Technology DSC1001 125MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AI2-048.0000T Microchip Technology DSC1001 48MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AE2-004.0000 Microchip Technology DSC1001 4MHz CMOS 1.8 V ~ 3.3 V ±25ppm -20°C ~ 70°C
DSC1001AL5-025.0000 Microchip Technology DSC1001 25MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AC5-012.8000 Microchip Technology DSC1001 12.8MHz CMOS 1.8 V ~ 3.3 V ±10ppm 0°C ~ 70°C
DSC1001AC5-012.8000T Microchip Technology DSC1001 12.8MHz CMOS 1.8 V ~ 3.3 V ±10ppm 0°C ~ 70°C
DSC1001AE1-033.3333 Microchip Technology DSC1001 33.3333MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE1-048.0000T Microchip Technology DSC1001 48MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE5-022.5792 Microchip Technology DSC1001 22.5792MHz CMOS 1.8 V ~ 3.3 V ±10ppm -20°C ~ 70°C
DSC1001AE5-022.5792T Microchip Technology DSC1001 22.5792MHz CMOS 1.8 V ~ 3.3 V ±10ppm -20°C ~ 70°C
DSC1001AI1-024.0000 Microchip Technology DSC1001 24MHz CMOS 1.8 V ~ 3.3 V ±50ppm -40°C ~ 85°C
DSC1001AI1-024.0000T Microchip Technology DSC1001 24MHz CMOS 1.8 V ~ 3.3 V ±50ppm -40°C ~ 85°C
DSC1001AI5-018.4320 Microchip Technology DSC1001 18.432MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-018.4320T Microchip Technology DSC1001 18.432MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AL2-100.0000 Microchip Technology DSC1001 100MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 105°C
DSC1001AL2-100.0000T Microchip Technology DSC1001 100MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 105°C
DSC1001AC1-131.0720T Microchip Technology DSC1001 131.072MHz CMOS 1.8 V ~ 3.3 V ±50ppm 0°C ~ 70°C
DSC1001AC2-010.0000T Microchip Technology DSC1001 10MHz CMOS 1.8 V ~ 3.3 V ±25ppm 0°C ~ 70°C
DSC1001AE1-002.4400T Microchip Technology DSC1001 2.44MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE1-007.3728T Microchip Technology DSC1001 7.3728MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE1-125.0000T Microchip Technology DSC1001 125MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE1-131.0720T Microchip Technology DSC1001 131.072MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE2-012.2880T Microchip Technology DSC1001 12.288MHz CMOS 1.8 V ~ 3.3 V ±25ppm -20°C ~ 70°C
DSC1001AE2-024.0000T Microchip Technology DSC1001 24MHz CMOS 1.8 V ~ 3.3 V ±25ppm -20°C ~ 70°C
DSC1001AE2-027.0000T Microchip Technology DSC1001 27MHz CMOS 1.8 V ~ 3.3 V ±25ppm -20°C ~ 70°C
DSC1001AE2-032.7680T Microchip Technology DSC1001 32.768MHz CMOS 1.8 V ~ 3.3 V ±25ppm -20°C ~ 70°C
DSC1001AE2-038.0000T Microchip Technology DSC1001 38MHz CMOS 1.8 V ~ 3.3 V ±25ppm -20°C ~ 70°C
DSC1001AE2-054.0000T Microchip Technology DSC1001 54MHz CMOS 1.8 V ~ 3.3 V ±25ppm -20°C ~ 70°C
DSC1001AE2-058.0000T Microchip Technology DSC1001 58MHz CMOS 1.8 V ~ 3.3 V ±25ppm -20°C ~ 70°C
DSC1001AE2-062.5000T Microchip Technology DSC1001 62.5MHz CMOS 1.8 V ~ 3.3 V ±25ppm -20°C ~ 70°C
DSC1001AE2-066.6666T Microchip Technology DSC1001 66.6666MHz CMOS 1.8 V ~ 3.3 V ±25ppm -20°C ~ 70°C
DSC1001AE2-080.0000T Microchip Technology DSC1001 80MHz CMOS 1.8 V ~ 3.3 V ±25ppm -20°C ~ 70°C
DSC1001AE2-098.3040T Microchip Technology DSC1001 98.304MHz CMOS 1.8 V ~ 3.3 V ±25ppm -20°C ~ 70°C
DSC1001AI1-005.0000T Microchip Technology DSC1001 5MHz CMOS 1.8 V ~ 3.3 V ±50ppm -40°C ~ 85°C
DSC1001AI1-013.1072T Microchip Technology DSC1001 13.1072MHz CMOS 1.8 V ~ 3.3 V ±50ppm -40°C ~ 85°C
DSC1001AI1-020.0000T Microchip Technology DSC1001 20MHz CMOS 1.8 V ~ 3.3 V ±50ppm -40°C ~ 85°C
DSC1001AI1-024.5450T Microchip Technology DSC1001 24.545MHz CMOS 1.8 V ~ 3.3 V ±50ppm -40°C ~ 85°C
DSC1001AI1-024.5760T Microchip Technology DSC1001 24.576MHz CMOS 1.8 V ~ 3.3 V ±50ppm -40°C ~ 85°C
DSC1001AI1-030.0000T Microchip Technology DSC1001 30MHz CMOS 1.8 V ~ 3.3 V ±50ppm -40°C ~ 85°C
DSC1001AI1-033.3330T Microchip Technology DSC1001 33.333MHz CMOS 1.8 V ~ 3.3 V ±50ppm -40°C ~ 85°C
DSC1001AI1-040.0000T Microchip Technology DSC1001 40MHz CMOS 1.8 V ~ 3.3 V ±50ppm -40°C ~ 85°C
DSC1001AI1-066.0000T Microchip Technology DSC1001 66MHz CMOS 1.8 V ~ 3.3 V ±50ppm -40°C ~ 85°C
DSC1001AI2-002.0480T Microchip Technology DSC1001 2.048MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-004.0000T Microchip Technology DSC1001 4MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-004.1943T Microchip Technology DSC1001 4.1943MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-008.0000T Microchip Technology DSC1001 8MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-011.2896T Microchip Technology DSC1001 11.2896MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-012.8000T Microchip Technology DSC1001 12.8MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-013.5000T Microchip Technology DSC1001 13.5MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-014.3180T Microchip Technology DSC1001 14.318MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-014.5000T Microchip Technology DSC1001 14.5MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-015.0000T Microchip Technology DSC1001 15MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-015.5000T Microchip Technology DSC1001 15.5MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-016.5000T Microchip Technology DSC1001 16.5MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-016.9988T Microchip Technology DSC1001 16.9988MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-017.7340T Microchip Technology DSC1001 17.734MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-018.4320T Microchip Technology DSC1001 18.432MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-020.0000T Microchip Technology DSC1001 20MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-024.5760T Microchip Technology DSC1001 24.576MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-027.1200T Microchip Technology DSC1001 27.12MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-030.0000T Microchip Technology DSC1001 30MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-032.7680T Microchip Technology DSC1001 32.768MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-033.0000T Microchip Technology DSC1001 33MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-033.3330T Microchip Technology DSC1001 33.333MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-033.7840T Microchip Technology DSC1001 33.784MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-038.8800T Microchip Technology DSC1001 38.88MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-040.0000T Microchip Technology DSC1001 40MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-040.3200T Microchip Technology DSC1001 40.32MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-042.0000T Microchip Technology DSC1001 42MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-050.0000C Microchip Technology DSC1001 50MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-051.8000T Microchip Technology DSC1001 51.8MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-055.2960T Microchip Technology DSC1001 55.296MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-060.0000T Microchip Technology DSC1001 60MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-065.5360T Microchip Technology DSC1001 65.536MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-065.5500T Microchip Technology DSC1001 65.55MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-066.6600T Microchip Technology DSC1001 66.66MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-073.7280T Microchip Technology DSC1001 73.728MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-074.2500C Microchip Technology DSC1001 74.25MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-074.2500T Microchip Technology DSC1001 74.25MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-075.0000T Microchip Technology DSC1001 75MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-077.7000T Microchip Technology DSC1001 77.7MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-080.0000T Microchip Technology DSC1001 80MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-083.3330T Microchip Technology DSC1001 83.333MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-108.0000T Microchip Technology DSC1001 108MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-148.5000T Microchip Technology DSC1001 148.5MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI5-010.0000T Microchip Technology DSC1001 10MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-016.3840T Microchip Technology DSC1001 16.384MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-019.4400T Microchip Technology DSC1001 19.44MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-020.0000T Microchip Technology DSC1001 20MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-024.5760T Microchip Technology DSC1001 24.576MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-050.0000T Microchip Technology DSC1001 50MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AL1-026.0000T Microchip Technology DSC1001 26MHz CMOS 1.8 V ~ 3.3 V ±50ppm -40°C ~ 105°C
DSC1001AL2-027.0000T Microchip Technology DSC1001 27MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 105°C
DSC1001AL2-029.4912T Microchip Technology DSC1001 29.4912MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 105°C
DSC1001AL2-050.0000T Microchip Technology DSC1001 50MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 105°C
DSC1001AL5-010.0000T Microchip Technology DSC1001 10MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-030.0000T Microchip Technology DSC1001 30MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AL5-133.3330T Microchip Technology DSC1001 133.333MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AC1-131.0720 Microchip Technology DSC1001 131.072MHz CMOS 1.8 V ~ 3.3 V ±50ppm 0°C ~ 70°C
DSC1001AC2-010.0000 Microchip Technology DSC1001 10MHz CMOS 1.8 V ~ 3.3 V ±25ppm 0°C ~ 70°C
DSC1001AC2-025.0000 Microchip Technology DSC1001 25MHz CMOS 1.8 V ~ 3.3 V ±25ppm 0°C ~ 70°C
DSC1001AE1-002.4400 Microchip Technology DSC1001 2.44MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE1-018.0000 Microchip Technology DSC1001 18MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE1-131.0720 Microchip Technology DSC1001 131.072MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE2-012.2880 Microchip Technology DSC1001 12.288MHz CMOS 1.8 V ~ 3.3 V ±25ppm -20°C ~ 70°C
DSC1001AE2-027.0000 Microchip Technology DSC1001 27MHz CMOS 1.8 V ~ 3.3 V ±25ppm -20°C ~ 70°C
DSC1001AE2-032.7680 Microchip Technology DSC1001 32.768MHz CMOS 1.8 V ~ 3.3 V ±25ppm -20°C ~ 70°C
DSC1001AI1-040.0000 Microchip Technology DSC1001 40MHz CMOS 1.8 V ~ 3.3 V ±50ppm -40°C ~ 85°C
DSC1001AI2-012.8000 Microchip Technology DSC1001 12.8MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-018.4320 Microchip Technology DSC1001 18.432MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-025.0007 Microchip Technology DSC1001 25.0007MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-032.0000 Microchip Technology DSC1001 32MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-042.0000 Microchip Technology DSC1001 42MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-065.5360 Microchip Technology DSC1001 65.536MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-148.5000 Microchip Technology DSC1001 148.5MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI5-010.0000 Microchip Technology DSC1001 10MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-016.3840 Microchip Technology DSC1001 16.384MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-024.5760 Microchip Technology DSC1001 24.576MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-050.0000 Microchip Technology DSC1001 50MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AL5-030.0000 Microchip Technology DSC1001 30MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C
DSC1001AC1-024.0000T Microchip Technology DSC1001 24MHz CMOS 1.8 V ~ 3.3 V ±50ppm 0°C ~ 70°C
DSC1001AC1-033.3333T Microchip Technology DSC1001 33.3333MHz CMOS 1.8 V ~ 3.3 V ±50ppm 0°C ~ 70°C
DSC1001AC1-040.0000T Microchip Technology DSC1001 40MHz CMOS 1.8 V ~ 3.3 V ±50ppm 0°C ~ 70°C
DSC1001AC2-027.0000T Microchip Technology DSC1001 27MHz CMOS 1.8 V ~ 3.3 V ±25ppm 0°C ~ 70°C
DSC1001AE1-033.0000T Microchip Technology DSC1001 33MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE1-050.0000T Microchip Technology DSC1001 50MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE1-133.0000T Microchip Technology DSC1001 133MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE2-007.6800T Microchip Technology DSC1001 7.68MHz CMOS 1.8 V ~ 3.3 V ±25ppm -20°C ~ 70°C
DSC1001AE2-008.0000T Microchip Technology DSC1001 8MHz CMOS 1.8 V ~ 3.3 V ±25ppm -20°C ~ 70°C
DSC1001AE2-040.6080T Microchip Technology DSC1001 40.608MHz CMOS 1.8 V ~ 3.3 V ±25ppm -20°C ~ 70°C
DSC1001AE5-007.6800T Microchip Technology DSC1001 7.68MHz CMOS 1.8 V ~ 3.3 V ±10ppm -20°C ~ 70°C
DSC1001AE5-040.6080T Microchip Technology DSC1001 40.608MHz CMOS 1.8 V ~ 3.3 V ±10ppm -20°C ~ 70°C
DSC1001AI1-001.8432T Microchip Technology DSC1001 1.8432MHz CMOS 1.8 V ~ 3.3 V ±50ppm -40°C ~ 85°C
DSC1001AI1-012.2880T Microchip Technology DSC1001 12.288MHz CMOS 1.8 V ~ 3.3 V ±50ppm -40°C ~ 85°C
DSC1001AI1-014.3181T Microchip Technology DSC1001 14.3181MHz CMOS 1.8 V ~ 3.3 V ±50ppm -40°C ~ 85°C
DSC1001AI1-048.0000T Microchip Technology DSC1001 48MHz CMOS 1.8 V ~ 3.3 V ±50ppm -40°C ~ 85°C
DSC1001AI1-064.0000T Microchip Technology DSC1001 64MHz CMOS 1.8 V ~ 3.3 V ±50ppm -40°C ~ 85°C
DSC1001AI1-080.0000T Microchip Technology DSC1001 80MHz CMOS 1.8 V ~ 3.3 V ±50ppm -40°C ~ 85°C
DSC1001AI2-014.7456T Microchip Technology DSC1001 14.7456MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-019.6608T Microchip Technology DSC1001 19.6608MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AE2-007.6800 Microchip Technology DSC1001 7.68MHz CMOS 1.8 V ~ 3.3 V ±25ppm -20°C ~ 70°C
DSC1001AE2-008.0000 Microchip Technology DSC1001 8MHz CMOS 1.8 V ~ 3.3 V ±25ppm -20°C ~ 70°C
DSC1001AE2-040.6080 Microchip Technology DSC1001 40.608MHz CMOS 1.8 V ~ 3.3 V ±25ppm -20°C ~ 70°C
DSC1001AE5-007.6800 Microchip Technology DSC1001 7.68MHz CMOS 1.8 V ~ 3.3 V ±10ppm -20°C ~ 70°C
DSC1001AE5-040.6080 Microchip Technology DSC1001 40.608MHz CMOS 1.8 V ~ 3.3 V ±10ppm -20°C ~ 70°C
DSC1001AI1-001.8432 Microchip Technology DSC1001 1.8432MHz CMOS 1.8 V ~ 3.3 V ±50ppm -40°C ~ 85°C
DSC1001AI1-012.2880 Microchip Technology DSC1001 12.288MHz CMOS 1.8 V ~ 3.3 V ±50ppm -40°C ~ 85°C
DSC1001AI1-014.3181 Microchip Technology DSC1001 14.3181MHz CMOS 1.8 V ~ 3.3 V ±50ppm -40°C ~ 85°C
DSC1001AI1-048.0000 Microchip Technology DSC1001 48MHz CMOS 1.8 V ~ 3.3 V ±50ppm -40°C ~ 85°C
DSC1001AI1-064.0000 Microchip Technology DSC1001 64MHz CMOS 1.8 V ~ 3.3 V ±50ppm -40°C ~ 85°C
DSC1001AI1-080.0000 Microchip Technology DSC1001 80MHz CMOS 1.8 V ~ 3.3 V ±50ppm -40°C ~ 85°C
DSC1001AI2-019.6608 Microchip Technology DSC1001 19.6608MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-120.0000 Microchip Technology DSC1001 120MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AE1-008.0000 Microchip Technology DSC1001 8MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE1-008.0000T Microchip Technology DSC1001 8MHz CMOS 1.8 V ~ 3.3 V ±50ppm -20°C ~ 70°C
DSC1001AE2-100.0000T Microchip Technology DSC1001 100MHz CMOS 1.8 V ~ 3.3 V ±25ppm -20°C ~ 70°C
DSC1001AI1-033.3330 Microchip Technology DSC1001 33.333MHz CMOS 1.8 V ~ 3.3 V ±50ppm -40°C ~ 85°C
DSC1001AI2-033.3333T Microchip Technology DSC1001 33.3333MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-070.4550 Microchip Technology DSC1001 70.455MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-070.4550T Microchip Technology DSC1001 70.455MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI2-074.2500 Microchip Technology DSC1001 74.25MHz CMOS 1.8 V ~ 3.3 V ±25ppm -40°C ~ 85°C
DSC1001AI5-072.0000T Microchip Technology DSC1001 72MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AI5-144.0000T Microchip Technology DSC1001 144MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 85°C
DSC1001AL5-024.5760T Microchip Technology DSC1001 24.576MHz CMOS 1.8 V ~ 3.3 V ±10ppm -40°C ~ 105°C

yijin-5

YJ-6

深圳市亿金电子有限公司    SHENZHEN YIJIN ELECTRONICS CO;LTD

mphone联系人黄娜：18924600166

QQ工作QQ:857950243

myt贸易通：yijindz2014

tel座机：0755-27876565

email邮箱:yijindz@163.com

inter 网址：http://www.yijindz.com

mwx微信：yijindz，公众号：NDKcrystal

home地址：广东省深圳市宝安区107国道旁甲岸路

wxewm

Microchip晶振 7050贴片晶振 DSC1001AE1-027.0000-ND 6G接收器晶振

跟此产品相关的产品 / Related Products

PE77J时钟振荡器,PECL有源晶振,PE7745JEV-156.25MDK,进口低抖动晶振,Pletronics振荡器
PE77J时钟振荡器,PECL有源晶振,PE7745JEV-156.25MDK,进口低抖动晶振,Pletronics振荡器
PE77J时钟振荡器,PECL有源晶振,PE7745JEV-156.25MDK,进口低抖动晶振,Pletronics振荡器   PE7745JEV-156.25MDK是Pletronics出品的进口 PECL 有源晶振，即 PE77J 时钟振荡器。它可输出精准的 156.25MHz 频率，为电子设备提供稳定的时钟信号。具备低抖动特性，能有效提高信号稳定性，降低误码率。PECL 输出接口适合高速数据处理。广泛应用于通信基站、高速网络、数据中心等领域，有助于提升系统的性能和可靠性，是高速数字电路和通信系统中理想的时钟源选择。

Pletronics进口晶振,SM55振荡器,低抖动晶振,SM5545JEW-12.288MDK,CMOS振荡器
Pletronics进口晶振,SM55振荡器,低抖动晶振,SM5545JEW-12.288MDK,CMOS振荡器
Pletronics进口晶振,SM55振荡器,低抖动晶振,SM5545JEW-12.288MDK,CMOS振荡器   SM5545JEW-12.288MDK 是 Pletronics 生产的进口低抖动 CMOS 振荡器。它能输出精准的 12.288MHz 频率，为电子设备提供稳定的时钟基准。低抖动特性确保信号稳定，有效提升设备的精准性和可靠性。CMOS 输出具备低功耗、高噪声容限等优势，适配性强。紧凑设计便于安装和集成。广泛应用于通信、计算机、工业控制等领域，有助于提高设备的性能和运行稳定性，是一款值得信赖的晶振产品。
QL4444LEV-100.0M,LVDS输出晶振,3225振荡器,QL44L差分晶振,Pletronics贴片晶振
QL4444LEV-100.0M,LVDS输出晶振,3225振荡器,QL44L差分晶振,Pletronics贴片晶振
QL4444LEV-100.0M,LVDS输出晶振,3225振荡器,QL44L差分晶振,Pletronics贴片晶振   QL4444LEV-100.0M 是 Pletronics 的 3225 贴片式 LVDS 输出差分晶振。它可输出精准的 100.0MHz 频率，为电子设备提供稳定的时钟基准。LVDS 输出方式使其具备出色的抗干扰能力，能有效抑制共模干扰，保证信号稳定传输。贴片封装便于安装和集成。广泛应用于高速数据接口、网络通信等领域，有助于提升设备的数据传输速度和稳定性，是高速数据传输系统的理想选择。
亿金电子产品中心 Product Center

晶振系列

日本进口晶振

台产晶振

欧美晶振

有源晶振

雾化片

贴片晶振

32.768K

声表面滤波器

石英晶振

KDS晶振

爱普生晶振

NDK晶振

温补晶振

联系亿金电子Contact us
咨询热线：0755-27876565

手机：189 2460 0166

QQ：857950243

邮箱：yijindz@163.com

地址：深圳市宝安区新安107国道旁甲岸路

Fast Track
快速通道

国内晶振分类：
Domestic Crystal
陶瓷晶振
泰艺晶振
TXC晶振
鸿星晶振
希华晶振
加高晶振
百利通亚陶晶振
嘉硕晶振
津绽晶振
石英晶体谐振器
SMD晶振
MERCURY晶振
应达利晶振
AKER晶振
香港NKG晶振
石英晶振
有源晶振
声表面滤波器
雾化片
32.768K
温补晶振
VC-TCXO晶振
差分晶振
压控晶振
恒温晶振
石英晶体振荡器
陶瓷谐振器
进口晶振分类：
Import Crystal
京瓷晶振
精工晶振
西铁城晶振
村田晶振
大河晶振
CTS晶振
微晶晶振
瑞康晶振
康纳温菲尔德晶振
高利奇晶振
Jauch晶振
AbraconCrystal晶振
维管晶振
ECScrystal晶振
日蚀晶振
拉隆晶振
格林雷晶振
SiTimeCrystal晶振
IDTcrystal晶振
PletronicsCrystal晶振
StatekCrystal晶振
KDS Quartz crystal
NDK Quartz crystal
EPSON Quartz crystal
AEK晶振
AEL晶振
Cardinal晶振
Crystek晶振
Euroquartz晶振
福克斯晶振
Frequency晶振
GEYER晶振
ILSI晶振
KVG晶振
MMDCOMP晶振
MtronPTI晶振
QANTEK晶振
QuartzCom晶振
QuartzChnik晶振
SUNTSU晶振
Transko晶振
WI2WI晶振
富士晶振
韩国三呢晶振
ITTI晶振
ACT晶振
Milliren晶振
Lihom晶振
rubyquartz晶振
Oscilent晶振
NAKA晶振
SHINSUNG晶振
SMI晶振
PDI晶振
C-TECH晶振
IQD晶振
Microchip晶振
NJR晶振
Silicon晶振
Fortiming晶振
CORE晶振
NIPPON晶振
NIC晶振
QVS晶振
Bomar晶振
Bliley晶振
GED晶振
FILTRONETICS晶振
STD晶振
Q-Tech晶振
Anderson晶振
Wenzel晶振
NEL晶振
EM晶振
PETERMANN晶振
FCD-Tech晶振
HEC晶振
FMI晶振
Macrobizes晶振
AXTAL晶振
瑞萨renesas晶振
Skyworks晶振
亿金首页32.768K贴片晶振有源晶振声表面滤波器KDS晶振NDK晶振爱普生晶振行业新闻联系亿金网站地图

Copyright © 1996-2012

深圳亿金电子有限公司版权所有

备案号：粤ICP备17105583号-1
