E1SFA12-3.6864M TR-Ecliptek-3.6864MHz-30PPM-12PF-49SMD

频率：3.6864MHZ

尺寸：13.30mm x 4.85mm

E1SFA12-3.6864M TR-Ecliptek-3.6864MHz-30PPM-12PF-49SMD，石英晶振，ECLIPTEK晶振,E1S晶振,E1SFA12-3.6864M TR晶振,贴片晶振,49SMD晶振,家庭影音系统晶振,石英晶振,无源晶振,摄像头晶振,欧美进口晶振,高品质晶振，石英晶体谐振器，HC49/UP短2垫，表面安装（SMD），3.2mm高金属电阻焊接密封

订购热线：0755-27876565

RS-1

yijin-1

E1SFA12-3.6864M TR-Ecliptek-3.6864MHz-30PPM-12PF-49SMD，石英晶振，ECLIPTEK晶振,E1S晶振,E1SFA12-3.6864M TR晶振,贴片晶振,49SMD晶振,家庭影音系统晶振,石英晶振,无源晶振,摄像头晶振,欧美进口晶振,高品质晶振，石英晶体谐振器，HC49/UP短2垫，表面安装（SMD），3.2mm高金属电阻焊接密封

yijin-2

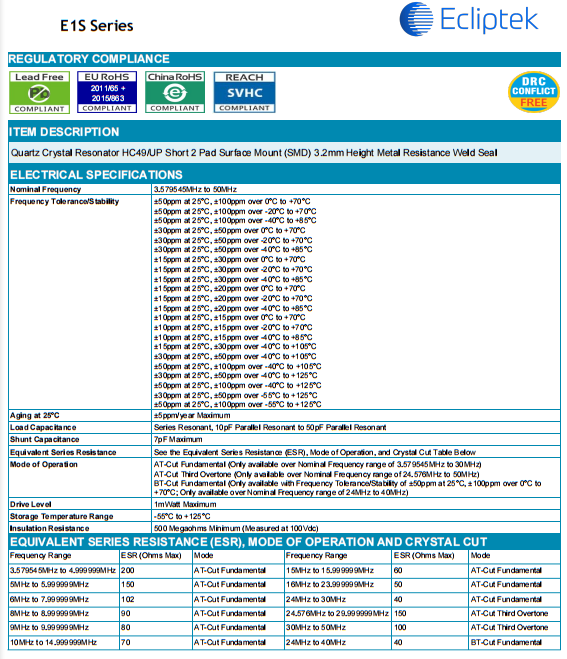

E1SFA12-3.6864M TR-Ecliptek-3.6864MHz-30PPM-12PF-49SMD

标称频率		3.579545MHz to 50MHz
容许频率/稳定性		±50ppm at 25°C, ±100ppm over 0°C to +70°C ±50ppm at 25°C, ±100ppm over -20°C to +70°C ±50ppm at 25°C, ±100ppm over -40°C to +85°C ±30ppm at 25°C, ±50ppm over 0°C to +70°C ±30ppm at 25°C, ±50ppm over -20°C to +70°C ±30ppm at 25°C, ±50ppm over -40°C to +85°C ±15ppm at 25°C, ±30ppm over 0°C to +70°C ±15ppm at 25°C, ±30ppm over -20°C to +70°C ±15ppm at 25°C, ±30ppm over -40°C to +85°C ±15ppm at 25°C, ±20ppm over 0°C to +70°C ±15ppm at 25°C, ±20ppm over -20°C to +70°C ±15ppm at 25°C, ±20ppm over -40°C to +85°C ±10ppm at 25°C, ±15ppm over 0°C to +70°C ±10ppm at 25°C, ±15ppm over -20°C to +70°C ±10ppm at 25°C, ±15ppm over -40°C to +85°C ±15ppm at 25°C, ±30ppm over -40°C to +105°C ±30ppm at 25°C, ±50ppm over -40°C to +105°C ±50ppm at 25°C, ±100ppm over -40°C to +105°C ±30ppm at 25°C, ±50ppm over -40°C to +125°C ±50ppm at 25°C, ±100ppm over -40°C to +125°C ±30ppm at 25°C, ±50ppm over -55°C to +125°C ±50ppm at 25°C, ±100ppm over -55°C to +125°C
老化		±5ppm/year Maximum
负载电容		Series Resonant, 10pF Parallel Resonant to 50pF Parallel Resonant
并联电容		7pF Maximum
等效串联电阻		See the Equivalent Series Resistance (ESR), Mode of Operation, and Crystal Cut Table Below
工作模式		AT-Cut Fundamental (Only available over Nominal Frequency range of 3.579545MHz to 30MHz) AT-Cut Third Overtone (Only available over Nominal Frequency range of 24.576MHz to 50MHz) BT-Cut Fundamental (Only available with Frequency Tolerance/Stability of ±50ppm at 25°C, ±100ppm over 0°C to +70°C; Only available over Nominal Frequency range of 24MHz to 40MHz)
驱动电平		1mWatt Maximum
储存温度		-55°C to +125°C
绝缘电阻		500 Megaohms Minimum (Measured at 100Vdc)

yijin-3

E1SFA12-3.6864M TR-Ecliptek-3.6864MHz-30PPM-12PF-49SMD

E1S(1)

Ecliptek原厂编码	生产商	系列	类型	频率	频率稳定性	频率容差	负载电容
E1SJA18-7.3728M TR	Ecliptek晶振	E1S	MHz 晶体	7.3728 MHz	±30ppm	±15ppm	18pF
E1SCA18-8.000M TR	Ecliptek晶振	E1S	MHz 晶体	8 MHz	±100ppm	±50ppm	18pF
E1SFA18-25.000M TR	Ecliptek晶振	E1S	MHz 晶体	25 MHz	±50ppm	±30ppm	18pF
E1SJA18-4.000M TR	Ecliptek晶振	E1S	MHz 晶体	4 MHz	±30ppm	±15ppm	18pF
E1SJA18-25.000M TR	Ecliptek晶振	E1S	MHz 晶体	25 MHz	±30ppm	±15ppm	18pF
E1SEA18-8.000M TR	Ecliptek晶振	E1S	MHz 晶体	8 MHz	±50ppm	±30ppm	18pF
E1SDA12-25.000M TR	Ecliptek晶振	E1S	MHz 晶体	25 MHz	±50ppm	±30ppm	12pF
E1SFA12-3.6864M TR	Ecliptek晶振	E1S	MHz 晶体	3.6864 MHz	±50ppm	±30ppm	12pF
E1SJA18-6.000M TR	Ecliptek晶振	E1S	MHz 晶体	6 MHz	±30ppm	±15ppm	18pF
E1SJA18-18.432M TR	Ecliptek晶振	E1S	MHz 晶体	18.432 MHz	±30ppm	±15ppm	18pF
E1SFA18-4.000M TR	Ecliptek晶振	E1S	MHz 晶体	4 MHz	±50ppm	±30ppm	18pF
E1SJA18-14.31818M TR	Ecliptek晶振	E1S	MHz 晶体	14.31818 MHz	±30ppm	±15ppm	18pF
E1SJA18-6.144M TR	Ecliptek晶振	E1S	MHz 晶体	6.144 MHz	±30ppm	±15ppm	18pF
E1SJA18-28.63636M TR	Ecliptek晶振	E1S	MHz 晶体	28.63636 MHz	±30ppm	±15ppm	18pF
E1SJA18-13.000M TR	Ecliptek晶振	E1S	MHz 晶体	13 MHz	±30ppm	±15ppm	18pF
E1SJA18-19.6608M TR	Ecliptek晶振	E1S	MHz 晶体	19.6608 MHz	±30ppm	±15ppm	18pF
E1SJA18-9.8304M TR	Ecliptek晶振	E1S	MHz 晶体	9.8304 MHz	±30ppm	±15ppm	18pF
E1SJA18-18.000M TR	Ecliptek晶振	E1S	MHz 晶体	18 MHz	±30ppm	±15ppm	18pF
E1SJA18-20.000M TR	Ecliptek晶振	E1S	MHz 晶体	20 MHz	±30ppm	±15ppm	18pF
E1SJA18-14.7456M TR	Ecliptek晶振	E1S	MHz 晶体	14.7456 MHz	±30ppm	±15ppm	18pF
E1SCA18-7.3728M TR	Ecliptek晶振	E1S	MHz 晶体	7.3728 MHz	±100ppm	±50ppm	18pF
E1SEA18-16.000M TR	Ecliptek晶振	E1S	MHz 晶体	16 MHz	±50ppm	±30ppm	18pF
E1SEA18-12.000M TR	Ecliptek晶振	E1S	MHz 晶体	12 MHz	±50ppm	±30ppm	18pF
E1SJA18-10.000M TR	Ecliptek晶振	E1S	MHz 晶体	10 MHz	±30ppm	±15ppm	18pF
E1SJA18-12.000M TR	Ecliptek晶振	E1S	MHz 晶体	12 MHz	±30ppm	±15ppm	18pF
E1SJA18-11.0592M TR	Ecliptek晶振	E1S	MHz 晶体	11.0592 MHz	±30ppm	±15ppm	18pF
E1SJA18-8.000M TR	Ecliptek晶振	E1S	MHz 晶体	8 MHz	±30ppm	±15ppm	18pF
E1SJA18-16.000M TR	Ecliptek晶振	E1S	MHz 晶体	16 MHz	±30ppm	±15ppm	18pF
E1SJA18-3.579545M TR	Ecliptek晶振	E1S	MHz 晶体	3.579545 MHz	±30ppm	±15ppm	18pF
E1SJA18-4.194304M TR	Ecliptek晶振	E1S	MHz 晶体	4.194304 MHz	±30ppm	±15ppm	18pF
E1SJA18-16.9344M TR	Ecliptek晶振	E1S	MHz 晶体	16.9344 MHz	±30ppm	±15ppm	18pF
E1SJA18-5.000M TR	Ecliptek晶振	E1S	MHz 晶体	5 MHz	±30ppm	±15ppm	18pF
E1SJA18-13.500M TR	Ecliptek晶振	E1S	MHz 晶体	13.5 MHz	±30ppm	±15ppm	18pF
E1SJA18-9.216M TR	Ecliptek晶振	E1S	MHz 晶体	9.216 MHz	±30ppm	±15ppm	18pF
E1SJA18-12.288M TR	Ecliptek晶振	E1S	MHz 晶体	12.288 MHz	±30ppm	±15ppm	18pF
E1SJA18-4.500M TR	Ecliptek晶振	E1S	MHz 晶体	4.5 MHz	±30ppm	±15ppm	18pF
E1SJA18-15.000M TR	Ecliptek晶振	E1S	MHz 晶体	15 MHz	±30ppm	±15ppm	18pF
E1SJA18-4.433619M TR	Ecliptek晶振	E1S	MHz 晶体	4.433619 MHz	±30ppm	±15ppm	18pF
E1SJA18-16.384M TR	Ecliptek晶振	E1S	MHz 晶体	16.384 MHz	±30ppm	±15ppm	18pF
E1SJA18-6.7458M TR	Ecliptek晶振	E1S	MHz 晶体	6.7458 MHz	±30ppm	±15ppm	18pF
E1SJA18-15.360M TR	Ecliptek晶振	E1S	MHz 晶体	15.36 MHz	±30ppm	±15ppm	18pF
E1SDA18-25.000M TR	Ecliptek晶振	E1S	MHz 晶体	25 MHz	±50ppm	±30ppm	18pF
E1SJA18-4.9152M TR	Ecliptek晶振	E1S	MHz 晶体	4.9152 MHz	±30ppm	±15ppm	18pF
E1SGA18-25.000M TR	Ecliptek晶振	E1S	MHz 晶体	25 MHz	±30ppm	±15ppm	18pF
E1SJA18-24.000M TR	Ecliptek晶振	E1S	MHz 晶体	24 MHz	±30ppm	±15ppm	18pF
E1SJA18-3.6864M TR	Ecliptek晶振	E1S	MHz 晶体	3.6864 MHz	±30ppm	±15ppm	18pF
E1SJA18-24.576M TR	Ecliptek晶振	E1S	MHz 晶体	24.576 MHz	±30ppm	±15ppm	18pF
E1SJA18-27.000M TR	Ecliptek晶振	E1S	MHz 晶体	27 MHz	±30ppm	±15ppm	18pF
E1SEA18-24.000M TR	Ecliptek晶振	E1S	MHz 晶体	24 MHz	±50ppm	±30ppm	18pF
E1SJA18-30.000M TR	Ecliptek晶振	E1S	MHz 晶体	30 MHz	±30ppm	±15ppm	18pF
E1SJA18-10.240M TR	Ecliptek晶振	E1S	MHz 晶体	10.24 MHz	±30ppm	±15ppm	18pF
