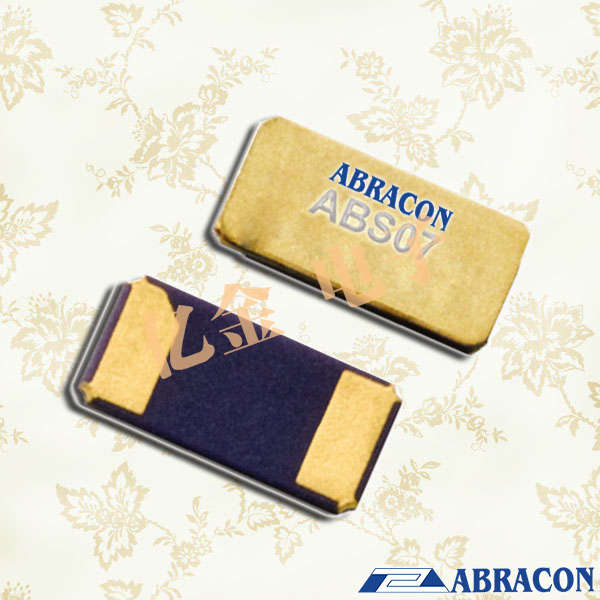

ABS07AIG-32.768kHz-7-1-T,3215音叉晶振,ABRACON无源晶振
频率：32.768KHz

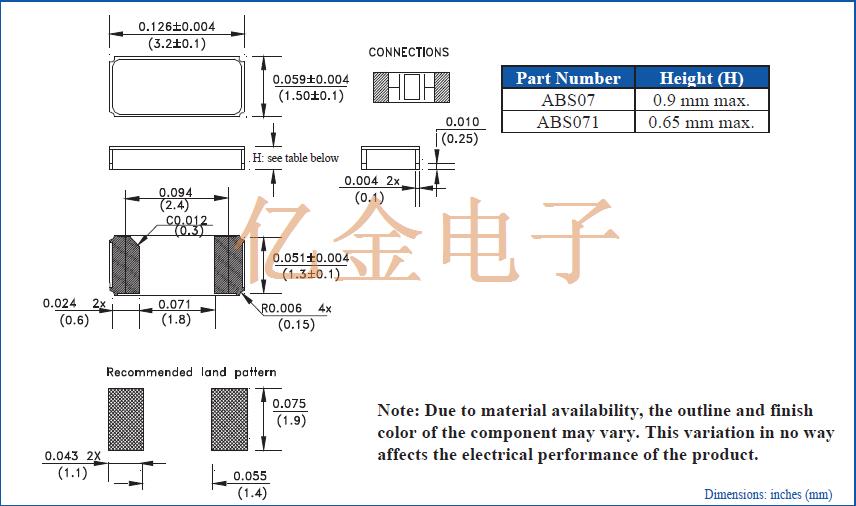

尺寸：3215mm
ABS07AIG-32.768kHz-7-1-T,3215音叉晶振,ABRACON无源晶振
ABRACONABS07AIG-32.768kHz-7-1-T晶振采用经典音叉式结构设计,核心频率精准锁定32.768kHz标准低频段,专为实时时钟(RTC),计时模块等低功耗场景打造.音叉结构通过独特的机械振动原理实现稳定振荡,能在高低温环境中保持计时精度,避免因温度波动导致的时间偏差.32.768kHz音叉晶振频率完美适配物联网设备,智能穿戴,电子表等需长期待机的产品,为其提供可靠的时间基准,同时兼容多数MCU的RTC外设接口,简化电路设计.
ABS07AIG-32.768kHz-7-1-T,3215音叉晶振,ABRACON无源晶振
|
原厂型号 Originalmodel： |
ABS07AIG-32.768kHz-7-1-T |
品牌brand： |
ABRACON |
|
型号名称 Modelname： |
ABS07耐高温晶振 |
Size/Dimension尺寸 |
3215mm |
|
Type系列： |
kHz Crystal |
高度PackageHeight： |
|
|
频率 frequency： |
|
温度OperatingTemperature |
-40℃~+125℃ |
|
Frequency Stability频率稳定度 |
- |
脚位Termination： |
2Pad |
|
frequencytolerance频率容差 |
±10ppm |
封装类型PackageType： |
2-smd |
|
Loadcapacitance 负载电容 |
7pF |
最小包装数MPQ： |
|
ABS07AIG-32.768kHz-7-1-T,3215音叉晶振,ABRACON无源晶振
