TXC|32.768K|9HT10-32.768KEZF-T|3215|-40~85℃

当前位置：首页 » 台产晶振 » TXC晶振 » TXC|32.768K|9HT10-32.768KEZF-T|3215|-40~85℃

prevnext

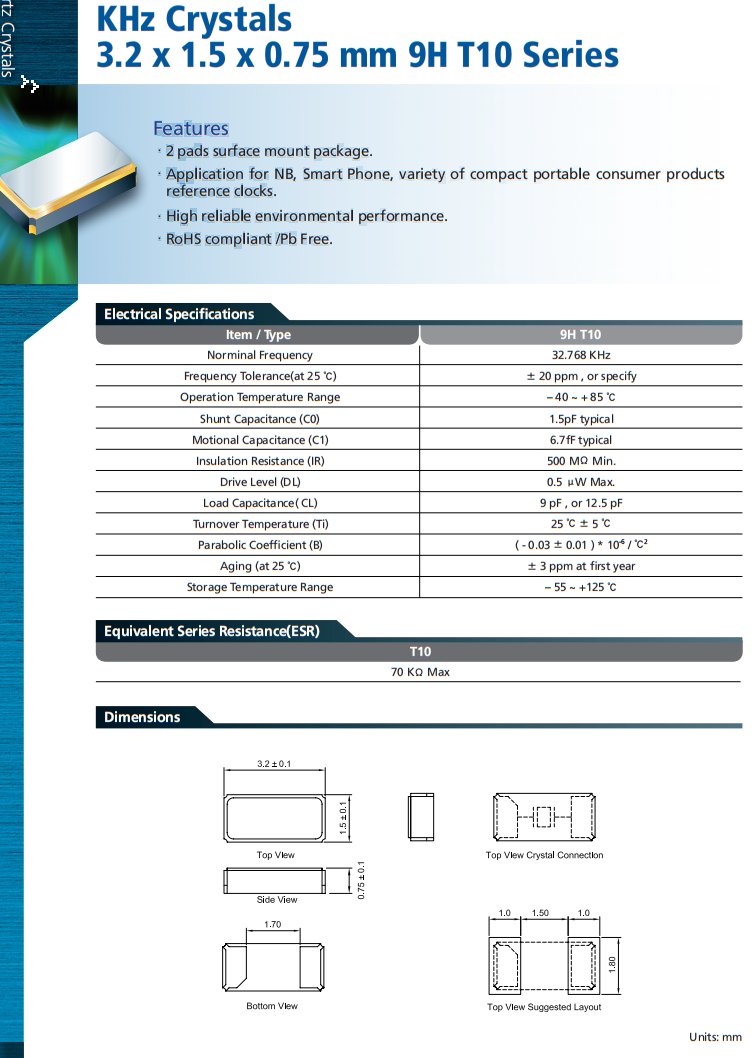

TXC|32.768K|9HT10-32.768KEZF-T|3215|-40~85℃

频率：32.768KHZ

尺寸：3.2x1.5mm

TXC|32.768K|9HT10-32.768KEZF-T|3215|-40~85℃,台湾高品质TXC晶振,特点，频率范围: 32.768KHz，SMD: 陶瓷封装外部尺寸(mm)， L: 3.2xW: 1.5xH: 0.75 RoHS兼容&无铅，应用程序，小型移动设备、通信设备、消费类产品、商业和工业应用。

订购热线：0755-27876565

TXC-1

yijin-1

TXC|32.768K|9HT10-32.768KEZF-T|3215|-40~85℃,台湾高品质TXC晶振,特点，频率范围: 32.768KHz，SMD: 陶瓷封装外部尺寸(mm)， L: 3.2xW: 1.5xH: 0.75 RoHS兼容&无铅，应用程序，小型移动设备、通信设备、消费类产品、商业和工业应用。
yijin-2

TXC|32.768K|9HT10-32.768KEZF-T|3215|-40~85℃

项目	标志	9HT10	环境
标称频率	0	32.768 kHz
频率公差	?f/f0	±10ppm, ±20ppm, ±30ppm	at 25°C
负载电容	CL	6pF, 7pF, 9pF, 12.5pF
工作温度范围	TOTR	-40°C ~ +85°C
工作温度范围	TOTR	-40°C ~ +125°C
储存温度范围	TSTR	-55°C ~ +125°C
转换温度	TM	25°C ± 5°C
温度系数	β	-0.04 ppm/°C2 Max.
运动电容	C1	3.1 fF Typ.
运动阻力（ESR）	R1	70 kQ Max.	at 25°C
驱动电平	DL	0.1pW Typ. / 1.0pW Max.
老化	?f/f0	±3 ppm Max.	at 25°C ± 3°C, first year
分路电容	C0	1.0 pF Typ.

TXC|32.768K|9HT10-32.768KEZF-T|3215|-40~85℃

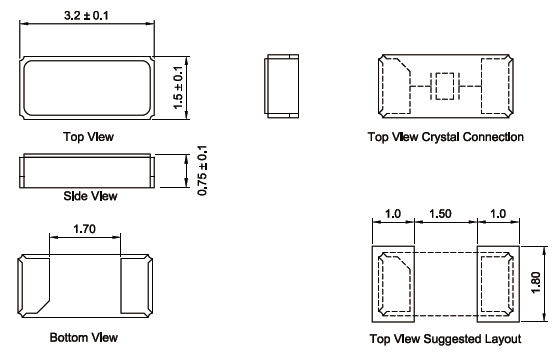

9HT10 3215

9HT10

TXC原厂编码	生产厂家	型号	频率	工作温度	尺寸
9HT10-32.768KBZF-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9HT10-32.768KBZF-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9HT10-32.768KBZF-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9HT10-32.768KDZF-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9HT10-32.768KDZF-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9HT10-32.768KDZF-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9HT10-32.768KEZF-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9HT10-32.768KEZF-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9HT10-32.768KEZF-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9HT10-32.768KAZF-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9HT10-32.768KAZF-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9HT10-32.768KAZF-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9HT10-32.768KBZB-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.061" W (3.20mm x 1.50mm)
9HT10-32.768KBZB-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.061" W (3.20mm x 1.50mm)
9HT10-32.768KBZB-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.061" W (3.20mm x 1.50mm)
9HT10-32.768KBZC-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.061" W (3.20mm x 1.50mm)
9HT10-32.768KBZC-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.061" W (3.20mm x 1.50mm)
9HT10-32.768KBZC-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.061" W (3.20mm x 1.50mm)
9HT10-32.768KBZY-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.061" W (3.20mm x 1.50mm)
9HT10-32.768KBZY-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.061" W (3.20mm x 1.50mm)
9HT10-32.768KBZY-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.061" W (3.20mm x 1.50mm)
9HT10-32.768KAZB-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.061" W (3.20mm x 1.50mm)
9HT10-32.768KAZB-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.061" W (3.20mm x 1.50mm)
9HT10-32.768KAZB-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.061" W (3.20mm x 1.50mm)
9HT10-32.768KAZC-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.061" W (3.20mm x 1.50mm)
9HT10-32.768KAZC-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.061" W (3.20mm x 1.50mm)
9HT10-32.768KAZC-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.061" W (3.20mm x 1.50mm)
9HT10-32.768KAZY-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.061" W (3.20mm x 1.50mm)
9HT10-32.768KAZY-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.061" W (3.20mm x 1.50mm)
9HT10-32.768KAZY-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.061" W (3.20mm x 1.50mm)
9HT10-32.768KDZB-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.061" W (3.20mm x 1.50mm)
9HT10-32.768KDZB-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.061" W (3.20mm x 1.50mm)
9HT10-32.768KDZB-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.061" W (3.20mm x 1.50mm)
9HT10-32.768KDZY-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9HT10-32.768KDZY-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9HT10-32.768KDZY-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9HT10-32.768KDZC-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9HT10-32.768KDZC-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9HT10-32.768KDZC-T	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9H03270036	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9H03200019	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9H03200031	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9H03200042	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9H03220005	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9H03220008	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9H03220009	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9H03270011	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9H03270040	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9H03270052	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9H03270059	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9H03277003	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9H03277005	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9H03200036	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9H03200021	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9H03200034	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9H03200022	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9H03200033	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9H03270024	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
9H03270042	TXC Crystal	9HT10	32.768kHz	-40°C ~ 85°C	0.126" L x 0.059" W (3.20mm x 1.50mm)
