智能交通灯控制器专用晶振X1E000251001100
爱普生是日本有名的频率元件制造商,专业生产销售石英晶振,石英晶体振荡器,贴片晶振,晶体滤波器等.发展至今已是国际有名的晶体元件制造商,致力于为客户提供高性能,高可靠,高品质晶振产品。

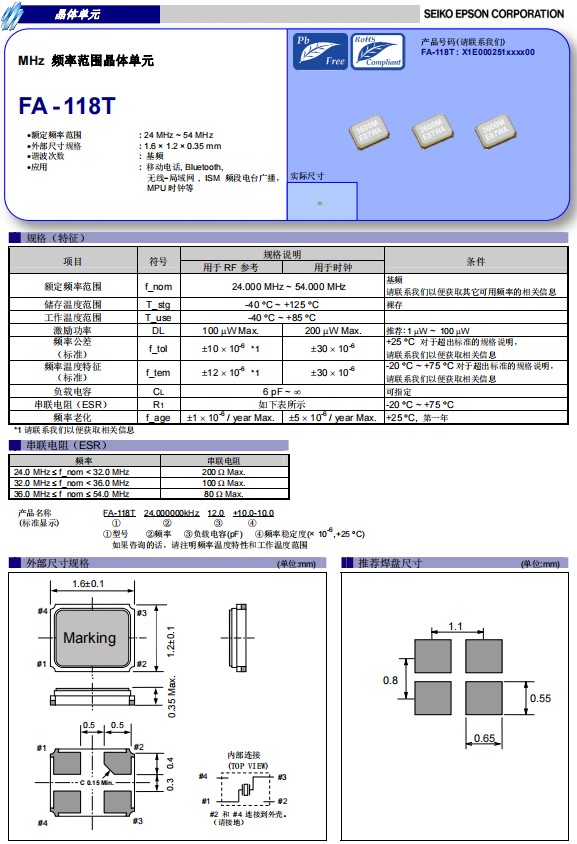

爱普生晶振推出的这款FA-118T，超小型尺寸1.6x1.2x0.35mm四脚贴片石英晶振，石英晶体谐振器，无源晶振，工作温度范围:-40℃至+85℃，具有超小型，轻薄型，耐热及耐环境特性，是当今很受欢迎的小尺寸晶振，被广泛用于小型便捷式设备，可穿戴设备，智能手机，移动电话，通讯网络，智能交通灯控制器，无线-局域网，ISM频段电台广播，MPU时钟等。
智能交通灯控制器专用晶振X1E000251001100
| 产品编码 |
 贴片晶振
|
 型号
|
 频率
|
 负载电容
|
 频率
|
  频率公差
|
 工作温度
|
| X1E000251000900 | 1.6x1.2x0.35mm | FA-118T | 27.120000MHz | 10pF | +/-30ppm | +/-50ppm | -20to+75°C |
| X1E000251001100 | 1.6x1.2x0.35mm | FA-118T | 26.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251001400 | 1.6x1.2x0.35mm | FA-118T | 26.000000MHz | 9pF | +/-10ppm | +/-12ppm | -20to+75°C |
| X1E000251001600 | 1.6x1.2x0.35mm | FA-118T | 37.400000MHz | 16pF | +/-10ppm | +/-10ppm | -20to+85°C |
| X1E000251003100 | 1.6x1.2x0.35mm | FA-118T | 37.400000MHz | 16pF | +/-7ppm | +/-10ppm | -30to+85°C |
| X1E000251003200 | 1.6x1.2x0.35mm | FA-118T | 40.000000MHz | 10pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251003300 | 1.6x1.2x0.35mm | FA-118T | 25.000000MHz | 10pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251003400 | 1.6x1.2x0.35mm | FA-118T | 25.000000MHz | 9pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251003500 | 1.6x1.2x0.35mm | FA-118T | 30.000000MHz | 8pF | +/-20ppm | +/-20ppm | -20to+75°C |
| X1E000251004600 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 12pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251005000 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 9pF | +/-10ppm | +/-12ppm | -20to+75°C |
| X1E000251005600 | 1.6x1.2x0.35mm | FA-118T | 52.000000MHz | 9pF | +/-15ppm | +/-12ppm | -20to+75°C |
| X1E000251005700 | 1.6x1.2x0.35mm | FA-118T | 25.000000MHz | 7pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251005900 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251006000 | 1.6x1.2x0.35mm | FA-118T | 48.000000MHz | 10pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251006400 | 1.6x1.2x0.35mm | FA-118T | 26.000000MHz | 12pF | +/-10ppm | +/-12ppm | -20to+75°C |
| X1E000251006500 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 10pF | +/-10ppm | +/-12ppm | -20to+75°C |
| X1E000251006800 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 8pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251006900 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 10pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251007100 | 1.6x1.2x0.35mm | FA-118T | 40.000000MHz | 12pF | +/-8ppm | +/-10ppm | -30to+85°C |
| X1E000251007500 | 1.6x1.2x0.35mm | FA-118T | 26.000000MHz | 8pF | +/-10ppm | +/-10ppm | -30to+85°C |
| X1E000251007700 | 1.6x1.2x0.35mm | FA-118T | 25.000000MHz | 9pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251007800 | 1.6x1.2x0.35mm | FA-118T | 40.000000MHz | 7pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251007900 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 9pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251008000 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 6pF | +/-10ppm | +/-12ppm | -20to+75°C |
| X1E000251008600 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 8pF | +/-20ppm | +/-20ppm | -20to+75°C |
| X1E000251009900 | 1.6x1.2x0.35mm | FA-118T | 48.000000MHz | 6pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251010200 | 1.6x1.2x0.35mm | FA-118T | 50.000000MHz | 8pF | +/-30ppm | +/-30ppm | -40to+85°C |
| X1E000251010400 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 10pF | +/-20ppm | +/-30ppm | -40to+85°C |
| X1E000251011100 | 1.6x1.2x0.35mm | FA-118T | 25.000000MHz | 10pF | +/-50ppm | +/-30ppm | -20to+75°C |
| X1E000251011300 | 1.6x1.2x0.35mm | FA-118T | 25.000000MHz | 8pF | +/-10ppm | +/-15ppm | -30to+85°C |
| X1E000251012100 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+85°C |
| X1E000251012600 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 7pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251013400 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 8pF | +/-10ppm | +/-12ppm | -20to+85°C |
| X1E000251013800 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 6pF | +/-10ppm | +/-15ppm | -20to+70°C |
| X1E000251014100 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 8pF | +/-20ppm | +/-20ppm | -40to+85°C |
| X1E000251014400 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 20pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251015000 | 1.6x1.2x0.35mm | FA-118T | 38.400000MHz | 20pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251015200 | 1.6x1.2x0.35mm | FA-118T | 48.000000MHz | 8pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000251015300 | 1.6x1.2x0.35mm | FA-118T | 24.000000MHz | 8pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000251015500 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 9pF | +/-30ppm | +/-30ppm | -20to+75°C |
| X1E000251015800 | 1.6x1.2x0.35mm | FA-118T | 50.000000MHz | 12pF | +/-10ppm | +/-15ppm | -40to+85°C |
| X1E000251016100 | 1.6x1.2x0.35mm | FA-118T | 37.400000MHz | 8pF | +/-10ppm | +/-10ppm | -30to+85°C |
| X1E000251016600 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 10pF | +/-10ppm | +/-10ppm | -30to+85°C |
| X1E000251019000 | 1.6x1.2x0.35mm | FA-118T | 40.000000MHz | 12pF | +/-10ppm | +/-10ppm | -30to+85°C |
| X1E000251019700 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 6pF | +/-10ppm | +/-10ppm | -20to+75°C |
| X1E000251020100 | 1.6x1.2x0.35mm | FA-118T | 38.400000MHz | 8pF | +/-10ppm | +/-10ppm | -20to+85°C |
| X1E000251021200 | 1.6x1.2x0.35mm | FA-118T | 40.000000MHz | 6pF | +/-10ppm | +/-20ppm | -40to+85°C |
| X1E000251021500 | 1.6x1.2x0.35mm | FA-118T | 32.000000MHz | 6pF | +/-20ppm | +/-20ppm | -40to+85°C |
| X1E000251021900 | 1.6x1.2x0.35mm | FA-118T | 40.000000MHz | 10pF | +/-10ppm | +/-20ppm | -40to+85°C |
晶振是利用石英本身所具有的压电效应、高稳定性、高品质因数、低损耗的物理特性，提供标准频率源和时钟脉冲信号的基础电子元器件，是电子信息产业的基础支持产业，广泛应用于资讯设备、移动终端、通讯及网络设备、汽车电子、智能家居、可穿戴、智能家居产品等。
