SG-8018CB小体积晶振编码X1G005581001600能够节省电路板空间

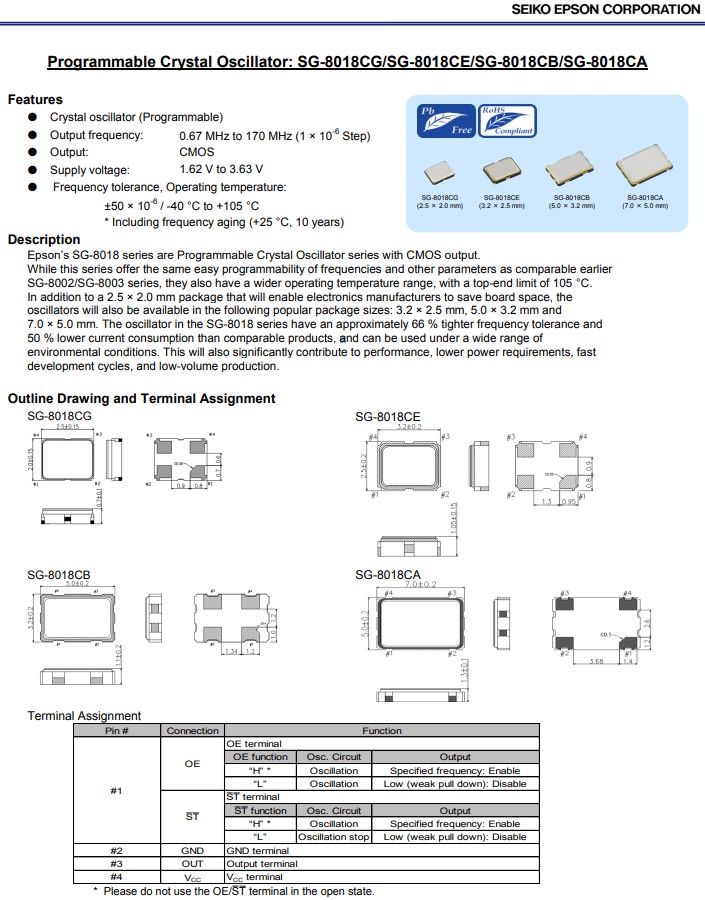

近年来，由于越来越需要更小的电子设备，使其在更广泛的环境中具有更大的功率和功能，包括极端o.工厂和工厂设备。爱普生晶振针对市场开发了可编程晶体振荡器系列产品新的SG-8018系列产品,共四种型号分别为SG-8018CA、SG-8018CB、SG-8018CE、SG-8018CG，频率调节精度可达1ppm，相比同级别元件的功耗、频率稳定性都有明显提升,SG-8018系列产品具有更宽的工作温度范围,除了2.5mmx2.0mm的封装，使电子制造商能够节省电路板空间，爱普生可编程晶体振荡器还可以在以下流行的封装尺寸中获得3.2mmx2.5mm，5.0mmx3.2mm和7.0mmx5.0mm,用户将能够利用SG-Writer II*1编程工具对SG8108系列和扩频振荡器进行编程
SG-8018CB小体积晶振编码X1G005581001600能够节省电路板空间
                                      产品编码
|
  频率
|
  型号
|
  石英晶振
|
  输出波
|
  电源电压
|
  工作温度
|
| X1G005581001100 | 25.000000 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005581001200 | 25.000000 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005581001300 | 20.000000 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005581001400 | 20.000000 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005581001500 | 50.000000 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005581001600 | 50.000000 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005581001700 | 48.000000 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005581001800 | 48.000000 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005581001900 | 24.000000 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005581002000 | 24.000000 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005581002100 | 40.000000 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005581002200 | 40.000000 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005581002300 | 16.000000 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005581002400 | 16.000000 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005581002500 | 12.000000 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005581002600 | 12.000000 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005581002700 | 10.000000 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005581002800 | 10.000000 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005581002900 | 27.000000 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005581003000 | 27.000000 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005581003100 | 32.000000 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005581003200 | 32.000000 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005581003300 | 8.000000 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005581003400 | 8.000000 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005581003500 | 14.745600 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005581003600 | 14.745600 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005581003700 | 12.288000 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005581003800 | 12.288000 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005581003900 | 33.000000 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005581004000 | 33.000000 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005581004100 | 30.000000 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005581004200 | 30.000000 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005581004300 | 26.000000 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
| X1G005581004400 | 26.000000 MHz | SG-8018CB | 5.00 x 3.20 x 1.30 mm | CMOS | 1.620 to 3.630 V | -40 to 105 °C |
爱普生SG-8018系列是新一代石英可编程晶振，具有低成本、可定制频率、快速交付、高稳定性、宽温级、低功耗、规格丰富等特点，可以替换目前中国市场上大部分常规有源晶振（SPXO），特别适合对交货周期有严格要求的客户，以及对于新产品开发要求快速响应，包括不常用频率的晶振也能快速批量交付的客户。有效解决中国电子企业在新品研发中经常出现的样品难找、标准频率少、批量供货交期长等难题，满足低成本、大批量、个性化频率定制服务。
