IQD晶振|IQXC-49晶振|LFXTAL084712Reel|5032进口晶振

频率：11.0592MHZ

尺寸：5.0mm×3.2mm

IQD晶振|IQXC-49晶振|LFXTAL084712Reel|5032进口晶振,IQD晶振,IQXC-49石英晶振,无源晶振,LFXTAL084712Reel晶振,5032进口晶振,SMD晶体,晶体谐振器,二脚贴片晶振,频率11.0592MHz,负载18pF,频率容差30ppm,工作温度范围-20~70°C,高可靠性晶振,无铅环保晶振,小体积晶振,网络附属存储晶振,无线接入点晶振,音频系统晶振,智能家居晶振.

订购热线：0755-27876565

IQD晶振|IQXC-49晶振|LFXTAL084712Reel|5032进口晶振,IQD晶振,IQXC-49石英晶振,无源晶振,LFXTAL084712Reel晶振,5032进口晶振,SMD晶体,晶体谐振器,二脚贴片晶振,频率11.0592MHz,负载18pF,频率容差30ppm,工作温度范围-20~70°C,高可靠性晶振,无铅环保晶振,小体积晶振,网络附属存储晶振,无线接入点晶振,音频系统晶振,智能家居晶振.

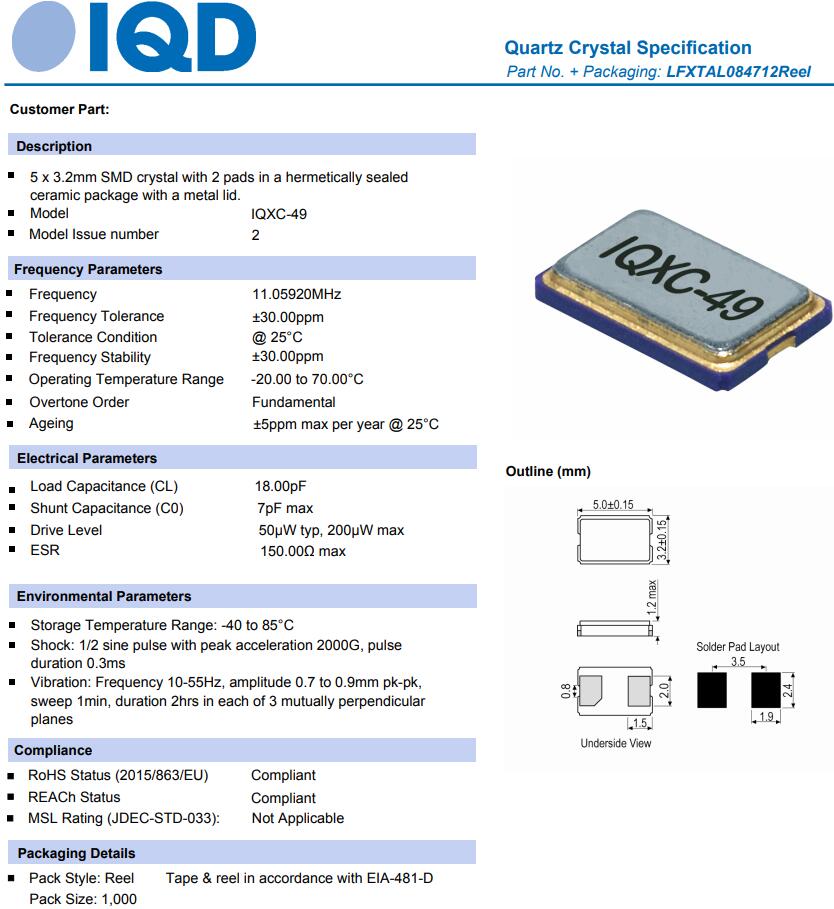

yijin-2 IQD晶振|IQXC-49晶振|LFXTAL084712Reel|5032进口晶振规格表

参数	数值
频率	11.0592 MHz
频率容差@ 25°C ± 3°C	±30ppm
频率稳定性	±30ppm
工作温度	-20~70°C
储存温度	-40~85°C
负载	18 pF
并联电容	7pF max
驱动电平	200µW max
老化@ 25°C ± 3°C	±5.0ppm max per year

yijin-3 IQD晶振|IQXC-42 AUTO晶振|LFXTAL071267Reel|汽车应用晶振尺寸图

编码	型号	频率	频率容差	频率稳定性	工作温度	负载
LFXTAL078795Cutt	IQXC-42	16.0MHz	±15ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL081780RL3K	IQXC-42	16.0MHz	±10ppm	±20ppm	-30°C to 85°C	8.00pF
LFXTAL081781RL3K	IQXC-42	16.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL081821Cutt	IQXC-42	16.0MHz	±10ppm	±15ppm	-30°C to 85°C	12.00pF
LFXTAL082887RL3K	IQXC-42	16.0MHz	±10ppm	±30ppm	-40°C to 105°C	10.00pF
LFXTAL059585Cutt	IQXC-42	20.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059585Reel	IQXC-42	20.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059585RL3K	IQXC-42	20.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL064174RL3K	IQXC-42	24.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL066139Cutt	IQXC-42	24.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069476RL3K	IQXC-42	24.0MHz	±10ppm	±10ppm	-20°C to 75°C	12.00pF
LFXTAL069493Cutt	IQXC-42	24.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069493Reel	IQXC-42	24.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069493RL3K	IQXC-42	24.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072577RL3K	IQXC-42	24.0MHz	±10ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL076411Cutt	IQXC-42	24.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL076411RL3K	IQXC-42	24.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL081531RL3K	IQXC-42	24.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL081646RL3K	IQXC-42	24.0MHz	±15ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL082123Cutt	IQXC-42	24.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082123RL3K	IQXC-42	24.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL090516RL3K	IQXC-42	24.0MHz	±50ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL054026Cutt	IQXC-42	25.0MHz	±25ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL059552Reel	IQXC-42	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL064933Cutt	IQXC-42	25.0MHz	±30ppm	±30ppm	0°C to 50°C	10.00pF
LFXTAL066140Cutt	IQXC-42	25.0MHz	±20ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069494Bulk	IQXC-42	25.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069494Cutt	IQXC-42	25.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069494Reel	IQXC-42	25.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL069494RL3K	IQXC-42	25.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL075431RL3K	IQXC-42	25.0MHz	±30ppm	±40ppm	-30°C to 85°C	6.00pF
LFXTAL082125Cutt	IQXC-42	25.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082125RL3K	IQXC-42	25.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL085846RL3K	IQXC-42	25.0MHz	±25ppm	±50ppm	-40°C to 125°C	10.00pF
LFXTAL090436RL3K	IQXC-42	25.0MHz	±10ppm	±20ppm	-40°C to 105°C	10.00pF
LFXTAL059591Cutt	IQXC-42	26.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059591Reel	IQXC-42	26.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059591RL3K	IQXC-42	26.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL066141Cutt	IQXC-42	26.0MHz	±15ppm	±15ppm	-20°C to 70°C	10.00pF
LFXTAL076879Bulk	IQXC-42	26.0MHz	±30ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL078377RL3K	IQXC-42	26.0MHz	±10ppm	±10ppm	-20°C to 75°C	12.00pF
LFXTAL081595Cutt	IQXC-42	26.0MHz	±10ppm	±30ppm	-40°C to 85°C	8.00pF
LFXTAL082126Cutt	IQXC-42	26.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082126Reel	IQXC-42	26.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082126RL3K	IQXC-42	26.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL083241Cutt	IQXC-42	26.0MHz	±15ppm	±20ppm	-20°C to 70°C	8.00pF
LFXTAL059592Cutt	IQXC-42	27.0MHz	±15ppm	±15ppm	-40°C to 85°C	10.00pF
LFXTAL072543Cutt	IQXC-42	27.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072543Reel	IQXC-42	27.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072543RL3K	IQXC-42	27.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL081349Reel	IQXC-42	27.0MHz	±15ppm	±20ppm	-40°C to 85°C	12.00pF
LFXTAL083147RL3K	IQXC-42	27.0MHz	±10ppm	±10ppm	-20°C to 70°C	18.00pF
LFXTAL063227Reel	IQXC-42	27.12MHz	±30ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL063227RL3K	IQXC-42	27.12MHz	±30ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL071489Bulk	IQXC-42	27.12MHz	±30ppm	±30ppm	-20°C to 70°C	10.00pF
LFXTAL071489Cutt	IQXC-42	27.12MHz	±30ppm	±30ppm	-20°C to 70°C	10.00pF
LFXTAL071489RL3K	IQXC-42	27.12MHz	±30ppm	±30ppm	-20°C to 70°C	10.00pF
LFXTAL076164Cutt	IQXC-42	27.12MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL076164Reel	IQXC-42	27.12MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL081630Cutt	IQXC-42	27.12MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL081630RL3K	IQXC-42	27.12MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL082127Cutt	IQXC-42	27.12MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082127RL3K	IQXC-42	27.12MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL059596Cutt	IQXC-42	30.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059596Reel	IQXC-42	30.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059596RL3K	IQXC-42	30.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL082128Cutt	IQXC-42	30.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082128RL3K	IQXC-42	30.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL058002RL3K	IQXC-42	32.0MHz	±10ppm	±10ppm	0°C to 50°C	8.00pF
LFXTAL058004Cutt	IQXC-42	32.0MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL058004RL3K	IQXC-42	32.0MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL058067Cutt	IQXC-42	32.0MHz	±15ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL058130RL3K	IQXC-42	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL058699Cutt	IQXC-42	32.0MHz	±10ppm	±10ppm	-10°C to 60°C	10.00pF
LFXTAL058962RL3K	IQXC-42	32.0MHz	±10ppm	±15ppm	-20°C to 70°C	12.00pF
LFXTAL059597Cutt	IQXC-42	32.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059597Reel	IQXC-42	32.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059597RL3K	IQXC-42	32.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL061700Cutt	IQXC-42	32.0MHz	±20ppm	±30ppm	-40°C to 85°C	8.00pF
LFXTAL061700Reel	IQXC-42	32.0MHz	±20ppm	±30ppm	-40°C to 85°C	8.00pF
LFXTAL072861RL3K	IQXC-42	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	8.00pF
LFXTAL073170RL3K	IQXC-42	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL077362RL3K	IQXC-42	32.0MHz	±10ppm	±20ppm	-40°C to 85°C	6.00pF
LFXTAL081227RL3K	IQXC-42	32.0MHz	±30ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL081538RL3K	IQXC-42	32.0MHz	±10ppm	±10ppm	-20°C to 75°C	8.00pF
LFXTAL081567Cutt	IQXC-42	32.0MHz	±10ppm	±10ppm	-20°C to 75°C	8.00pF
LFXTAL081839RL3K	IQXC-42	32.0MHz	±30ppm	±30ppm	-40°C to 85°C	6.00pF
LFXTAL082129Cutt	IQXC-42	32.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082129RL3K	IQXC-42	32.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL083004RL3K	IQXC-42	32.0MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL085946RL3K	IQXC-42	32.0MHz	±10ppm	±20ppm	-40°C to 105°C	12.00pF
LFXTAL088678RL3K	IQXC-42	32.768MHz	±30ppm	±50ppm	-20°C to 70°C	8.00pF
LFXTAL082130Cutt	IQXC-42	37.4MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082130RL3K	IQXC-42	37.4MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL059627Cutt	IQXC-42	38.4MHz	±15ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL059627Reel	IQXC-42	38.4MHz	±15ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL059627RL3K	IQXC-42	38.4MHz	±15ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL075418Cutt	IQXC-42	38.4MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL075418Reel	IQXC-42	38.4MHz	±10ppm	±10ppm	-20°C to 70°C	10.00pF
LFXTAL078271Cutt	IQXC-42	38.4MHz	±10ppm	±20ppm	-40°C to 85°C	18.00pF
LFXTAL081635Cutt	IQXC-42	38.4MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL081635RL3K	IQXC-42	38.4MHz	±10ppm	±10ppm	-20°C to 70°C	8.00pF
LFXTAL081883RL3K	IQXC-42	38.4MHz	±10ppm	±15ppm	-35°C to 85°C	8.00pF
LFXTAL082131Cutt	IQXC-42	38.4MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082131RL3K	IQXC-42	38.4MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082468Cutt	IQXC-42	38.4MHz	±10ppm	±15ppm	-40°C to 85°C	10.00pF
LFXTAL082468RL3K	IQXC-42	38.4MHz	±10ppm	±15ppm	-40°C to 85°C	10.00pF
LFXTAL059632Cutt	IQXC-42	40.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059632Reel	IQXC-42	40.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL059632RL3K	IQXC-42	40.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL082132Cutt	IQXC-42	40.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082132Reel	IQXC-42	40.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082132RL3K	IQXC-42	40.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL090469RL3K	IQXC-42	43.935MHz	±20ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL090628Reel	IQXC-42	45.761MHz	±20ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL066363Cutt	IQXC-42	48.0MHz	±50ppm	±50ppm	-40°C to 85°C	12.00pF
LFXTAL072546Cutt	IQXC-42	48.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072546Reel	IQXC-42	48.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL072546RL3K	IQXC-42	48.0MHz	±15ppm	±20ppm	-40°C to 85°C	10.00pF
LFXTAL082135Cutt	IQXC-42	48.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082135RL3K	IQXC-42	48.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL079374Cutt	IQXC-42	50.0MHz	±15ppm	±30ppm	-40°C to 85°C	10.00pF
LFXTAL085859RL3K	IQXC-42	50.0MHz	±10ppm	±50ppm	-40°C to 125°C	8.00pF
LFXTAL071255Cutt	IQXC-42 AUTO	16.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071255Reel	IQXC-42 AUTO	16.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071256Cutt	IQXC-42 AUTO	20.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071256Reel	IQXC-42 AUTO	20.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL082989Cutt	IQXC-42 AUTO	20.0MHz	±50ppm	±150ppm	-40°C to 150°C	8.00pF
LFXTAL082989Reel	IQXC-42 AUTO	20.0MHz	±50ppm	±150ppm	-40°C to 150°C	8.00pF
LFXTAL083912Cutt	IQXC-42 AUTO	20.0MHz	±30ppm	±45ppm	-40°C to 125°C	8.00pF
LFXTAL071257Cutt	IQXC-42 AUTO	24.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071257Reel	IQXC-42 AUTO	24.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071258Cutt	IQXC-42 AUTO	24.576MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071258Reel	IQXC-42 AUTO	24.576MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071259Cutt	IQXC-42 AUTO	25.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071259Reel	IQXC-42 AUTO	25.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071260Cutt	IQXC-42 AUTO	26.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071260Reel	IQXC-42 AUTO	26.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071261Cutt	IQXC-42 AUTO	27.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071261Reel	IQXC-42 AUTO	27.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071262Cutt	IQXC-42 AUTO	32.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071262Reel	IQXC-42 AUTO	32.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL084010Reel	IQXC-42 AUTO	32.0MHz	±10ppm	±15ppm	-40°C to 85°C	8.00pF
LFXTAL082907Cutt	IQXC-42 AUTO	38.4MHz	±20ppm	±80ppm	-40°C to 125°C	8.00pF
LFXTAL070734Cutt	IQXC-42 AUTO	40.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL070734Reel	IQXC-42 AUTO	40.0MHz	±50ppm	±100ppm	-40°C to 125°C	8.00pF
LFXTAL071265Cutt	IQXC-42 AUTO	40.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071265Reel	IQXC-42 AUTO	40.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL090472Reel	IQXC-42 AUTO	43.935MHz	±20ppm	±30ppm	-40°C to 85°C	12.00pF
LFXTAL071266Cutt	IQXC-42 AUTO	48.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071266Reel	IQXC-42 AUTO	48.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071267Cutt	IQXC-42 AUTO	50.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL071267Reel	IQXC-42 AUTO	50.0MHz	±10ppm	±100ppm	-40°C to 125°C	10.00pF
LFXTAL077082Cutt	IQXC-49	8.0MHz	±50ppm	±100ppm	-20°C to 70°C	16.00pF
LFXTAL077089Cutt	IQXC-49	8.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL077089Reel	IQXC-49	8.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL084035Reel	IQXC-49	8.0MHz	±30ppm	±30ppm	-20°C to 70°C	12.00pF
LFXTAL084673Reel	IQXC-49	8.0MHz	±50ppm	±50ppm	-40°C to 85°C	8.00pF
LFXTAL085089Reel	IQXC-49	8.0MHz	±20ppm	±20ppm	-40°C to 85°C	20.00pF
LFXTAL077084Reel	IQXC-49	10.0MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL077086Reel	IQXC-49	10.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL084712Reel	IQXC-49	11.0592MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL077079Reel	IQXC-49	18.432MHz	±30ppm	±50ppm	-40°C to 85°C	18.00pF
LFXTAL084840Reel	IQXC-49	20.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL077077Reel	IQXC-49	24.0MHz	±30ppm	±30ppm	-40°C to 85°C	20.00pF
LFXTAL081544Cutt	IQXC-49	24.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL077078Reel	IQXC-49	25.0MHz	±30ppm	±30ppm	-40°C to 85°C	20.00pF
LFXTAL077083Bulk	IQXC-49	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL077083Cutt	IQXC-49	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL077083Reel	IQXC-49	25.0MHz	±20ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL077085Cutt	IQXC-49	25.0MHz	±20ppm	±50ppm	-20°C to 70°C	18.00pF
LFXTAL083868Reel	IQXC-49	25.0MHz	±30ppm	±50ppm	-40°C to 85°C	20.00pF
LFXTAL080861Bulk	IQXC-49	27.12MHz	±30ppm	±30ppm	-40°C to 85°C	18.00pF
LFXTAL084410Cutt	IQXC-49	30.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF
LFXTAL084410Reel	IQXC-49	30.0MHz	±30ppm	±30ppm	-20°C to 70°C	18.00pF

yijin-5

YJ-6

深圳市亿金电子有限公司 SHENZHEN YIJIN ELECTRONICS CO;LTD

mphone 联系人黄娜：18924600166

工作QQ:857950243

myt 贸易通：yijindz2014

tel 座机：0755-27876565

email 邮箱:yijindz@163.com

inter 网址：http://www.yijindz.com

mwx 微信：yijindz，公众号：NDKcrystal

home 地址：广东省深圳市宝安区107国道旁甲岸路

wxewm

IQD晶振 IQXC-49晶振 LFXTAL084712Reel 5032进口晶振

跟此产品相关的产品 / Related Products

: UJ2600007Z,智能手机晶振,台产DIODES晶振,低相位抖动晶振,UJ晶体,削峰正弦波晶振; UJ2600007Z是一款台产的DIODES晶振，专为智能手机量身打造，属于UJ晶体系列。作为低相位抖动的削峰正弦波晶振，它为智能手机的稳定运行提供了精准的时钟信号，是保障手机各项功能高效运作的关键元件。这款晶振采用先进的制造工艺，选用高品质材料，确保在 - 20℃至 + 70℃的工作温度范围内，能将相位抖动控制在极低水平，展现出卓越的频率稳定性。其削峰正弦波输出特性，不仅降低了谐波干扰，还优化了信号质量，为手机的射频模块、处理器及其他关键组件提供纯净、稳定的时钟基准。在智能手机中，无论是高速的数据传输、流畅的多媒体播放，还是精准的定位导航，UJ2600007Z都凭借其稳定的性能，确保各个功能模块之间的精确协同工作，提升用户体验。

: 台产石英晶振,光纤通道晶振,FD0810003晶振,Diodes振荡器,FD贴片晶体; FD0810003台产Diodes晶振，凭借其在光纤通道领域的卓越表现，成为光纤通信系统中的关键组件。它基于先进的石英制造工艺，确保了在 - 40℃至 + 85℃的宽温度范围内，具备出色的频率稳定性，能将频率偏差严格控制在极小范围，为光纤通道设备提供可靠的时钟基准。作为FD贴片晶体，其封装形式不仅实现了体积的小型化，便于在光纤通信设备的电路板上进行高密度安装，适应设备小型化、集成化的发展趋势，还优化了散热性能和电气性能，提升了晶振在不同工作条件下的稳定性和抗干扰能力。

: FJ2400002振荡器,笔记本电脑晶振,LVCMOS有源晶振,亚陶FJ晶振,2520进口贴片; FJ2400002振荡器,笔记本电脑晶振,LVCMOS有源晶振,亚陶FJ晶振,2520进口贴片 FJ2400002作为亚陶为笔记本电脑量身打造的LVCMOS有源晶振，在笔记本电脑的运行中起着不可或缺的作用。采用2520贴片封装，这种小巧的封装形式完美适配笔记本电脑内部紧凑的电路板布局，在有限的空间内实现高效安装，同时有助于优化散热和电气性能，提升晶振在复杂电磁环境下的稳定性。
