FK125EIVM0.032768进口环保晶体,FOX医疗器械晶振,FK125高精度2520晶振
频率:32.768KHz

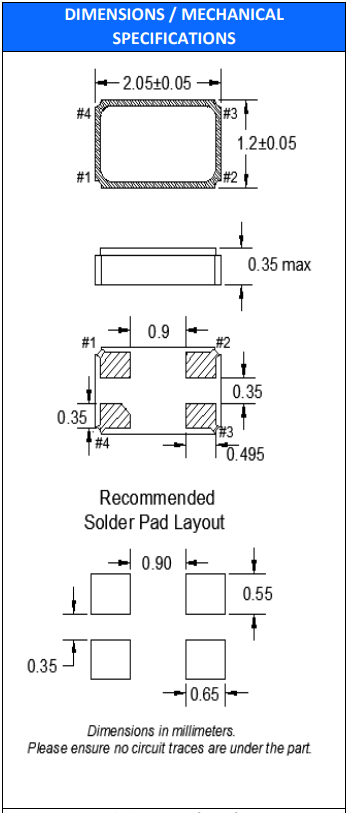

尺寸:2012mm
FK125EIVM0.032768进口环保晶体,FOX医疗器械晶振,FK125高精度2520晶振,美国福克斯晶振公司,32.768KHz晶振,FK125晶振,FOX晶振,FK125EIVM0.032768晶振,2012晶振,SMD晶振,无源晶振,环保无铅晶振,低损耗晶振,高精度晶振,二脚晶振,进口晶振,无源晶振,贴片晶振,智能手表晶振,音叉晶振,医疗手表晶振,移动通讯晶振,微型晶振,汽车晶振,汽车辅助驾驶晶振,中控系统晶振。通过创造尖端产品,提高石英晶振的精度性能,可靠性与准确性。
FK125EIVM0.032768进口环保晶体,FOX医疗器械晶振,FK125高精度2520晶振

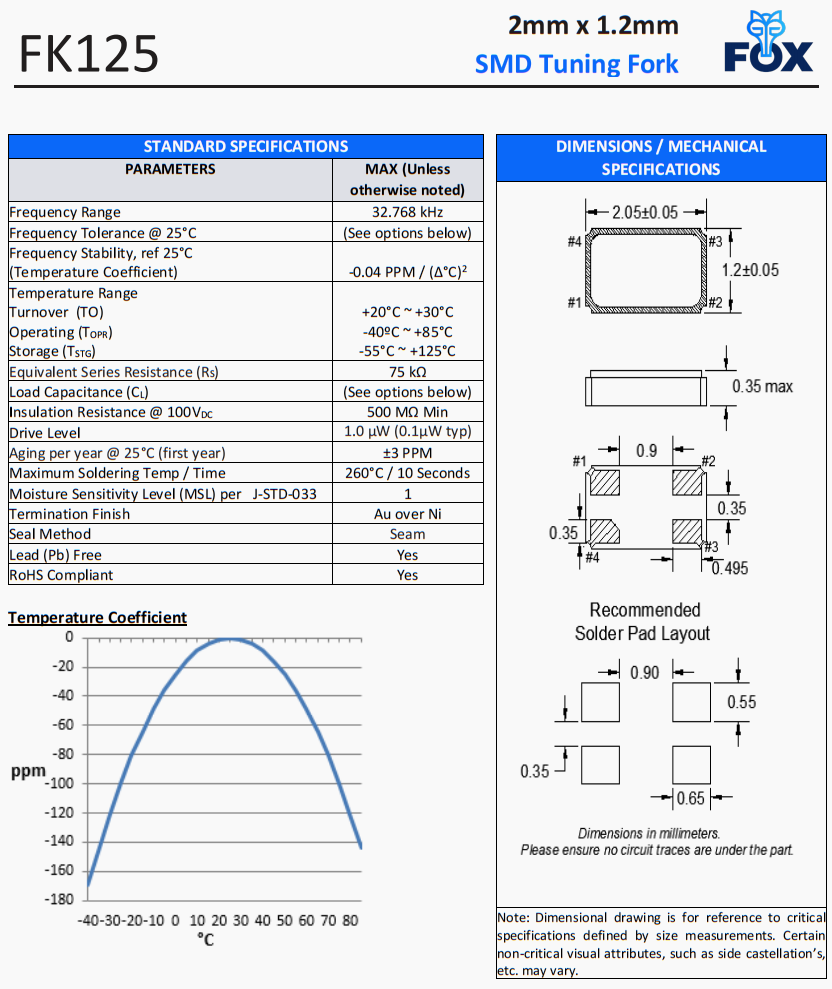

STANDARD SPECIFICATIONS | |
参数 | MAX (Unless otherwise noted) |
频率 | 32.768 kHz |
频率容差 | (See options below) |
频率稳定度 | -0.04 PPM / (?°C)2 |
温度范围 运输 (TO) 工作 (TOPR) 储存 (TSTG) |
+20°C ~ +30°C -40ºC ~ +85°C -55°C ~ +125°C |
等效串联电阻 | 75 k? |
负载电容 | (See options below) |
绝缘电阻 | 500 M? Min |
驱动电平 | 1.0 µW (0.1µW typ) |
老化 | ±3 PPM |
最大焊接温度/时间 | 260°C / 10 Seconds |
温度敏感度 | 1 |
终止完成 | Au over Ni |
密封方法 | Seam |
无铅 | Yes |
符合RoHS | Yes |
FK125EIVM0.032768进口环保晶体,FOX医疗器械晶振,FK125高精度2520晶振
编码
品牌
型号
工作温度
频率
频率稳定度
频率容差
负载电容
FC0BSFEEN23A99675-T2
Fox
FC0BS
-20°C ~ 85°C
23.99675 MHz
±20ppm
±15ppm
10 pF
FC0BSFEEN23A99675-T3
Fox
FC0BS
-20°C ~ 85°C
23.99675 MHz
±20ppm
±15ppm
10 pF
FC1BACBEI20.0-T3
Fox
FC1BA
-40°C ~ 12°C
20 MHz
±50ppm
±30ppm
10 pF
FC1BAEBDI16.0-T1
Fox
FC1BA
-40°C ~ 125°C
16 MHz
±50ppm
±20ppm
8 pF
FC1BAEBDI20.0-T1
Fox
FC1BA
-40°C ~ 125°C
20 MHz
±50ppm
±20ppm
8 pF
FC1BAEBDI24.0-T1
Fox
FC1BA
-40°C ~ 125°C
24 MHz
±50ppm
±20ppm
8 pF
FC1BAEBDI25.0-T1
Fox
FC1BA
-40°C ~ 125°C
25 MHz
±50ppm
±20ppm
8 pF
FC1BAEBDI40.0-T1
Fox
FC1BA
-40°C ~ 125°C
40 MHz
±50ppm
±20ppm
8 pF
FC1BAEBEI16.0-T1
Fox
FC1BA
-40°C ~ 125°C
16 MHz
±50ppm
±20ppm
10 pF
FC1BAEBEI20.0-T1
Fox
FC1BA
-40°C ~ 125°C
20 MHz
±50ppm
±20ppm
10 pF
FC1BAEBEI24.0-T1
Fox
FC1BA
-40°C ~ 125°C
24 MHz
±50ppm
±20ppm
10 pF
FC1BAEBEI25.0-T1
Fox
FC1BA
-40°C ~ 125°C
25 MHz
±50ppm
±20ppm
10 pF
FC1BAEBEI40.0-T1
Fox
FC1BA
-40°C ~ 125°C
40 MHz
±50ppm
±20ppm
10 pF
FC1BAEBGI16.0-T1
Fox
FC1BA
-40°C ~ 125°C
16 MHz
±50ppm
±20ppm
12 pF
FC1BAEBGI20.0-T1
Fox
FC1BA
-40°C ~ 125°C
20 MHz
±50ppm
±20ppm
12 pF
FC1BAEBGI24.0-T1
Fox
FC1BA
-40°C ~ 125°C
24 MHz
±50ppm
±20ppm
12 pF
FC1BAEBGI25.0-T1
Fox
FC1BA
-40°C ~ 125°C
25 MHz
±50ppm
±20ppm
12 pF
FC1BAEBGI40.0-T1
Fox
FC1BA
-40°C ~ 125°C
40 MHz
±50ppm
±20ppm
12 pF
FC1BQCCEK27.12-1
Fox
FC1BQ
-30°C ~ 85°C
27.12 MHz
±30ppm
±30ppm
10 pF
FC1BSCBEM27.12-T3
Fox
FC1BS
-40°C ~ 85°C
27.12 MHz
±50ppm
±30ppm
10 pF
FC1BSCCEM16.0-T3
Fox
FC1BS
-40°C ~ 85°C
16 MHz
±30ppm
±30ppm
10 pF
FC1BSHFEM32.0-T3
Fox
FC1BS
-40°C ~ 85°C
32 MHz
±15ppm
±10ppm
10 pF
FC1BSHHVK50.0-1-T3
Fox
FC1BS
-30°C ~ 85°C
50 MHz
±10ppm
±10ppm
7 pF
FC2BACBEI16.0-T1
Fox
FC2BA
-40°C ~ 12°C
16 MHz
±50ppm
±30ppm
10 pF
FC2BACBEI16.0-T3
Fox
FC2BA
-40°C ~ 12°C
16 MHz
±50ppm
±30ppm
10 pF
FC2BAEBDI12.0-T1
Fox
FC2BA
-40°C ~ 125°C
12 MHz
±50ppm
±20ppm
8 pF
FC2BAEBDI16.0-T1
Fox
FC2BA
-40°C ~ 125°C
16 MHz
±50ppm
±20ppm
8 pF
FC2BAEBDI20.0-T1
Fox
FC2BA
-40°C ~ 125°C
20 MHz
±50ppm
±20ppm
8 pF
FC2BAEBDI24.0-T1
Fox
FC2BA
-40°C ~ 125°C
24 MHz
±50ppm
±20ppm
8 pF
FC2BAEBDI25.0-T1
Fox
FC2BA
-40°C ~ 125°C
25 MHz
±50ppm
±20ppm
8 pF
FC2BAEBDI40.0-T1
Fox
FC2BA
-40°C ~ 125°C
40 MHz
±50ppm
±20ppm
8 pF
FC2BAEBEI12.0-T1
Fox
FC2BA
-40°C ~ 125°C
12 MHz
±50ppm
±20ppm
10 pF
FC2BAEBEI16.0-T1
Fox
FC2BA
-40°C ~ 125°C
16 MHz
±50ppm
±20ppm
10 pF
FC2BAEBEI20.0-T1
Fox
FC2BA
-40°C ~ 125°C
20 MHz
±50ppm
±20ppm
10 pF
FC2BAEBEI24.0-T1
Fox
FC2BA
-40°C ~ 125°C
24 MHz
±50ppm
±20ppm
10 pF
FC2BAEBEI25.0-T1
Fox
FC2BA
-40°C ~ 125°C
25 MHz
±50ppm
±20ppm
10 pF
FC2BAEBEI40.0-T1
Fox
FC2BA
-40°C ~ 125°C
40 MHz
±50ppm
±20ppm
10 pF
FC2BAEBGI25.0-T1
Fox
FC2BA
-40°C ~ 125°C
25 MHz
±50ppm
±20ppm
12 pF
FC2BSBBMM16.0-T1
Fox
FC2BS
-40°C ~ 85°C
16 MHz
±50ppm
±50ppm
20 pF
FC2BSBBMM16.0-T3
Fox
FC2BS
-40°C ~ 85°C
16 MHz
±50ppm
±50ppm
20 pF
FC3BABBKM20.0-T3
Fox
FC3BA
-40°C ~ 85°C
20 MHz
±50ppm
±50ppm
16 pF
FC3BACAGI16.0-T3
Fox
FC3BA
-40°C ~ 12°C
16 MHz
±100ppm
±30ppm
12 pF
FC3BACALI16.0-T3
Fox
FC3BA
-40°C ~ 12°C
16 MHz
±100ppm
±30ppm
18 pF
FC3BACBDI16.0-T3
Fox
FC3BA
-40°C ~ 12°C
16 MHz
±50ppm
±30ppm
8 pF
FC3BACCGM20.0-T3
Fox
FC3BA
-40°C ~ 85°C
20 MHz
±30ppm
±30ppm
12 pF
FC3BACCLP12.0-T3
Fox
FC3BA
-40°C ~ 10°C
12 MHz
±30ppm
±30ppm
18 pF
FC3BAEBDI12.0-T1
Fox
FC3BA
-40°C ~ 125°C
12 MHz
±50ppm
±20ppm
8 pF
FC3BAEBDI16.0-T1
Fox
FC3BA
-40°C ~ 125°C
16 MHz
±50ppm
±20ppm
8 pF
FC3BAEBDI20.0-T1
Fox
FC3BA
-40°C ~ 125°C
20 MHz
±50ppm
±20ppm
8 pF
FC3BAEBDI24.0-T1
Fox
FC3BA
-40°C ~ 125°C
24 MHz
±50ppm
±20ppm
8 pF
FC3BAEBDI25.0-T1
Fox
FC3BA
-40°C ~ 125°C
25 MHz
±50ppm
±20ppm
8 pF
FC3BAEBDI40.0-T1
Fox
FC3BA
-40°C ~ 125°C
40 MHz
±50ppm
±20ppm
8 pF
FC3BAEBDI8.0-T1
Fox
FC3BA
-40°C ~ 125°C
8 MHz
±50ppm
±20ppm
8 pF
FC3BAEBGI12.0-T1
Fox
FC3BA
-40°C ~ 125°C
12 MHz
±50ppm
±20ppm
12 pF
FC3BAEBGI24.0-T1
Fox
FC3BA
-40°C ~ 125°C
24 MHz
±50ppm
±20ppm
12 pF
FC3BAEBGI25.0-T1
Fox
FC3BA
-40°C ~ 125°C
25 MHz
±50ppm
±20ppm
12 pF
FC3BAEBGI40.0-T1
Fox
FC3BA
-40°C ~ 125°C
40 MHz
±50ppm
±20ppm
12 pF
FC3BQBBDM20.0-T3
Fox
FC3BQ
-40°C ~ 85°C
20 MHz
±50ppm
±50ppm
8 pF
FC3BQBBME12.0-T3
Fox
FC3BQ
-10°C ~ 70°C
12 MHz
±50ppm
±50ppm
20 pF
FC3BQBBME16.0-T1
Fox
FC3BQ
-10°C ~ 70°C
16 MHz
±50ppm
±50ppm
20 pF
FC3BQBBME24.0-T1
Fox
FC3BQ
-10°C ~ 70°C
24 MHz
±50ppm
±50ppm
20 pF
FC3BQBBME25.0-T1
Fox
FC3BQ
-10°C ~ 70°C
25 MHz
±50ppm
±50ppm
20 pF
FC3BQBBME25.0-T3
Fox
FC3BQ
-10°C ~ 70°C
25 MHz
±50ppm
±50ppm
20 pF
FC3BQBBME27.0-T1
Fox
FC3BQ
-10°C ~ 70°C
27 MHz
±50ppm
±50ppm
20 pF
FC3BQBBMM12.0-T1
Fox
FC3BQ
-40°C ~ 85°C
12 MHz
±50ppm
±50ppm
20 pF
FC3BQBBMM12.0-T3
Fox
FC3BQ
-40°C ~ 85°C
12 MHz
±50ppm
±50ppm
20 pF
FC3BQBBMM24.0-T1
Fox
FC3BQ
-40°C ~ 85°C
24 MHz
±50ppm
±50ppm
20 pF
FC3BQBBMM24.0-T3
Fox
FC3BQ
-40°C ~ 85°C
24 MHz
±50ppm
±50ppm
20 pF
FC3BQBBMM25.0-T1
Fox
FC3BQ
-40°C ~ 85°C
25 MHz
±50ppm
±50ppm
20 pF
FC3BQBBMM25.0-T3
Fox
FC3BQ
-40°C ~ 85°C
25 MHz
±50ppm
±50ppm
20 pF
FC3BQBBVM25.0-T3
Fox
FC3BQ
-40°C ~ 85°C
25 MHz
±50ppm
±50ppm
7 pF
FC3BSBBEM26.0-T3
Fox
FC3BS
-40°C ~ 85°C
26 MHz
±50ppm
±50ppm
10 pF
FC3BSBBLM25.0-T3
Fox
FC3BS
-40°C ~ 85°C
25 MHz
±50ppm
±50ppm
18 pF
FC3BSBBMM25.0-T3
Fox
FC3BS
-40°C ~ 85°C
25 MHz
±50ppm
±50ppm
20 pF
FC3BSHFEM12.0-T3
Fox
FC3BS
-40°C ~ 85°C
12 MHz
±15ppm
±10ppm
10 pF
FC3BSHHEF26.0-T3
Fox
FC3BS
-20°C ~ 70°C
26 MHz
±10ppm
±10ppm
10 pF
FC3BSHHEF32.0-T3
Fox
FC3BS
-20°C ~ 70°C
32 MHz
±10ppm
±10ppm
10 pF
FC3BSHLGA27.0-1-T3
Fox
FC3BS
0°C ~ 50°C
27 MHz
±5ppm
±10ppm
12 pF
FC3VAEEGM50.0-T3
Fox
FC3VA
-40°C ~ 85°C
50 MHz
±20ppm
±20ppm
12 pF
FC3VREEDM38.4-T1
Fox
FC3VR
-40°C ~ 85°C
38.4 MHz
±20ppm
±20ppm
8 pF
FC3VREEDM38.88-T1
Fox
FC3VR
-40°C ~ 85°C
38.88 MHz
±20ppm
±20ppm
8 pF
FC3VREEDM40.0-T1
Fox
FC3VR
-40°C ~ 85°C
40 MHz
±20ppm
±20ppm
8 pF
FC3VREEDM48.0-T1
Fox
FC3VR
-40°C ~ 85°C
48 MHz
±20ppm
±20ppm
8 pF
FC3VREEEM38.4-T1
Fox
FC3VR
-40°C ~ 85°C
38.4 MHz
±20ppm
±20ppm
10 pF
FC3VREEGM36.0-T1
Fox
FC3VR
-40°C ~ 85°C
36 MHz
±20ppm
±20ppm
12 pF
FC3VREEGM38.4-T1
Fox
FC3VR
-40°C ~ 85°C
38.4 MHz
±20ppm
±20ppm
12 pF
FC3VREEGM38.88-T1
Fox
FC3VR
-40°C ~ 85°C
38.88 MHz
±20ppm
±20ppm
12 pF
FC3VREEGM40.0-T1
Fox
FC3VR
-40°C ~ 85°C
40 MHz
±20ppm
±20ppm
12 pF
FC3VREEGM50.0-T1
Fox
FC3VR
-40°C ~ 85°C
50 MHz
±20ppm
±20ppm
12 pF
FC4SDBBMF3.2-T1
Fox
FC4SD
-20°C ~ 70°C
3.2 MHz
±50ppm
±50ppm
20 pF
FC4SDCBGF24.0-T1
Fox
FC4SD
-20°C ~ 70°C
24 MHz
±50ppm
±30ppm
12 pF
FC4SDCBGF4.194304-T1
Fox
FC4SD
-20°C ~ 70°C
4.194304 MHz
±50ppm
±30ppm
12 pF
FC4SDCBGM8.0-T1
Fox
FC4SD
-40°C ~ 85°C
8 MHz
±50ppm
±30ppm
12 pF
FC4SDCBKF24.0-T1
Fox
FC4SD
-20°C ~ 70°C
24 MHz
±50ppm
±30ppm
16 pF
深圳市亿金电子有限公司 SHENZHEN YIJIN ELECTRONICS CO;LTD
联系人黄娜:18924600166
工作QQ:857950243
贸易通:yijindz2014
座机:0755-27876565
邮箱:yijindz@163.com
微信:yijindz,公众号:NDKcrystal
地址:广东省深圳市宝安区107国道旁甲岸路
跟此产品相关的产品 / Related Products
- FMXMC12S系列,2012贴片晶振,32.768K时钟晶振,FMI石英晶体,进口无源晶振
FMXMC12S系列,2012贴片晶振,32.768K时钟晶振,FMI石英晶体,进口无源晶振
美国进口FMI石英晶体中的FMXMC12S系列的频率是32.768KHz,负载电容为9.0 pF或12.5 pF,频率公差是±20ppm或±50ppm@ 25°C,工作温度范围为-40~85度,尺寸是2.0 x 1.2 mm,为2012贴片晶振,进口无源晶振,32.768K时钟晶振。2012 石英晶振可以说是一款超小型的贴片式石英晶体谐振器,2012 晶振的频率均是电 子产品不可缺少的 32.768K 时钟晶振,FMXMC12S此款贴片晶振体积小型, 焊接可采用自动贴片焊接系统,满足无铅高温回流焊接曲线,可使用在小型高端的智能 电子产品领域.
- KX-327L晶振,12.87131,GEYER晶振,32.768KHz,12.5pF,±20ppm,7015谐振器
KX-327L晶振,12.87131,GEYER晶振,32.768KHz,12.5pF,±20ppm,7015谐振器
进口GEYER晶振中编码为12.87131的KX-327L晶振,其频率为32.768KHz,频率公差是±20ppm,负载电容为12.5pF,是进口无源晶振,其尺寸为7.0×1.5×1.4mm,一般也称呼为7015谐振器、32.768K时钟晶振。几十年来,GEYER Electronic一直是频率产品、石英晶体、振荡器和陶瓷谐振器的领先制造商之一,成立于 1964 年,总部设在德国以及欧洲、亚洲和美国的其他地方,为全球客户提供服务。
- SWS3129D48-32.768K,SUNTSU测量仪器晶振,3215mm时钟晶振
- SWS3129D48-32.768K,SUNTSU测量仪器晶振,3215mm时钟晶振,美国进口晶振,Suntsu晶振,松图晶振,型号:SWS312,编码为:SWS3129D48-32.768K,频率为:32.768KHz,负载电容:9pF,精度:±20ppm,工作温度范围:-40℃至+85℃,小体积晶振尺寸:3.2x1.5x0.8mm封装,两脚贴片晶振,石英晶振,3215贴片晶振,无源晶振,SMD晶振,石英晶体谐振器。具有超小型晶振,轻薄型晶振,高性能晶振,高品质晶振,耐热及耐环境等特点,被广泛应用于:测试仪器晶振,实时时钟晶振,数字显示晶振,计时晶振,无线应用等。
晶振系列
日本进口晶振
- 京瓷晶振
- 精工晶振
- 西铁城晶振
- 村田晶振
- 大河晶振
- KDS Quartz crystal
- NDK Quartz crystal
- EPSON Quartz crystal
- 富士晶振
- NAKA晶振
- SMI晶振
- NJR晶振
台产晶振
欧美晶振
- CTS晶振
- 微晶晶振
- 瑞康晶振
- 康纳温菲尔德晶振
- 高利奇晶振
- Jauch晶振
- AbraconCrystal晶振
- 维管晶振
- ECScrystal晶振
- 日蚀晶振
- 拉隆晶振
- 格林雷晶振
- SiTimeCrystal晶振
- IDTcrystal晶振
- PletronicsCrystal晶振
- StatekCrystal晶振
- AEK晶振
- AEL晶振
- Cardinal晶振
- Crystek晶振
- Euroquartz晶振
- 福克斯晶振
- Frequency晶振
- GEYER晶振
- ILSI晶振
- KVG晶振
- MMDCOMP晶振
- MtronPTI晶振
- QANTEK晶振
- QuartzCom晶振
- QuartzChnik晶振
- SUNTSU晶振
- Transko晶振
- WI2WI晶振
- 韩国三呢晶振
- ITTI晶振
- ACT晶振
- Milliren晶振
- Lihom晶振
- rubyquartz晶振
- Oscilent晶振
- SHINSUNG晶振
- PDI晶振
- C-TECH晶振
- IQD晶振
- Microchip晶振
- Silicon晶振
- Fortiming晶振
- CORE晶振
- NIPPON晶振
- NIC晶振
- QVS晶振
- Bomar晶振
- Bliley晶振
- GED晶振
- FILTRONETICS晶振
- STD晶振
- Q-Tech晶振
- Anderson晶振
- Wenzel晶振
- NEL晶振
- EM晶振
- PETERMANN晶振
- FCD-Tech晶振
- HEC晶振
- FMI晶振
- Macrobizes晶振
- AXTAL晶振
- 瑞萨renesas晶振
- Skyworks晶振
有源晶振
雾化片
贴片晶振
32.768K
- 32.768K有源晶振
- 8.0x3.8晶振
- 7.1x3.3晶振
- 7.0x1.5晶振
- 5.0x1.8晶振
- 4.1x1.5晶振
- 3.2x1.5晶振
- 2.0x1.2晶振
- 1.6x1.0晶振
- 1.2x1.0晶振
- 圆柱晶振
声表面滤波器
石英晶振
KDS晶振
爱普生晶振
- EPSON 32.768K晶振
- EPSON无源晶振
- EPSON普通有源晶振
- EPSON压控晶振
- EPSON温补晶振
- EPSON压控温补晶振
- EPSON恒温晶振
- EPSON差分晶振
- EPSON可编程晶振
