JXS22-WA,Q 38.4-JXS22-10-10/10-FU-WA-LF,38.4MHz,10PPM,10PF

频率：38.4MHZ

尺寸：2.5X2.0mm

JXS22-WA,Q 38.4-JXS22-10-10/10-FU-WA-LF,38.4MHz,10PPM,10PF，Jauch贴片晶振，4垫版本·2.5 x 2.0毫米，± 10 ppm型可用的，电磁干扰屏蔽可能通过接地盖，回流焊温度：最大260°C。陶瓷/金属包装.

订购热线：0755-27876565

Jauch-1

yijin-1

yijin-2

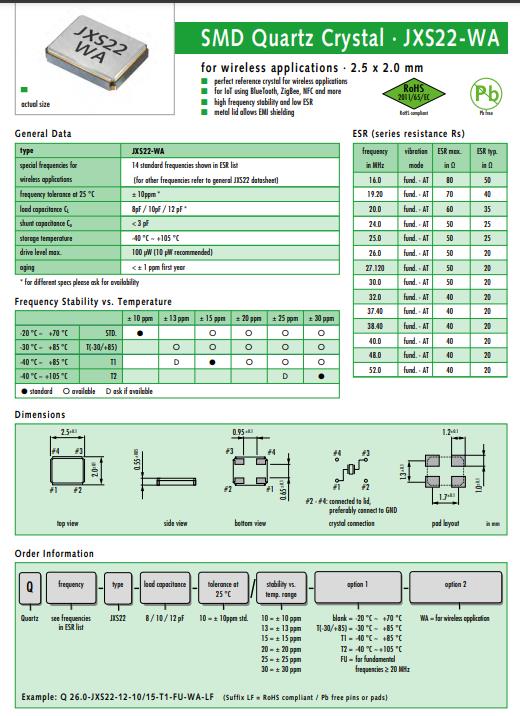

JXS22-WA,Q 38.4-JXS22-10-10/10-FU-WA-LF,38.4MHz,10PPM,10PF

类型			JXS22-WA
针对无线应用程序的特殊频率			ESR列表中显示的14个标准频率（其他频率参考通用JXS22数据表）

频率容差 at 25 °C			± 10ppm *
负载电容			8pF / 10pF / 12 pF *
并联电容			< 3 pF
储存温度			-40 °C ~ +105 °C
驱动电平			100 µW (10 µW recommended)
老化			< ± 1 ppm first year

yijin-3

JXS22-WA,Q 38.4-JXS22-10-10/10-FU-WA-LF,38.4MHz,10PPM,10PF

JXS22-WA

JAUCH原厂编码	生产厂商	型号	频率	频率偏差	负载电荷
Q 19.2-JXS22-10-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	10pF
Q 19.2-JXS22-12-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	12pF
Q 19.2-JXS22-8-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	8pF
Q 19.2-JXS22-9-10/10-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	9pF
Q 20.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	10pF
Q 20.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	12pF
Q 20.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	8pF
Q 20.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	9pF
Q 24.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	10pF
Q 24.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	12pF
Q 24.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	8pF
Q 24.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	9pF
Q 26.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	10pF
Q 26.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	12pF
Q 26.0-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	8pF
Q 26.0-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	9pF
Q 27.12-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	27.12MHz	±10ppm	10pF
Q 27.12-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	27.12MHz	±10ppm	12pF
Q 27.12-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	27.12MHz	±10ppm	8pF
Q 27.12-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	27.12MHz	±10ppm	9pF
Q 16.0-JXS22-10-10/10-WA-LF	Jauch晶振	JXS22-WA	16MHz	±10ppm	10pF
Q 16.0-JXS22-12-10/10-WA-LF	Jauch晶振	JXS22-WA	16MHz	±10ppm	12pF
Q 16.0-JXS22-8-10/10-WA-LF	Jauch晶振	JXS22-WA	16MHz	±10ppm	8pF
Q 16.0-JXS22-9-10/10-WA-LF	Jauch晶振	JXS22-WA	16MHz	±10ppm	9pF
Q 19.2-JXS22-10-10/15-T1-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	10pF
Q 19.2-JXS22-12-10/15-T1-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	12pF
Q 19.2-JXS22-8-10/15-T1-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	8pF
Q 19.2-JXS22-9-10/15-T1-WA-LF	Jauch晶振	JXS22-WA	19.2MHz	±10ppm	9pF
Q 20.0-JXS22-10-10/15-T1-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	10pF
Q 20.0-JXS22-12-10/15-T1-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	12pF
Q 20.0-JXS22-8-10/15-T1-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	8pF
Q 20.0-JXS22-9-10/15-T1-FU-WA-LF	Jauch晶振	JXS22-WA	20MHz	±10ppm	9pF
Q 24.0-JXS22-10-10/15-T1-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	10pF
Q 24.0-JXS22-12-10/15-T1-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	12pF
Q 24.0-JXS22-8-10/15-T1-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	8pF
Q 24.0-JXS22-9-10/15-T1-FU-WA-LF	Jauch晶振	JXS22-WA	24MHz	±10ppm	9pF
Q 26.0-JXS22-10-10/15-T1-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	10pF
Q 26.0-JXS22-12-10/15-T1-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	12pF
Q 26.0-JXS22-8-10/15-T1-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	8pF
Q 26.0-JXS22-9-10/15-T1-FU-WA-LF	Jauch晶振	JXS22-WA	26MHz	±10ppm	9pF
Q 27.12-JXS22-10-10/15-T1-FU-WA-LF	Jauch晶振	JXS22-WA	27.12MHz	±10ppm	10pF
Q 27.12-JXS22-12-10/15-T1-FU-WA-LF	Jauch晶振	JXS22-WA	27.12MHz	±10ppm	12pF
Q 27.12-JXS22-8-10/15-T1-FU-WA-LF	Jauch晶振	JXS22-WA	27.12MHz	±10ppm	8pF
Q 27.12-JXS22-9-10/15-T1-FU-WA-LF	Jauch晶振	JXS22-WA	27.12MHz	±10ppm	9pF
Q 16.0-JXS22-10-10/15-T1-WA-LF	Jauch晶振	JXS22-WA	16MHz	±10ppm	10pF
Q 16.0-JXS22-12-10/15-T1-WA-LF	Jauch晶振	JXS22-WA	16MHz	±10ppm	12pF
Q 16.0-JXS22-8-10/15-T1-WA-LF	Jauch晶振	JXS22-WA	16MHz	±10ppm	8pF
Q 16.0-JXS22-9-10/15-T1-WA-LF	Jauch晶振	JXS22-WA	16MHz	±10ppm	9pF
Q 38.4-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	38.4MHz	±10ppm	10pF
Q 38.4-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	38.4MHz	±10ppm	12pF
Q 38.4-JXS22-8-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	38.4MHz	±10ppm	8pF
Q 38.4-JXS22-9-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	38.4MHz	±10ppm	9pF
Q 32.0-JXS22-10-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	32MHz	±10ppm	10pF
Q 32.0-JXS22-12-10/10-FU-WA-LF	Jauch晶振	JXS22-WA	32MHz	±10ppm	12pF
