E1SB24E00000SE,HOSONIC鸿星晶振,2016无源谐振器

频率：24MHz

尺寸：2.00mm x 1.60mm

E1SB24E00000SE,HOSONIC鸿星晶振,2016无源谐振器,石英晶体芯片经过精密切割与抛光工艺,确保频率精度长期稳定,2016贴片晶振封装采用耐高温环氧树脂材质,耐受260℃回流焊温度,适配自动化SMT生产流程,产品通过高温存储(85℃/1000h),低温存储(-40℃/1000h)及温度循环测试,确保在不同环境下的性能一致性,同时符合RoHS2.0环保标准,满足全球主流市场的环保准入要求,为批量生产项目提供可靠品质保障.

订购热线：0755-27876565

E1SB24E00000SE,HOSONIC鸿星晶振,2016无源谐振器

E1SB24E00000SE作为鸿星进口无源晶振2016系列的代表型号,凭借24MHz通用频率与小巧封装,广泛适配多领域场景:在消费电子领域,可用于智能手环,蓝牙耳机的主控芯片时序同步,以及小型家电(如智能插座)的电路时钟控制,在物联网领域,适配低功耗LoRa模块,蓝牙Mesh终端设备的振荡电路,在医疗电子领域,为便携式血氧仪,体温计等小型检测设备提供基础时钟信号,其2016封装尺寸与低功耗特性,尤其适合对空间和功耗敏感的便携设备设计.

YJ-2

E1SB24E00000SE,HOSONIC鸿星晶振,2016无源谐振器

原厂型号 Original model ：	E1SB24E00000SE
品牌 brand ：	HOSONIC品牌
型号名称 Model name：	E1SB
Type 系列：	MHz Crystal
频率 frequency ：	24MHz
Frequency Stability频率稳定度	-
frequency tolerance频率容差	10ppm
Load capacitance 负载电容	12 pF
Size / Dimension 尺寸	2016mm
Package Height 厚度	0.5mm
ESR (Equivalent Series Resistance)ESR（等效串联电阻）	-
Operating Temperature 工作温度	-30℃~+85℃
Termination 脚位	4-Pad
Package Type 封装类型	4- SMD
Packaging 包装	Tape and Reel
Mounting Style 安装方式	Surface Mount

YJ-3

E1SB24E00000SE,HOSONIC鸿星晶振,2016无源谐振器

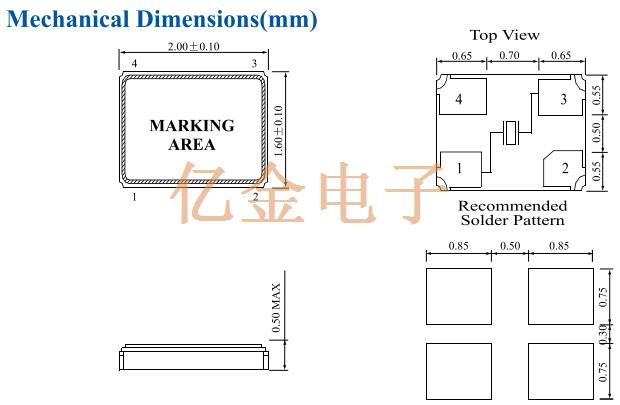

E1SB.2016

E1SB24E00000SE,HOSONIC鸿星晶振,2016无源谐振器

E3SB25E00003FE	HOSONIC鸿星晶振	E3SB	MHz Crystal	25 MHz	±15ppm	±15ppm	18pF	50 Ohms
E3SB24E004000E	HOSONIC鸿星晶振	E3SB	MHz Crystal	24 MHz	±10ppm	±10ppm	18pF	50 Ohms
E3SB32E001500E	HOSONIC鸿星晶振	E3SB	MHz Crystal	32 MHz	±10ppm	±10ppm	12pF	50 Ohms
E3SB37E0X0004E	HOSONIC鸿星晶振	E3SB	MHz Crystal	37.4 MHz	±10ppm	±10ppm	16pF	50 Ohms
E3SB25E001803E	HOSONIC鸿星晶振	E3SB	MHz Crystal	25 MHz	±20ppm	±20ppm	12pF	30 Ohms
E3SB16E0X000WE	HOSONIC鸿星晶振	E3SB	MHz Crystal	16.384 MHz	±10ppm	±10ppm	10pF	80 Ohms
E3SB27E0X000VE	HOSONIC鸿星晶振	E3SB	MHz Crystal	27.12 MHz	±10ppm	±10ppm	10pF	50 Ohms
E3SB27E00000DE	HOSONIC鸿星晶振	E3SB	MHz Crystal	27 MHz	±10ppm	±10ppm	10pF	50 Ohms
E3SB50E00000AE	HOSONIC鸿星晶振	E3SB	MHz Crystal	50 MHz	±10ppm	±10ppm	18pF	50 Ohms
E3SB26E000011E	HOSONIC鸿星晶振	E3SB	MHz Crystal	26 MHz	±10ppm	±10ppm	12pF	50 Ohms
E2SB40E000104ECBB8	HOSONIC鸿星晶振	E2SB	MHz Crystal	40 MHz	±10ppm	±7ppm	12pF	25 Ohms
E2SB38E0X0300E	HOSONIC鸿星晶振	E2SB	MHz Crystal	38.4 MHz	±10ppm	±10ppm	8pF	50 Ohms
E3SB8E0000003E	HOSONIC鸿星晶振	E3SB	MHz Crystal	8 MHz	±30ppm	±30ppm	10pF	500 Ohms
E2SB40E000107E	HOSONIC鸿星晶振	E2SB	MHz Crystal	40 MHz	-12ppm, +20ppm	±5ppm	12pF	25 Ohms
E2SB40E00010AE	HOSONIC鸿星晶振	E2SB	MHz Crystal	40 MHz	±10ppm	±7ppm	7pF	20 Ohms
E1SB24E00001EE	HOSONIC鸿星晶振	E1S	MHz Crystal	24 MHz	±30ppm	±30ppm	18pF	50 Ohms
E1SB26E007902E	HOSONIC鸿星晶振	E1SB	MHz Crystal	26 MHz	±15ppm	±10ppm	9pF	50 Ohms
E3SB24E00000QE	HOSONIC鸿星晶振	E3SB	MHz Crystal	24 MHz	±10ppm	±10ppm	10pF	50 Ohms
E3SB40E00010JE	HOSONIC鸿星晶振	E3SB	MHz Crystal	40 MHz	-12ppm, +20ppm	±5ppm	12pF	20 Ohms
E3SB12E000022E	HOSONIC鸿星晶振	E3SB	MHz Crystal	12 MHz	±30ppm	±30ppm	18pF	100 Ohms
E3SB16E000028E	HOSONIC鸿星晶振	E3SB	MHz Crystal	16 MHz	±10ppm	±10ppm	10pF	50 Ohms
E3SB40E00090DE	HOSONIC鸿星晶振	E3SB	MHz Crystal	40 MHz	±20ppm	±10ppm	12pF	40 Ohms
E3SB38E0X0006E	HOSONIC鸿星晶振	E3SB	MHz Crystal	38.4 MHz	±10ppm	±10ppm	10pF	50 Ohms
E3SB40E00010KECBB8	HOSONIC鸿星晶振	E3SB	MHz Crystal	40 MHz	±15ppm	±7ppm	6pF	20 Ohms
E3SB39E000006E	HOSONIC鸿星晶振	E3SB	MHz Crystal	39 MHz	±15ppm	±8ppm	10pF	30 Ohms
E3SB38E0X1806E	HOSONIC鸿星晶振	E3SB	MHz Crystal	38.4 MHz	±20ppm	±20ppm	10pF	30 Ohms
E3SB48E000801ECBB8	HOSONIC鸿星晶振	E3SB	MHz Crystal	48 MHz	±10ppm	±10ppm	12pF	50 Ohms
E3SB12E00004EE	HOSONIC鸿星晶振	E3SB	MHz Crystal	12 MHz	±35ppm	±8ppm	12pF	100 Ohms
E1SB60E003701E	HOSONIC鸿星晶振	E1S	MHz Crystal	60 MHz	±20ppm	±10ppm	9pF	50 Ohms
E1SB55E0X0002E	HOSONIC鸿星晶振	E1SB	MHz Crystal	55.2 MHz	±10ppm	±10ppm	10pF	60 Ohms
E2SB27E0X0000E	HOSONIC鸿星晶振	E2SB	MHz Crystal	27.12 MHz	±10ppm	±10ppm	8pF	50 Ohms
E2SB24E001801E	HOSONIC鸿星晶振	E2SB	MHz Crystal	24 MHz	±20ppm	±20ppm	12pF	30 Ohms
E2SB40E000108E	HOSONIC鸿星晶振	E2SB	MHz Crystal	40 MHz	±15ppm	±7ppm	6pF	20 Ohms
ETSB37E0X0014E	HOSONIC鸿星晶振	ETSB	MHz Crystal	37.4 MHz	±10ppm	±10ppm	16pF	60 Ohms
ETSB38E0X0005E	HOSONIC鸿星晶振	ETSB	MHz Crystal	38.4 MHz	±10ppm	±10ppm	10pF	60 Ohms
E1SB24E000007E	HOSONIC鸿星晶振	E1SB	MHz Crystal	24 MHz	±10ppm	±10ppm	10pF	100 Ohms
E1SB25E000009E	HOSONIC鸿星晶振	E1S	MHz Crystal	25 MHz	±30ppm	±30ppm	6pF	80 Ohms
E1SB24E004000E	HOSONIC鸿星晶振	E1S	MHz Crystal	24 MHz	±10ppm	±10ppm	18pF	100 Ohms
E1SB38E0X0001E	HOSONIC鸿星晶振	E1S	MHz Crystal	38.4 MHz	±10ppm	±10ppm	10pF	30 Ohms
E1SB39E000000E	HOSONIC鸿星晶振	E1SB	MHz Crystal	39 MHz	±13ppm	±8ppm	10pF	50 Ohms
E1SB40E00090AECBB8	HOSONIC鸿星晶振	E1S	MHz Crystal	40 MHz	±20ppm	±10ppm	12pF	40 Ohms
E1SB48E000506E	HOSONIC鸿星晶振	E1S	MHz Crystal	48 MHz	±16ppm	±8ppm	11.1pF	22 Ohms
E1SB25E001000E	HOSONIC鸿星晶振	E1S	MHz Crystal	25 MHz	±30ppm	±30ppm	18pF	80 Ohms
E1SB32E007900E	HOSONIC鸿星晶振	E1SB	MHz Crystal	32 MHz	±15ppm	±10ppm	10pF	60 Ohms
E1SB32E001502E	HOSONIC鸿星晶振	E1SB	MHz Crystal	32 MHz	±20ppm	±10ppm	12pF	60 Ohms
E2SB12E000005E	HOSONIC鸿星晶振	E2SB	MHz Crystal	12 MHz	±20ppm	±20ppm	12pF	120 Ohms
E1SB37E0X0002E	HOSONIC鸿星晶振	E1S	MHz Crystal	37.4 MHz	±10ppm	±10ppm	16pF	60 Ohms
E1SB32E001501ECBB8	HOSONIC鸿星晶振	E1S	MHz Crystal	32 MHz	±10ppm	±10ppm	9pF	60 Ohms
E1SB16E000004E	HOSONIC鸿星晶振	E1SB	MHz Crystal	16 MHz	±10ppm	±10ppm	8pF	200 Ohms
ETSB24E000003E	HOSONIC鸿星晶振	ETSB	MHz Crystal	24 MHz	±10ppm	±10ppm	8pF	100 Ohms
ETSB48E007500ECBB8	HOSONIC鸿星晶振	ETSB	MHz Crystal	48 MHz	±15ppm	±10ppm	10pF	50 Ohms
ETSB48E007502E	HOSONIC鸿星晶振	ETSB	MHz Crystal	48 MHz	±15ppm	±10ppm	10pF	60 Ohms
ETSB32E000003E	HOSONIC鸿星晶振	ETSB	MHz Crystal	32 MHz	±10ppm	±10ppm	8pF	80 Ohms
ETSB60E003700E	HOSONIC鸿星晶振	ETSB	MHz Crystal	60 MHz	±20ppm	±10ppm	9pF	50 Ohms
E3SB14E0X0002E	HOSONIC鸿星晶振	E3SB	MHz Crystal	14.7456 MHz	±30ppm	±30ppm	12pF	100 Ohms
E3SB10E000007E	HOSONIC鸿星晶振	E3SB	MHz Crystal	10 MHz	±30ppm	±30ppm	12pF	150 Ohms
E3SB25E00000DE	HOSONIC鸿星晶振	E3SB	MHz Crystal	25 MHz	±10ppm	±10ppm	10pF	50 Ohms
E3FB24E00000KE	HOSONIC鸿星晶振	E3FB	MHz Crystal	24 MHz	±30ppm	±30ppm	12pF	50 Ohms
E3SB48E00000TE	HOSONIC鸿星晶振	E3SB	MHz Crystal	48 MHz	±30ppm	±30ppm	18pF	50 Ohms
E3SB50E00002AE	HOSONIC鸿星晶振	E3SB	MHz Crystal	50 MHz	±18ppm	±7ppm	9pF	50 Ohms
