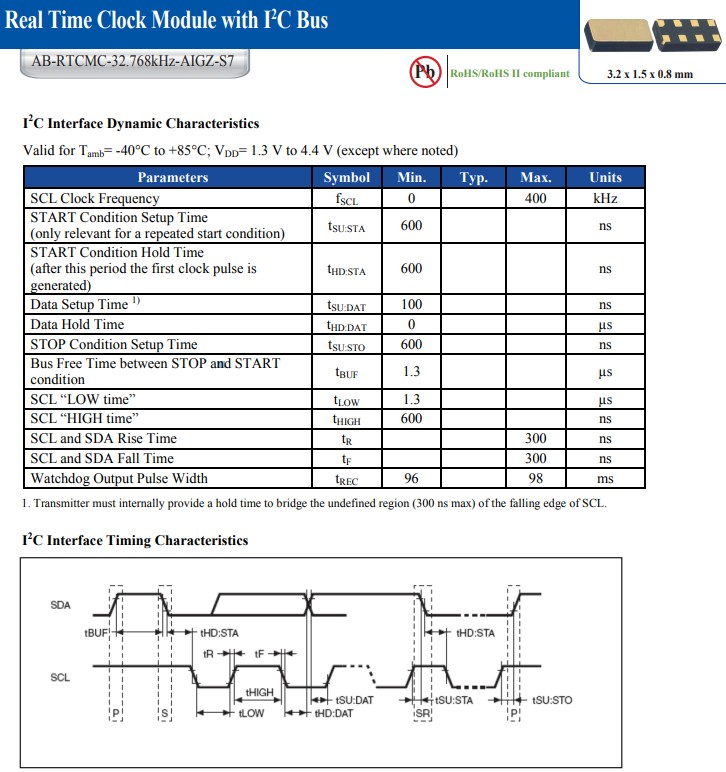

编码AB-RTCMC-32.768kHz-AIGZ-S7是时钟晶振I2C总线实时时钟模块
Abracon公司成立于1992年，总部位于德克萨斯州的斯派伍德，是全球领先的被动和机电同步、同步、电力、连通性和射频解决方案的制造商。Abracon提供了广泛的石英定时晶体和石英晶体振荡器，MEMS振荡器，实时时钟(RTC)，蓝牙模块，陶瓷谐振器，锯滤器和谐振器，功率和射频电感，变压器，电路保护元件和射频天线和无线充电线圈。
I2C总线实时时钟模块,编码AB-RTCMC-32.768kHz-AIGZ-S7,小体积晶振尺寸3.2x1.5mm，时钟晶振，湿度敏感度等级:MSL=1
功能应用:
标准规格:
内置晶振的RTC模块，频率为32.768KHz有源晶振
3V时的350nA计时电流
计时低至1.0V 1.3V至4.4V I2C总线工作电压
低工作电流:35μA(400 kHz时)
上电时32.768kHz方波驱动微控制器
低功耗模式–可编程范围为1Hz至32.768k–可以禁用
400kHz I2C串行接口
振荡器停止检测电路监控时钟操作
精确的可编程看门狗–62.5毫秒至31分钟超时
十分之一秒/百分之一秒、秒、分钟、小时、日、日期、月、年和世纪的计数器
软件时钟校准，补偿温度引起的晶体偏差
自动闰年补偿
超小型3.2x1.5mm无铅8引脚陶瓷无引脚芯片载体
编码AB-RTCMC-32.768kHz-AIGZ-S7是时钟晶振I2C总线实时时钟模块,32.768k有源晶振
|
Manufacturer Part Number 原厂编码 |
Manufacturer 厂家 |
Series型号 | Type 系列 |
Frequency 频率 |
Package / Case包装/封装 |
| AB38T-32.768KHZ | Abracon LLC | AB38T | kHz Crystal (Tuning Fork) | 32.768kHz | Cylindrical Can, Radial |
| ABS25-32.768KHZ-T | Abracon LLC | ABS25 | kHz Crystal (Tuning Fork) | 32.768kHz | 4-SOJ, 5.50mm pitch |
| ABS25-32.768KHZ-6-T | Abracon LLC | ABS25 | kHz Crystal (Tuning Fork) | 32.768kHz | 4-SOJ, 5.50mm pitch |
| AB26TRQ-32.768KHZ-T | Abracon LLC | AB26TRQ | kHz Crystal (Tuning Fork) | 32.768kHz | Cylindrical Can, Radial |
| AB26T-32.768KHZ | Abracon LLC | AB26T | kHz Crystal (Tuning Fork) | 32.768k晶振 | Cylindrical Can, Radial |
| AB26TRB-32.768KHZ-T | Abracon LLC | AB26TRB | kHz Crystal (Tuning Fork) | 32.768kHz | Cylindrical Can, Radial |
| ABS07-32.768KHZ-T | Abracon LLC | ABS07 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS25-32.768KHZ-1-T | Abracon LLC | ABS25 | kHz Crystal (Tuning Fork) | 32.768kHz | 4-SOJ, 5.50mm pitch |
| ABS25-32.768KHZ-6-1-T | Abracon LLC | ABS25 | kHz Crystal (Tuning Fork) | 32.768kHz | 4-SOJ, 5.50mm pitch |
| ABS07-120-32.768KHZ-T | Abracon LLC | ABS07 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-9-D-T | Abracon LLC | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-D-T | Abracon LLC | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-7-D-T | Abracon LLC | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-7-T | Abracon LLC | ABS07 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-9-T | Abracon LLC | ABS07 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS13-32.768KHZ-T | Abracon LLC | ABS13 | kHz Crystal (Tuning Fork) | 32.768kHz | 4-SMD, Flat Lead, 3 Leads |
| ABS07-32.768KHZ-7-1-T | Abracon LLC | ABS07 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-9-T | Abracon LLC | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-7-T | Abracon LLC | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS06-107-32.768KHZ-T | Abracon LLC | ABS06 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-6-T | Abracon LLC | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-9-1-T | Abracon LLC | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-7-1-T | Abracon LLC | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-T | Abracon LLC | ABS06 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-6-1-T | Abracon LLC | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-1-T | Abracon LLC | ABS06 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-9-1-T | Abracon LLC | ABS07 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-9-1-T | Abracon LLC | ABS06 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-6-T | Abracon LLC | ABS07 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-T | Abracon LLC | ABS10 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-7-T | Abracon LLC | ABS10 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-9-T | Abracon LLC | ABS10 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-1-T | Abracon LLC | ABS07 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-9-T | Abracon LLC | ABS09 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-T | Abracon LLC | ABS09 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-1-T | Abracon LLC | ABS10 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-7-T | Abracon LLC | ABS09 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07-LR-32.768KHZ-6-1-T | Abracon LLC | ABS07-LR | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07L-32.768KHZ-T | Abracon LLC | ABS07L | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-1-T | Abracon LLC | ABS09 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS25-32.768KHZ-4-T | Abracon LLC | ABS25 | kHz Crystal (Tuning Fork) | 32.768kHz | 4-SOJ, 5.50mm pitch |
| ABS07AIG-32.768KHZ-6-D-T | Abracon LLC | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-9-T | Abracon LLC | ABS06 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS06L-32.768KHZ-T | Abracon LLC | ABS06L | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07-LR-32.768KHZ-6-T | Abracon LLC | ABS07-LR | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07-32.768KHZ-4-T | Abracon LLC | ABS07 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| AB15T-32.768KHZ | Abracon LLC | AB15T | kHz Crystal (Tuning Fork) | 32.768kHz | Cylindrical Can, Radial |
| ABS07AIG-32.768KHZ-T | Abracon LLC | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07AIG-32.768KHZ-1-T | Abracon LLC | ABS07AIG | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS05-32.768KHZ-T | Abracon LLC | ABS05 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS05-32.768KHZ-9-T | Abracon LLC | ABS05 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS10-32.768KHZ-4-T | Abracon LLC | ABS10 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS09-32.768KHZ-4-T | Abracon LLC | ABS09 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS06-32.768KHZ-6-T | Abracon LLC | ABS06 | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-D-1-T | Abracon LLC | ABS07W | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-D-2-T | Abracon LLC | ABS07W | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-J-2-T | Abracon LLC | ABS07W | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-J-1-T | Abracon LLC | ABS07W | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-K-2-T | Abracon晶振 | ABS07W | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
| ABS07W-32.768KHZ-K-1-T | Abracon LLC | ABS07W | kHz Crystal (Tuning Fork) | 32.768kHz | 2-SMD, No Lead |
编码AB-RTCMC-32.768kHz-AIGZ-S7是时钟晶振I2C总线实时时钟模块,32.768k有源晶振
应用:
广泛的通信和测量设备
商业和工业应用
汽车电子应用
无线通信
PDA和Palm飞行员
具有安全技术的信用卡
