小体积低成本的温补晶振已然成了市场的主流?517L20M25ITR

返回列表 来源:亿金电子 查看手机网址
扫一扫!小体积低成本的温补晶振已然成了市场的主流?517L20M25ITR扫一扫!
浏览:- 发布日期:2022-10-21 17:47:43【
分享到:

小体积低成本的温补晶振已然成了市场的主流?517L20M25ITR我们生产的最高频率温度补偿晶体振荡器(tcxo)在业界可用。频率大于1.0GHz,稳定性低至0.05ppm,温度范围可达-40°C至85°C。凭借优越的相位噪声和低电流消耗,我们的tcxo有源晶体振荡器使客户能够实现创新设计的最高性能。

Manufacturer Part Number原厂代码 Manufacturer品牌 Series型号 Frequency 频率 Frequency Stability频率稳定度 Size / Dimension 尺寸
TC25M5I32K7680 CTS-Frequency Controls TC25 32.768kHz ±25ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
TC25M5I32K7680 CTS-Frequency Controls TC25 32.768kHz ±25ppm 0.098" L x 0.079" W (2.50mm x 2.00mm)
632L3I060M00000 CTS-Frequency Controls 632 60MHz ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
632L3I060M00000 CTS-Frequency Controls 632 60MHz ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
632L3I060M00000 CTS-Frequency Controls 632 60MHz ±50ppm 0.126" L x 0.098" W (3.20mm x 2.50mm)
CB3LV-3I-32M0000 CTS-Frequency Controls CB3LV 32MHz ±50ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3LV-3I-32M0000 CTS 石英贴片晶振 CB3LV 32MHz ±50ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3LV-3I-32M0000 CTS-Frequency Controls CB3LV 32MHz ±50ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3LV-3I-33M3333 CTS-Frequency Controls CB3LV 33.3333MHz ±50ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3LV-3I-33M3333 CTS-Frequency Controls CB3LV 33.3333MHz ±50ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3LV-3I-33M3333 CTS-Frequency Controls CB3LV 33.3333MHz ±50ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3LV-3C-14M31818 CTS-Frequency Controls CB3LV 14.31818MHz ±50ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3LV-3C-14M31818 CTS-Frequency Controls CB3LV 14.31818MHz ±50ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)
CB3LV-3C-14M31818 CTS-Frequency Controls CB3LV 14.31818MHz ±50ppm 0.276" L x 0.197" W (7.00mm x 5.00mm)

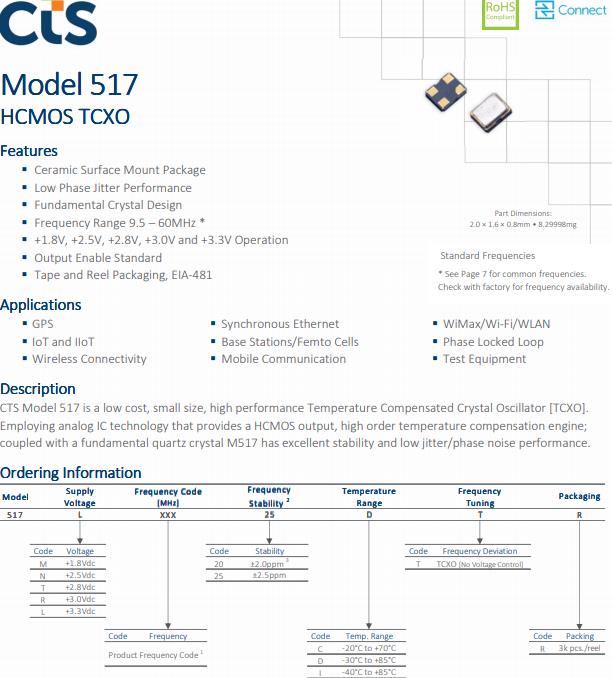

小体积低成本的温补晶振已然成了市场的主流?517L20M25ITR,CTS晶振517型编码517L20M25ITR是一种低成本、小体积、高性能的温度补偿晶体振荡器[TCXO]。采用模拟IC技术,提供HCMOS输出,高阶温度补偿发动机;加上基本石英晶体M517具有良好的稳定性和低抖动/相位噪声性能。

517 20TCXO晶振性能:陶瓷表面贴装包,低相位抖动性能,基本晶体设计,频率范围9.5 - 60MHz *+1.8V、+2.5V、+2.8V、+3.0V、+3.3V操作,允许输出标准,卷带包装,EIA-481,应用:全球定位系统(GPS),物联网和IIoT,无线连接,同步以太网,基站/毫微微细胞,移动通信,WiMax / wi - fi / WLAN,锁相环路,测试设备。

We produce the highest frequency temperature compensated crystal oscillators (TCXOs) available in the industry. With frequencies greater than 1.0GHz, stabilities as low as 0.05ppm, and temperature range up to -40°C to 85°C. With superior phase noise and low current consumption, our TCXOs enable customers to achieve the highest performance for innovative designs.

CTS Model 517 is a low cost, small size, high performance Temperature Compensated Crystal Oscillator [TCXO].
Employing analog IC technology that provides a HCMOS output, high order temperature compensation engine;
coupled with a fundamental quartz crystal M517 has excellent stability and low jitter/phase noise performance.
