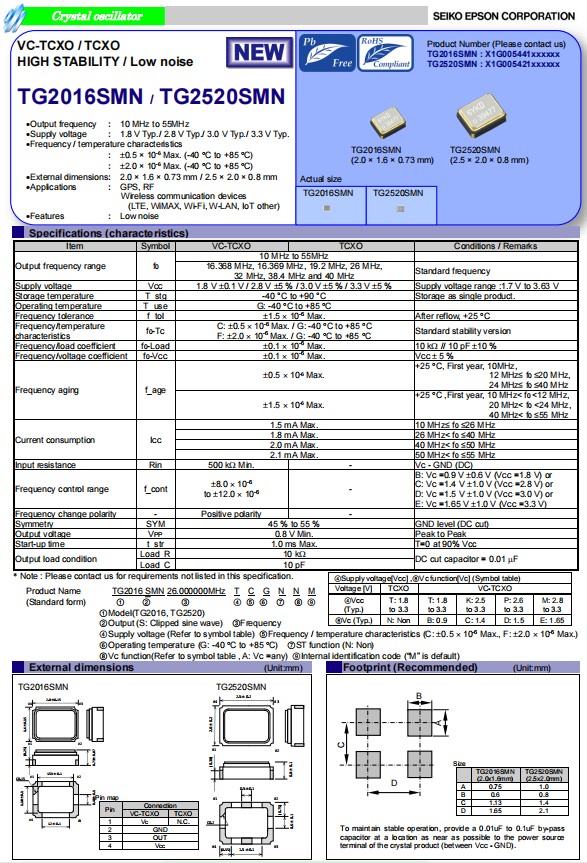

日本进口爱普生晶振TG2016SMN，是一款TCXO温补石英晶体振荡器，小体积晶振尺寸2.0x1.6mm有源晶振，频率范围10MHz至55MHz四脚贴片晶振，电源电压1.8V至3.3V任意一频点,具有低电源电压,低功耗，低相位噪声，满足产品低消耗电流的特点。

26MHz温补石英晶体振荡器X1G005441020400具有低相位噪声的性能

Product Number	Model	Frequency	爱普生晶振	Output Wave	Supply Voltage	F.Tol@25°C
X1G005441001200	TG2016SMN	40.000000 MHz	2.00 x 1.60 x 0.61 mm	Clipped sine wave	2.800 to 3.630 V	+/-1.5 ppm
X1G005441003100	TG2016SMN	19.200000 MHz	2.00 x 1.60 x 0.61 mm	Clipped sine wave	2.660 to 2.940 V	+/-1.5 ppm
X1G005441003300	TG2016SMN	39.000000 MHz	2.00 x 1.60 x 0.61 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.5 ppm
X1G005441004700	TG2016SMN	19.200000 MHz	2.00 x 1.60 x 0.61 mm	Clipped sine wave	3.135 to 3.465 V	+/-1.5 ppm
X1G005441006500	TG2016SMN	38.400000 MHz	2.00 x 1.60 x 0.61 mm	Clipped sine wave	1.700 to 1.900 V	+/-1.5 ppm
X1G005441020100	TG2016SMN	16.368000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V	+/-1.5 ppm
X1G005441020200	TG2016SMN	16.369000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V	+/-1.5 ppm
X1G005441020300	TG2016SMN	19.200000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V	+/-1.5 ppm
X1G005441020400	TG2016SMN	26.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V	+/-1.5 ppm
X1G005441020500	TG2016SMN	32.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V	+/-1.5 ppm
X1G005441020600	TG2016SMN	38.400000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V	+/-1.5 ppm
X1G005441020700	TG2016SMN	40.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V	+/-1.5 ppm
X1G005441020800	TG2016SMN	16.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V	+/-1.5 ppm
X1G005441021100	TG2016SMN	20.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V	+/-1.5 ppm
X1G005441021200	TG2016SMN	24.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V	+/-1.5 ppm

X1G005441021300	TG2016SMN	25.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V	+/-1.5 ppm
X1G005441021400	TG2016SMN	27.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V	+/-1.5 ppm
X1G005441021500	TG2016SMN	30.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V	+/-1.5 ppm
X1G005441021600	TG2016SMN	48.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V	+/-1.5 ppm
X1G005441022000	TG2016SMN	52.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	1.700 to 1.900 V	+/-1.5 ppm
X1G005441022100	TG2016SMN	27.600000 MHz	2.00 x 1.60 x 0.73 mm	温补晶振	1.700 to 1.900 V	+/-1.5 ppm
X1G005441030100	TG2016SMN	16.368000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 3.465 V	+/-1.5 ppm
X1G005441030200	TG2016SMN	16.369000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 3.465 V	+/-1.5 ppm
X1G005441030300	TG2016SMN	19.200000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 3.465 V	+/-1.5 ppm
X1G005441030400	TG2016SMN	26.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 3.465 V	+/-1.5 ppm
X1G005441030500	TG2016SMN	32.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 3.465 V	+/-1.5 ppm
X1G005441030600	TG2016SMN	38.400000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 3.465 V	+/-1.5 ppm
X1G005441030700	TG2016SMN	40.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 3.465 V	+/-1.5 ppm
X1G005441030800	TG2016SMN	16.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 3.465 V	+/-1.5 ppm
X1G005441031100	TG2016SMN	20.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 3.465 V	+/-1.5 ppm
X1G005441031200	TG2016SMN	24.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 3.465 V	+/-1.5 ppm
X1G005441031300	TG2016SMN	25.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 3.465 V	+/-1.5 ppm
X1G005441031400	TG2016SMN	27.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 3.465 V	+/-1.5 ppm
X1G005441031500	TG2016SMN	30.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 3.465 V	+/-1.5 ppm
X1G005441031600	TG2016SMN	48.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 3.465 V	+/-1.5 ppm
X1G005441032000	TG2016SMN	52.000000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 3.465 V	+/-1.5 ppm
X1G005441032100	TG2016SMN	27.600000 MHz	2.00 x 1.60 x 0.73 mm	Clipped sine wave	2.660 to 3.465 V	+/-1.5 ppm

26MHz温补石英晶体振荡器X1G005441020400具有低相位噪声的性能

削波正玄波(Clipped Sine Wave)是有源晶振输出方式的一种,相比方波的谐波分量少很多,但驱动能力较弱,在负载10K/10PF时Vp-p为0.8Vmin.通常为SMD7050,SMD5032,SMD3225等封装的表贴温补晶振使用的输出波形.当然,有源晶振还有CMOS,TTL,ECL,LVDS,正玄波等输出方式,这些输出逻辑方式也各有优缺点,至于如何利用它们我们却是不得而知.所以日本爱普生晶振就推出了相关的技术支持文档,明确指出应当如何在电路设计中应用削顶正玄波.
