NDK进口晶振,NP3225SA-175MHZ-NSC5080A低功耗差分晶振,6G无线网专用晶振
频率：175MHZ
尺寸：3.2x2.5mm
NDK进口晶振,NP3225SA-175MHZ-NSC5080A低功耗差分晶振,6G无线网专用晶振，日本NDK晶振公司，适用于基站、光网络终端、SONET/SDH设备、中低端路由器和以太网设备，差动输出SPXO，紧凑尺寸:3.2 × 2.5 × 0.9 mm，电源电压:+2.5V或+3.3V，输出规格:LVPECL，出色的低相位抖动(类型90fs@156.25MHz)，符合AEC-Q200标准。
订购热线：0755-27876565
NDK进口晶振,NP3225SA-175MHZ-NSC5080A低功耗差分晶振,6G无线网专用晶振，日本NDK晶振公司，适用于基站、光网络终端、SONET/SDH设备、中低端路由器和以太网设备，差动输出SPXO，紧凑尺寸:3.2 × 2.5 × 0.9 mm，电源电压:+2.5V或+3.3V，输出规格:LVPECL，出色的低相位抖动(类型90fs@156.25MHz)，符合AEC-Q200标准。

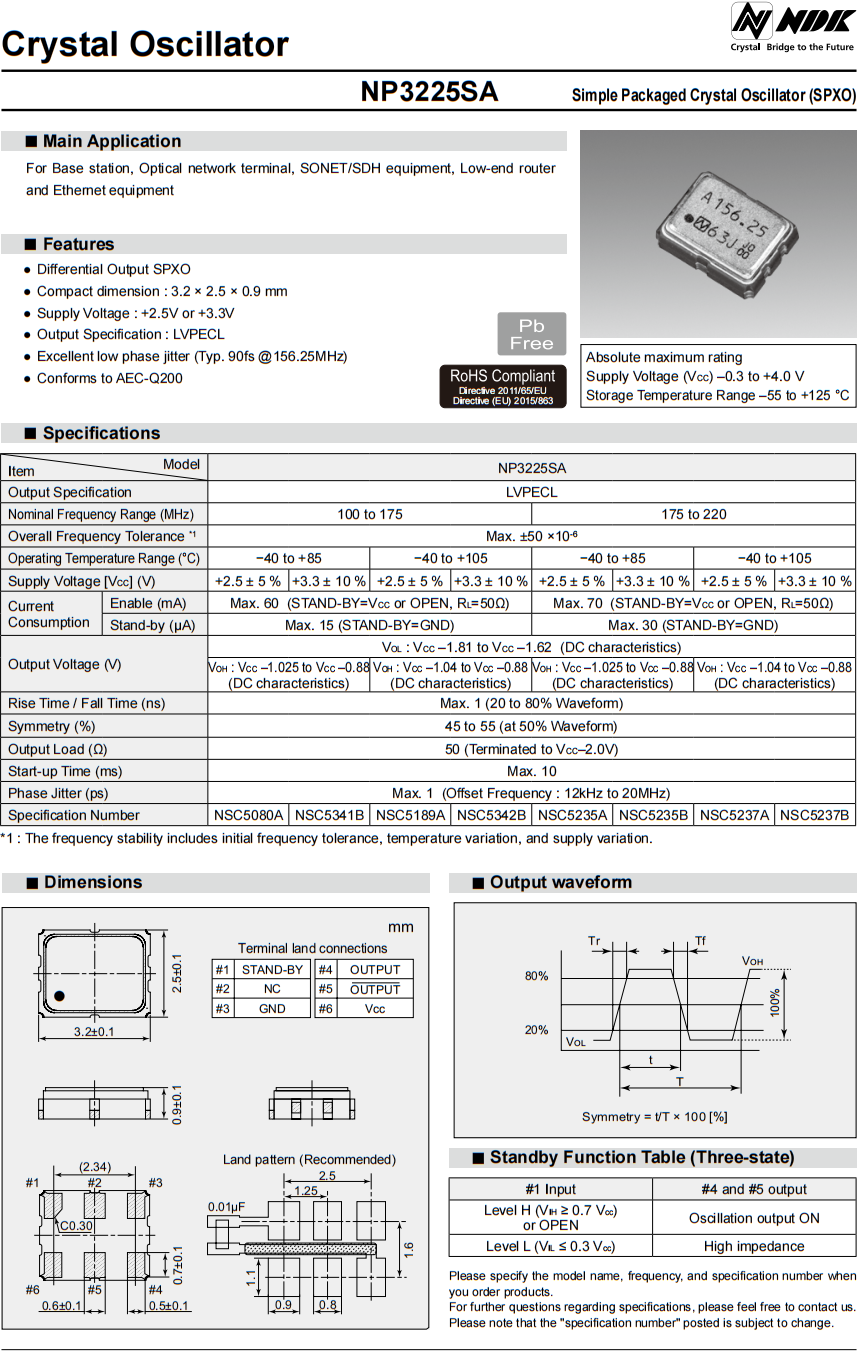

NDK进口晶振,NP3225SA-175MHZ-NSC5080A低功耗差分晶振,6G无线网专用晶振
| 项目 | 型号 | NP3225SA | |||||||
| 输出类型 | LVPECL | ||||||||
| 标称频率 | 100 to 175 | 175 to 220 | |||||||
| 总容许频率 | Max. ±50 ×10-6 | ||||||||
| 工作温度范围 | −40 to +85 | −40 to +105 | −40 to +85 | −40 to +105 | |||||
| 电源电压[VCC] (V) | +2.5 ± 5 % | +3.3 ± 10 % | +2.5 ± 5 % | +3.3 ± 10 % | +2.5 ± 5 % | +3.3 ± 10 % | +2.5 ± 5 % | +3.3 ± 10 % | |
| 当前消耗量 | 使能(mA) | Max. 60 (STAND-BY=VCC or OPEN, RL=50Ω) | Max. 70 (STAND-BY=VCC or OPEN, RL=50Ω) | ||||||
| 备用（μA） | Max. 15 (STAND-BY=GND) | Max. 30 (STAND-BY=GND) | |||||||
| 输出电压(V) | VOL : VCC – 1.81 to VCC – 1.62 (DC characteristics) | ||||||||
|
VOH : VCC – 1.025 to VCC –0.88
(DC characteristics) |
VOH : VCC – 1.04 to VCC –0.88
(DC characteristics) |
VOH : VCC – 1.025 to VCC –0.88
(DC characteristics) |
VOH : VCC – 1.04 to VCC –0.88
(DC characteristics) |
||||||
| 上升时间/下降时间 | Max. 1 (20 to 80% Waveform) | ||||||||
| 对称性（%） | 45 to 55 (at 50% Waveform) | ||||||||
| 输出负载(Ω) | 50 (Terminated to VCC–2.0V) | ||||||||
| 启动时间（ms） | Max. 10 | ||||||||
| 相位抖动(ps) | Max. 1 (Offset Frequency : 12kHz to 20MHz) | ||||||||
| 规格编号 | NSC5080A | NSC5341B | NSC5189A | NSC5342B | NSC5235A | NSC5235B | NSC5237A | NSC5237B | |
NDK进口晶振,NP3225SA-175MHZ-NSC5080A低功耗差分晶振,6G无线网专用晶振
| 型号 | 常规频率[MHz] | 规格编码 | 尺寸 | 输出类型 | 工作温度 | 储存温度 | 电源电压 |
| NP3225SA | 100 | NSC5080A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SA | 122.88 | NSC5080A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SA | 125 | NSC5080A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SA | 156.25 | NSC5080A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SA | 175 | NSC5080A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SA | 100 | NSC5341B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SA | 122.88 | NSC5341B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SA | 125 | NSC5341B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SA | 156.25 | NSC5341B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SA | 175 | NSC5341B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SA | 100 | NSC5189A | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SA | 122.88 | NSC5189A | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SA | 125 | NSC5189A | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SA | 156.25 | NSC5189A | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SA | 175 | NSC5189A | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SA | 100 | NSC5342B | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SA | 122.88 | NSC5342B | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SA | 125 | NSC5342B | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SA | 156.25 | NSC5342B | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SA | 175 | NSC5342B | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SA | 200 | NSC5235A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SA | 212.5 | NSC5235A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SA | 200 | NSC5235B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SA | 212.5 | NSC5235B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SA | 200 | NSC5237A | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SA | 212.5 | NSC5237A | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SA | 200 | NSC5237B | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SA | 212.5 | NSC5237B | 3.2x2.5 | LVPECL | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SB | 50 | NSC5343A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SB | 100 | NSC5343A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SB | 125 | NSC5343A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SB | 135 | NSC5343A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SB | 148 | NSC5343A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SB | 156.25 | NSC5343A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SB | 200 | NSC5236A | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SB | 50 | NSC5343B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SB | 100 | NSC5343B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SB | 125 | NSC5343B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SB | 135 | NSC5343B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SB | 148 | NSC5343B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SB | 156.25 | NSC5343B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SB | 200 | NSC5236B | 3.2x2.5 | LVDS | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SB | 50 | NSC5344A | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SB | 100 | NSC5344A | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SB | 125 | NSC5344A | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SB | 135 | NSC5344A | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SB | 148 | NSC5344A | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SB | 156.25 | NSC5344A | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SB | 200 | NSC5238A | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +2.5±0.125 |
| NP3225SB | 50 | NSC5344B | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SB | 100 | NSC5344B | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SB | 125 | NSC5344B | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SB | 135 | NSC5344B | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SB | 148 | NSC5344B | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SB | 156.25 | NSC5344B | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SB | 200 | NSC5238B | 3.2x2.5 | LVDS | -40?+105 | -55?+125 | +3.3±0.33 |
| NP3225SAB | 100 | NSC5186A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SAB | 125 | NSC5186A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SAB | 156.25 | NSC5186A | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +2.5±0.125 |
| NP3225SAB | 100 | NSC5186B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SAB | 125 | NSC5186B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SAB | 156.25 | NSC5186B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SAD | 100 | NSC5347B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SAD | 156.25 | NSC5347B | 3.2x2.5 | LVPECL | -40?+85 | -55?+125 | +3.3±0.33 |
| NP3225SAA | 100 | NSC5390B | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +3.3 ± 0.33 |
| NP3225SAA | 125 | NSC5390B | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +3.3 ± 0.33 |
| NP3225SAA | 156.25 | NSC5390B | 3.2x2.5 | LVPECL | -40~+105 | -55~+125 | +3.3 ± 0.33 |
