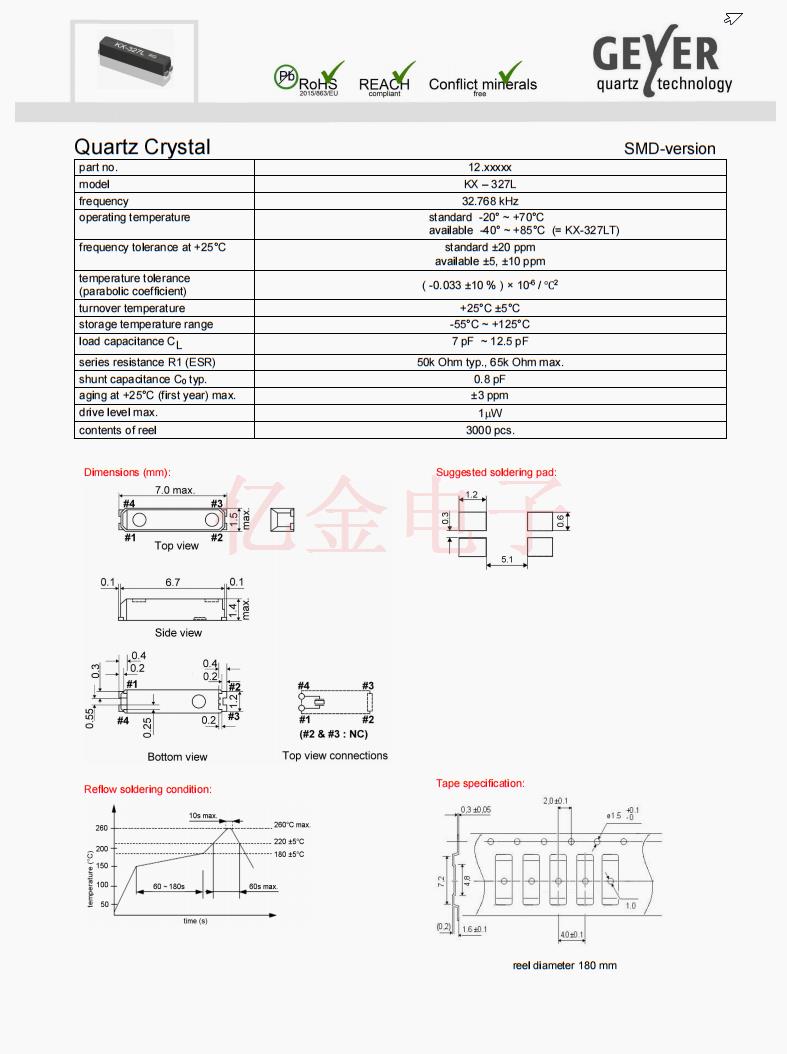

KX-327L晶振,12.87131,GEYER晶振,32.768KHz,12.5pF,±20ppm,7015谐振器
频率：32.768kHz
尺寸：7.0×1.5×1.4mm
KX-327L晶振,12.87131,GEYER晶振,32.768KHz,12.5pF,±20ppm,7015谐振器
进口GEYER晶振中编码为12.87131的KX-327L晶振，其频率为32.768KHz，频率公差是±20ppm，负载电容为12.5pF，是进口无源晶振，其尺寸为7.0×1.5×1.4mm，一般也称呼为7015谐振器、32.768K时钟晶振。几十年来，GEYER Electronic一直是频率产品、石英晶体、振荡器和陶瓷谐振器的领先制造商之一，成立于 1964 年，总部设在德国以及欧洲、亚洲和美国的其他地方，为全球客户提供服务。
KX-327L晶振,12.87131,GEYER晶振,32.768KHz,12.5pF,±20ppm,7015谐振器
进口GEYER晶振中编码为12.87131的KX-327L晶振，其频率为32.768KHz，频率公差是±20ppm，负载电容为12.5pF，是进口无源晶振，其尺寸为7.0×1.5×1.4mm，一般也称呼为7015谐振器、32.768K时钟晶振、7.0×1.5晶振。几十年来，GEYER Electronic一直是频率产品、石英晶体、振荡器和陶瓷谐振器的领先制造商之一，成立于 1964 年，总部设在德国以及欧洲、亚洲和美国的其他地方，为全球客户提供服务。GEYER的石英晶体和振荡器主要在台湾的工厂生产，在超过2000平方米的生产面积上，生产能力约为每月7500万件，在日本和韩国还有其他较小的生产基地。
KX-327L晶振,12.87131,GEYER晶振,32.768KHz,12.5pF,±20ppm,7015谐振器
品牌
GEYER
编码
12.87131
型号
KX-327L
频率
32.768kHz
精度
±20ppm
负载
12.5pF
尺寸

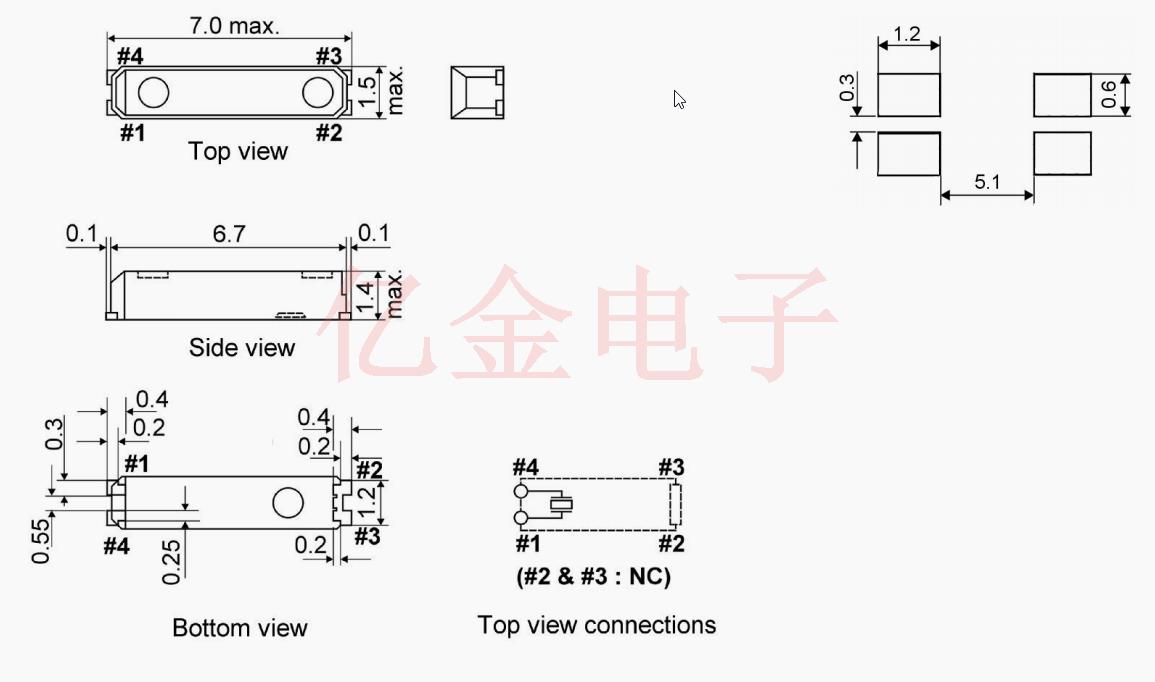

7.0×1.5×1.4mm
工作温度
-40℃~85℃
KX-327L晶振,12.87131,GEYER晶振,32.768KHz,12.5pF,±20ppm,7015谐振器
更多相关晶振参考
| 编码 | 品牌 | 型号 | 尺寸 | 频率 | 负载 |
| 12.87000 | GEYER | KX-327V | 1.25×1.05×0.5mm | 32.768kHz | 12.5pF |
| 12.87001 | GEYER | KX-327V | 1.25×1.05×0.5mm | 32.768kHz | 9pF |
| 12.87002 | GEYER | KX-327V | 1.25×1.05×0.5mm | 32.768kHz | 7pF |
| 12.87034 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 4pF |
| 12.87080 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87081 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 6pF |
| 12.87083 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 6pF |
| 12.87086 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 6pF |
| 12.87090 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 7pF |
| 12.87095 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 9pF |
| 12.87105 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 6pF |
| 12.87107 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87109 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12pF |
| 12.87110 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87111 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87112 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87113 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87114 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87115 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87116 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 12.5pF |
| 12.87118 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 6pF |
| 12.87119 | GEYER | KX-327S | 8.2×3.8×2.5mm | 32.768kHz | 6pF |
| 12.87120 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 12.5pF |
| 12.87121 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 12.5pF |
| 12.87123 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 6pF |
| 12.87126 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 12.5pF |
| 12.87127 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 6pF |
| 12.87128 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 6pF |
| 12.87129 | GEYER | KX-327XS | 4.95×1.82×0.96mm | 32.768kHz | 12.5pF |
| 12.87130 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 12.5pF |
| 12.87131 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 12.5pF |
| 12.87132 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 7pF |
| 12.87133 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 12.5pF |
| 12.87134 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 7pF |
| 12.87135 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 7pF |
| 12.87136 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 12.5pF |
| 12.87137 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 9pF |
| 12.87138 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 12.5pF |
| 12.87139 | GEYER | KX-327L | 7.0×1.5×1.4mm | 32.768kHz | 7pF |
| 12.87143 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 9pF |
| 12.87144 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 7pF |
| 12.87145 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87146 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 9pF |
| 12.87147 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 7pF |
| 12.87148 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 7pF |
| 12.87149 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 9pF |
| 12.87150 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87151 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 9pF |
| 12.87152 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87153 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 7pF |
| 12.87155 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87157 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87158 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87159 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87160 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 12.5pF |
| 12.87161 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 12.5pF |
| 12.87163 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 7pF |
| 12.87164 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 9pF |
| 12.87165 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 9pF |
| 12.87166 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 12.5pF |
| 12.87167 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 12.5pF |
| 12.87168 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 9pF |
| 12.87169 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 9pF |
| 12.87180 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 9pF |
| 12.87181 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87182 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 7pF |
| 12.87183 | GEYER | KX-327NH | 3.2×1.5×0.8mm | 32.768kHz | 12.5pF |
| 12.87186 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 12.5pF |
| 12.87187 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 6pF |
| 12.87188 | GEYER | KX-327R | 2.0×1.2×0.6mm | 32.768kHz | 9pF |
