福克斯美国晶振,FK12AEIHI0.032768-T3电动牙刷晶振,FK12A小型音叉晶振

频率:32.768KHz

尺寸:2012mm

福克斯美国晶振,FK12AEIHI0.032768-T3电动牙刷晶振,FK12A小型音叉晶振,美国FOX晶振公司,音叉晶振进口晶振32.768KHz晶振,2012晶振,环保无铅晶振,低损耗晶振,高精度晶振,二脚晶振,超小型晶振FK12A晶振微型晶振,汽车晶振,汽车辅助驾驶晶振福克斯晶振,中控系统晶振美国晶振,SMD晶振,无源晶振,工业设备晶振,移动通讯晶振石英晶体,6G信号放大器晶振,移动网络晶振,无源晶振,贴片晶振,智能手表晶振
订购热线:0755-27876565
QQ咨询 点击这里给我发消息

SITIME-2

yijin-1

福克斯美国晶振,FK12AEIHI0.032768-T3电动牙刷晶振,FK12A小型音叉晶振,美国FOX晶振公司,音叉晶振进口晶振32.768KHz晶振,2012晶振,环保无铅晶振,低损耗晶振,高精度晶振,二脚晶振,超小型晶振FK12A晶振微型晶振,汽车晶振,汽车辅助驾驶晶振福克斯晶振,中控系统晶振美国晶振,SMD晶振,无源晶振,工业设备晶振,移动通讯晶振石英晶体,6G信号放大器晶振,移动网络晶振,无源晶振,贴片晶振,智能手表晶振

yijin-2

福克斯美国晶振,FK12AEIHI0.032768-T3电动牙刷晶振,FK12A小型音叉晶振

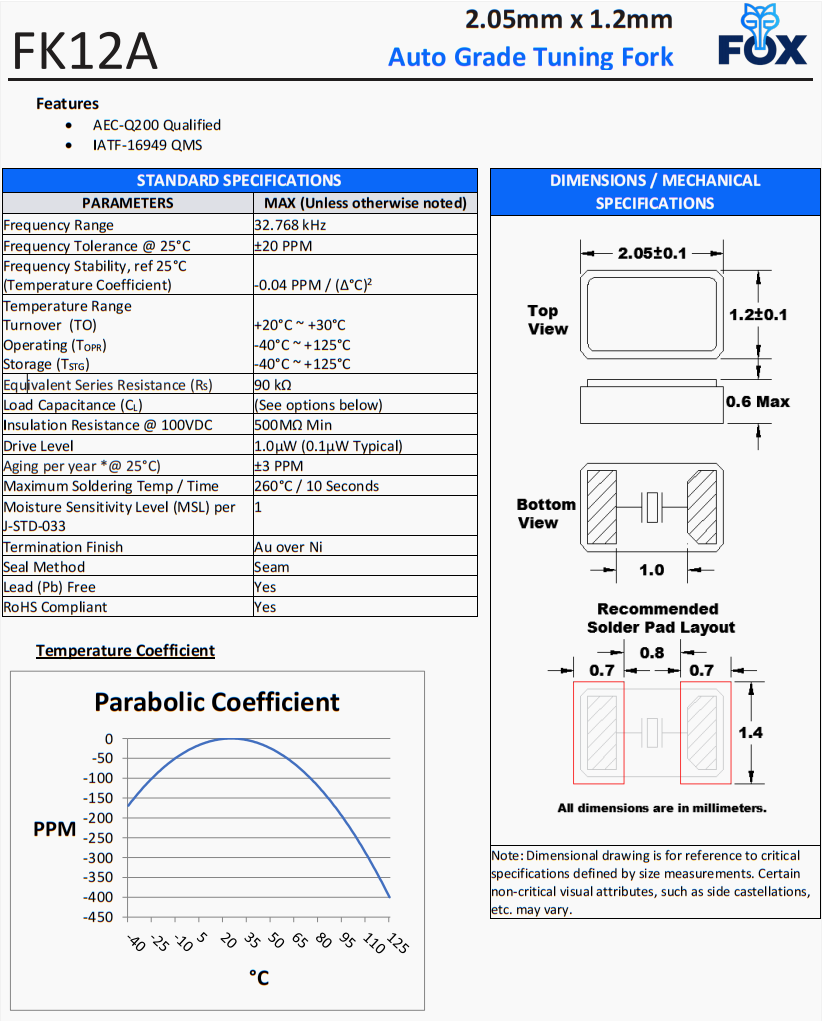

STANDARD SPECIFICATIONS
参数 MAX (Unless otherwise noted)
频率 32.768 kHz
频率容差 ±20 PPM
频率稳定度 -0.04 PPM / (?°C)2

温度范围

运输  (TO)

工作 (TOPR)

储存 (TSTG)

+20°C ~ +30°C

-40°C ~ +125°C

-40°C ~ +125°C

等效串联电阻 90 k?
负载电容 (See options below)
绝缘电阻 500M? Min
驱动电平 1.0µW (0.1µW Typical)
老化 ±3 PPM
最大焊接温度/时间 260°C / 10 Seconds
温度敏感度 1
终止完成 Au over Ni
密封方法 Seam
无铅 Yes
符合RoHS Yes
yijin-3

福克斯美国晶振,FK12AEIHI0.032768-T3电动牙刷晶振,FK12A小型音叉晶振

FK12A

FK12A

编码 品牌 型号 工作温度 频率 频率稳定度 频率容差 负载电容
FC0BSFEEN23A99675-T2 Fox FC0BS -20°C ~ 85°C 23.99675 MHz ±20ppm ±15ppm 10 pF
FC0BSFEEN23A99675-T3 Fox FC0BS -20°C ~ 85°C 23.99675 MHz ±20ppm ±15ppm 10 pF
FC1BACBEI20.0-T3 Fox FC1BA -40°C ~ 12°C 20 MHz ±50ppm ±30ppm 10 pF
FC1BAEBDI16.0-T1 Fox FC1BA -40°C ~ 125°C 16 MHz ±50ppm ±20ppm 8 pF
FC1BAEBDI20.0-T1 Fox FC1BA -40°C ~ 125°C 20 MHz ±50ppm ±20ppm 8 pF
FC1BAEBDI24.0-T1 Fox FC1BA -40°C ~ 125°C 24 MHz ±50ppm ±20ppm 8 pF
FC1BAEBDI25.0-T1 Fox FC1BA -40°C ~ 125°C 25 MHz ±50ppm ±20ppm 8 pF
FC1BAEBDI40.0-T1 Fox FC1BA -40°C ~ 125°C 40 MHz ±50ppm ±20ppm 8 pF
FC1BAEBEI16.0-T1 Fox FC1BA -40°C ~ 125°C 16 MHz ±50ppm ±20ppm 10 pF
FC1BAEBEI20.0-T1 Fox FC1BA -40°C ~ 125°C 20 MHz ±50ppm ±20ppm 10 pF
FC1BAEBEI24.0-T1 Fox FC1BA -40°C ~ 125°C 24 MHz ±50ppm ±20ppm 10 pF
FC1BAEBEI25.0-T1 Fox FC1BA -40°C ~ 125°C 25 MHz ±50ppm ±20ppm 10 pF
FC1BAEBEI40.0-T1 Fox FC1BA -40°C ~ 125°C 40 MHz ±50ppm ±20ppm 10 pF
FC1BAEBGI16.0-T1 Fox FC1BA -40°C ~ 125°C 16 MHz ±50ppm ±20ppm 12 pF
FC1BAEBGI20.0-T1 Fox FC1BA -40°C ~ 125°C 20 MHz ±50ppm ±20ppm 12 pF
FC1BAEBGI24.0-T1 Fox FC1BA -40°C ~ 125°C 24 MHz ±50ppm ±20ppm 12 pF
FC1BAEBGI25.0-T1 Fox FC1BA -40°C ~ 125°C 25 MHz ±50ppm ±20ppm 12 pF
FC1BAEBGI40.0-T1 Fox FC1BA -40°C ~ 125°C 40 MHz ±50ppm ±20ppm 12 pF
FC1BQCCEK27.12-1 Fox FC1BQ -30°C ~ 85°C 27.12 MHz ±30ppm ±30ppm 10 pF
FC1BSCBEM27.12-T3 Fox FC1BS -40°C ~ 85°C 27.12 MHz ±50ppm ±30ppm 10 pF
FC1BSCCEM16.0-T3 Fox FC1BS -40°C ~ 85°C 16 MHz ±30ppm ±30ppm 10 pF
FC1BSHFEM32.0-T3 Fox FC1BS -40°C ~ 85°C 32 MHz ±15ppm ±10ppm 10 pF
FC1BSHHVK50.0-1-T3 Fox FC1BS -30°C ~ 85°C 50 MHz ±10ppm ±10ppm 7 pF
FC2BACBEI16.0-T1 Fox FC2BA -40°C ~ 12°C 16 MHz ±50ppm ±30ppm 10 pF
FC2BACBEI16.0-T3 Fox FC2BA -40°C ~ 12°C 16 MHz ±50ppm ±30ppm 10 pF
FC2BAEBDI12.0-T1 Fox FC2BA -40°C ~ 125°C 12 MHz ±50ppm ±20ppm 8 pF
FC2BAEBDI16.0-T1 Fox FC2BA -40°C ~ 125°C 16 MHz ±50ppm ±20ppm 8 pF
FC2BAEBDI20.0-T1 Fox FC2BA -40°C ~ 125°C 20 MHz ±50ppm ±20ppm 8 pF
FC2BAEBDI24.0-T1 Fox FC2BA -40°C ~ 125°C 24 MHz ±50ppm ±20ppm 8 pF
FC2BAEBDI25.0-T1 Fox FC2BA -40°C ~ 125°C 25 MHz ±50ppm ±20ppm 8 pF
FC2BAEBDI40.0-T1 Fox FC2BA -40°C ~ 125°C 40 MHz ±50ppm ±20ppm 8 pF
FC2BAEBEI12.0-T1 Fox FC2BA -40°C ~ 125°C 12 MHz ±50ppm ±20ppm 10 pF
FC2BAEBEI16.0-T1 Fox FC2BA -40°C ~ 125°C 16 MHz ±50ppm ±20ppm 10 pF
FC2BAEBEI20.0-T1 Fox FC2BA -40°C ~ 125°C 20 MHz ±50ppm ±20ppm 10 pF
FC2BAEBEI24.0-T1 Fox FC2BA -40°C ~ 125°C 24 MHz ±50ppm ±20ppm 10 pF
FC2BAEBEI25.0-T1 Fox FC2BA -40°C ~ 125°C 25 MHz ±50ppm ±20ppm 10 pF
FC2BAEBEI40.0-T1 Fox FC2BA -40°C ~ 125°C 40 MHz ±50ppm ±20ppm 10 pF
FC2BAEBGI25.0-T1 Fox FC2BA -40°C ~ 125°C 25 MHz ±50ppm ±20ppm 12 pF
FC2BSBBMM16.0-T1 Fox FC2BS -40°C ~ 85°C 16 MHz ±50ppm ±50ppm 20 pF
FC2BSBBMM16.0-T3 Fox FC2BS -40°C ~ 85°C 16 MHz ±50ppm ±50ppm 20 pF
FC3BABBKM20.0-T3 Fox FC3BA -40°C ~ 85°C 20 MHz ±50ppm ±50ppm 16 pF
FC3BACAGI16.0-T3 Fox FC3BA -40°C ~ 12°C 16 MHz ±100ppm ±30ppm 12 pF
FC3BACALI16.0-T3 Fox FC3BA -40°C ~ 12°C 16 MHz ±100ppm ±30ppm 18 pF
FC3BACBDI16.0-T3 Fox FC3BA -40°C ~ 12°C 16 MHz ±50ppm ±30ppm 8 pF
FC3BACCGM20.0-T3 Fox FC3BA -40°C ~ 85°C 20 MHz ±30ppm ±30ppm 12 pF
FC3BACCLP12.0-T3 Fox FC3BA -40°C ~ 10°C 12 MHz ±30ppm ±30ppm 18 pF
FC3BAEBDI12.0-T1 Fox FC3BA -40°C ~ 125°C 12 MHz ±50ppm ±20ppm 8 pF
FC3BAEBDI16.0-T1 Fox FC3BA -40°C ~ 125°C 16 MHz ±50ppm ±20ppm 8 pF
FC3BAEBDI20.0-T1 Fox FC3BA -40°C ~ 125°C 20 MHz ±50ppm ±20ppm 8 pF
FC3BAEBDI24.0-T1 Fox FC3BA -40°C ~ 125°C 24 MHz ±50ppm ±20ppm 8 pF
FC3BAEBDI25.0-T1 Fox FC3BA -40°C ~ 125°C 25 MHz ±50ppm ±20ppm 8 pF
FC3BAEBDI40.0-T1 Fox FC3BA -40°C ~ 125°C 40 MHz ±50ppm ±20ppm 8 pF
FC3BAEBDI8.0-T1 Fox FC3BA -40°C ~ 125°C 8 MHz ±50ppm ±20ppm 8 pF
FC3BAEBGI12.0-T1 Fox FC3BA -40°C ~ 125°C 12 MHz ±50ppm ±20ppm 12 pF
FC3BAEBGI24.0-T1 Fox FC3BA -40°C ~ 125°C 24 MHz ±50ppm ±20ppm 12 pF
FC3BAEBGI25.0-T1 Fox FC3BA -40°C ~ 125°C 25 MHz ±50ppm ±20ppm 12 pF
FC3BAEBGI40.0-T1 Fox FC3BA -40°C ~ 125°C 40 MHz ±50ppm ±20ppm 12 pF
FC3BQBBDM20.0-T3 Fox FC3BQ -40°C ~ 85°C 20 MHz ±50ppm ±50ppm 8 pF
FC3BQBBME12.0-T3 Fox FC3BQ -10°C ~ 70°C 12 MHz ±50ppm ±50ppm 20 pF
FC3BQBBME16.0-T1 Fox FC3BQ -10°C ~ 70°C 16 MHz ±50ppm ±50ppm 20 pF
FC3BQBBME24.0-T1 Fox FC3BQ -10°C ~ 70°C 24 MHz ±50ppm ±50ppm 20 pF
FC3BQBBME25.0-T1 Fox FC3BQ -10°C ~ 70°C 25 MHz ±50ppm ±50ppm 20 pF
FC3BQBBME25.0-T3 Fox FC3BQ -10°C ~ 70°C 25 MHz ±50ppm ±50ppm 20 pF
FC3BQBBME27.0-T1 Fox FC3BQ -10°C ~ 70°C 27 MHz ±50ppm ±50ppm 20 pF
FC3BQBBMM12.0-T1 Fox FC3BQ -40°C ~ 85°C 12 MHz ±50ppm ±50ppm 20 pF
FC3BQBBMM12.0-T3 Fox FC3BQ -40°C ~ 85°C 12 MHz ±50ppm ±50ppm 20 pF
FC3BQBBMM24.0-T1 Fox FC3BQ -40°C ~ 85°C 24 MHz ±50ppm ±50ppm 20 pF
FC3BQBBMM24.0-T3 Fox FC3BQ -40°C ~ 85°C 24 MHz ±50ppm ±50ppm 20 pF
FC3BQBBMM25.0-T1 Fox FC3BQ -40°C ~ 85°C 25 MHz ±50ppm ±50ppm 20 pF
FC3BQBBMM25.0-T3 Fox FC3BQ -40°C ~ 85°C 25 MHz ±50ppm ±50ppm 20 pF
FC3BQBBVM25.0-T3 Fox FC3BQ -40°C ~ 85°C 25 MHz ±50ppm ±50ppm 7 pF
FC3BSBBEM26.0-T3 Fox FC3BS -40°C ~ 85°C 26 MHz ±50ppm ±50ppm 10 pF
FC3BSBBLM25.0-T3 Fox FC3BS -40°C ~ 85°C 25 MHz ±50ppm ±50ppm 18 pF
FC3BSBBMM25.0-T3 Fox FC3BS -40°C ~ 85°C 25 MHz ±50ppm ±50ppm 20 pF
FC3BSHFEM12.0-T3 Fox FC3BS -40°C ~ 85°C 12 MHz ±15ppm ±10ppm 10 pF
FC3BSHHEF26.0-T3 Fox FC3BS -20°C ~ 70°C 26 MHz ±10ppm ±10ppm 10 pF
FC3BSHHEF32.0-T3 Fox FC3BS -20°C ~ 70°C 32 MHz ±10ppm ±10ppm 10 pF
FC3BSHLGA27.0-1-T3 Fox FC3BS 0°C ~ 50°C 27 MHz ±5ppm ±10ppm 12 pF
FC3VAEEGM50.0-T3 Fox FC3VA -40°C ~ 85°C 50 MHz ±20ppm ±20ppm 12 pF
FC3VREEDM38.4-T1 Fox FC3VR -40°C ~ 85°C 38.4 MHz ±20ppm ±20ppm 8 pF
FC3VREEDM38.88-T1 Fox FC3VR -40°C ~ 85°C 38.88 MHz ±20ppm ±20ppm 8 pF
FC3VREEDM40.0-T1 Fox FC3VR -40°C ~ 85°C 40 MHz ±20ppm ±20ppm 8 pF
FC3VREEDM48.0-T1 Fox FC3VR -40°C ~ 85°C 48 MHz ±20ppm ±20ppm 8 pF
FC3VREEEM38.4-T1 Fox FC3VR -40°C ~ 85°C 38.4 MHz ±20ppm ±20ppm 10 pF
FC3VREEGM36.0-T1 Fox FC3VR -40°C ~ 85°C 36 MHz ±20ppm ±20ppm 12 pF
FC3VREEGM38.4-T1 Fox FC3VR -40°C ~ 85°C 38.4 MHz ±20ppm ±20ppm 12 pF
FC3VREEGM38.88-T1 Fox FC3VR -40°C ~ 85°C 38.88 MHz ±20ppm ±20ppm 12 pF
FC3VREEGM40.0-T1 Fox FC3VR -40°C ~ 85°C 40 MHz ±20ppm ±20ppm 12 pF
FC3VREEGM50.0-T1 Fox FC3VR -40°C ~ 85°C 50 MHz ±20ppm ±20ppm 12 pF
FC4SDBBMF3.2-T1 Fox FC4SD -20°C ~ 70°C 3.2 MHz ±50ppm ±50ppm 20 pF
FC4SDCBGF24.0-T1 Fox FC4SD -20°C ~ 70°C 24 MHz ±50ppm ±30ppm 12 pF
FC4SDCBGF4.194304-T1 Fox FC4SD -20°C ~ 70°C 4.194304 MHz ±50ppm ±30ppm 12 pF
FC4SDCBGM8.0-T1 Fox FC4SD -40°C ~ 85°C 8 MHz ±50ppm ±30ppm 12 pF
FC4SDCBKF24.0-T1 Fox FC4SD -20°C ~ 70°C 24 MHz ±50ppm ±30ppm 16 pF
