T1243-N16-3.3-LG-50.0MHz-E,欧美晶振,T1243石英贴片晶振

频率：50MHz

尺寸：22.9mm x 17.8mm

T1243-N16-3.3-LG-50.0MHz-E,欧美晶振,T1243石英贴片晶振,3.3V低压兼容,适配低功耗设计需求,针对当下电子设备"节能化,小型化"的发展趋势,该石英贴片晶振支持3.3V标准工作电压,与主流芯片,主板供电系统高度兼容.在输出稳定高频信号的同时,自身功耗控制在极低水平,不仅无需额外设计电压转换电路,降低设备研发与生产成本,还能助力便携式设备(如手持检测仪器,无线传感终端)延长续航时长,完美契合消费电子,工业物联网等领域对低功耗元器件的核心需求.

订购热线：0755-27876565

T1243-N16-3.3-LG-50.0MHz-E,欧美晶振,T1243石英贴片晶振

50.0MHz高频精准输出,支撑高速信号处理,T1243-N16-3.3-LG-50.0MHz-E作为欧美原厂出品的石英贴片晶振,以50.0MHz高频基准频率为核心亮点,频率精度控制在严苛的工业级标准范围内.其稳定的高频信号能为各类电子设备的高速数据处理模块,信号传输单元提供精准时钟支撑,例如在工业控制设备的实时数据采集,消费电子的高速接口通信中,可有效避免频率漂移导致的信号同步偏差,保障设备运行的高效性与数据传输的准确性,是高频应用场景下的优质频率控制选择.

T1243-N16-3.3-LG-50.0MHz-E,欧美晶振,T1243石英贴片晶振

原厂型号 Originalmodel：	T1243-N16-3.3-LG-50.0MHz-E	品牌brand：	Greenray格林雷晶振
Manufacturer品牌	Greenray格林雷晶振	OperatingTemperature温度	-20 to +70°C
Series型号	T1243	Current-Supply(Max)	-
Type类型	TCXO	PackageHeight高度	6.35mm
Frequency频率	50.0MHz	Termination 脚位	4pad
输出方式 Output：	CMOS	PackageType 封装类型	4-SMD
Voltage-Supply电压	3.3V6G无线模块晶振	Packaging 包装	TapeandReel
FrequencyStability频率稳定度	-	安装方式 Installation：	Surfacemount
Size/Dimension尺寸	22.9mm x 17.8mm	最小包装数MPQ：	-

T1243-N16-3.3-LG-50.0MHz-E,欧美晶振,T1243石英贴片晶振

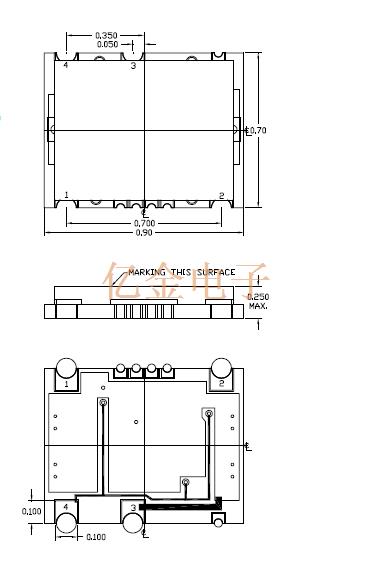

T1243 22.86 x 17.78 TCXO

T1243-N16-3.3-LG-50.0MHz-E,欧美晶振,T1243石英贴片晶振

DSC1123AI1-200.0000	Microchip	DSC1123	MEMS	200MHz	LVDS	2.25 V ~ 3.6 V	±50ppm
DSC557-0344SI1	Microchip	DSC557-03	MEMS	100MHz	HCSL	2.25 V ~ 3.6 V	±50ppm
DSC6003CI1A-033.0000	Microchip	DSC60XX	MEMS	33MHz	CMOS	1.71 V ~ 3.63 V	±50ppm
DSC6111CI1A-008.0000	Microchip	DSC6100	MEMS	8MHz	CMOS	1.71 V ~ 3.63 V	±50ppm
DSC6011JI1A-024.0000	Microchip	DSC60XX	MEMS	24MHz	CMOS	1.71 V ~ 3.63 V	±50ppm
DSC6083CI2A-032K800	Microchip	DSC60XX	MEMS	32.8kHz	CMOS	1.71 V ~ 3.63 V	±25ppm
DSC6083CI2A-307K000	Microchip	DSC60XX	MEMS	307kHz	CMOS	1.71 V ~ 3.63 V	±25ppm
DSC6001CI2A-004.0000	Microchip	DSC60XX	MEMS	4MHz	CMOS	1.71 V ~ 3.63 V	±25ppm
DSC6001CI2A-032.0000	Microchip	DSC60XX	MEMS	32MHz	CMOS	1.71 V ~ 3.63 V	±25ppm
DSC6083CI2A-250K000	Microchip	DSC60XX	MEMS	250kHz	CMOS	1.71 V ~ 3.63 V	±25ppm
DSC6083CI2A-002K000	Microchip	DSC60XX	MEMS	2kHz	CMOS	1.71 V ~ 3.63 V	±25ppm
DSC6101JI2A-024.0000	Microchip	DSC6100	MEMS	24MHz	CMOS	1.71 V ~ 3.63 V	±25ppm
DSC1001CC1-047.3333	Microchip	DSC1001	MEMS	47.3333MHz	CMOS	1.8 V ~ 3.3 V	±50ppm
DSC1030BC1-008.0000	Microchip	DSC1030	MEMS	8MHz	CMOS	3V	±50ppm
DSC1001BC1-024.0000	Microchip	DSC1001	MEMS	24MHz	CMOS	1.8 V ~ 3.3 V	±50ppm
DSC1033BC1-026.6000	Microchip	DSC1033	MEMS	26MHz	CMOS	3.3V	±50ppm
DSC1001DI1-001.8432	Microchip	DSC1001	MEMS	1.8432MHz	CMOS	1.8 V ~ 3.3 V	±50ppm
DSC1033CI1-048.0000	Microchip	DSC1033	MEMS	48MHz	CMOS	3.3V	±50ppm
DSC1033CI1-024.0000	Microchip	DSC1033	MEMS	24MHz	CMOS	3.3V	±50ppm
DSC1033DI1-012.0000	Microchip	DSC1033	MEMS	12MHz	CMOS	3.3V	±50ppm
DSC1033DI1-036.0000	Microchip	DSC1033	MEMS	36MHz	CMOS	3.3V	±50ppm
DSC1001CI1-027.0000	Microchip	DSC1001	MEMS	27MHz	CMOS	1.8 V ~ 3.3 V	±50ppm
DSC1033CI1-050.0000	Microchip	DSC1033	MEMS	50MHz	CMOS	3.3V	±50ppm
DSC6001CI1A-011.0592	Microchip	DSC60XX	MEMS	11.0592MHz	CMOS	1.71 V ~ 3.63 V	±50ppm
DSC1001CI2-024.0000	Microchip	DSC1001	MEMS	24MHz	CMOS	1.8 V ~ 3.3 V	±25ppm
DSC1033BE2-024.0000	Microchip	DSC1033	MEMS	24MHz	CMOS	3.3V	±25ppm
DSC1001DI2-038.4000	Microchip	DSC1001	MEMS	38.4MHz	CMOS	1.8 V ~ 3.3 V	±25ppm
DSC1001CI5-033.3333	Microchip	DSC1001	MEMS	33.3333MHz	CMOS	1.8 V ~ 3.3 V	±10ppm
DSC1101DM2-012.0000	Microchip	DSC1101	MEMS	12MHz	CMOS	2.25 V ~ 3.6 V	±25ppm
DSC1001DE5-018.4320	Microchip	DSC1001	MEMS	18.432MHz	CMOS	1.8 V ~ 3.3 V	±10ppm
DSC1101AI2-040.0000	Microchip	DSC1101	MEMS	40MHz	CMOS	2.25 V ~ 3.6 V	±25ppm
DSC1101AI2-080.0000	Microchip	DSC1101	MEMS	80MHz	CMOS	2.25 V ~ 3.6 V	±25ppm
DSC1101AI2-064.0000	Microchip	DSC1101	MEMS	64MHz	CMOS	2.25 V ~ 3.6 V	±25ppm
DSC1124CI5-100.0000	Microchip	DSC1124	MEMS	100MHz	HCSL	2.25 V ~ 3.6 V	±10ppm
DSC1121CM2-040.0000	Microchip	DSC1121	MEMS	40MHz	CMOS	2.25 V ~ 3.6 V	±25ppm
DSC1101DL5-020.0000	Microchip	DSC1101	MEMS	20MHz	CMOS	2.25 V ~ 3.6 V	±10ppm
DSC1101BI5-133.0000	Microchip	DSC1101	MEMS	133MHz	CMOS	2.25 V ~ 3.6 V	±10ppm
DSC1101CL5-100.0000	Microchip	DSC1101	MEMS	100MHz	CMOS	2.25 V ~ 3.6 V	±10ppm
DSC1122NE1-025.0000	Microchip	DSC1122	MEMS	25MHz	LVPECL	2.25 V ~ 3.6 V	±50ppm
DSC1123CE1-125.0000	Microchip	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V	±50ppm
DSC1122DI2-200.0000	Microchip	DSC1122	MEMS	200MHz	LVPECL	2.25 V ~ 3.6 V	±25ppm
DSC1123CI2-333.3333	Microchip	DSC1123	MEMS	333.3333MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1123CI2-020.0000	Microchip	DSC1123	MEMS	20MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1103CE1-125.0000	Microchip	DSC1103	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V	±50ppm
DSC1123CI1-027.0000	Microchip	DSC1123	MEMS	27MHz	LVDS	2.25 V ~ 3.6 V	±50ppm
DSC1123CI2-333.3300	Microchip	DSC1123	MEMS	333.33MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1123AI2-156.2570	Microchip	DSC1123	MEMS	156.257MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1123AI2-148.5000	Microchip	DSC1123	MEMS	148.5MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1123BL5-156.2500	Microchip	DSC1123	MEMS	156.25MHz	LVDS	2.25 V ~ 3.6 V	±10ppm
DSC1123BI2-100.0000	Microchip	DSC1123	MEMS	100MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1103BI2-148.5000	Microchip	DSC1103	MEMS	148.5MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1103BI2-135.0000	Microchip	DSC1103	MEMS	135MHz	LVDS	2.25 V ~ 3.6 V	±25ppm
DSC1102BI2-125.0000	Microchip	DSC1102	MEMS	125MHz	LVPECL	2.25 V ~ 3.6 V	±25ppm
DSC1102BI2-153.6000	Microchip	DSC1102	MEMS	153.6MHz	LVPECL	2.25 V ~ 3.6 V	±25ppm
DSC1123CI5-100.0000	Microchip	DSC1123	MEMS	100MHz	LVDS	2.25 V ~ 3.6 V	±10ppm
DSC1123CI5-156.2500	Microchip	DSC1123	MEMS	156.25MHz	LVDS	2.25 V ~ 3.6 V	±10ppm
DSC1123DL1-125.0000	Microchip	DSC1123	MEMS	125MHz	LVDS	2.25 V ~ 3.6 V	±50ppm
MX575ABC70M0000	Microchip	MX57	XO (Standard)	70MHz	LVCMOS	2.375 V ~ 3.63 V	±50ppm
MX553BBD156M250	Microchip	MX55	XO (Standard)	156.25MHz	HCSL	2.375 V ~ 3.63 V	±50ppm
MX575ABB50M0000	Microchip	MX57	XO (Standard)	50MHz	LVDS	2.375 V ~ 3.63 V	±50ppm
