357LB3I001M5440|VCXO|1.544MHz|-40~85℃|6-SMD
频率：1.544MHZ
尺寸：7050mm
357LB3I001M5440|VCXO|1.544MHz|-40~85℃|6-SMD,美国CTS晶振公司,进口贴片晶振,标准7x5mm表面安装足迹HCMOS/TTL兼容输出频率范围1.5-77.76MHz频率稳定，±50 ppm标准（±25 ppm和±20ppm）+3.3直流或+5.0直流操作工作温度-40°C+85°C输出使标准低相抖动，非相带和卷轴包装RoHS/绿色兼容.357型是一个陶瓷封装的电压控制振荡器，提供减小的尺寸和增强的稳定性。较小的尺寸意味着它非常适合任何应用程序。增强的稳定性意味着它是当今需要严格的频率控制的通信应用程序的完美选择。
357LB3I001M5440|VCXO|1.544MHz|-40~85℃|6-SMD,美国CTS晶振公司,进口贴片晶振,标准7x5mm表面安装足迹HCMOS/TTL兼容输出频率范围1.5-77.76MHz频率稳定，±50 ppm标准（±25 ppm和±20ppm）+3.3直流或+5.0直流操作工作温度-40°C+85°C输出使标准低相抖动，非相带和卷轴包装RoHS/绿色兼容.357型是一个陶瓷封装的电压控制振荡器，提供减小的尺寸和增强的稳定性。较小的尺寸意味着它非常适合任何应用程序。增强的稳定性意味着它是当今需要严格的频率控制的通信应用程序的完美选择。
357LB3I001M5440|VCXO|1.544MHz|-40~85℃|6-SMD
|

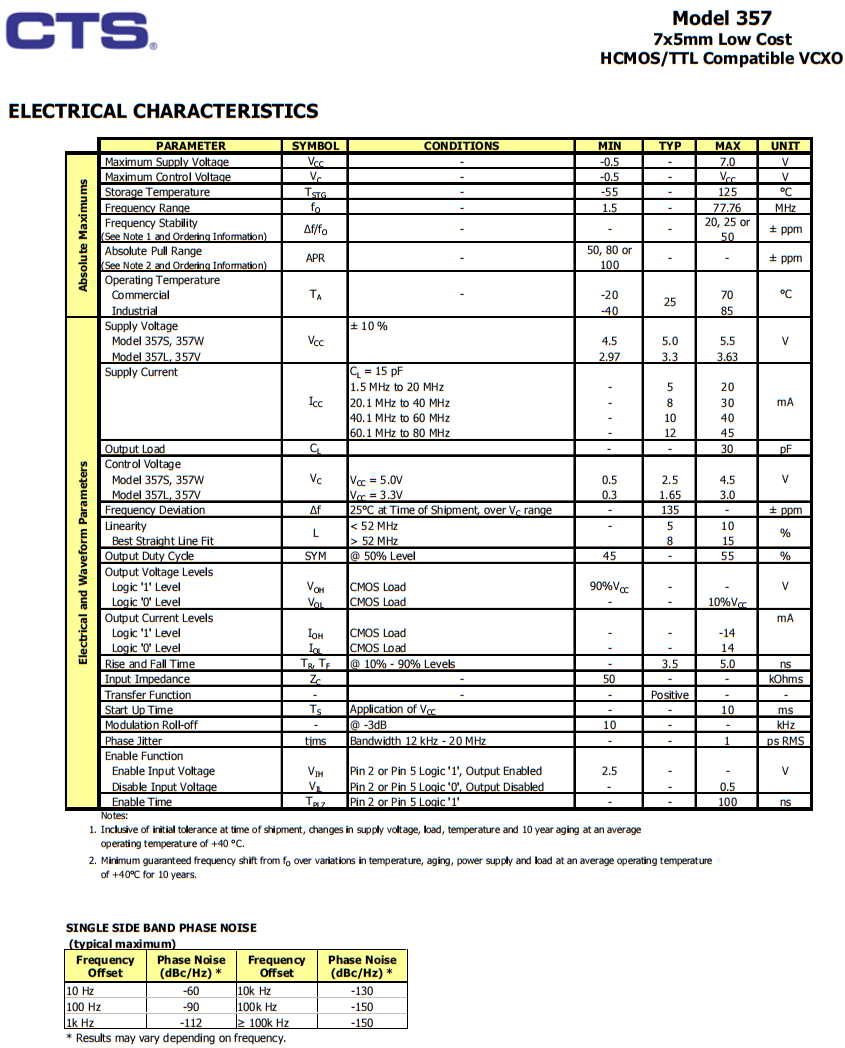

PARAMETER |
SYMBOL |
CONDITIONS |
MIN |
TYP |
MAX |
UNIT |
|||||||
|
Maximum Supply Voltage |
VCC |
- |
-0.5 |
- |
7.0 |
V |
|||||||
|
Maximum Control Voltage |
VC |
- |
-0.5 |
- |
VCC |
V |
|||||||
|
Storage Temperature |
TSTG |
- |
-55 |
- |
125 |
°C |
|||||||
|
Frequency Range |
O |
- |
1.5 |
- |
77.76 |
MHz |
|||||||
|
Frequency Stability (See Note 1 and Ordering Information) |
?f/fO |
|
|
|
20, 25 or 50 |
± ppm |
|||||||
|
|
|
|
|
|
|
|
|||||||
|
Absolute Pull Range (See Note 2 and Ordering Information) |
APR |
- |
50, 80 or 100 |
- |
- |
± ppm |
|||||||
|
Operating Temperature Commercial Industrial |
TA |
- |
-20 -40 |
25 |
70 85 |
°C |
|||||||
|
Supply Voltage Model 357S, 357W Model 357L, 357V |
VCC |
± 10 % |
4.5 2.97 |
5.0 3.3 |
5.5 3.63 |
V |
|||||||
|
Supply Current |
ICC |
CL = 15 pF 1.5 MHz to 20 MHz 20.1 MHz to 40 MHz 40.1 MHz to 60 MHz 60.1 MHz to 80 MHz |
- - - - |
5 8 10 12 |
20 30 40 45 |
mA |
|||||||
|
Output Load |
CL |
|
- |
- |
30 |
pF |
|||||||
|
Control Voltage Model 357S, 357W Model 357L, 357V |
VC |
VCC = 5.0V VCC = 3.3V |
0.5 0.3 |
2.5 1.65 |
4.5 3.0 |
V |
|||||||
|
Frequency Deviation |
?f |
25°C at Time of Shipment, over VC range |
- |
135 |
- |
± ppm |
|||||||
|
Linearity Best Straight Line Fit |
L |
< 52 MHz > 52 MHz |
- |
5 8 |
10 15 |
% |
|||||||
|
Output Duty Cycle |
SYM |
@ 50% Level |
45 |
- |
55 |
% |
|||||||
|
Output Voltage Levels Logic '1' Level Logic '0' Level |
VOH VOL |
CMOS Load CMOS Load |
90%VCC - |
- - |
- 10%VCC |
V |
|||||||
|
Output Current Levels Logic '1' Level Logic '0' Level |
IOH IOL |
CMOS Load CMOS Load |
- - |
- - |
-14 14 |
mA |
|||||||
|
Rise and Fall Time |
TR, TF |
@ 10% - 90% Levels |
- |
3.5 |
5.0 |
ns |
|||||||
|
Input Impedance |
ZC |
- |
50 |
- |
- |
kOhms |
|||||||
|
Transfer Function |
- |
- |
- |
Positive |
- |
- |
|||||||
|
Start Up Time |
TS |
Application of VCC |
- |
- |
10 |
ms |
|||||||
|
Modulation Roll-off |
- |
@ -3dB |
10 |
- |
- |
kHz |
|||||||
|
Phase Jitter |
tjms |
Bandwidth 12 kHz - 20 MHz |
- |
- |
1 |
ps RMS |
|||||||
|
Enable Function Enable Input Voltage Disable Input Voltage |
VIH VIL |
Pin 2 or Pin 5 Logic '1', Output Enabled Pin 2 or Pin 5 Logic '0', Output Disabled |
2.5 - |
- - |
- 0.5 |
V |
|||||||
|
Enable Time |
TPLZ |
Pin 2 or Pin 5 Logic '1' |
- |
- |
100 |
ns |
|||||||
357LB3I001M5440|VCXO|1.544MHz|-40~85℃|6-SMD
| CTS原厂代码 | 生产商品牌 | 型号 | 类型 | 频率 | 输出 | 电压 |
| 357LB3I032M7680 | CTS-Frequency Controls | 357 | VCXO | 32.768MHz | HCMOS, TTL | 3.3V |
| 357LB3I032M7680 | CTS-Frequency Controls | 357 | VCXO | 32.768MHz | HCMOS, TTL | 3.3V |
| 357LB3I032M7680 | CTS-Frequency Controls | 357 | VCXO | 32.768MHz | HCMOS, TTL | 3.3V |
| 357LB3I040M0000 | CTS-Frequency Controls | 357 | VCXO | 40MHz | HCMOS, TTL | 3.3V |
| 357LB3I040M0000 | CTS-Frequency Controls | 357 | VCXO | 40MHz | HCMOS, TTL | 3.3V |
| 357LB3I040M0000 | CTS-Frequency Controls | 357 | VCXO | 40MHz | HCMOS, TTL | 3.3V |
| 357LB3I002M0480 | CTS-Frequency Controls | 357 | VCXO | 2.048MHz | HCMOS, TTL | 3.3V |
| 357LB3I002M0480 | CTS-Frequency Controls | 357 | VCXO | 2.048MHz | HCMOS, TTL | 3.3V |
| 357LB3I002M0480 | CTS-Frequency Controls | 357 | VCXO | 2.048MHz | HCMOS, TTL | 3.3V |
| 357LB3I027M0000 | CTS-Frequency Controls | 357 | VCXO | 27MHz | HCMOS, TTL | 3.3V |
| 357LB3I027M0000 | CTS-Frequency Controls | 357 | VCXO | 27MHz | HCMOS, TTL | 3.3V |
| 357LB3I027M0000 | CTS-Frequency Controls | 357 | VCXO | 27MHz | HCMOS, TTL | 3.3V |
| 357LB3I004M0960 | CTS-Frequency Controls | 357 | VCXO | 4.096MHz | HCMOS, TTL | 3.3V |
| 357LB3I004M0960 | CTS-Frequency Controls | 357 | VCXO | 4.096MHz | HCMOS, TTL | 3.3V |
| 357LB3I004M0960 | CTS-Frequency Controls | 357 | VCXO | 4.096MHz | HCMOS, TTL | 3.3V |
| 357LB3I019M4400 | CTS-Frequency Controls | 357 | VCXO | 19.44MHz | HCMOS, TTL | 3.3V |
| 357LB3I019M4400 | CTS-Frequency Controls | 357 | VCXO | 19.44MHz | HCMOS, TTL | 3.3V |
| 357LB3I019M4400 | CTS-Frequency Controls | 357 | VCXO | 19.44MHz | HCMOS, TTL | 3.3V |
| 357LB3I001M5440 | CTS-Frequency Controls | 357 | VCXO | 1.544MHz | HCMOS, TTL | 3.3V |
| 357LB3I001M5440 | CTS-Frequency Controls | 357 | VCXO | 1.544MHz | HCMOS, TTL | 3.3V |
| 357LB3I001M5440 | CTS-Frequency Controls | 357 | VCXO | 1.544MHz | HCMOS, TTL | 3.3V |
| 357LB3I006M1760 | CTS-Frequency Controls | 357 | VCXO | 6.176MHz | HCMOS, TTL | 3.3V |
| 357LB3I016M3840 | CTS-Frequency Controls | 357 | VCXO | 16.384MHz | HCMOS, TTL | 3.3V |
| 357LB3I016M3840 | CTS-Frequency Controls | 357 | VCXO | 16.384MHz | HCMOS, TTL | 3.3V |
| 357LB3I016M3840 | CTS-Frequency Controls | 357 | VCXO | 16.384MHz | HCMOS, TTL | 3.3V |
| 357LB3I020M0000 | CTS-Frequency Controls | 357 | VCXO | 20MHz | HCMOS, TTL | 3.3V |
| 357LB3I020M0000 | CTS-Frequency Controls | 357 | VCXO | 20MHz | HCMOS, TTL | 3.3V |
| 357LB3I020M0000 | CTS-Frequency Controls | 357 | VCXO | 20MHz | HCMOS, TTL | 3.3V |
| 357LB3C024M5760 | CTS-Frequency Controls | 357 | VCXO | 24.576MHz | HCMOS, TTL | 3.3V |
| 357LB3C027M0000 | CTS-Frequency Controls | 357 | VCXO | 27MHz | HCMOS, TTL | 3.3V |
| 357LB3I025M6000 | CTS-Frequency Controls | 357 | VCXO | 25.6MHz | HCMOS, TTL | 3.3V |
| 357LB3I035M3280 | CTS-Frequency Controls | 357 | VCXO | 35.328MHz | HCMOS, TTL | 3.3V |
| 357LB3I035M3280 | CTS-Frequency Controls | 357 | VCXO | 35.328MHz | HCMOS, TTL | 3.3V |
| 357LB3I035M3280 | CTS-Frequency Controls | 357 | VCXO | 35.328MHz | HCMOS, TTL | 3.3V |
| 357LB3I038M8800 | CTS-Frequency Controls | 357 | VCXO | 38.88MHz | HCMOS, TTL | 3.3V |
| 357LB3I038M8800 | CTS-Frequency Controls | 357 | VCXO | 38.88MHz | HCMOS, TTL | 3.3V |
| 357LB3I038M8800 | CTS-Frequency Controls | 357 | VCXO | 38.88MHz | HCMOS, TTL | 3.3V |
| 357LB5C038M8800 | CTS-Frequency Controls | 357 | VCXO | 38.88MHz | HCMOS, TTL | 3.3V |
| 357LD3C027M0000 | CTS-Frequency Controls | 357 | VCXO | 27MHz | HCMOS, TTL | 3.3V |
| 357LD3I012M2880 | CTS-Frequency Controls | 357 | VCXO | 12.288MHz | HCMOS, TTL | 3.3V |
| 357LC5C027M1450 | CTS-Frequency Controls | 357 | VCXO | 27.145MHz | HCMOS, TTL | 3.3V |
| 357LD5C027M0000 | CTS-Frequency Controls | 357 | VCXO | 27MHz | HCMOS, TTL | 3.3V |
| 357LB3I044M7360 | CTS-Frequency Controls | 357 | VCXO | 44.736MHz | HCMOS, TTL | 3.3V |
| 357LB5C049M1520 | CTS-Frequency Controls | 357 | VCXO | 49.152MHz | HCMOS, TTL | 3.3V |
| 357LD5C040M0000 | CTS-Frequency Controls | 357 | VCXO | 40MHz | HCMOS, TTL | 3.3V |
| 357LB3I061M4400 | CTS-Frequency Controls | 357 | VCXO | 61.44MHz | HCMOS, TTL | 3.3V |
| 357LB3I065M3600 | CTS-Frequency Controls | 357 | VCXO | 65.36MHz | HCMOS, TTL | 3.3V |
| 357LB3I065M3600 | CTS-Frequency Controls | 357 | VCXO | 65.36MHz | HCMOS, TTL | 3.3V |
| 357LB3I065M3600 | CTS-Frequency Controls | 357 | VCXO | 65.36MHz | HCMOS, TTL | 3.3V |
| 357LB3I060M0000 | CTS-Frequency Controls | 357 | VCXO | 60MHz | HCMOS, TTL | 3.3V |
| 357LB3I077M7600 | CTS-Frequency Controls | 357 | VCXO | 77.76MHz | HCMOS, TTL | 3.3V |
| 357LB3I077M7600 | CTS-Frequency Controls | 357 | VCXO | 77.76MHz | HCMOS, TTL | 3.3V |
| 357LB3I077M7600 | CTS-Frequency Controls | 357 | VCXO | 77.76MHz | HCMOS, TTL | 3.3V |
| 357LC5C074M1758 | CTS-Frequency Controls | 357 | VCXO | 74.1758MHz | HCMOS, TTL | 3.3V |
| 357LC5C074M1758 | CTS-Frequency Controls | 357 | VCXO | 74.1758MHz | HCMOS, TTL | 3.3V |
| 357LC5C074M1758 | CTS-Frequency Controls | 357 | VCXO | 74.1758MHz | HCMOS, TTL | 3.3V |
| 357LC5C074M2500 | CTS-Frequency Controls | 357 | VCXO | 74.25MHz | HCMOS, TTL | 3.3V |
| 357LC5C074M2500 | CTS-Frequency Controls | 357 | VCXO | 74.25MHz | HCMOS, TTL | 3.3V |
| 357LC5C074M2500 | CTS-Frequency Controls | 357 | VCXO | 74.25MHz | HCMOS, TTL | 3.3V |
