12.94295,KXO-97T晶振,Geyer晶振

频率：40MHz

尺寸：7050mm

12.94295,KXO-97T晶振,Geyer晶振经典贴片式封装,结构紧凑且布局灵活,能轻松嵌入空间受限的设备内部(如小型工业传感器,便携式通信终端).贴片式设计支持自动化SMT焊接工艺,焊接精度高,一致性强,可减少人工操作导致的误差,提升批量生产效率,同时封装外壳经过特殊强化处理,具备良好的机械强度,能抵御轻微碰撞与振动,防护等级达IP54,可隔绝粉尘,湿气对内部元件的侵蚀,延长晶振使用寿命.

订购热线：0755-27876565

YJ-1

12.94295,KXO-97T晶振,Geyer晶振

Geyer晶振品牌12.94295型号携手KXO-97T晶振专为对时钟信号精度有特定需求的场景设计,能满足工业控制,无线通信设备晶振等对频率准确性的严苛要求.该型号支持3.0V-5.0V宽电压输入,适配多数电子设备的供电系统,工作电流低至8mA,在保证高频稳定输出的同时,有效控制能耗,避免设备因供电波动出现频率漂移,适配从嵌入式系统到小型通信模块的多样化应用需求.

YJ-2

12.94295,KXO-97T晶振,Geyer晶振

原厂型号 Originalmodel：	12.94295	品牌brand：	Geyer
Manufacturer品牌	Geyer	OperatingTemperature温度	-40C +85C
Series型号	KXO-97T	Current-Supply(Max)	-
Type类型	XO	PackageHeight高度	1.30mm
Frequency频率	40M	Termination 脚位	4-pad
输出方式 Output：	CMOS	PackageType 封装类型	4-Smd
Voltage-Supply电压	5.0V	Packaging 包装	TapeandReel
FrequencyStability频率稳定度	±100ppm	安装方式 Installation：	Surfacemount
Size/Dimension尺寸	7050晶体振荡器	最小包装数MPQ：	1000

YJ-3

12.94295,KXO-97T晶振,Geyer晶振

KXO-97 7050 OSC

12.94295,KXO-97T晶振,Geyer晶振

12.87000	KX-327V	1.25 \| 1.05 \| 0.5 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87001	KX-327V	1.25 \| 1.05 \| 0.5 mm	32.768 kHz	9 pF	± 20 ppm
12.87002	KX-327V	1.25 \| 1.05 \| 0.5 mm	32.768 kHz	7 pF	± 20 ppm
12.87034	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	4 pF	± 20 ppm
12.87080	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 10 ppm
12.87081	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	6 pF	± 20 ppm
12.87083	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	6 pF	± 20 ppm
12.87086	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	6 pF	± 10 ppm
12.87090	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	7 pF	± 10 ppm
12.87095	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	9 pF	± 10 ppm
12.87105	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	6 pF	± 10 ppm
12.87107	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87109	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12 pF	± 15 ppm
12.87110	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 30 ppm
12.87111	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 30 ppm
12.87112	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87113	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 5.0 ppm
12.87114	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87115	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 10 ppm
12.87116	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	12.5 pF	± 10 ppm
12.87118	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	6 pF	± 20 ppm
12.87119	KX-327S	8.2 \| 3.8 \| 2.5 mm	32.768 kHz	6 pF	± 20 ppm
12.87120	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	12.5 pF	± 30 ppm
12.87121	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	12.5 pF	± 30 ppm
12.87123	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	6 pF	± 30 ppm
12.87126	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87127	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	6 pF	± 30 ppm
12.87128	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	6 pF	± 20 ppm
12.87129	KX-327XS	4.95 \| 1.82 \| 0.96 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87130	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87131	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87132	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	7 pF	± 20 ppm
12.87133	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	12.5 pF	± 10 ppm
12.87134	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	7 pF	± 10 ppm
12.87135	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	7 pF	± 20 ppm
12.87136	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	12.5 pF	± 10 ppm
12.87137	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	9 pF	± 20 ppm
12.87138	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	12.5 pF	± 5.0 ppm
12.87139	KX-327L	7.0 \| 1.5 \| 1.4 mm	32.768 kHz	7 pF	± 10 ppm
12.87143	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	9 pF	± 20 ppm
12.87144	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	7 pF	± 5.0 ppm
12.87145	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87146	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	9 pF	± 10 ppm
12.87147	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	7 pF	± 10 ppm
12.87148	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	7 pF	± 20 ppm
12.87149	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	9 pF	± 20 ppm
12.87150	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87151	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	9 pF	± 30 ppm
12.87152	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87153	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	7 pF	± 20 ppm
12.87155	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 30 ppm
12.87157	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 5.0 ppm
12.87158	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 10 ppm
12.87159	KX-327NH	3.2 \| 1.5 \| 0.8 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87160	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	12.5 pF	± 20 ppm
12.87161	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	12.5 pF	± 5.0 ppm
12.87163	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	7 pF	± 20 ppm
12.87164	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	9 pF	± 30 ppm
12.87165	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	9 pF	± 20 ppm
12.87166	KX-327R	2.0 \| 1.2 \| 0.6 mm	32.768 kHz	12.5 pF	± 20 ppm

yijin-5

YJ-6

深圳市亿金电子有限公司 SHENZHEN YIJIN ELECTRONICS CO;LTD

mphone 联系人黄娜：18924600166

工作QQ:857950243

myt 贸易通：yijindz2014

tel 座机：0755-27876565

email 邮箱:yijindz@163.com

inter 网址：http://www.yijindz.com

mwx 微信：yijindz，公众号：NDKcrystal

home 地址：广东省深圳市宝安区107国道旁甲岸路

wxewm

12.94295 KXO-97T晶振 Geyer晶振

跟此产品相关的产品 / Related Products

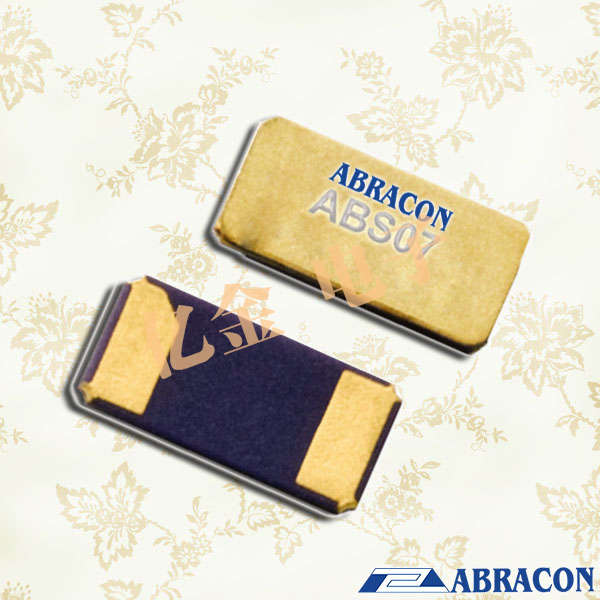

: ABS07AIG-32.768kHz-7-1-T,3215音叉晶振,ABRACON无源晶振; ABS07AIG-32.768kHz-7-1-T,3215音叉晶振,ABRACON无源晶振,该型号采用3215贴片晶振封装(3.2mm×1.5mm),在音叉晶振领域具备显著空间优势:紧凑尺寸可大幅节省PCB板布局空间,尤其适配智能手环,无线传感器,微型医疗设备等对体积敏感的产品;贴片式结构支持自动化SMT焊接工艺,焊接良率超99.9%,能显著提升批量生产效率,降低人工操作误差.
