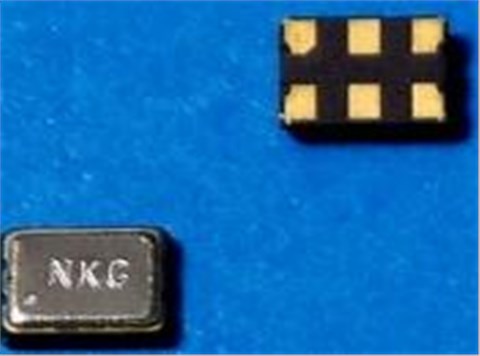

NKG晶振|SHO6|SHO66B-100.000-WTS|差分石英晶体振荡器

产品简介

NKG晶振|SHO6|SHO66B-100.000-WTS|差分石英晶体振荡器,香港NKG晶振,SHO6差分石英晶体振荡器,有源晶振,SHO66B-100.000-WTS晶振,3225进口晶振,六脚贴片晶振,HCSL输出晶振,频率100MHz,电压3.3V,频率稳定性50ppm,工作温度范围-40~85°C,低老化晶振,小体积晶振,超低抖动晶振,无线通信晶振,高速转换器晶振,机载设备晶振,电信传输晶振.

产品详情

yijin-1 NKG晶振|SHO6|SHO66B-100.000-WTS|差分石英晶体振荡器,香港NKG晶振,SHO6差分石英晶体振荡器,有源晶振,SHO66B-100.000-WTS晶振,3225进口晶振,六脚贴片晶振,HCSL输出晶振,频率100MHz,电压3.3V,频率稳定性50ppm,工作温度范围-40~85°C,低老化晶振,小体积晶振,超低抖动晶振,无线通信晶振,高速转换器晶振,机载设备晶振,电信传输晶振.

NKG晶振|SHO6|SHO66B-100.000-WTS|差分石英晶体振荡器特点：

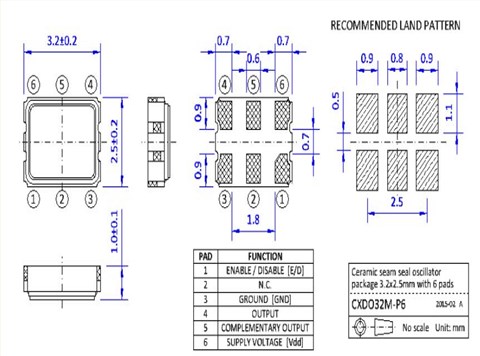

●SMD封装尺寸为3.2 x 2.5 x 1.0mm，带有6个衬垫。

●频率范围13.5至250MHz

●超低抖动，典型0.2ps和相位噪声。

●高可靠的接缝密封封装，低老化。

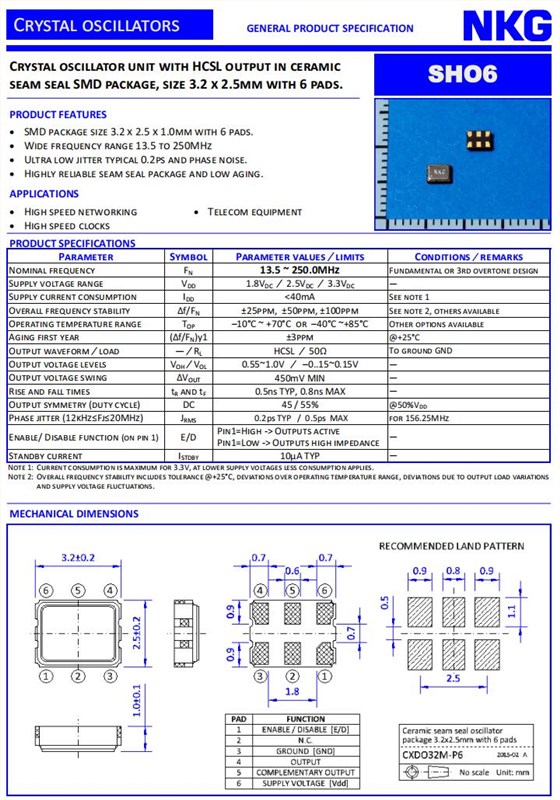

yijin-2 NKG晶振|SHO6|SHO66B-100.000-WTS|差分石英晶体振荡器规格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	100MHz	Fundamental DESIGN
Supply voltage range	VDD	3.3 V	-
Supply current consumption	IDD	<40mA	-
Overall frequency stability	Δf/FN	±50ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–40°C ~+85°C	Options available
Aging first year	(Δf/FN)y1	±3ppm	@+25°C
Output waveform /load	— /RL	HCSL /50Ω	Between the two outputs
Output voltage levels	VOH /VOL	0.55~1.0V /–0..15~0.15V	-
Output voltage swing	ΔVOUT	350mV TYP	-
Rise and fall times	tR and tF	0.5ns TYP / 0.8ns MAX	-
Output symmetry (duty cycle)	DC	45/55%	@50%VDD
Phase jitter (12kHz≤Fj≤20MHz)	JRMS	0.2ps TYP / 0.5ps MAX	for 156.25MHz
Standby function (E/D on pin 1)	E/D	Pin1 = High -> Output pin 3 active Pin1 = Low -> Output pin 3 high impedance	•Output high impedance = TRI-STATE
Standby current consumption	ISTB	10µA Typ	Typical
