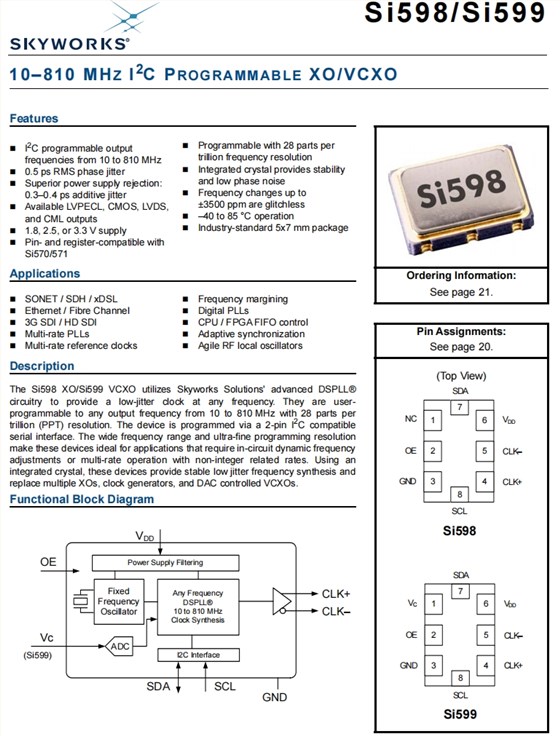

思佳讯振荡器,LVDS晶振,599BAB000262DG,6G数据通讯晶振特点：
•I2C可编程输出频率从10MHz到810MHz
•0.5ps RMS相位抖动
•优越的电源拒绝能力:0.3-0.4 ps附加抖动
•引脚和寄存器兼容Si570/571
•可编程的28万亿分之一的频率分辨率
•集成晶体提供稳定性和低相位噪声
•频率变化到±3500ppm无故障
•具备CMOS, LVPECL，LVDS和CML输出
•3.3, 2.5和1.8 V电源选项
•行业标准的5 × 7mm封装和引脚
•工作温度-40~85°C
思佳讯振荡器,LVDS晶振,599BAB000262DG,6G数据通讯晶振规格表
项目
符号
规格说明
条件
额定频率
f_nom
70MHz
请联系我们以便获取其它可用频率的相关信息
电源电压
Vcc
3.3V
储存温度
T_stg
-55℃~+125℃
裸存
工作温度
T_use
-40℃~ +85℃
频率稳定性
f_tol
±20 ppm
+25℃,超出标准的规格说明请联系我们以便获取相关信息
电源电流
IDD
110mA Max
LVDS
对称性（占空比）
SYM
48%~52%
在输出交叉点
输出电压
VOD
0.9VPP Max
LVDS
VO
1.275V Max
输入电压
VIH
0.75 x VDD Min
VIL
0.5V Max
上升下降时间
tr/tf
350ps Max
LVDS
起始时间
t str
10ms Max
相位抖动
tpj
0.5ps Typ

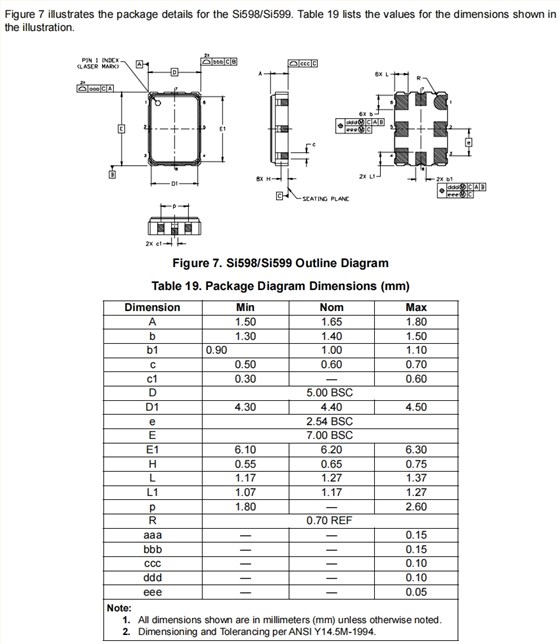

思佳讯振荡器,LVDS晶振,599BAB000262DG,6G数据通讯晶振尺寸图
| 原厂编码 | 品牌 | 型号 | 频率 | 输出 | 电压 | 频率稳定性 | 工作温度 |
| 599BFC000159DGR | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599NGC000112DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BFC000159DG | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599NGC000112DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BAC000780DG | Skyworks Solutions Inc. | Si599 | 30 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAC000780DGR | Skyworks Solutions Inc. | Si599 | 30 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599ACC000112DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599AGC000112DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BGC000121DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BGC000770DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599ACC000112DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599AGC000112DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BGC000121DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BGC000770DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599ADC000107DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAC001795DG | Skyworks Solutions Inc. | Si599 | 133.3125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BBC000159DG | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BCB000107DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BEC000121DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BEC000642DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BEC000770DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BHC000348DG | Skyworks Solutions Inc. | Si599 | 16.384 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599EBC000159DG | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 599ECB000103DG | Skyworks Solutions Inc. | Si599 | 155.52 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599ECB000553DG | Skyworks Solutions Inc. | Si599 | 155 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599FCB000107DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599FCB000112DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599MHC000775DG | Skyworks Solutions Inc. | Si599 | 36.864 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599ADC000107DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAC001795DGR | Skyworks Solutions Inc. | Si599 | 133.3125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BBC000159DGR | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BCB000107DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BEC000121DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BEC000642DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BEC000770DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BHC000348DGR | Skyworks Solutions Inc. | Si599 | 16.384 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599EBC000159DGR | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C |
| 599ECB000103DGR | Skyworks Solutions Inc. | Si599 | 155.52 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599ECB000553DGR | Skyworks Solutions Inc. | Si599 | 155 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599FCB000107DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599FCB000112DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599MHC000775DGR | Skyworks Solutions Inc. | Si599 | 36.864 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599ADA000105DG | Skyworks Solutions Inc. | Si599 | 622.08 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599AHA000141DG | Skyworks Solutions Inc. | Si599 | 56.32 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAA000121DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAA001603DG | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BDA000372DG | Skyworks Solutions Inc. | Si599 | 800 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BEA000110DG | Skyworks Solutions Inc. | Si599 | 74.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BEA000642DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BHA000282DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599MDA000118DG | Skyworks Solutions Inc. | Si599 | 156.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAA001207DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599AHA000121DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BHA000121DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599AEA000121DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BEA000121DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599ADA000105DGR | Skyworks Solutions Inc. | Si599 | 622.08 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599AHA000141DGR | Skyworks Solutions Inc. | Si599 | 56.32 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAA000121DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAA001603DGR | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BDA000372DGR | Skyworks Solutions Inc. | Si599 | 800 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BEA000110DGR | Skyworks Solutions Inc. | Si599 | 74.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BEA000642DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BHA000282DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599MDA000118DGR | Skyworks Solutions Inc. | Si599 | 156.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAA001207DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BEA000121DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BHA000121DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599AEA000121DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599AHA000121DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599ACA000107DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599AFA000107DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BCA000112DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BFA000313DG | Skyworks Solutions Inc. | Si599 | 300 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599ECA000113DG | Skyworks Solutions Inc. | Si599 | 311.04 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599FFA001058DG | Skyworks Solutions Inc. | Si599 | 644.53 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599AGA000112DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599AGA000164DG | Skyworks Solutions Inc. | Si599 | 400 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599FGA000159DG | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599AGA000121DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BGA000121DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599ADA900001DGR | Skyworks Solutions Inc. | Si599 | 622.08 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599ADB000107DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599AHB000704DG | Skyworks Solutions Inc. | Si599 | 146 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599ACA000107DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599AFA000107DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BCA000112DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599BFA000313DGR | Skyworks Solutions Inc. | Si599 | 300 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599ECA000113DGR | Skyworks Solutions Inc. | Si599 | 311.04 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599FFA001058DGR | Skyworks Solutions Inc. | Si599 | 644.53 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599AGA000112DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599AGA000164DGR | Skyworks Solutions Inc. | Si599 | 400 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599FGA000159DGR | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C |
| 599BGA000121DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599AGA000121DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C |
| 599FDB000107DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 599MDB000707DGR | Skyworks Solutions Inc. | Si599 | 164 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599FAB000274DGR | Skyworks Solutions Inc. | Si599 | 148 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 599FBB002378DGR | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 599ADB000107DGR | Skyworks Solutions Inc. | Si599 | 10 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599AHB000704DGR | Skyworks Solutions Inc. | Si599 | 146 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599AHB001054DGR | Skyworks Solutions Inc. | Si599 | 162 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAB000121DGR | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAB000159DGR | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAB000262DGR | Skyworks Solutions Inc. | Si599 | 70 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BBB000909DGR | Skyworks Solutions Inc. | Si599 | 62.914 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BDB000159DGR | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BDB000653DGR | Skyworks Solutions Inc. | Si599 | 161.132812 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599AHB001054DG | Skyworks Solutions Inc. | Si599 | 162 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAB000121DG | Skyworks Solutions Inc. | Si599 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAB000159DG | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BAB000262DG | Skyworks Solutions Inc. | Si599 | 70 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BBB000909DG | Skyworks Solutions Inc. | Si599 | 62.914 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BDB000159DG | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BDB000653DG | Skyworks Solutions Inc. | Si599 | 161.132812 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599FDB000107DG | Skyworks Solutions Inc. | Si599 | 10 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 599MDB000707DG | Skyworks Solutions Inc. | Si599 | 164 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599FAB000274DG | Skyworks Solutions Inc. | Si599 | 148 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 599FBB002378DG | Skyworks Solutions Inc. | Si599 | 148.5 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C |
| 599ADA000372DGR | Skyworks Solutions Inc. | Si599 | 800 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BHA000800DGR | Skyworks Solutions Inc. | Si599 | 289 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599ADA000372DG | Skyworks Solutions Inc. | Si599 | 800 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C |
| 599BHA000800DG | Skyworks Solutions Inc. | Si599 | 289 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C |
