Skyworks压控晶振,515BCA122M880BAGR,6G相关设备晶振

Skyworks压控晶振,515BCA122M880BAGR,6G相关设备晶振Skyworks压控晶振,515BCA122M880BAGR,6G相关设备晶振

产品简介

Skyworks压控晶振,515BCA122M880BAGR,6G相关设备晶振,Skyworks压控晶振,Si515有源晶振,欧美进口晶振,515BCA122M880BAGR晶振,5032贴片晶振,石英晶体振荡器,频率122.88MHz,电压3.3V,工作温度-40~85°C,频率稳定性20ppm,高稳定性晶振,低相噪晶振,高品质晶振,6G相关设备晶振,低抖动锁相环晶振,SONET/SDH/OTN晶振,FPGA/ASIC时钟生成晶振.

产品详情

yijin-1

Skyworks压控晶振,515BCA122M880BAGR,6G相关设备晶振,Skyworks压控晶振,Si515有源晶振,欧美进口晶振,515BCA122M880BAGR晶振,5032贴片晶振,石英晶体振荡器,频率122.88MHz,电压3.3V,工作温度-40~85°C,频率稳定性20ppm,高稳定性晶振,低相噪晶振,高品质晶振,6G相关设备晶振,低抖动锁相环晶振,SONET/SDH/OTN晶振,FPGA/ASIC时钟生成晶振.

yijin-2

Skyworks压控晶振,515BCA122M880BAGR,6G相关设备晶振规格表

项目 符号 规格说明 条件
额定频率 f_nom 122.88MHz 请联系我们以便获取其它可用频率的相关信息
电源电压 Vcc 3.3V
储存温度 T_stg -55℃~+125℃ 裸存
工作温度 T_use -40℃~ +85℃
频率稳定性 f_tol ±20 ppm +25℃,超出标准的规格说明请联系我们以便获取相关信息
电源电流 IDD 26mA Max
LVDS
对称性(占空比) SYM 48%~52% 在输出交叉点
输出电压 VOC 1.33V Max
LVDS
VO 0.42Vpp Max
输入电压 VIH 80%VDD Min

VIL 20%VDD Max
上升下降时间 tr/tf 800ps Max
LVDS
起始时间 t str 10ms Max
相位抖动 tpj 1.3ps Max


yijin-3

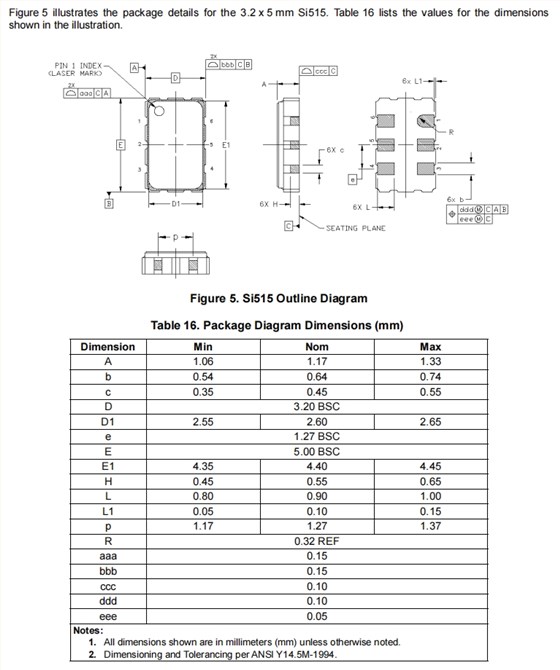

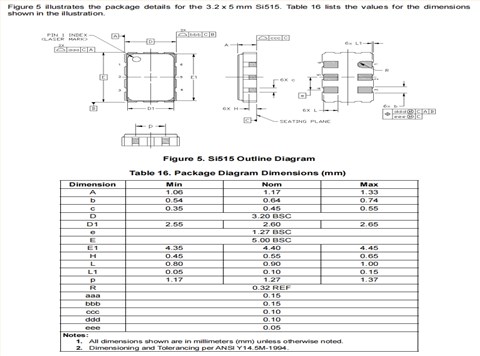

Skyworks压控晶振,515BCA122M880BAGR,6G相关设备晶振尺寸图

Si515-5032

Si515-1

Si515-2

原厂编码 品牌 型号 频率 输出 电压 频率稳定性 工作温度 电流 (Max)
515ABA10M0000BAGR Skyworks Solutions Inc. Si515 10 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515BBA10M0000BAGR Skyworks Solutions Inc. Si515 10 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515ABA10M0000BAG Skyworks Solutions Inc. Si515 10 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515BBA10M0000BAG Skyworks Solutions Inc. Si515 10 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515ACA77M7600AAGR Skyworks Solutions Inc. Si515 77.76 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACAM614400AAGR Skyworks Solutions Inc. Si515 6.144 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515BCA10M0000AAGR Skyworks Solutions Inc. Si515 10 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCB70M6560AAGR Skyworks Solutions Inc. Si515 70.656 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BDA27M0000AAGR Skyworks Solutions Inc. Si515 27 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BBA250M000BAGR Skyworks Solutions Inc. Si515 250 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCA250M000BAGR Skyworks Solutions Inc. Si515 250 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515ACA204M800AAGR Skyworks Solutions Inc. Si515 204.8 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515BBA250M000BAG Skyworks Solutions Inc. Si515 250 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCA250M000BAG Skyworks Solutions Inc. Si515 250 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515ADA131M072AAGR Skyworks Solutions Inc. Si515 131.072 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACA100M000BAGR Skyworks Solutions Inc. Si515 100 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACA61M4400BAGR Skyworks Solutions Inc. Si515 61.44 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACB78M0000BAGR Skyworks Solutions Inc. Si515 78 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515BAA125M000BAGR Skyworks Solutions Inc. Si515 125 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BAB125M000BAGR Skyworks Solutions Inc. Si515 125 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BBA125M000BAGR Skyworks Solutions Inc. Si515 125 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BBB125M000BAGR Skyworks Solutions Inc. Si515 125 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCA122M880BAGR Skyworks Solutions Inc. Si515 122.88 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCA125M000BAGR Skyworks Solutions Inc. Si515 125 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCA27M0000BAGR Skyworks Solutions Inc. Si515 27 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BDA26M0000BAGR Skyworks Solutions Inc. Si515 26 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BDA27M0000BAGR Skyworks Solutions Inc. Si515 27 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515FBB125M000BAGR Skyworks Solutions Inc. Si515 125 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C 26mA
515FCA125M000BAGR Skyworks Solutions Inc. Si515 125 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C 26mA
515BBA122M880BAGR Skyworks Solutions Inc. Si515 122.88 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BAA100M000CAGR Skyworks Solutions Inc. Si515 100 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515ACA27M0000BAGR Skyworks Solutions Inc. Si515 27 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACAM457000CAGR Skyworks Solutions Inc. Si515 457 kHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACA100M000CAGR Skyworks Solutions Inc. Si515 100 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515BCB100M000CAGR Skyworks Solutions Inc. Si515 100 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515ACA10M0000CAGR Skyworks Solutions Inc. Si515 10 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515BCA122M880CAGR Skyworks Solutions Inc. Si515 122.88 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCA24M0000BAGR Skyworks Solutions Inc. Si515 24 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515ACA004723CAGR Skyworks Solutions Inc. Si515 24.545454 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515BCA10M0000BAGR Skyworks Solutions Inc. Si515 10 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515ACA125M000CAGR Skyworks Solutions Inc. Si515 125 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515FCB125M000BAGR Skyworks Solutions Inc. Si515 125 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C 26mA
515ACA122M880CAGR Skyworks Solutions Inc. Si515 122.88 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515BCB27M0000CAGR Skyworks Solutions Inc. Si515 27 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCA100M000CAGR Skyworks Solutions Inc. Si515 100 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCB25M0000BAGR Skyworks Solutions Inc. Si515 25 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515ACA204M800AAG Skyworks Solutions Inc. Si515 204.8 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACA156M250CAG Skyworks Solutions Inc. Si515 156.25 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515BCA156M250CAG Skyworks Solutions Inc. Si515 156.25 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BDA156M250CAG Skyworks Solutions Inc. Si515 156.25 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCA148M500CAG Skyworks Solutions Inc. Si515 148.5 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCA148M350CAG Skyworks Solutions Inc. Si515 148.35 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BAA004636BAG Skyworks Solutions Inc. Si515 167.33165 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BAA155M520CAG Skyworks Solutions Inc. Si515 155.52 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515AAA174M687BAGR Skyworks Solutions Inc. Si515 174.687 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515AAA174M703BAGR Skyworks Solutions Inc. Si515 174.703 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ABB212M500BAGR Skyworks Solutions Inc. Si515 212.5 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ABB250M000BAGR Skyworks Solutions Inc. Si515 250 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACA250M000BAGR Skyworks Solutions Inc. Si515 250 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515BAA000123BAGR Skyworks Solutions Inc. Si515 123 kHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCA180M000BAGR Skyworks Solutions Inc. Si515 180 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515FBA180M000BAGR Skyworks Solutions Inc. Si515 180 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C 26mA
515FCA200M000BAGR Skyworks Solutions Inc. Si515 200 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C 26mA
515FCA212M500BAGR Skyworks Solutions Inc. Si515 212.5 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C 26mA
515ACA200M000BAGR Skyworks Solutions Inc. Si515 200 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACA200M000CAGR Skyworks Solutions Inc. Si515 200 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACA204M800CAGR Skyworks Solutions Inc. Si515 204.8 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515BCA240M000BAGR Skyworks Solutions Inc. Si515 240 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515AAA200M000CAGR Skyworks Solutions Inc. Si515 200 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515AAA161M132BAG Skyworks Solutions Inc. Si515 161.132 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515AAB156M250BAG Skyworks Solutions Inc. Si515 156.25 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ABB155M520BAG Skyworks Solutions Inc. Si515 155.52 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACA000292BAG Skyworks Solutions Inc. Si515 292 kHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACB155M520BAG Skyworks Solutions Inc. Si515 155.52 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515BAA000108BAG Skyworks Solutions Inc. Si515 108 kHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BAA155M520BAG Skyworks Solutions Inc. Si515 155.52 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BAA156M250BAG Skyworks Solutions Inc. Si515 156.25 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BBA155M520BAG Skyworks Solutions Inc. Si515 155.52 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BBA156M250BAG Skyworks Solutions Inc. Si515 156.25 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BBB153M600BAG Skyworks Solutions Inc. Si515 153.6 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCA135M000BAG Skyworks Solutions Inc. Si515 135 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BDA153M600BAG Skyworks Solutions Inc. Si515 153.6 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BDA156M250BAG Skyworks Solutions Inc. Si515 156.25 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515FBA148M352BAG Skyworks Solutions Inc. Si515 148.352 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C 26mA
515FBA148M500BAG Skyworks Solutions Inc. Si515 148.5 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C 26mA
515FCB135M000BAG Skyworks Solutions Inc. Si515 135 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C 26mA
515FBA135M000BAG Skyworks Solutions Inc. Si515 135 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C 26mA
515FBA135M000CAG Skyworks Solutions Inc. Si515 135 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C 26mA
515ADA131M072AAG Skyworks Solutions Inc. Si515 131.072 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACB78M0000BAG Skyworks Solutions Inc. Si515 78 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515BAA125M000BAG Skyworks Solutions Inc. Si515 125 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BAB125M000BAG Skyworks Solutions Inc. Si515 125 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BBA125M000BAG Skyworks Solutions Inc. Si515 125 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BBB125M000BAG Skyworks Solutions Inc. Si515 125 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCA122M880BAG Skyworks Solutions Inc. Si515 122.88 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCA125M000BAG Skyworks Solutions Inc. Si515 125 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCA27M0000BAG Skyworks Solutions Inc. Si515 27 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BDA26M0000BAG Skyworks Solutions Inc. Si515 26 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BDA27M0000BAG Skyworks Solutions Inc. Si515 27 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515FBB125M000BAG Skyworks Solutions Inc. Si515 125 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C 26mA
515FCA125M000BAG Skyworks Solutions Inc. Si515 125 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C 26mA
515BBA122M880BAG Skyworks Solutions Inc. Si515 122.88 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCA24M0000BAG Skyworks Solutions Inc. Si515 24 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515FCB125M000BAG Skyworks Solutions Inc. Si515 125 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C 26mA
515BCB27M0000CAG Skyworks Solutions Inc. Si515 27 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515ACA27M0000BAG Skyworks Solutions Inc. Si515 27 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACA004723CAG Skyworks Solutions Inc. Si515 24.545454 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515BCB100M000CAG Skyworks Solutions Inc. Si515 100 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BAA100M000CAG Skyworks Solutions Inc. Si515 100 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCB25M0000BAG Skyworks Solutions Inc. Si515 25 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515ACA100M000CAG Skyworks Solutions Inc. Si515 100 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACA125M000CAG Skyworks Solutions Inc. Si515 125 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515BCA100M000CAG Skyworks Solutions Inc. Si515 100 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515ACAM457000CAG Skyworks Solutions Inc. Si515 457 kHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACA122M880CAG Skyworks Solutions Inc. Si515 122.88 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515BCA10M0000BAG Skyworks Solutions Inc. Si515 10 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515ACA10M0000CAG Skyworks Solutions Inc. Si515 10 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515BCA122M880CAG Skyworks Solutions Inc. Si515 122.88 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515ACA100M000BAG Skyworks Solutions Inc. Si515 100 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACA61M4400BAG Skyworks Solutions Inc. Si515 61.44 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515AAA161M132BAGR Skyworks Solutions Inc. Si515 161.132 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515AAB156M250BAGR Skyworks Solutions Inc. Si515 156.25 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ABB155M520BAGR Skyworks Solutions Inc. Si515 155.52 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACA000292BAGR Skyworks Solutions Inc. Si515 292 kHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACB155M520BAGR Skyworks Solutions Inc. Si515 155.52 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515BAA000108BAGR Skyworks Solutions Inc. Si515 108 kHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BAA155M520BAGR Skyworks Solutions Inc. Si515 155.52 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BAA156M250BAGR Skyworks Solutions Inc. Si515 156.25 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BBA155M520BAGR Skyworks Solutions Inc. Si515 155.52 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BBA156M250BAGR Skyworks Solutions Inc. Si515 156.25 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BBB153M600BAGR Skyworks Solutions Inc. Si515 153.6 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCA135M000BAGR Skyworks Solutions Inc. Si515 135 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BDA153M600BAGR Skyworks Solutions Inc. Si515 153.6 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BDA156M250BAGR Skyworks Solutions Inc. Si515 156.25 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515FBA148M352BAGR Skyworks Solutions Inc. Si515 148.352 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C 26mA
515FBA148M500BAGR Skyworks Solutions Inc. Si515 148.5 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C 26mA
515FCB135M000BAGR Skyworks Solutions Inc. Si515 135 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C 26mA
515FBA135M000BAGR Skyworks Solutions Inc. Si515 135 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C 26mA
515FBA135M000CAGR Skyworks Solutions Inc. Si515 135 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C 26mA
515BAA004636BAGR Skyworks Solutions Inc. Si515 167.33165 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515ACA156M250CAGR Skyworks Solutions Inc. Si515 156.25 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515BCA156M250CAGR Skyworks Solutions Inc. Si515 156.25 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BAA155M520CAGR Skyworks Solutions Inc. Si515 155.52 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCA148M500CAGR Skyworks Solutions Inc. Si515 148.5 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BDA156M250CAGR Skyworks Solutions Inc. Si515 156.25 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCA148M350CAGR Skyworks Solutions Inc. Si515 148.35 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515ACA77M7600AAG Skyworks Solutions Inc. Si515 77.76 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACAM614400AAG Skyworks Solutions Inc. Si515 6.144 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515BCA10M0000AAG Skyworks Solutions Inc. Si515 10 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCB70M6560AAG Skyworks Solutions Inc. Si515 70.656 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BDA27M0000AAG Skyworks Solutions Inc. Si515 27 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515AAA125M000AAGR Skyworks Solutions Inc. Si515 125 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515AAA25M0000AAGR Skyworks Solutions Inc. Si515 25 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515AAA7M10000AAGR Skyworks Solutions Inc. Si515 7.1 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ABA25M0000AAGR Skyworks Solutions Inc. Si515 25 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ABA80M0000AAGR Skyworks Solutions Inc. Si515 80 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACA106M250AAGR Skyworks Solutions Inc. Si515 106.25 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACA10M0000AAGR Skyworks Solutions Inc. Si515 10 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACA10M7000AAGR Skyworks Solutions Inc. Si515 10.7 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACA54M0000AAGR Skyworks Solutions Inc. Si515 54 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACAM100000AAGR Skyworks Solutions Inc. Si515 100 kHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACB10M0000AAGR Skyworks Solutions Inc. Si515 10 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACB44M1000AAGR Skyworks Solutions Inc. Si515 44.1 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ADA50M0000AAGR Skyworks Solutions Inc. Si515 50 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515BAA125M000AAGR Skyworks Solutions Inc. Si515 125 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BAA25M0000AAGR Skyworks Solutions Inc. Si515 25 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BBA100M000AAGR Skyworks Solutions Inc. Si515 100 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BBA122M880AAGR Skyworks Solutions Inc. Si515 122.88 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BBA70M6560AAGR Skyworks Solutions Inc. Si515 70.656 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BBA74M2500AAGR Skyworks Solutions Inc. Si515 74.25 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BBB70M6560AAGR Skyworks Solutions Inc. Si515 70.656 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCA100M000AAGR Skyworks Solutions Inc. Si515 100 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCA105M000AAGR Skyworks Solutions Inc. Si515 105 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCA106M250AAGR Skyworks Solutions Inc. Si515 106.25 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCA27M0000AAGR Skyworks Solutions Inc. Si515 27 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BDA30M7200AAGR Skyworks Solutions Inc. Si515 30.72 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515EDA125M000AAGR Skyworks Solutions Inc. Si515 125 MHz LVPECL 2.5V ±20ppm -40°C ~ 85°C 46mA
515EDA50M0000AAGR Skyworks Solutions Inc. Si515 50 MHz LVPECL 2.5V ±20ppm -40°C ~ 85°C 46mA
515FCA10M0000AAGR Skyworks Solutions Inc. Si515 10 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C 26mA
515ABA70M6560AAGR Skyworks Solutions Inc. Si515 70.656 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515BCA20M0000AAGR Skyworks Solutions Inc. Si515 20 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515FCA26M0000AAGR Skyworks Solutions Inc. Si515 26 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C 26mA
515BCB125M000AAGR Skyworks Solutions Inc. Si515 125 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515ABA40M0000AAGR Skyworks Solutions Inc. Si515 40 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACA40M0000AAGR Skyworks Solutions Inc. Si515 40 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515AAA174M687BAG Skyworks Solutions Inc. Si515 174.687 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515AAA174M703BAG Skyworks Solutions Inc. Si515 174.703 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ABB212M500BAG Skyworks Solutions Inc. Si515 212.5 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ABB250M000BAG Skyworks Solutions Inc. Si515 250 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACA250M000BAG Skyworks Solutions Inc. Si515 250 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515BAA000123BAG Skyworks Solutions Inc. Si515 123 kHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCA180M000BAG Skyworks Solutions Inc. Si515 180 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCA200M000BAG Skyworks Solutions Inc. Si515 200 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515FBA180M000BAG Skyworks Solutions Inc. Si515 180 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C 26mA
515FCA200M000BAG Skyworks Solutions Inc. Si515 200 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C 26mA
515FCA212M500BAG Skyworks Solutions Inc. Si515 212.5 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C 26mA
515ACA200M000BAG Skyworks Solutions Inc. Si515 200 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACA204M800CAG Skyworks Solutions Inc. Si515 204.8 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515AAA200M000CAG Skyworks Solutions Inc. Si515 200 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515BCA240M000BAG Skyworks Solutions Inc. Si515 240 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515ACA200M000CAG Skyworks Solutions Inc. Si515 200 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515AAB167M332AAGR Skyworks Solutions Inc. Si515 167.332 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ABA155M520AAGR Skyworks Solutions Inc. Si515 155.52 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACA148M350AAGR Skyworks Solutions Inc. Si515 148.35 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACA155M520AAGR Skyworks Solutions Inc. Si515 155.52 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACA156M254AAGR Skyworks Solutions Inc. Si515 156.254 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515BAA148M000AAGR Skyworks Solutions Inc. Si515 148 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BAA148M500AAGR Skyworks Solutions Inc. Si515 148.5 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BBA148M350AAGR Skyworks Solutions Inc. Si515 148.35 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BBA148M500AAGR Skyworks Solutions Inc. Si515 148.5 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCA134M100AAGR Skyworks Solutions Inc. Si515 134.1 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCA144M795AAGR Skyworks Solutions Inc. Si515 144.795 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCA148M500AAGR Skyworks Solutions Inc. Si515 148.5 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCA169M406AAGR Skyworks Solutions Inc. Si515 169.406 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515EDA156M250AAGR Skyworks Solutions Inc. Si515 156.25 MHz LVPECL 2.5V ±20ppm -40°C ~ 85°C 46mA
515ACA144M575AAGR Skyworks Solutions Inc. Si515 144.575 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515BAA156M250AAGR Skyworks Solutions Inc. Si515 156.25 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCA156M250AAGR Skyworks Solutions Inc. Si515 156.25 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515ACA144M390AAGR Skyworks Solutions Inc. Si515 144.39 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515BBA156M250AAGR Skyworks Solutions Inc. Si515 156.25 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515ACA40M0000AAG Skyworks Solutions Inc. Si515 40 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515BCB125M000AAG Skyworks Solutions Inc. Si515 125 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515FCA26M0000AAG Skyworks Solutions Inc. Si515 26 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C 26mA
515ABA40M0000AAG Skyworks Solutions Inc. Si515 40 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515AAA125M000AAG Skyworks Solutions Inc. Si515 125 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515AAA25M0000AAG Skyworks Solutions Inc. Si515 25 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515AAA7M10000AAG Skyworks Solutions Inc. Si515 7.1 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ABA25M0000AAG Skyworks Solutions Inc. Si515 25 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ABA80M0000AAG Skyworks Solutions Inc. Si515 80 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACA106M250AAG Skyworks Solutions Inc. Si515 106.25 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACA10M0000AAG Skyworks Solutions Inc. Si515 10 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACA10M7000AAG Skyworks Solutions Inc. Si515 10.7 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACA54M0000AAG Skyworks Solutions Inc. Si515 54 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACAM100000AAG Skyworks Solutions Inc. Si515 100 kHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACB10M0000AAG Skyworks Solutions Inc. Si515 10 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ACB44M1000AAG Skyworks Solutions Inc. Si515 44.1 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ADA50M0000AAG Skyworks Solutions Inc. Si515 50 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515BAA125M000AAG Skyworks Solutions Inc. Si515 125 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BAA25M0000AAG Skyworks Solutions Inc. Si515 25 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BBA100M000AAG Skyworks Solutions Inc. Si515 100 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BBA122M880AAG Skyworks Solutions Inc. Si515 122.88 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BBA70M6560AAG Skyworks Solutions Inc. Si515 70.656 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BBA74M2500AAG Skyworks Solutions Inc. Si515 74.25 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BBB70M6560AAG Skyworks Solutions Inc. Si515 70.656 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCA100M000AAG Skyworks Solutions Inc. Si515 100 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCA105M000AAG Skyworks Solutions Inc. Si515 105 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCA106M250AAG Skyworks Solutions Inc. Si515 106.25 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BCA27M0000AAG Skyworks Solutions Inc. Si515 27 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515BDA30M7200AAG Skyworks Solutions Inc. Si515 30.72 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515EDA125M000AAG Skyworks Solutions Inc. Si515 125 MHz LVPECL 2.5V ±20ppm -40°C ~ 85°C 46mA
515EDA50M0000AAG Skyworks Solutions Inc. Si515 50 MHz LVPECL 2.5V ±20ppm -40°C ~ 85°C 46mA
515FCA10M0000AAG Skyworks Solutions Inc. Si515 10 MHz LVDS 2.5V ±20ppm -40°C ~ 85°C 26mA
515ABA70M6560AAG Skyworks Solutions Inc. Si515 70.656 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515BCA20M0000AAG Skyworks Solutions Inc. Si515 20 MHz LVDS 3.3V ±20ppm -40°C ~ 85°C 26mA
515AAB174M703AAGR Skyworks Solutions Inc. Si515 174.703 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA
515ABA170M240AAGR Skyworks Solutions Inc. Si515 170.24 MHz LVPECL 3.3V ±20ppm -40°C ~ 85°C 46mA


我要下单

  • 姓名
  • 手机
  • 留言

返回头部
