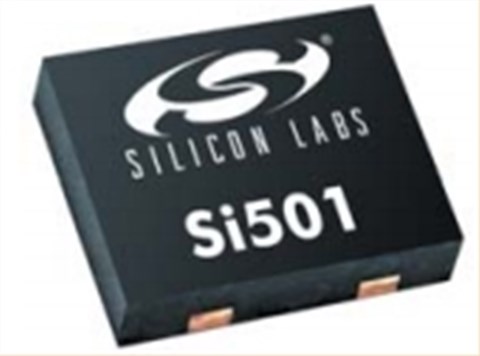

Silicon品牌|501JCA100M000CAG|3225mm|6G模块晶振,Silicon晶振,Si501进口晶振,有源晶体振荡器,501JCA100M000CAG晶振,石英晶振,四脚晶振,3225贴片晶振,频率100MHz,电压3.3V,频率稳定性20ppm,工作温度-40~85°C,高可靠性晶振,小体积晶振,低老化晶振,6G模块晶振,电机控制晶振,流量控制晶振,办公室自动化晶振.

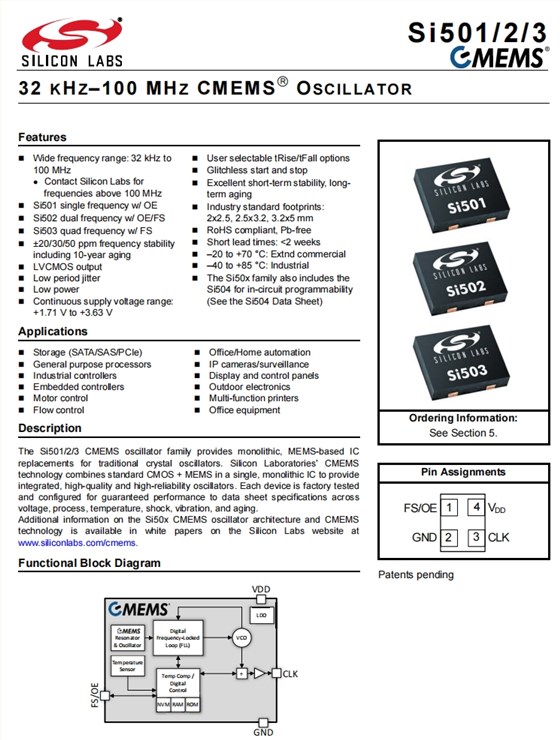

Silicon品牌|501JCA100M000CAG|3225mm|6G模块晶振特点：
-宽频率范围:32KHz至100MHz
-有关100 MHz以上的频率，请联系Silicon Labs
-Si501单频w/ OE
-Si502双频w/ OE/FS
-Si503四频w/ FS
-±20/30/ 50ppm频率稳定性，包括10年老化
-LVCMOS输出
-低周期抖动
-低功耗
-连续供电电压范围:+1.71 V ~ +3.63 V
-用户可选择的升降选项
-无故障启动和停止
-短期稳定性好，长期老化性好
-行业标准脚印:2x2.5, 2.5x3.2, 3.2x5 mm
-符合RoHS标准，无铅
-缩短交货期:<2周
-20至+70°C:扩展商用
-40至+85°C:工业
-Si50x系列还包括Si504，用于电路可编程性(参见Si504数据表)
Silicon品牌|501JCA100M000CAG|3225mm|6G模块晶振规格表
Parameters
Condition
Si501
Frequency Range
100MHZ
Frequency Stability
±20ppm
Operating Temperature
ExtendedCommercialgrade
-20°C~+70°C
Extended commercial
-40°C~+85°C
Storage Temperature
-55°C~+125°C
Supply Voltage
3.3V
Supply Current
CL=4 pF, 3.3 VDD, FCLK=1.0 MHz, low power option
2.5 mA Max
CL=4 pF, 3.3 VDD, FCLK=100 MHz, low power option
6.5 mA Max
CL=4 pF, 3.3 VDD, FCLK=1.0 MHz, low jitter option
4.9 mA Max
CL=4 pF, 3.3 VDD, FCLK=100 MHz, low jitter option
8.9 mA Max
OE Internal Pull Resistor
Ordering option
60 kΩ Max
Rise and Fall Times 1
1st ordering option code2: A and H Z0=25Ω@ 3.3 V
1.2ns Max
Startup Time2
From VDD crossing 1.71 V to first clock output
4ms Max
Output High Voltage
1st ordering option code: A and H IOH=–4 mA
0.90 x VDD Min
Output Low Voltage
1st ordering option code: A and H IOH=+4 mA
0.10 x VDD Max
Duty Cycle
Drive strength selected such that tRise/tFall (20% to 80%)<10% of period
45% Min ~55% Max
Period Jitter
100 MHz, Low Jitter Option 1st ordering option code: H
1.6 ps RMS Max
100 MHz, Low Power Option 1st ordering option code: A
1.9 ps RMS Max
Phase Jitter
75 MHz FOFFSET=900 kHz to 7.5 MHz Low Jitter Option 1st ordering option code: H
1.3 ps RMS Max
75 MHz FOFFSET=900 kHz to 7.5 MHz Low Power Option 1st ordering option code: A
3.2 ps RMS Max

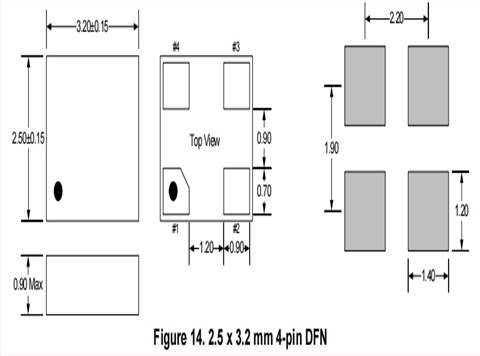

Silicon品牌|501JCA100M000CAG|3225mm|6G模块晶振尺寸图
| 原厂代码 | 品牌 | 型号 | 频率 | 电压 | 频率稳定度 | 尺寸 |
| 510BBA156M250BAGR | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA156M250BAGR | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA156M250BAGR | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA125M000BAG | Silicon Labs | Si511 | 125MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA100M000AAG | Silicon Labs | Si511 | 100MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA148M500BAG | Silicon Labs | Si511 | 148.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA156M250AAG | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA200M000BAG | Silicon Labs | Si511 | 200MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 530FB125M000DG | Silicon Labs | Si530 | 125MHz | 2.5V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531BB125M000DG | Silicon Labs | Si531 | 125MHz | 3.3V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530BB125M000DG | Silicon Labs | Si530 | 125MHz | 3.3V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531FB200M000DG | Silicon Labs | Si531 | 200MHz | 2.5V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530FB200M000DG | Silicon Labs | Si530 | 200MHz | 2.5V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530BC156M250DG | Silicon Labs | Si530 | 156.25MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531FC250M000DG | Silicon Labs | Si531 | 250MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA100M000BAG | Silicon Labs | Si511 | 100MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA125M000BAG | Silicon Labs | Si510 | 125MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA125M000BAG | Silicon Labs | Si511 | 125MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA100M000AAG | Silicon Labs | Si511 | 100MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA000110BAG | Silicon Labs | Si511 | 148.35165MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA148M500AAG | Silicon Labs | Si511 | 148.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA200M000BAG | Silicon Labs | Si511 | 200MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA200M000BAG | Silicon Labs | Si510 | 200MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA200M000AAG | Silicon Labs | Si511 | 200MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA25M0000BAG | Silicon Labs | Si511 | 25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FCA100M000BAG | Silicon Labs | Si511 | 100MHz | 2.5V | ±20ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BCA100M000BAG | Silicon Labs | Si511 | 100MHz | 3.3V | ±20ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 530BA125M000DG | Silicon Labs | Si530 | 125MHz | 3.3V | ±50ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531FB125M000DG | Silicon Labs | Si531 | 125MHz | 2.5V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530BB100M000DG | Silicon Labs | Si530 | 100MHz | 3.3V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530FC156M250DG | Silicon Labs | Si530 | 156.25MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA125M000BAG | Silicon Labs | Si510 | 125MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA74M2500BAG | Silicon Labs | Si511 | 74.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA156M250BAG | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA156M250BAG | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA200M000BAG | Silicon Labs | Si510 | 200MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA200M000BAG | Silicon Labs | Si510 | 200MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 530FA156M250DG | Silicon Labs | Si530 | 156.25MHz | 2.5V | ±50ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531BC000110DG | Silicon Labs | Si531 | 148.35165MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 535FB125M000DG | Silicon Labs | Si535 | 125MHz | 2.5V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| SI50122-A4-GM | Silicon Labs | SI50122-A4 | 100MHz | 2.25 V ~ 3.63 V | +100ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 511ABA156M250AAGR | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA156M250AAGR | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA156M250AAGR | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530FC125M000DG | Silicon Labs | Si530 | 125MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531BC200M000DG | Silicon Labs | Si531 | 200MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531BC250M000DG | Silicon Labs | Si531 | 250MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530AC622M080DG | Silicon Labs | Si530 | 622.08MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA100M000BAG | Silicon Labs | Si511 | 100MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA106M250BAG | Silicon Labs | Si511 | 106.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA156M250AAG | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA156M250AAG | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531BC125M000DG | Silicon Labs | Si531 | 125MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530AC125M000DG | Silicon Labs | Si530 | 125MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531FB106M250DG | Silicon Labs | Si531 | 106.25MHz | 2.5V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531AC156M250DG | Silicon Labs | Si531 | 156.25MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531AC200M000DG | Silicon Labs | Si531 | 200MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531BC148M500DG | Silicon Labs | Si531 | 148.5MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530AC200M000DG | Silicon Labs | Si530 | 200MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530BC200M000DG | Silicon Labs | Si530 | 200MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531BC156M250DG | Silicon Labs | Si531 | 156.25MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530FC200M000DG | Silicon Labs | Si530 | 200MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 536BB156M250DG | Silicon Labs | Si536 | 156.25MHz | 3.3V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 536FB156M250DG | Silicon Labs | Si536 | 156.25MHz | 2.5V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 536AB156M250DG | Silicon Labs | Si536 | 156.25MHz | 3.3V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA125M000BAG | Silicon Labs | Si510 | 125MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA000149BAG | Silicon Labs | Si511 | 74.175824MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA100M000BAG | Silicon Labs | Si510 | 100MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA106M250BAG | Silicon Labs | Si511 | 106.25MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA106M250BAG | Silicon Labs | Si510 | 106.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA125M000AAG | Silicon Labs | Si511 | 125MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA100M000AAG | Silicon Labs | Si510 | 100MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA125M000AAG | Silicon Labs | Si510 | 125MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA100M000AAG | Silicon Labs | Si511 | 100MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA106M250AAG | Silicon Labs | Si511 | 106.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA148M500BAG | Silicon Labs | Si511 | 148.5MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA148M500BAG | Silicon Labs | Si510 | 148.5MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA156M250BAG | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA156M250BAG | Silicon Labs | Si511 | 156.25MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA148M500BAG | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA156M250AAG | Silicon Labs | Si511 | 156.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA156M250AAG | Silicon Labs | Si510 | 156.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA155M520AAG | Silicon Labs | Si511 | 155.52MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA148M500AAG | Silicon Labs | Si510 | 148.5MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA155M520AAG | Silicon Labs | Si511 | 155.52MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA148M500AAG | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA148M500AAG | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510DBA100M000AAG | Silicon Labs | Si510 | 100MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531AC125M000DG | Silicon Labs | Si531 | 125MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531FC125M000DG | Silicon Labs | Si531 | 125MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530AC156M250DG | Silicon Labs | Si530 | 156.25MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531FC156M250DG | Silicon Labs | Si531 | 156.25MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531FC148M500DG | Silicon Labs | Si531 | 148.5MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531AC155M520DG | Silicon Labs | Si531 | 155.52MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530AC155M520DG | Silicon Labs | Si530 | 155.52MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531BC155M520DG | Silicon Labs | Si531 | 155.52MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531FC200M000DG | Silicon Labs | Si531 | 200MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530BC148M500DG | Silicon Labs | Si530 | 148.5MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 536EB156M250DG | Silicon Labs | Si536 | 156.25MHz | 2.5V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 536BB125M000DG | Silicon Labs | Si536 | 125MHz | 3.3V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531AC622M080DG | Silicon Labs | Si531 | 622.08MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531AC312M500DG | Silicon Labs | Si531 | 312.5MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA000149BAG | Silicon Labs | Si510 | 74.175824MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA000149BAG | Silicon Labs | Si510 | 74.175824MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA000149BAG | Silicon Labs | Si511 | 74.175824MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA106M250BAG | Silicon Labs | Si510 | 106.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA106M250BAG | Silicon Labs | Si511 | 106.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA74M2500BAG | Silicon Labs | Si511 | 74.25MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA000149BAG | Silicon Labs | Si511 | 74.175824MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA000149BAG | Silicon Labs | Si510 | 74.175824MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA74M2500BAG | Silicon Labs | Si510 | 74.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA000149AAG | Silicon Labs | Si510 | 74.175824MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA125M000AAG | Silicon Labs | Si510 | 125MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA106M250AAG | Silicon Labs | Si510 | 106.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA106M250AAG | Silicon Labs | Si511 | 106.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA74M2500AAG | Silicon Labs | Si510 | 74.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA000149AAG | Silicon Labs | Si511 | 74.175824MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA000149AAG | Silicon Labs | Si510 | 74.175824MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA000149AAG | Silicon Labs | Si510 | 74.175824MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA74M2500AAG | Silicon Labs | Si510 | 74.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA74M2500AAG | Silicon Labs | Si511 | 74.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA106M250AAG | Silicon Labs | Si510 | 106.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA000149AAG | Silicon Labs | Si511 | 74.175824MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA74M2500AAG | Silicon Labs | Si510 | 74.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA74M2500AAG | Silicon Labs | Si511 | 74.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA106M250AAG | Silicon Labs | Si510 | 106.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA000149AAG | Silicon Labs | Si511 | 74.175824MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA155M520BAG | Silicon Labs | Si510 | 155.52MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA155M520BAG | Silicon Labs | Si510 | 155.52MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA155M520BAG | Silicon Labs | Si511 | 155.52MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA000110BAG | Silicon Labs | Si510 | 148.35165MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA000110BAG | Silicon Labs | Si511 | 148.35165MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA148M500BAG | Silicon Labs | Si511 | 148.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA155M520BAG | Silicon Labs | Si511 | 155.52MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA000110BAG | Silicon Labs | Si510 | 148.35165MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA000110BAG | Silicon Labs | Si510 | 148.35165MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA155M520BAG | Silicon Labs | Si510 | 155.52MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA155M520AAG | Silicon Labs | Si510 | 155.52MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA000110AAG | Silicon Labs | Si510 | 148.35165MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA000110AAG | Silicon Labs | Si510 | 148.35165MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA155M520AAG | Silicon Labs | Si511 | 155.52MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA155M520AAG | Silicon Labs | Si510 | 155.52MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA148M500AAG | Silicon Labs | Si511 | 148.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA148M500AAG | Silicon Labs | Si511 | 148.5MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA156M250AAG | Silicon Labs | Si511 | 156.25MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA212M500BAG | Silicon Labs | Si510 | 212.5MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA212M500BAG | Silicon Labs | Si511 | 212.5MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA212M500BAG | Silicon Labs | Si510 | 212.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA200M000BAG | Silicon Labs | Si511 | 200MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA212M500AAG | Silicon Labs | Si510 | 212.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA212M500AAG | Silicon Labs | Si510 | 212.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA212M500AAG | Silicon Labs | Si510 | 212.5MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510FBA200M000AAG | Silicon Labs | Si510 | 200MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA212M500AAG | Silicon Labs | Si511 | 212.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510EBA125M000AAG | Silicon Labs | Si510 | 125MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ACA47M2500AAG | Silicon Labs | Si510 | 47.25MHz | 3.3V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530AC106M250DG | Silicon Labs | Si530 | 106.25MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530EC106M250DG | Silicon Labs | Si530 | 106.25MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531AC106M250DG | Silicon Labs | Si531 | 106.25MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531EC106M250DG | Silicon Labs | Si531 | 106.25MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530FC106M250DG | Silicon Labs | Si530 | 106.25MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530BC106M250DG | Silicon Labs | Si530 | 106.25MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531BC187M500DG | Silicon Labs | Si531 | 187.5MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530EC155M520DG | Silicon Labs | Si530 | 155.52MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531EC155M520DG | Silicon Labs | Si531 | 155.52MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530EC187M500DG | Silicon Labs | Si530 | 187.5MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531AC187M500DG | Silicon Labs | Si531 | 187.5MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531EC187M500DG | Silicon Labs | Si531 | 187.5MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530AC000110DG | Silicon Labs | Si530 | 148.35165MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530AC148M500DG | Silicon Labs | Si530 | 148.5MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530EC000110DG | Silicon Labs | Si530 | 148.35165MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530FC000110DG | Silicon Labs | Si530 | 148.35165MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531EC000110DG | Silicon Labs | Si531 | 148.35165MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531EC148M500DG | Silicon Labs | Si531 | 148.5MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530BC155M520DG | Silicon Labs | Si530 | 155.52MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530EC156M250DG | Silicon Labs | Si530 | 156.25MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530AC187M500DG | Silicon Labs | Si530 | 187.5MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530BC187M500DG | Silicon Labs | Si530 | 187.5MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530FC187M500DG | Silicon Labs | Si530 | 187.5MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530EC148M500DG | Silicon Labs | Si530 | 148.5MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530EC200M000DG | Silicon Labs | Si530 | 200MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531FC155M520DG | Silicon Labs | Si531 | 155.52MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531EC156M250DG | Silicon Labs | Si531 | 156.25MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530FC155M520DG | Silicon Labs | Si530 | 155.52MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530BC000110DG | Silicon Labs | Si530 | 148.35165MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530FC148M500DG | Silicon Labs | Si530 | 148.5MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 536AB125M000DG | Silicon Labs | Si536 | 125MHz | 3.3V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 535EB125M000DG | Silicon Labs | Si535 | 125MHz | 2.5V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 536EB125M000DG | Silicon Labs | Si536 | 125MHz | 2.5V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 535BB125M000DG | Silicon Labs | Si535 | 125MHz | 3.3V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 535BB156M250DG | Silicon Labs | Si535 | 156.25MHz | 3.3V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 535FB156M250DG | Silicon Labs | Si535 | 156.25MHz | 2.5V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530EC312M500DG | Silicon Labs | Si530 | 312.5MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530BC250M000DG | Silicon Labs | Si530 | 250MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530EC311M040DG | Silicon Labs | Si530 | 311.04MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530FC311M040DG | Silicon Labs | Si530 | 311.04MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530FC622M080DG | Silicon Labs | Si530 | 622.08MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531AC311M040DG | Silicon Labs | Si531 | 311.04MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531BC311M040DG | Silicon Labs | Si531 | 311.04MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531EC311M040DG | Silicon Labs | Si531 | 311.04MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531EC622M080DG | Silicon Labs | Si531 | 622.08MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531FC622M080DG | Silicon Labs | Si531 | 622.08MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531FC311M040DG | Silicon Labs | Si531 | 311.04MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530BC311M040DG | Silicon Labs | Si530 | 311.04MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531BC622M080DG | Silicon Labs | Si531 | 622.08MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531FC312M500DG | Silicon Labs | Si531 | 312.5MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530EC622M080DG | Silicon Labs | Si530 | 622.08MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531EC312M500DG | Silicon Labs | Si531 | 312.5MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530BC622M080DG | Silicon Labs | Si530 | 622.08MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531AC250M000DG | Silicon Labs | Si531 | 250MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530AC311M040DG | Silicon Labs | Si530 | 311.04MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530FC312M500DG | Silicon Labs | Si530 | 312.5MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531EC250M000DG | Silicon Labs | Si531 | 250MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530AC312M500DG | Silicon Labs | Si530 | 312.5MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530EC250M000DG | Silicon Labs | Si530 | 250MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530AC250M000DG | Silicon Labs | Si530 | 250MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530FC250M000DG | Silicon Labs | Si530 | 250MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530BC312M500DG | Silicon Labs | Si530 | 312.5MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531BC312M500DG | Silicon Labs | Si531 | 312.5MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530FC50M0000DG | Silicon Labs | Si530 | 50MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 535AB125M000DG | Silicon Labs | Si535 | 125MHz | 3.3V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 501AAA27M0000DAF | Silicon Labs | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501AAA27M0000DAG | Silicon Labs | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JCA100M000CAG | Silicon Labs | Si501 | 100MHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JCA100M000BAG | Silicon Labs | Si501 | 100MHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501HCAM032768BAF | Silicon Labs | Si501 | 32.768kHz | 1.7 V ~ 3.6 V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501BCAM032768DAG | Silicon Labs | Si501 | 32.768kHz | 3.3V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JCAM032768DAG | Silicon Labs | Si501 | 32.768kHz | 3.3V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| SI50122-A1-GM | Silicon Labs | SI50122-A1 | 100MHz | 2.25 V ~ 3.63 V | +100ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| SI50122-A2-GM | Silicon Labs | SI50122-A2 | 100MHz | 2.25 V ~ 3.63 V | +100ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 511SAA100M000AAG | Silicon Labs | Si511 | 100MHz | 1.8V | ±50ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BCA148M500BAG | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±20ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 530AA156M250DG | Silicon Labs | Si530 | 156.25MHz | 3.3V | ±50ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531AA156M250DG | Silicon Labs | Si531 | 156.25MHz | 3.3V | ±50ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530FB100M000DG | Silicon Labs | Si530 | 100MHz | 2.5V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA125M000AAG | Silicon Labs | Si511 | 125MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530BC125M000DG | Silicon Labs | Si530 | 125MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 535AB156M250DG | Silicon Labs | Si535 | 156.25MHz | 3.3V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 536FB125M000DG | Silicon Labs | Si536 | 125MHz | 2.5V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA74M2500BAG | Silicon Labs | Si510 | 74.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA125M000BAG | Silicon Labs | Si511 | 125MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA100M000BAG | Silicon Labs | Si510 | 100MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA100M000BAG | Silicon Labs | Si511 | 100MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA125M000AAG | Silicon Labs | Si510 | 125MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA100M000AAG | Silicon Labs | Si510 | 100MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA200M000AAG | Silicon Labs | Si511 | 200MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531BC106M250DG | Silicon Labs | Si531 | 106.25MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531EC125M000DG | Silicon Labs | Si531 | 125MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA74M2500BAG | Silicon Labs | Si511 | 74.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA74M2500BAG | Silicon Labs | Si510 | 74.25MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA100M000BAG | Silicon Labs | Si510 | 100MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA100M000AAG | Silicon Labs | Si510 | 100MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA74M2500AAG | Silicon Labs | Si511 | 74.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA106M250AAG | Silicon Labs | Si511 | 106.25MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA148M500BAG | Silicon Labs | Si510 | 148.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA155M520BAG | Silicon Labs | Si511 | 155.52MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510ABA156M250BAG | Silicon Labs | Si510 | 156.25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510FBA156M250BAG | Silicon Labs | Si510 | 156.25MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA000110BAG | Silicon Labs | Si511 | 148.35165MHz | 2.5V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 510BBA155M520AAG | Silicon Labs | Si510 | 155.52MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA000110AAG | Silicon Labs | Si510 | 148.35165MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA000110AAG | Silicon Labs | Si511 | 148.35165MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA000110AAG | Silicon Labs | Si511 | 148.35165MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511FBA000110AAG | Silicon Labs | Si511 | 148.35165MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA212M500BAG | Silicon Labs | Si510 | 212.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511ABA212M500BAG | Silicon Labs | Si511 | 212.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511BBA212M500BAG | Silicon Labs | Si511 | 212.5MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511FBA212M500AAG | Silicon Labs | Si511 | 212.5MHz | 2.5V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510BBA200M000AAG | Silicon Labs | Si510 | 200MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511BBA212M500AAG | Silicon Labs | Si511 | 212.5MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510ABA200M000AAG | Silicon Labs | Si510 | 200MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 511ABA200M000AAG | Silicon Labs | Si511 | 200MHz | 3.3V | ±25ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 530EC125M000DG | Silicon Labs | Si530 | 125MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531FC106M250DG | Silicon Labs | Si531 | 106.25MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531FC187M500DG | Silicon Labs | Si531 | 187.5MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531FC000110DG | Silicon Labs | Si531 | 148.35165MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531EC200M000DG | Silicon Labs | Si531 | 200MHz | 2.5V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531AC000110DG | Silicon Labs | Si531 | 148.35165MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 531AC148M500DG | Silicon Labs | Si531 | 148.5MHz | 3.3V | ±7ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 535EB156M250DG | Silicon Labs | Si535 | 156.25MHz | 2.5V | ±20ppm | 0.276" L x 0.197" W (7.00mm x 5.00mm) |
| 510CBA25M0000BAG | Silicon Labs | Si510 | 25MHz | 3.3V | ±25ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 511SBA156M250BAG | Silicon Labs | Si511 | 156.25MHz | 1.8V | ±50ppm | 0.197" L x 0.126" W (5.00mm x 3.20mm) |
| 501JAA24M0000DAF | Silicon Labs | Si501 | 24MHz | 3.3V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501BAA16M0000DAF | Silicon Labs | Si501 | 16MHz | 3.3V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JAA24M0000CAF | Silicon Labs | Si501 | 24MHz | 3.3V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501AAA27M0000CAF | Silicon Labs | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501AAA25M0000BAF | Silicon Labs | Si501 | 25MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JAA40M0000CAF | Silicon Labs | Si501 | 40MHz | 3.3V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501AAA24M0000BAF | Silicon Labs | Si501 | 24MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501EAA48M0000CAF | Silicon Labs | Si501 | 48MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501AAA27M0000BAF | Silicon Labs | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501EAA48M0000BAF | Silicon Labs | Si501 | 48MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JAA25M0000BAF | Silicon Labs | Si501 | 25MHz | 3.3V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501BAA50M0000BAF | Silicon Labs | Si501 | 50MHz | 3.3V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501AAA50M0000CAF | Silicon Labs | Si501 | 50MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501EAA48M0000DAG | Silicon Labs | Si501 | 48MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501AAA25M0000DAG | Silicon Labs | Si501 | 25MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501HCA27M0000DAF | Silicon Labs | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501ABA8M00000BAF | Silicon Labs | Si501 | 8MHz | 1.7 V ~ 3.6 V | ±30ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501HCA12M0000DAF | Silicon Labs | Si501 | 12MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501JCA24M0000DAF | Silicon Labs | Si501 | 24MHz | 3.3V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501AAA24M0000BAG | Silicon Labs | Si501 | 24MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501BCA16M0000BAF | Silicon Labs | Si501 | 16MHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JCA24M0000CAF | Silicon Labs | Si501 | 24MHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501HCA26M0000BAF | Silicon Labs | Si501 | 26MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JAA25M0000BAG | Silicon Labs | Si501 | 25MHz | 3.3V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501BCA16M0000CAF | Silicon Labs | Si501 | 16MHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501EAA48M0000CAG | Silicon Labs | Si501 | 48MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501BAA16M0000BAG | Silicon Labs | Si501 | 16MHz | 3.3V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501BAA16M0000CAG | Silicon Labs | Si501 | 16MHz | 3.3V | ±50ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JAA24M0000BAG | Silicon Labs | Si501 | 24MHz | 3.3V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501AAA27M0000BAG | Silicon Labs | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501ACA10M0000CAF | Silicon Labs | Si501 | 10MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JAA40M0000BAG | Silicon Labs | Si501 | 40MHz | 3.3V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501ACA10M0000BAF | Silicon Labs | Si501 | 10MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JCA10M0000BAF | Silicon Labs | Si501 | 10MHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501HCA12M0000BAF | Silicon Labs | Si501 | 12MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501JCA25M0000CAF | Silicon Labs | Si501 | 25MHz | 3.3V | ±20ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501HCA27M0000BAF | Silicon Labs | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501AAA50M0000BAG | Silicon Labs | Si501 | 50MHz | 1.7 V ~ 3.6 V | ±50ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501ABA8M00000BAG | Silicon Labs | Si501 | 8MHz | 1.7 V ~ 3.6 V | ±30ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501HCA27M0000DAG | Silicon Labs | Si501 | 27MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.098" L x 0.079" W (2.50mm x 2.00mm) |
| 501ABA8M00000CAG | Silicon Labs | Si501 | 8MHz | 1.7 V ~ 3.6 V | ±30ppm | 0.126" L x 0.098" W (3.20mm x 2.50mm) |
| 501JCA10M0000BAG | Silicon Labs | Si501 | 10MHz | 3.3V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
| 501ACA10M0000BAG | Silicon Labs | Si501 | 10MHz | 1.7 V ~ 3.6 V | ±20ppm | 0.157" L x 0.126" W (4.00mm x 3.20mm) |
爱普生晶振,32.768K晶振,MC-146晶振,Q13MC1461000200晶振
NKG晶振|SCO5|SCO5-6D-44M000-YTS|5032进口晶振
NKG晶振|SMO3|SMO36B32-64-128-250WTS|电信设备晶振
NKG晶振|SEO8|SEO86A-20.000-WTC1.0|无线局域网晶振
NKG CRYSTAL|SEO6|SEO66D-40.000-WTC1.5|3225进口晶振
NKG晶振|SDO7|SDO76A-120.000-WTS|2520差分晶振
NKG晶振|SHO6|SHO66B-100.000-WTS|差分石英晶体振荡器
NKG晶振|SPP5|SPP59A-150.000-WTS|LV-PECL输出差分晶振
福克斯超小型表晶,FK121进口晶振,FK121EIWM0.032768-T5医疗器械晶振
