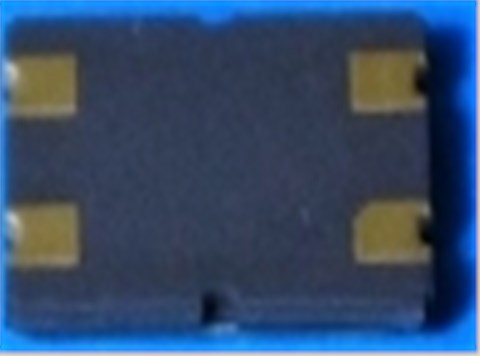

香港NKG晶振|S7M晶振|S7M24.0000F12M23-EXT|7050mm晶振

产品简介

香港NKG晶振|S7M晶振|S7M24.0000F12M23-EXT|7050mm晶振,香港进口晶振,NKG晶振,S7M无源晶振,石英晶振,S7M24.0000F12M23-EXT晶振,7050贴片晶振,石英晶体谐振器,SMD晶体,四脚封装晶振,频率24MHz,负载12pF,频率容差20ppm,工作温度范围-40~85°C,耐高温晶振,高稳定性晶振,高品质晶振,无线路由器晶振,调制解调器晶振,网络设备晶振,电信交换机晶振.

产品详情

yijin-1 香港NKG晶振|S7M晶振|S7M24.0000F12M23-EXT|7050mm晶振,香港进口晶振,NKG晶振,S7M无源晶振,石英晶振,S7M24.0000F12M23-EXT晶振,7050贴片晶振,石英晶体谐振器,SMD晶振,四脚封装晶振,频率24MHz,负载12pF,频率容差20ppm,工作温度范围-40~85°C,耐高温晶振,高稳定性晶振,高品质晶振,无线路由器晶振,调制解调器晶振,网络设备晶振,电信交换机晶振.

香港NKG晶振|S7M晶振|S7M24.0000F12M23-EXT|7050mm晶振特点：

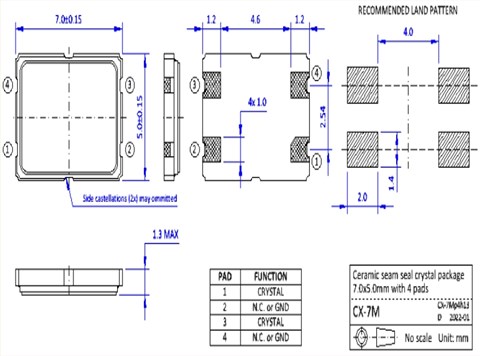

●小包装尺寸7.0x 5.0 x 1.1mm, 4个衬垫。

●优异的耐热性和抗震性。

●高可靠的缝封封装，低老化。

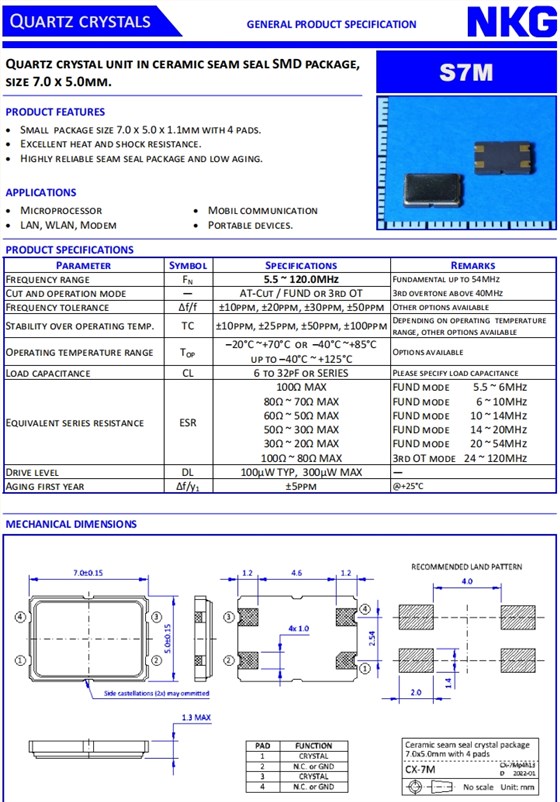

yijin-2 香港NKG晶振|S7M晶振|S7M24.0000F12M23-EXT|7050mm晶振规格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	24MHz	-
Cut and operation mode	-	FUNDAMENTAL	-
Frequency tolerance	Δf/f	±20ppm	Other options available
Stability over operating temp.	TC	±30ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–40°C ~+85°C	Options available
Load capacitance	CL	12pF	Please specify load capacitance
Equivalent series resistance	ESR	30Ω ~ 20Ω MAX	FUND mode 20 ~ 54MHz
Drive level	DL	100µW TYP, 300µW MAX	-
Aging first year	Δf/y1	±5ppm	@+25°C
