NKG晶振|S5M晶振|S5M32.0000F20E23-EXT|5032mm晶振

产品简介

NKG晶振|S5M晶振|S5M32.0000F20E23-EXT|5032mm晶振,香港晶振品牌,NKG晶振,S5M无源晶振,进口晶振,S5M32.0000F20E23-EXT晶振,5.0x3.2mm石英晶振,SMD晶体,晶体谐振器,四脚贴片晶振,频率32MHz,负载20pF,频率容差20ppm,工作温度范围-20~70°C,高精度晶振,高品质晶振,低老化晶振,无线局域网晶振,微处理器晶振,调制解调器晶振,移动通信晶振.

产品详情

yijin-1 NKG晶振|S5M晶振|S5M32.0000F20E23-EXT|5032mm晶振,香港晶振品牌,NKG晶振,S5M无源晶振,进口晶振,S5M32.0000F20E23-EXT晶振,5.0x3.2mm石英晶振,SMD晶体,晶体谐振器,四脚贴片晶振,频率32MHz,负载20pF,频率容差20ppm,工作温度范围-20~70°C,高精度晶振,高品质晶振,低老化晶振,无线局域网晶振,微处理器晶振,调制解调器晶振,移动通信晶振.

NKG晶振|S5M晶振|S5M32.0000F20E23-EXT|5032mm晶振特点：

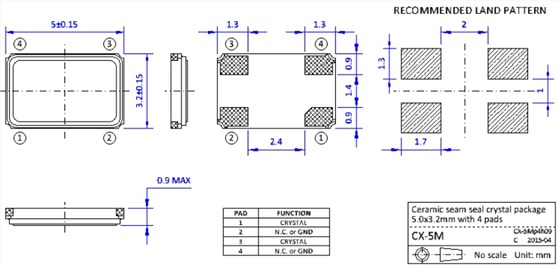

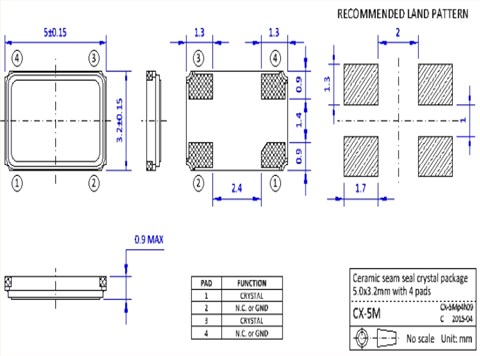

●小包装尺寸5.0x 3.2x 0.8mm, 4个衬垫。

●优异的耐热性和抗震性。

●高可靠的缝封封装，低老化。

●符合AEC-Q200标准的汽车级产品可供选择

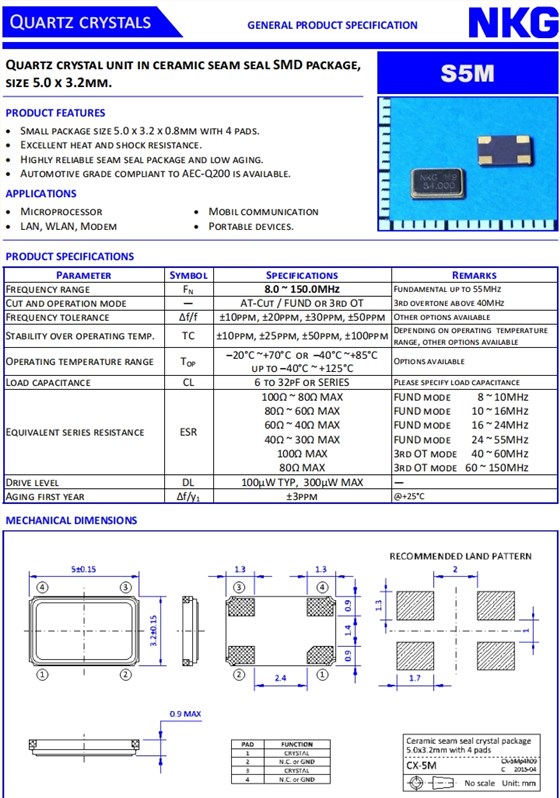

yijin-2 NKG晶振|S5M晶振|S5M32.0000F20E23-EXT|5032mm晶振规格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	32MHz	-
Cut and operation mode	-	FUNDAMENTAL	-
Frequency tolerance	Δf/f	±20ppm	Other options available
Stability over operating temp.	TC	±30ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–20°C ~+70°C	Options available
Load capacitance	CL	20pF	Please specify load capacitance
Equivalent series resistance	ESR	40Ω ~ 30Ω MAX	FUND mode 24 ~ 55MHz
Drive level	DL	10µW TYP, 100µW MAX	-
Aging first year	Δf/y1	±3ppm	@+25°C
