NKG晶振|S5CA晶振|S5CA36.0000F12E2Z-EXT|6G无线网络晶振

产品简介

NKG晶振|S5CA晶振|S5CA36.0000F12E2Z-EXT|6G无线网络晶振,NKG晶振,S5CA无源晶振,石英晶体,S5CA36.0000F12E2Z-EXT晶振,进口贴片晶振,5032晶振,SMD晶体,二脚封装晶振,频率36MHz,负载12pF,频率容差20ppm,工作温度范围-20~70°C,小体积晶振,高可靠性晶振,抗震性晶振,6G无线网络晶振,微处理器晶振,调制解调器晶振,移动通信晶振.

产品详情

yijin-1 NKG晶振|S5CA晶振|S5CA36.0000F12E2Z-EXT|6G无线网络晶振,NKG晶振,S5CA无源晶振,石英晶体,S5CA36.0000F12E2Z-EXT晶振,进口贴片晶振,5032晶振,SMD晶体,二脚封装晶振,频率36MHz,负载12pF,频率容差20ppm,工作温度范围-20~70°C,小体积晶振,高可靠性晶振,抗震性晶振,6G无线网络晶振,微处理器晶振,调制解调器晶振,移动通信晶振.

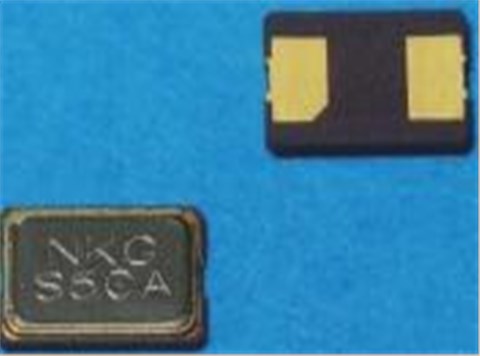

NKG晶振|S5CA晶振|S5CA36.0000F12E2Z-EXT|6G无线网络晶振特点：

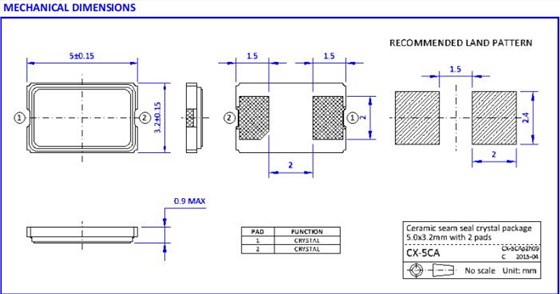

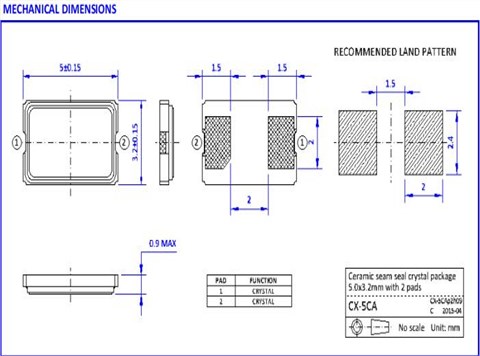

●小包装尺寸5.0x 3.2 x 0.8mm, 2个衬垫。

●优异的耐热性和抗震性。

●高可靠的缝封封装，低老化。

●符合AEC-Q200标准的汽车级产品可供选择。

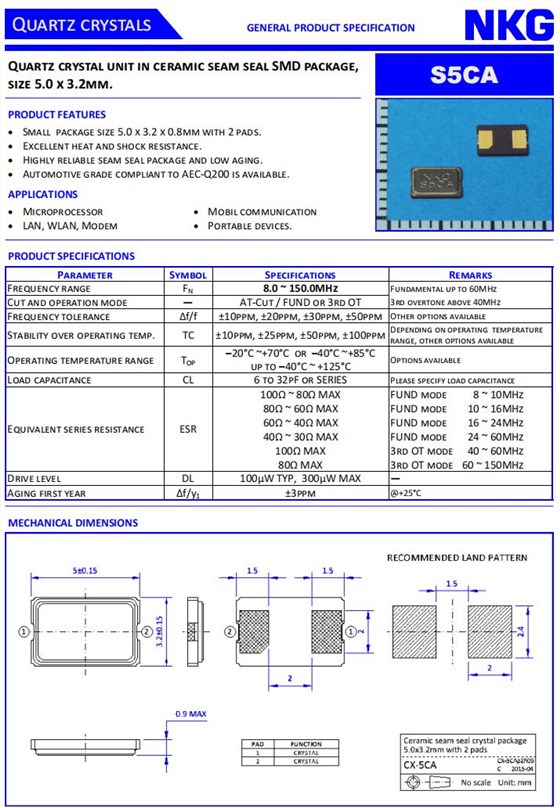

yijin-2 NKG晶振|S5CA晶振|S5CA36.0000F12E2Z-EXT|6G无线网络晶振规格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	36MHz	-
Cut and operation mode	-	AT-Cut / FUND or 3rd OT	-
Frequency tolerance	Δf/f	±20ppm	Other options available
Stability over operating temp.	TC	±25ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–20°C ~+70°C	Options available
Load capacitance	CL	12pF	Please specify load capacitance
Equivalent series resistance	ESR	40Ω~30Ω MAX	FUND mode 24 ~ 60MHz
Drive level	DL	100µW TYP, 300µW MAX	-
Aging first year	Δf/y1	±3ppm	@+25°C
