NKG晶振|S3M晶振|S3M27.1200F12M23-EXT|3225mm晶振

产品简介

NKG晶振|S3M晶振|S3M27.1200F12M23-EXT|3225mm晶振,香港NKG晶振,S3M无源晶振,石英晶振,S3M27.1200F12M23-EXT晶振,3225进口晶振,SMD晶体,石英晶体谐振器,四脚贴片晶振,频率27.12MHz,负载12pF,频率容差20ppm,工作温度范围-40~85°C,小体积晶振,高可靠性晶振,低老化晶振,移动通信晶振,蓝牙模块晶振,USB存储设备晶振,便携式设备晶振.

产品详情

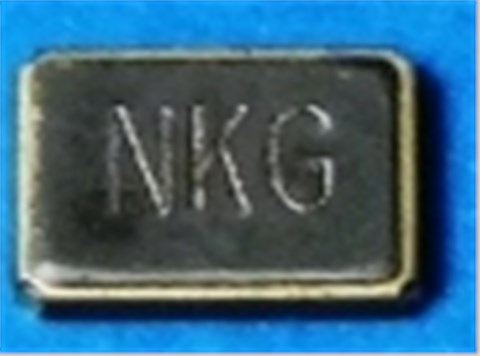

yijin-1 NKG晶振|S3M晶振|S3M27.1200F12M23-EXT|3225mm晶振,香港NKG晶振,S3M无源晶振,石英晶振,S3M27.1200F12M23-EXT晶振,3225进口晶振,SMD晶体,石英晶体谐振器,四脚贴片晶振,频率27.12MHz,负载12pF,频率容差20ppm,工作温度范围-40~85°C,小体积晶振,高可靠性晶振,低老化晶振,移动通信晶振,蓝牙模块晶振,USB存储设备晶振,便携式设备晶振.

NKG晶振|S3M晶振|S3M27.1200F12M23-EXT|3225mm晶振特点：

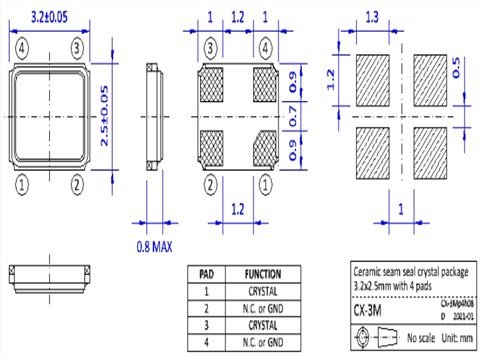

●微型包装尺寸3.2x 2.5x 0.7mm, 4个衬垫。

●优异的耐热性和抗震性。

●真空密封，可靠性高，老化率低。

●符合AEC-Q200标准的汽车级产品可供选择

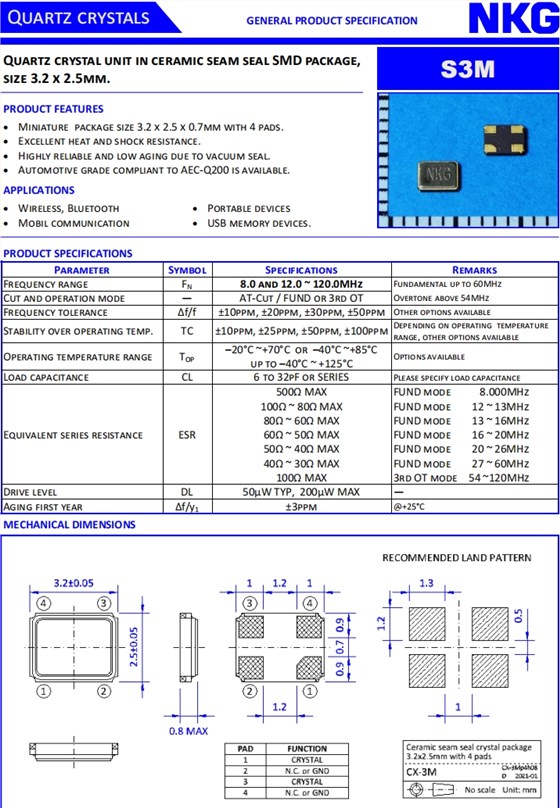

yijin-2 NKG晶振|S3M晶振|S3M27.1200F12M23-EXT|3225mm晶振规格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	27.12MHz	-
Cut and operation mode	-	FUNDAMENTAL	-
Frequency tolerance	Δf/f	±20ppm	Other options available
Stability over operating temp.	TC	±30ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–40°C ~+85°C	Options available
Load capacitance	CL	12pF	Please specify load capacitance
Equivalent series resistance	ESR	40Ω ~ 30Ω MAX	FUND mode 27 ~ 60MHz
Drive level	DL	10µW TYP, 100µW MAX	-
Aging first year	Δf/y1	±3ppm	@+25°C
