NKG Crystal|CT20M晶振|CT20M19.200F10V1Y-100|热敏晶振

产品简介

NKG Crystal|CT20M晶振|CT20M19.200F10V1Y-100|热敏晶振,NKG Crystal,CT20M热敏石英晶体,进口贴片晶振,CT20M19.200F10V1Y-100晶振,无源晶振,2016mm晶振,石英晶体谐振器,四脚封装晶振,频率19.2MHz,负载10pF,频率容差10ppm,工作温度范围-30~85°C,超小型晶振,高精度晶振,低老化晶振,蓝牙模块晶振,电信应用程序晶振,便携式设备晶振,移动通信晶振.

产品详情

yijin-1 NKG Crystal|CT20M晶振|CT20M19.200F10V1Y-100|热敏晶振,NKG Crystal,CT20M热敏石英晶体,进口贴片晶振,CT20M19.200F10V1Y-100晶振,无源晶振,2016mm晶振,石英晶体谐振器,四脚封装晶振,频率19.2MHz,负载10pF,频率容差10ppm,工作温度范围-30~85°C,超小型晶振,高精度晶振,低老化晶振,蓝牙模块晶振,电信应用程序晶振,便携式设备晶振,移动通信晶振.

NKG Crystal|CT20M晶振|CT20M19.200F10V1Y-100|热敏晶振特点：

●内置热敏电阻100kΩ用于温度测量

●非常适合与内置温度补偿振荡器电路的ic一起使用

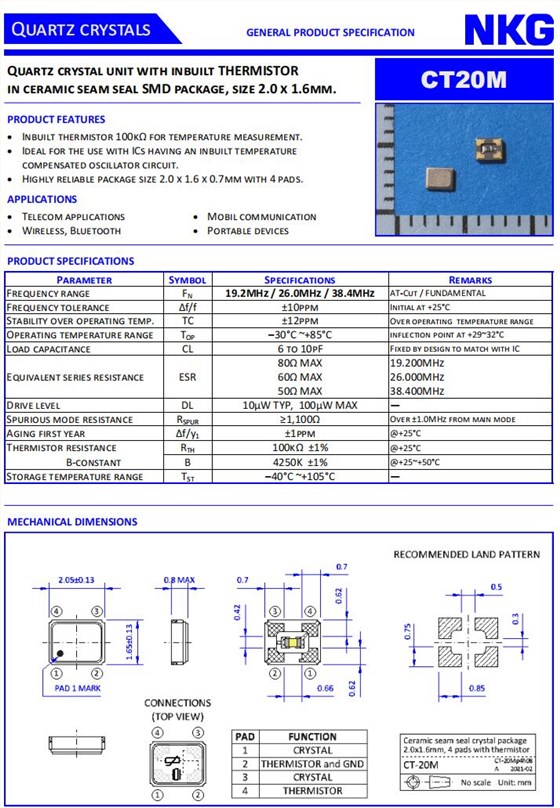

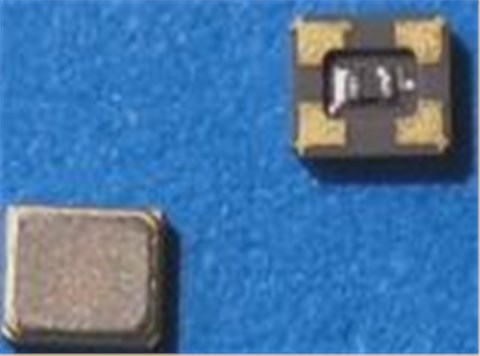

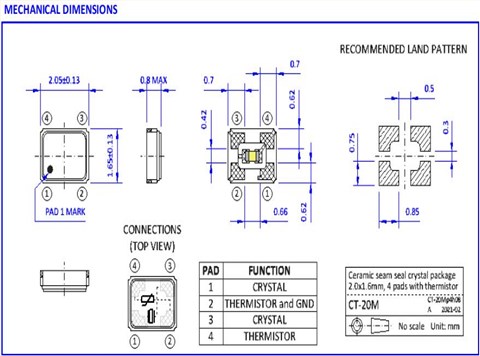

●高度可靠的包装尺寸2.0 x 1.6 x 0.7mm，带有4个衬垫 yijin-2 NKG Crystal|CT20M晶振|CT20M19.200F10V1Y-100|热敏晶振规格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	19.2MHz	-
Cut and operation mode	-	FUNDAMENTAL	-
Frequency tolerance	Δf/f	±10ppm	Other options available
Stability over operating temp.	TC	±15ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–30°C ~+85°C	Options available
Load capacitance	CL	10pF	Please specify load capacitance
Drive level	DL	10µW TYP, 100µW MAX	-
Spurious mode resistance	RSPUR	≥1,100Ω	Over ±1.0MHz from main mode
Aging first year	Δf/y1	±1ppm	@+25°C
Thermistor resistance B-constant	RTH	100kΩ±1%	@+25°C
Thermistor resistance B-constant	B	4250K ±1%	@+25~+50°C
Storage temperature range	TST	–40°C ~+105°C	—
