NKG晶振|CT25M晶振|CT25M26.000F10V11-100|热敏超小型晶体

产品简介

NKG晶振|CT25M晶振|CT25M26.000F10V11-100|热敏超小型晶体,NKG晶振,CT25M无源晶振,热敏晶体,CT25M26.000F10V11-100晶振,石英晶体谐振器,2520贴片晶振,石英晶振,四脚封装晶振,频率26MHz,负载10pF,频率容差10ppm,工作温度范围-30~85°C,无铅环保晶振,超小型晶振,高可靠性晶振,无线通信晶振,路由器晶振,智能手机晶振,平板电脑晶振.

产品详情

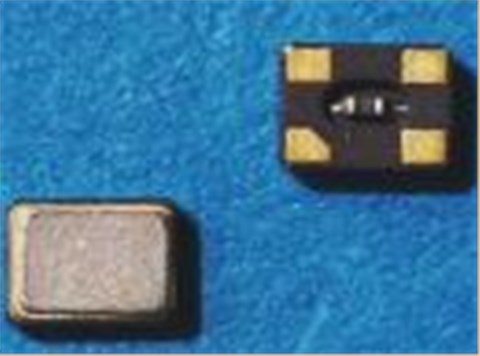

yijin-1 NKG晶振|CT25M晶振|CT25M26.000F10V11-100|热敏超小型晶体,NKG晶振,CT25M无源晶振,热敏晶体,CT25M26.000F10V11-100晶振,石英晶体谐振器,2520贴片晶振,石英晶振,四脚封装晶振,频率26MHz,负载10pF,频率容差10ppm,工作温度范围-30~85°C,无铅环保晶振,超小型晶振,高可靠性晶振,无线通信晶振,路由器晶振,智能手机晶振,平板电脑晶振.

NKG晶振|CT25M晶振|CT25M26.000F10V11-100|热敏超小型晶体特点：

●内置热敏电阻100kΩ用于温度测量

●非常适合与内置温度补偿振荡器电路的ic一起使用

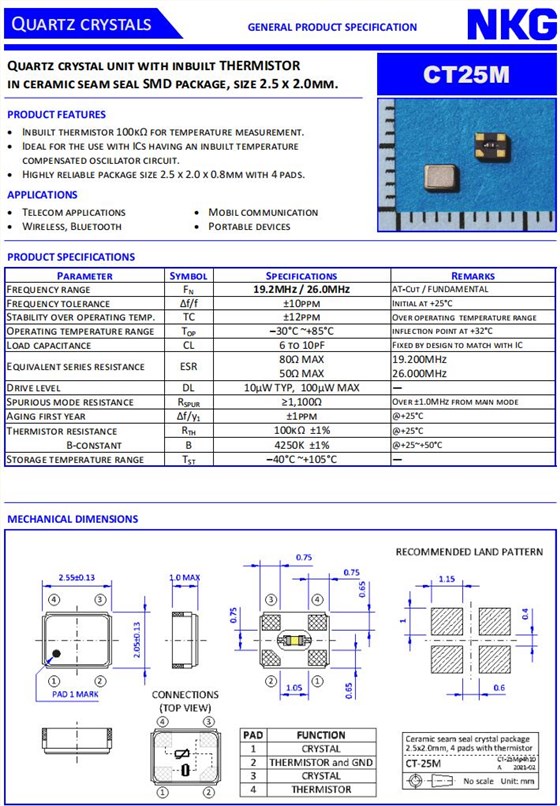

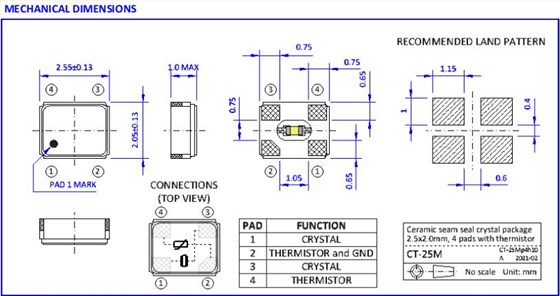

●高度可靠的包装尺寸2.5 x 2.0 x 0.8mm，带有4个衬垫 yijin-2 NKG晶振|CT25M晶振|CT25M26.000F10V11-100|热敏超小型晶体规格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	26MHz	-
Cut and operation mode	-	FUNDAMENTAL	-
Frequency tolerance	Δf/f	±10ppm	Other options available
Stability over operating temp.	TC	±10ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–30°C ~+85°C	Options available
Load capacitance	CL	10pF	Please specify load capacitance
Drive level	DL	10µW TYP, 100µW MAX	-
Spurious mode resistance	RSPUR	≥1,100Ω	Over ±1.0MHz from main mode
Aging first year	Δf/y1	±1ppm	@+25°C
Thermistor resistance B-constant	RTH	100kΩ±1%	@+25°C
Thermistor resistance B-constant	B	4250K ±1%	@+25~+50°C
Storage temperature range	TST	–40°C ~+105°C	—
