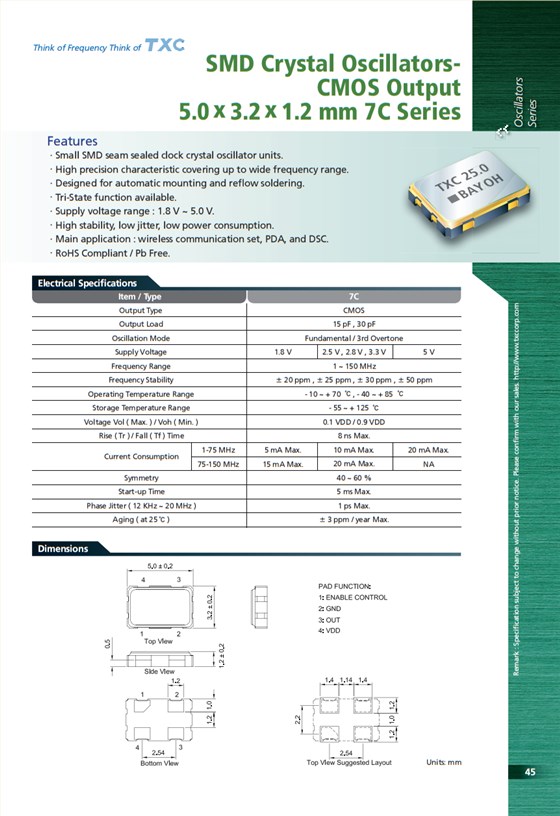

7C22500002-TXC-22.5792M,30PPM,5032,TXC有源晶振,特点频率范围: 1MHz至170MHz， 20SMD接缝密封，陶瓷封装DE， 2供应voltage: 1.8V~3.3V， CMOS输出，DHO三态功能，可用20外部尺寸(mm) ，DEL:5.0xW:3.2xH:1.2，符合RoHS标准& 无Pb，应用程序，网络、服务器、存储B无线通信B光纤通道、以太网、SATA、SAS BPCI-E、USB、WLAN、XDSL、XPON PC主板、笔记本电脑、硬盘、SSD、B显卡，电脑外设，恒音频，视频，游戏，打印机，DSC，IP CAM，消费产品。
7C22500002-TXC-22.5792M,30PPM,5032
| 项目 | 7C | 环境 |
| 频率 | 22.0592MHz | |
| 频率容差 | ±50 , ±25 ppm | - 10°C ~ +70°C; Note [1] |
| ±50 , ±30 , ±25 , ±15 ppm | -40°C ~ +85°C; Note [1] | |
| 工作温度范围内的频率偏差度 | - 10°C ~ +70°C | |
| -40°C ~ +85°C | ||
| 电源电压 | 1.8V, 2.5V, 2.8V, 3.3V | VDD ± 10% |
| 电流损耗量 | 10 mA Max. | 1MHz ~ 75MHz |
| 20 mA Max. | 75MHz ~ 170MHz | |
| 输出类型 | CMOS | |
| 输出负载 | 15 pF | |
| 输出电压高 | 90% VDDMin. | |
| 输出电压低 | 10% VDDMax. | |
| 上升下降时间 | 8 ns Max. | 10% ~ 90% of VDD |
| 占空因数 | 40% ~ 60% | |
| 启动时间 | 5 ms Max. | |
| 启动电压过高，逻辑值为"1" | 70% VDDMin. |
Input to Pin1
Note [2] |
| 启动电压过低，逻辑值为"0" | 30% VDDMax. | |
| 相位抖动, RMS | 1 ps Max. | Note [3] |
| 老化 | ±3 ppm Max. | at 25°C±3°C, first year |
| 绝缘电阻 | -55°C ~ +125°C |
7C22500002-TXC-22.5792M,30PPM,5032
| 原厂代码 | 生产商品牌 | 型号 | 类型 | 频率 | 频率稳定度 | 工作温度 |
| 7C-40.000MBA-T | TXC晶振 | 7C | XO (Standard) | 40MHz | ±25ppm | -10°C ~ 70°C |
| 7C-40.000MBA-T | TXC晶振 | 7C | XO (Standard) | 40MHz | ±25ppm | -10°C ~ 70°C |
| 7C-40.000MBA-T | TXC晶振 | 7C | XO (Standard) | 40MHz | ±25ppm | -10°C ~ 70°C |
| 7C-26.000MBB-T | TXC晶振 | 7C | XO (Standard) | 26MHz | ±50ppm | -10°C ~ 70°C |
| 7C-26.000MBB-T | TXC晶振 | 7C | XO (Standard) | 26MHz | ±50ppm | -10°C ~ 70°C |
| 7C-26.000MBB-T | TXC晶振 | 7C | XO (Standard) | 26MHz | ±50ppm | -10°C ~ 70°C |
| 7C-40.000MCB-T | TXC晶振 | 7C | XO (Standard) | 40MHz | ±50ppm | -10°C ~ 70°C |
| 7C-40.000MCB-T | TXC晶振 | 7C | XO (Standard) | 40MHz | ±50ppm | -10°C ~ 70°C |
| 7C-40.000MCB-T | TXC晶振 | 7C | XO (Standard) | 40MHz | ±50ppm | -10°C ~ 70°C |
| 7C-50.000MBE-T | TXC晶振 | 7C | XO (Standard) | 50MHz | ±50ppm | -40°C ~ 85°C |
| 7C-50.000MBE-T | TXC晶振 | 7C | XO (Standard) | 50MHz | ±50ppm | -40°C ~ 85°C |
| 7C-50.000MBE-T | TXC晶振 | 7C | XO (Standard) | 50MHz | ±50ppm | -40°C ~ 85°C |
| 7C-25.000MCB-T | TXC晶振 | 7C | XO (Standard) | 25MHz | ±50ppm | -10°C ~ 70°C |
| 7C-25.000MCB-T | TXC晶振 | 7C | XO (Standard) | 25MHz | ±50ppm | -10°C ~ 70°C |
| 7C-25.000MCB-T | TXC晶振 | 7C | XO (Standard) | 25MHz | ±50ppm | -10°C ~ 70°C |
| 7C-26.000MBA-T | TXC晶振 | 7C | XO (Standard) | 26MHz | ±25ppm | -10°C ~ 70°C |
| 7C-26.000MBA-T | TXC晶振 | 7C | XO (Standard) | 26MHz | ±25ppm | -10°C ~ 70°C |
| 7C-26.000MBA-T | TXC晶振 | 7C | XO (Standard) | 26MHz | ±25ppm | -10°C ~ 70°C |
| 7C-24.576MBA-T | TXC晶振 | 7C | XO (Standard) | 24.576MHz | ±25ppm | -10°C ~ 70°C |
| 7C-24.576MBA-T | TXC晶振 | 7C | XO (Standard) | 24.576MHz | ±25ppm | -10°C ~ 70°C |
| 7C-24.576MBA-T | TXC晶振 | 7C | XO (Standard) | 24.576MHz | ±25ppm | -10°C ~ 70°C |
| 7C-27.000MBE-T | TXC晶振 | 7C | XO (Standard) | 27MHz | ±50ppm | -40°C ~ 85°C |
| 7C-27.000MBE-T | TXC晶振 | 7C | XO (Standard) | 27MHz | ±50ppm | -40°C ~ 85°C |
| 7C-27.000MBE-T | TXC晶振 | 7C | XO (Standard) | 27MHz | ±50ppm | -40°C ~ 85°C |
| 7C-48.000MBE-T | TXC晶振 | 7C | XO (Standard) | 48MHz | ±50ppm | -40°C ~ 85°C |
| 7C-48.000MBE-T | TXC晶振 | 7C | XO (Standard) | 48MHz | ±50ppm | -40°C ~ 85°C |
| 7C-48.000MBE-T | TXC晶振 | 7C | XO (Standard) | 48MHz | ±50ppm | -40°C ~ 85°C |
| 7C-40.000MBE-T | TXC晶振 | 7C | XO (Standard) | 40MHz | ±50ppm | -40°C ~ 85°C |
| 7C-40.000MBE-T | TXC晶振 | 7C | XO (Standard) | 40MHz | ±50ppm | -40°C ~ 85°C |
| 7C-40.000MBE-T | TXC晶振 | 7C | XO (Standard) | 40MHz | ±50ppm | -40°C ~ 85°C |
| 7C-25.000MBE-T | TXC晶振 | 7C | XO (Standard) | 25MHz | ±50ppm | -40°C ~ 85°C |
| 7C-25.000MBE-T | TXC晶振 | 7C | XO (Standard) | 25MHz | ±50ppm | -40°C ~ 85°C |
| 7C-25.000MBE-T | TXC晶振 | 7C | XO (Standard) | 25MHz | ±50ppm | -40°C ~ 85°C |
| 7C-28.63636MBB-T | TXC晶振 | 7C | XO (Standard) | 28.63636MHz | ±50ppm | -10°C ~ 70°C |
| 7C-28.63636MBB-T | TXC晶振 | 7C | XO (Standard) | 28.63636MHz | ±50ppm | -10°C ~ 70°C |
| 7C-28.63636MBB-T | TXC晶振 | 7C | XO (Standard) | 28.63636MHz | ±50ppm | -10°C ~ 70°C |
| 7C-4.000MBB-T | TXC晶振 | 7C | XO (Standard) | 4MHz | ±50ppm | -10°C ~ 70°C |
| 7C-4.000MBB-T | TXC晶振 | 7C | XO (Standard) | 4MHz | ±50ppm | -10°C ~ 70°C |
| 7C-4.000MBB-T | TXC晶振 | 7C | XO (Standard) | 4MHz | ±50ppm | -10°C ~ 70°C |
| 7C-50.000MCB-T | TXC晶振 | 7C | XO (Standard) | 50MHz | ±50ppm | -10°C ~ 70°C |
| 7C-50.000MCB-T | TXC晶振 | 7C | XO (Standard) | 50MHz | ±50ppm | -10°C ~ 70°C |
| 7C-50.000MCB-T | TXC晶振 | 7C | XO (Standard) | 50MHz | ±50ppm | -10°C ~ 70°C |
| 7C-50.000MBB-T | TXC晶振 | 7C | XO (Standard) | 50MHz | ±50ppm | -10°C ~ 70°C |
| 7C-50.000MBB-T | TXC晶振 | 7C | XO (Standard) | 50MHz | ±50ppm | -10°C ~ 70°C |
| 7C-50.000MBB-T | TXC晶振 | 7C | XO (Standard) | 50MHz | ±50ppm | -10°C ~ 70°C |
| 7C-40.000MBB-T | TXC晶振 | 7C | XO (Standard) | 40MHz | ±50ppm | -10°C ~ 70°C |
| 7C-40.000MBB-T | TXC晶振 | 7C | XO (Standard) | 40MHz | ±50ppm | -10°C ~ 70°C |
| 7C-40.000MBB-T | TXC晶振 | 7C | XO (Standard) | 40MHz | ±50ppm | -10°C ~ 70°C |
| 7C-25.000MBA-T | TXC晶振 | 7C | XO (Standard) | 25MHz | ±25ppm | -10°C ~ 70°C |
| 7C-25.000MBA-T | TXC晶振 | 7C | XO (Standard) | 25MHz | ±25ppm | -10°C ~ 70°C |
| 7C-25.000MBA-T | TXC晶振 | 7C | XO (Standard) | 25MHz | ±25ppm | -10°C ~ 70°C |
| 7C-27.000MBA-T | TXC晶振 | 7C | XO (Standard) | 27MHz | ±25ppm | -10°C ~ 70°C |
| 7C-27.000MBA-T | TXC晶振 | 7C | XO (Standard) | 27MHz | ±25ppm | -10°C ~ 70°C |
| 7C-27.000MBA-T | TXC晶振 | 7C | XO (Standard) | 27MHz | ±25ppm | -10°C ~ 70°C |
| 7C-6.000MBA-T | TXC晶振 | 7C | XO (Standard) | 6MHz | ±25ppm | -10°C ~ 70°C |
| 7C-6.000MBA-T | TXC晶振 | 7C | XO (Standard) | 6MHz | ±25ppm | -10°C ~ 70°C |
| 7C-6.000MBA-T | TXC晶振 | 7C | XO (Standard) | 6MHz | ±25ppm | -10°C ~ 70°C |
| 7C04000061 | TXC晶振 | 7C | XO (Standard) | 4MHz | ±50ppm | -20°C ~ 70°C |
| 7C06123001 | TXC晶振 | 7C | XO (Standard) | 6.144MHz | ±50ppm | -40°C ~ 85°C |
| 7C08000001 | TXC晶振 | 7C | XO (Standard) | 8MHz | ±50ppm | -10°C ~ 70°C |
| 7C16000017 | TXC晶振 | 7C | XO (Standard) | 16MHz | ±30ppm | -20°C ~ 70°C |
| 7C20000003 | TXC晶振 | 7C | XO (Standard) | 20MHz | ±30ppm | -40°C ~ 85°C |
| 7C22500002 | TXC晶振 | 7C | XO (Standard) | 22.5792MHz | ±30ppm | -20°C ~ 70°C |
| 7C24000002 | TXC晶振 | 7C | XO (Standard) | 24MHz | ±50ppm | -40°C ~ 85°C |
| 7C24000006 | TXC晶振 | 7C | XO (Standard) | 24MHz | ±20ppm | -20°C ~ 70°C |
| 7C24000012 | TXC晶振 | 7C | XO (Standard) | 24MHz | ±30ppm | -10°C ~ 70°C |
| 7C24020001 | TXC晶振 | 7C | XO (Standard) | 24MHz | ±30ppm | -20°C ~ 70°C |
| 7C24070002 | TXC晶振 | 7C | XO (Standard) | 24MHz | ±25ppm | -10°C ~ 70°C |
| 7C24070007 | TXC晶振 | 7C | XO (Standard) | 24MHz | ±30ppm | -10°C ~ 70°C |
| 7C24500002 | TXC晶振 | 7C | XO (Standard) | 24.576MHz | ±20ppm | -20°C ~ 70°C |
| 7C24500007 | TXC晶振 | 7C | XO (Standard) | 24.576MHz | ±25ppm | -20°C ~ 70°C |
| 7C25000011 | TXC晶振 | 7C | XO (Standard) | 25MHz | ±50ppm | -40°C ~ 85°C |
| 7C25000016 | TXC晶振 | 7C | XO (Standard) | 25MHz | ±50ppm | -10°C ~ 70°C |
