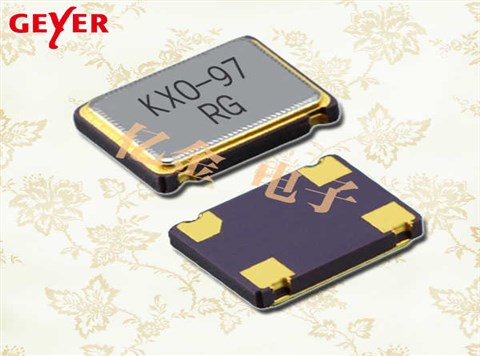

12.92196,7050贴片晶振,KXO-97T型号晶振
依托12.92196高密度晶振与7050贴片晶振封装优势,KXO-97T型号晶振广泛应用于多领域:在通信领域,适配专用无线通信设备,射频模块,精准频率保障信号传输同步性;在工业自动化领域,作为检测仪器,小型PLC的时钟源,7050封装适配设备内部布局,宽温特性应对车间环境;在消费电子领域,用于高端音频设备,精密测量仪器,满足特殊功能需求;在车载晶振领域,适配车载诊断模块,7050封装的稳定性与抗振动性保障行车安全.
12.92196,7050贴片晶振,KXO-97T型号晶振
|
原厂型号Originalmodel： |
12.92196 |
品牌brand： |
Geyer |
|
Manufacturer品牌 |
Geyer |
OperatingTemperature温度 |
-40C +85C |
|
Series型号 |
Current-Supply(Max) |
- |
|
|
Type类型 |
XO |
PackageHeight高度 |
0.35mm |
|
Frequency频率 |
8M |
Termination脚位 |
|
|
输出方式Output： |
TTL CMOS |
PackageType封装类型 |
4-Smd |
|
Voltage-Supply电压 |
5.0V |
Packaging包装 |
TapeandReel |
|
FrequencyStability频率稳定度 |
|
安装方式Installation： |
Surfacemount |
|
Size/Dimension尺寸 |
7050mm |
最小包装数MPQ： |
1000 |
12.92196,7050贴片晶振,KXO-97T型号晶振
12.92196,7050贴片晶振,KXO-97T型号晶振
|
12.87000 |
KX-327V |
1.25 | 1.05 | 0.5 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87001 |
KX-327V |
1.25 | 1.05 | 0.5 mm |
32.768 kHz |
9 pF |
± 20 ppm |
|
12.87002 |
KX-327V |
1.25 | 1.05 | 0.5 mm |
32.768 kHz |
7 pF |
± 20 ppm |
|
12.87034 |
KX-327R |
2.0 | 1.2 | 0.6 mm |
32.768 kHz |
4 pF |
± 20 ppm |
|
12.87080 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
12.5 pF |
± 10 ppm |
|
12.87081 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
6 pF |
± 20 ppm |
|
12.87083 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
6 pF |
± 20 ppm |
|
12.87086 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
6 pF |
± 10 ppm |
|
12.87090 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
7 pF |
± 10 ppm |
|
12.87095 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
9 pF |
± 10 ppm |
|
12.87105 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
6 pF |
± 10 ppm |
|
12.87107 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87109 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
12 pF |
± 15 ppm |
|
12.87110 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
12.5 pF |
± 30 ppm |
|
12.87111 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
12.5 pF |
± 30 ppm |
|
12.87112 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87113 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
12.5 pF |
± 5.0 ppm |
|
12.87114 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87115 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
12.5 pF |
± 10 ppm |
|
12.87116 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
12.5 pF |
± 10 ppm |
|
12.87118 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
6 pF |
± 20 ppm |
|
12.87119 |
KX-327S |
8.2 | 3.8 | 2.5 mm |
32.768 kHz |
6 pF |
± 20 ppm |
|
12.87120 |
KX-327XS |
4.95 | 1.82 | 0.96 mm |
32.768 kHz |
12.5 pF |
± 30 ppm |
|
12.87121 |
KX-327XS |
4.95 | 1.82 | 0.96 mm |
32.768 kHz |
12.5 pF |
± 30 ppm |
|
12.87123 |
KX-327XS |
4.95 | 1.82 | 0.96 mm |
32.768 kHz |
6 pF |
± 30 ppm |
|
12.87126 |
KX-327XS |
4.95 | 1.82 | 0.96 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87127 |
KX-327XS |
4.95 | 1.82 | 0.96 mm |
32.768 kHz |
6 pF |
± 30 ppm |
|
12.87128 |
KX-327XS |
4.95 | 1.82 | 0.96 mm |
32.768 kHz |
6 pF |
± 20 ppm |
|
12.87129 |
KX-327XS |
4.95 | 1.82 | 0.96 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87130 |
KX-327L |
7.0 | 1.5 | 1.4 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87131 |
KX-327L |
7.0 | 1.5 | 1.4 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87132 |
KX-327L |
7.0 | 1.5 | 1.4 mm |
32.768 kHz |
7 pF |
± 20 ppm |
|
12.87133 |
KX-327L |
7.0 | 1.5 | 1.4 mm |
32.768 kHz |
12.5 pF |
± 10 ppm |
|
12.87134 |
KX-327L |
7.0 | 1.5 | 1.4 mm |
32.768 kHz |
7 pF |
± 10 ppm |
|
12.87135 |
KX-327L |
7.0 | 1.5 | 1.4 mm |
32.768 kHz |
7 pF |
± 20 ppm |
|
12.87136 |
KX-327L |
7.0 | 1.5 | 1.4 mm |
32.768 kHz |
12.5 pF |
± 10 ppm |
|
12.87137 |
KX-327L |
7.0 | 1.5 | 1.4 mm |
32.768 kHz |
9 pF |
± 20 ppm |
|
12.87138 |
KX-327L |
7.0 | 1.5 | 1.4 mm |
32.768 kHz |
12.5 pF |
± 5.0 ppm |
|
12.87139 |
KX-327L |
7.0 | 1.5 | 1.4 mm |
32.768 kHz |
7 pF |
± 10 ppm |
|
12.87143 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
9 pF |
± 20 ppm |
|
12.87144 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
7 pF |
± 5.0 ppm |
|
12.87145 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87146 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
9 pF |
± 10 ppm |
|
12.87147 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
7 pF |
± 10 ppm |
|
12.87148 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
7 pF |
± 20 ppm |
|
12.87149 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
9 pF |
± 20 ppm |
|
12.87150 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87151 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
9 pF |
± 30 ppm |
|
12.87152 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87153 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
7 pF |
± 20 ppm |
|
12.87155 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
12.5 pF |
± 30 ppm |
|
12.87157 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
12.5 pF |
± 5.0 ppm |
|
12.87158 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
12.5 pF |
± 10 ppm |
|
12.87159 |
KX-327NH |
3.2 | 1.5 | 0.8 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87160 |
KX-327R |
2.0 | 1.2 | 0.6 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
|
12.87161 |
KX-327R |
2.0 | 1.2 | 0.6 mm |
32.768 kHz |
12.5 pF |
± 5.0 ppm |
|
12.87163 |
KX-327R |
2.0 | 1.2 | 0.6 mm |
32.768 kHz |
7 pF |
± 20 ppm |
|
12.87164 |
KX-327R |
2.0 | 1.2 | 0.6 mm |
32.768 kHz |
9 pF |
± 30 ppm |
|
12.87165 |
KX-327R |
2.0 | 1.2 | 0.6 mm |
32.768 kHz |
9 pF |
± 20 ppm |
|
12.87166 |
KX-327R |
2.0 | 1.2 | 0.6 mm |
32.768 kHz |
12.5 pF |
± 20 ppm |
