X3AEEJNANF-38.400000|38.4M|1612|8PF|30PPM|-40~105℃

产品简介

X3AEEJNANF-38.400000|38.4M|1612|8PF|30PPM|-40~105℃，泰艺晶振,X3晶振,X3AEEJNANF-38.400000晶振,贴片晶振,无源晶振,石英晶振,智能手机晶振,平板电脑晶振,1612晶振,超小型晶振,X3LEEJNANF-24.000000晶振,X3LEELNANF-26.000000晶振,X3LEEJNANF-27.000000晶振

产品详情

TY-2

yijin-1

X3AEEJNANF-38.400000|38.4M|1612|8PF|30PPM|-40~105℃，泰艺晶振,X3晶振,X3AEEJNANF-38.400000晶振,贴片晶振,无源晶振,石英晶振,智能手机晶振,平板电脑晶振,1612晶振,超小型晶振,X3LEEJNANF-24.000000晶振,X3LEELNANF-26.000000晶振,X3LEEJNANF-27.000000晶振

yijin-2

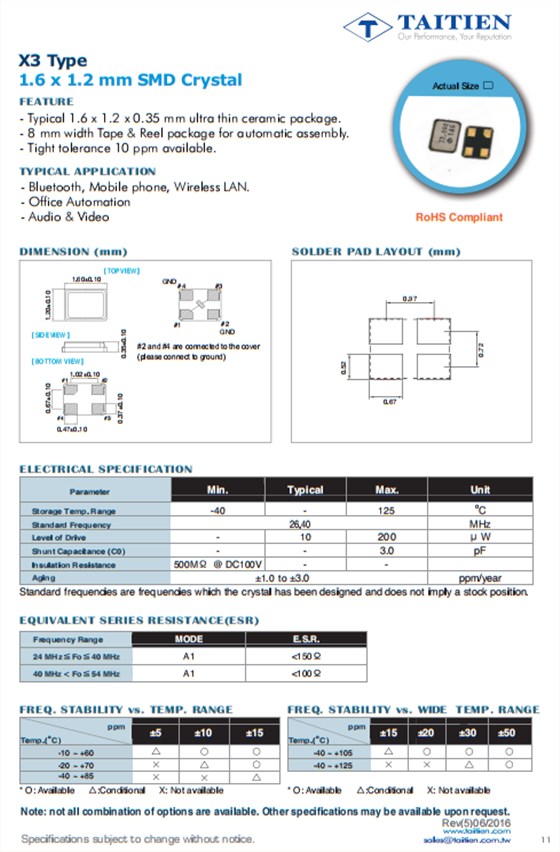

泰艺晶振规格	单位	X3贴片晶振频率范围	石英晶振基本条件
标准频率	f_nom	38.4MHZ	标准频率
储存温度	T_stg	-40°C ～ +125°C	裸存
工作温度	T_use	-40°C ～ +105°C	标准温度
激励功率	DL	200μW Max.	推荐:1μW ～ 100μW
频率公差	f_— l	±30 × 10-6(标准), (±15 × 10-6～ ±50 × 10-6可用)	+25°C 对于超出标准的规格说明, 请联系我们以便获取相关的信息,http://www.vc-tcxo.com/
频率温度特征	f_tem	±30 × 10-6/-20°C ～ +70°C	超出标准的规格请联系我们.
负载电容	CL	8pF	超出标准说明,请联系我们.
串联电阻(ESR)	R1	如下表所示	-40°C — +85°C,DL = 100μW
频率老化	f_age	±5 × 10-6/ year Max.	+25°C,第一年

X3AEEJNANF-38.400000|38.4M|1612|8PF|30PPM|-40~105℃

TAITIEN原厂编码	生产厂家	型号	Type 系列	Frequency	频率稳定度	频率偏差
X3AEEJNANF-27.000000	TAITIEN晶体	X3	MHz Crystal	27MHz	±30ppm	±30ppm
X3AEEJNANF-27.000000	TAITIEN晶体	X3	MHz Crystal	27MHz	±30ppm	±30ppm
X3AEEJNANF-27.000000	TAITIEN晶体	X3	MHz Crystal	27MHz	±30ppm	±30ppm
X3AEEJNANF-27.120000	TAITIEN晶体	X3	MHz Crystal	27.12MHz	±30ppm	±30ppm
X3AEEJNANF-27.120000	TAITIEN晶体	X3	MHz Crystal	27.12MHz	±30ppm	±30ppm
X3AEEJNANF-27.120000	TAITIEN晶体	X3	MHz Crystal	27.12MHz	±30ppm	±30ppm
X3AEEJNANF-30.000000	TAITIEN晶体	X3	MHz Crystal	30MHz	±30ppm	±30ppm
X3AEEJNANF-30.000000	TAITIEN晶体	X3	MHz Crystal	30MHz	±30ppm	±30ppm
X3AEEJNANF-30.000000	TAITIEN晶体	X3	MHz Crystal	30MHz	±30ppm	±30ppm
X3AEEJNANF-38.400000	TAITIEN晶体	X3	MHz Crystal	38.4MHz	±30ppm	±30ppm
X3AEEJNANF-38.400000	TAITIEN晶体	X3	MHz Crystal	38.4MHz	±30ppm	±30ppm
X3AEEJNANF-38.400000	TAITIEN晶体	X3	MHz Crystal	38.4MHz	±30ppm	±30ppm
X3AEELNANF-26.000000	TAITIEN晶体	X3	MHz Crystal	26MHz	±30ppm	±30ppm
X3AEELNANF-26.000000	TAITIEN晶体	X3	MHz Crystal	26MHz	±30ppm	±30ppm
X3AEELNANF-26.000000	TAITIEN晶体	X3	MHz Crystal	26MHz	±30ppm	±30ppm
X3AEELNANF-27.000000	TAITIEN晶体	X3	MHz Crystal	27MHz	±30ppm	±30ppm
X3AEELNANF-27.000000	TAITIEN晶体	X3	MHz Crystal	27MHz	±30ppm	±30ppm
X3AEELNANF-27.000000	TAITIEN晶体	X3	MHz Crystal	27MHz	±30ppm	±30ppm
X3AEELNANF-27.120000	TAITIEN晶体	X3	MHz Crystal	27.12MHz	±30ppm	±30ppm
X3AEELNANF-27.120000	TAITIEN晶体	X3	MHz Crystal	27.12MHz	±30ppm	±30ppm
X3AEELNANF-27.120000	TAITIEN晶体	X3	MHz Crystal	27.12MHz	±30ppm	±30ppm
X3AEELNANF-30.000000	TAITIEN晶体	X3	MHz Crystal	30MHz	±30ppm	±30ppm
X3AEELNANF-30.000000	TAITIEN晶体	X3	MHz Crystal	30MHz	±30ppm	±30ppm
X3AEELNANF-30.000000	TAITIEN晶体	X3	MHz Crystal	30MHz	±30ppm	±30ppm
X3AEELNANF-38.400000	TAITIEN晶体	X3	MHz Crystal	38.4MHz	±30ppm	±30ppm
