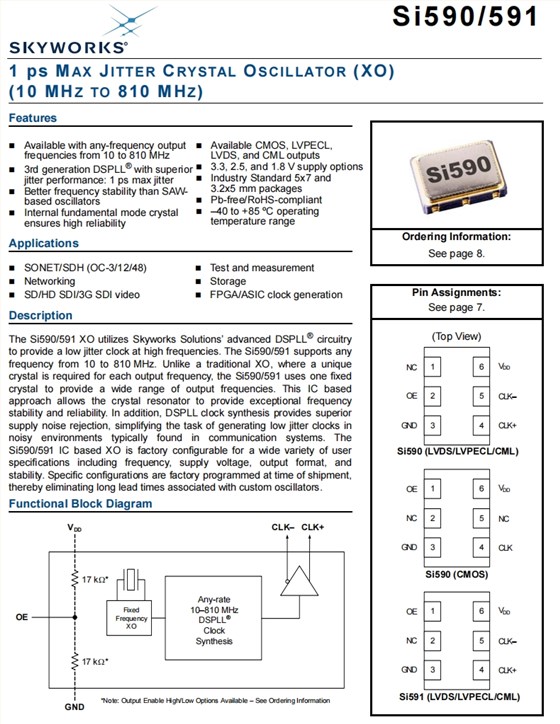

Skyworks晶体,150M差分晶振,590FA150M000DGR,6G高品质晶振特点：
•可与任意速率输出频率从10MHz到810MHz
•第三代DSPLL®具有卓越的抖动性能：最大抖动1ps
•频率稳定性优于SAW-based振荡器
•内部基模晶体保证高可靠性
•可用CMOS, LVPECL，LVDS和CML输出
•3.3, 2.5 V和1.8V电源选项
•行业标准的5 × 7mm和3.2×2.5mm封装
•无铅，符合RoHS标准
•工作温度范围-40至+85ºC
Skyworks晶体,150M差分晶振,590FA150M000DGR,6G高品质晶振规格表
项目
符号
规格说明
条件
额定频率
f_nom
150MHz
请联系我们以便获取其它可用频率的相关信息
电源电压
Vcc
2.5V
储存温度
T_stg
-55℃~+125℃
裸存
工作温度
T_use
-40℃~ +85℃
频率稳定性
f_tol
±50 ppm
+25℃,超出标准的规格说明请联系我们以便获取相关信息
电源电流
IDD
100mA Max
LVDS
对称性（占空比）
SYM
45%~55%
在输出交叉点
输出电压
VOD
0.9VPP Max
LVDS
VO
1.275V Max
输入电压
VIH
0.75 x VDD Min
VIL
0.5V Max
上升下降时间
tr/tf
350ps Max
LVDS
起始时间
t str
10ms Max
相位抖动
tpj
1ps Max

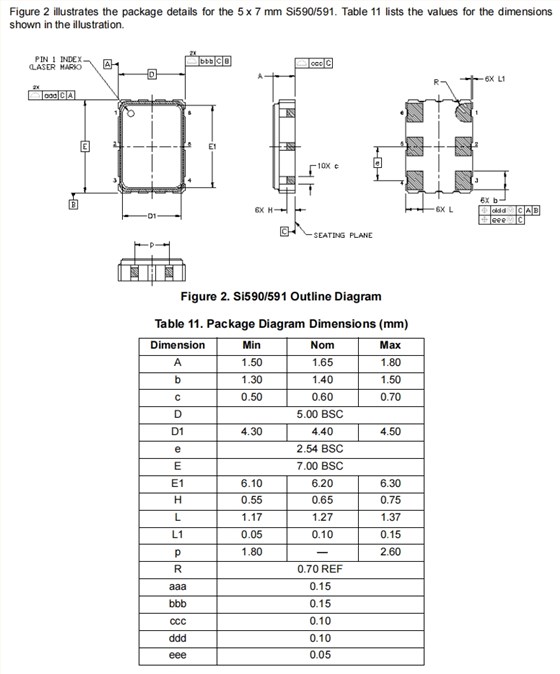

Skyworks晶体,150M差分晶振,590FA150M000DGR,6G高品质晶振尺寸图
| 原厂编码 | 品牌 | 型号 | 频率 | 输出 | 电压 | 频率稳定性 | 工作温度 | 电流 (Max) |
| 590FD297M000DG | Skyworks Solutions Inc. | Si590 | 297 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C | 100mA |
| 590AB10M0000DG | Skyworks Solutions Inc. | Si590 | 10 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 125mA |
| 590AB22M1184DG | Skyworks Solutions Inc. | Si590 | 22.1184 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 125mA |
| 590AB10M0000DGR | Skyworks Solutions Inc. | Si590 | 10 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 125mA |
| 590AB22M1184DGR | Skyworks Solutions Inc. | Si590 | 22.1184 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 125mA |
| 590AA125M250DGR | Skyworks Solutions Inc. | Si590 | 125.25 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C | 125mA |
| 590AA155M520DGR | Skyworks Solutions Inc. | Si590 | 155.52 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C | 125mA |
| 590AA156M250DGR | Skyworks Solutions Inc. | Si590 | 156.25 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C | 125mA |
| 590AA200M000DGR | Skyworks Solutions Inc. | Si590 | 200 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C | 125mA |
| 590BA135M000DGR | Skyworks Solutions Inc. | Si590 | 135 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C | 100mA |
| 590BA156M250DGR | Skyworks Solutions Inc. | Si590 | 156.25 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C | 100mA |
| 590EA000174DGR | Skyworks Solutions Inc. | Si590 | 174 kHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C | 125mA |
| 590EA148M500DGR | Skyworks Solutions Inc. | Si590 | 148.5 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C | 125mA |
| 590EA156M250DGR | Skyworks Solutions Inc. | Si590 | 156.25 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C | 125mA |
| 590FA150M000DGR | Skyworks Solutions Inc. | Si590 | 150 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C | 100mA |
| 590FA155M520DGR | Skyworks Solutions Inc. | Si590 | 155.52 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C | 100mA |
| 590FA161M133DGR | Skyworks Solutions Inc. | Si590 | 161.133 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C | 100mA |
| 590FA167M332DGR | Skyworks Solutions Inc. | Si590 | 167.332 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C | 100mA |
| 590AB27M0000DGR | Skyworks Solutions Inc. | Si590 | 27 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 125mA |
| 590AB29M7000DGR | Skyworks Solutions Inc. | Si590 | 29.7 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 125mA |
| 590AB30M0000DGR | Skyworks Solutions Inc. | Si590 | 30 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 125mA |
| 590AB70M6560DGR | Skyworks Solutions Inc. | Si590 | 70.656 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 125mA |
| 590BB100M000DGR | Skyworks Solutions Inc. | Si590 | 100 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 100mA |
| 590BB120M000DGR | Skyworks Solutions Inc. | Si590 | 120 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 100mA |
| 590BB122M880DGR | Skyworks Solutions Inc. | Si590 | 122.88 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 100mA |
| 590BB125M000DGR | Skyworks Solutions Inc. | Si590 | 125 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 100mA |
| 590BB50M0000DGR | Skyworks Solutions Inc. | Si590 | 50 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 100mA |
| 590BB92M4000DGR | Skyworks Solutions Inc. | Si590 | 92.4 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 100mA |
| 590EB25M0000DGR | Skyworks Solutions Inc. | Si590 | 25 MHz | LVPECL | 2.5V | ±25ppm | -40°C ~ 85°C | 125mA |
| 590FB100M000DGR | Skyworks Solutions Inc. | Si590 | 100 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C | 100mA |
| 590FB122M880DGR | Skyworks Solutions Inc. | Si590 | 122.88 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C | 100mA |
| 590FB125M000DGR | Skyworks Solutions Inc. | Si590 | 125 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C | 100mA |
| 590FB50M0000DGR | Skyworks Solutions Inc. | Si590 | 50 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C | 100mA |
| 590MB125M000DGR | Skyworks Solutions Inc. | Si590 | 125 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 125mA |
| 590SB25M0000DGR | Skyworks Solutions Inc. | Si590 | 25 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C | 100mA |
| 590NB122M880DGR | Skyworks Solutions Inc. | Si590 | 122.88 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 100mA |
| 590AF50M0000DGR | Skyworks Solutions Inc. | Si590 | 50 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 125mA |
| 590FF50M0000DGR | Skyworks Solutions Inc. | Si590 | 50 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C | 100mA |
| 590BF50M0000DGR | Skyworks Solutions Inc. | Si590 | 50 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 100mA |
| 590BA25M0000DG | Skyworks Solutions Inc. | Si590 | 25 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C | 100mA |
| 590NE10M0000DG | Skyworks Solutions Inc. | Si590 | 10 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C | 100mA |
| 590AD114M285DG | Skyworks Solutions Inc. | Si590 | 114.285 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C | 125mA |
| 590AD40M0000DG | Skyworks Solutions Inc. | Si590 | 40 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C | 125mA |
| 590AD50M0000DG | Skyworks Solutions Inc. | Si590 | 50 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C | 125mA |
| 590AB100M000DGR | Skyworks Solutions Inc. | Si590 | 100 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 125mA |
| 590AB125M000DGR | Skyworks Solutions Inc. | Si590 | 125 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 125mA |
| 590AB20M0000DGR | Skyworks Solutions Inc. | Si590 | 20 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 125mA |
| 590AB25M0000DGR | Skyworks Solutions Inc. | Si590 | 25 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 125mA |
| 590AD114M285DGR | Skyworks Solutions Inc. | Si590 | 114.285 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C | 125mA |
| 590AD40M0000DGR | Skyworks Solutions Inc. | Si590 | 40 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C | 125mA |
| 590AD50M0000DGR | Skyworks Solutions Inc. | Si590 | 50 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C | 125mA |
| 590AA100M000DG | Skyworks Solutions Inc. | Si590 | 100 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C | 125mA |
| 590AA10M0000DG | Skyworks Solutions Inc. | Si590 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C | 125mA |
| 590AA125M000DG | Skyworks Solutions Inc. | Si590 | 125 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C | 125mA |
| 590BA100M000DG | Skyworks Solutions Inc. | Si590 | 100 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C | 100mA |
| 590BA10M0000DG | Skyworks Solutions Inc. | Si590 | 10 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C | 100mA |
| 590BA125M000DG | Skyworks Solutions Inc. | Si590 | 125 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C | 100mA |
| 590BA32M0000DG | Skyworks Solutions Inc. | Si590 | 32 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C | 100mA |
| 590BA50M0000DG | Skyworks Solutions Inc. | Si590 | 50 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C | 100mA |
| 590BA52M0000DG | Skyworks Solutions Inc. | Si590 | 52 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C | 100mA |
| 590EA125M000DG | Skyworks Solutions Inc. | Si590 | 125 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C | 125mA |
| 590FA100M000DG | Skyworks Solutions Inc. | Si590 | 100 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C | 100mA |
| 590FA25M0000DG | Skyworks Solutions Inc. | Si590 | 25 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C | 100mA |
| 590BA100M000DGR | Skyworks Solutions Inc. | Si590 | 100 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C | 100mA |
| 590BA10M0000DGR | Skyworks Solutions Inc. | Si590 | 10 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C | 100mA |
| 590BA125M000DGR | Skyworks Solutions Inc. | Si590 | 125 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C | 100mA |
| 590BA32M0000DGR | Skyworks Solutions Inc. | Si590 | 32 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C | 100mA |
| 590BA50M0000DGR | Skyworks Solutions Inc. | Si590 | 50 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C | 100mA |
| 590BA52M0000DGR | Skyworks Solutions Inc. | Si590 | 52 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C | 100mA |
| 590EA125M000DGR | Skyworks Solutions Inc. | Si590 | 125 MHz | LVPECL | 2.5V | ±50ppm | -40°C ~ 85°C | 125mA |
| 590FA100M000DGR | Skyworks Solutions Inc. | Si590 | 100 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C | 100mA |
| 590FA25M0000DGR | Skyworks Solutions Inc. | Si590 | 25 MHz | LVDS | 2.5V | ±50ppm | -40°C ~ 85°C | 100mA |
| 590BA25M0000DGR | Skyworks Solutions Inc. | Si590 | 25 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C | 100mA |
| 590NE10M0000DGR | Skyworks Solutions Inc. | Si590 | 10 MHz | LVDS | 3.3V | ±50ppm | -40°C ~ 85°C | 100mA |
| 590AA100M000DGR | Skyworks Solutions Inc. | Si590 | 100 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C | 125mA |
| 590AA10M0000DGR | Skyworks Solutions Inc. | Si590 | 10 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C | 125mA |
| 590AA125M000DGR | Skyworks Solutions Inc. | Si590 | 125 MHz | LVPECL | 3.3V | ±50ppm | -40°C ~ 85°C | 125mA |
| 590AG156M250DGR | Skyworks Solutions Inc. | Si590 | 156.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 125mA |
| 590BG150M000DGR | Skyworks Solutions Inc. | Si590 | 150 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590AB156M250DGR | Skyworks Solutions Inc. | Si590 | 156.25 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 125mA |
| 590AC135M000DGR | Skyworks Solutions Inc. | Si590 | 135 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 125mA |
| 590AC155M025DGR | Skyworks Solutions Inc. | Si590 | 155.025 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 125mA |
| 590AC156M250DGR | Skyworks Solutions Inc. | Si590 | 156.25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 125mA |
| 590AD10M0000DGR | Skyworks Solutions Inc. | Si590 | 10 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C | 125mA |
| 590AD20M0000DGR | Skyworks Solutions Inc. | Si590 | 20 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C | 125mA |
| 590BC000118DGR | Skyworks Solutions Inc. | Si590 | 118 kHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590BC148M350DGR | Skyworks Solutions Inc. | Si590 | 148.35 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590BC148M500DGR | Skyworks Solutions Inc. | Si590 | 148.5 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590BC150M000DGR | Skyworks Solutions Inc. | Si590 | 150 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590BC156M250DGR | Skyworks Solutions Inc. | Si590 | 156.25 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590BD10M0000DGR | Skyworks Solutions Inc. | Si590 | 10 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C | 100mA |
| 590BD125M000DGR | Skyworks Solutions Inc. | Si590 | 125 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C | 100mA |
| 590BD20M0000DGR | Skyworks Solutions Inc. | Si590 | 20 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C | 100mA |
| 590BD24M5760DGR | Skyworks Solutions Inc. | Si590 | 24.576 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C | 100mA |
| 590FC156M250DGR | Skyworks Solutions Inc. | Si590 | 156.25 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590FD125M000DGR | Skyworks Solutions Inc. | Si590 | 125 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C | 100mA |
| 590FD50M0000DGR | Skyworks Solutions Inc. | Si590 | 50 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C | 100mA |
| 590FD74M2500DGR | Skyworks Solutions Inc. | Si590 | 74.25 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C | 100mA |
| 590AC144M300DGR | Skyworks Solutions Inc. | Si590 | 144.3 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 125mA |
| 590FD32M0000DGR | Skyworks Solutions Inc. | Si590 | 32 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C | 100mA |
| 590FD32M2400DGR | Skyworks Solutions Inc. | Si590 | 32.24 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C | 100mA |
| 590FD36M0000DGR | Skyworks Solutions Inc. | Si590 | 36 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C | 100mA |
| 590FC200M000DGR | Skyworks Solutions Inc. | Si590 | 200 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590BC000185DGR | Skyworks Solutions Inc. | Si590 | 161.132812 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590FD100M000DGR | Skyworks Solutions Inc. | Si590 | 100 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C | 100mA |
| 590FD40M0000DGR | Skyworks Solutions Inc. | Si590 | 40 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C | 100mA |
| 590BD74M2500DGR | Skyworks Solutions Inc. | Si590 | 74.25 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C | 100mA |
| 590BD80M0000DGR | Skyworks Solutions Inc. | Si590 | 80 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C | 100mA |
| 590BC200M000DGR | Skyworks Solutions Inc. | Si590 | 200 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590BC000351DGR | Skyworks Solutions Inc. | Si590 | 195.3125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590FD61M3800DGR | Skyworks Solutions Inc. | Si590 | 61.38 MHz | LVDS | 2.5V | ±7ppm | -40°C ~ 85°C | 100mA |
| 590BD122M880DGR | Skyworks Solutions Inc. | Si590 | 122.88 MHz | LVDS | 3.3V | ±7ppm | -40°C ~ 85°C | 100mA |
| 590EC148M500DGR | Skyworks Solutions Inc. | Si590 | 148.5 MHz | LVPECL | 2.5V | ±20ppm | -40°C ~ 85°C | 125mA |
| 590AC125M000DG | Skyworks Solutions Inc. | Si590 | 125 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 125mA |
| 590AC16M0000DG | Skyworks Solutions Inc. | Si590 | 16 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 125mA |
| 590BC20M0000DG | Skyworks Solutions Inc. | Si590 | 20 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590BC27M0000DG | Skyworks Solutions Inc. | Si590 | 27 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590BC40M0000DG | Skyworks Solutions Inc. | Si590 | 40 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590BC117M675DG | Skyworks Solutions Inc. | Si590 | 117.675 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590BC117M765DG | Skyworks Solutions Inc. | Si590 | 117.765 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590BC125M000DG | Skyworks Solutions Inc. | Si590 | 125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590AC50M0700DG | Skyworks Solutions Inc. | Si590 | 50.07 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 125mA |
| 590AC117M765DG | Skyworks Solutions Inc. | Si590 | 117.765 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 125mA |
| 590AC117M675DG | Skyworks Solutions Inc. | Si590 | 117.675 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 125mA |
| 590BG70M6560DG | Skyworks Solutions Inc. | Si590 | 70.656 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590BG125M000DG | Skyworks Solutions Inc. | Si590 | 125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590BG27M0000DG | Skyworks Solutions Inc. | Si590 | 27 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590FG125M000DG | Skyworks Solutions Inc. | Si590 | 125 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590AC100M000DG | Skyworks Solutions Inc. | Si590 | 100 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 125mA |
| 590AC10M0000DG | Skyworks Solutions Inc. | Si590 | 10 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 125mA |
| 590AC24M0000DG | Skyworks Solutions Inc. | Si590 | 24 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 125mA |
| 590AC25M0000DG | Skyworks Solutions Inc. | Si590 | 25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 125mA |
| 590AC38M8800DG | Skyworks Solutions Inc. | Si590 | 38.88 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 125mA |
| 590AC50M0000DG | Skyworks Solutions Inc. | Si590 | 50 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 125mA |
| 590AC84M0000DG | Skyworks Solutions Inc. | Si590 | 84 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 125mA |
| 590BC100M000DG | Skyworks Solutions Inc. | Si590 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590BC16M9344DG | Skyworks Solutions Inc. | Si590 | 16.9344 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590NC100M000DG | Skyworks Solutions Inc. | Si590 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590AC125M000DGR | Skyworks Solutions Inc. | Si590 | 125 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 125mA |
| 590AC16M0000DGR | Skyworks Solutions Inc. | Si590 | 16 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 125mA |
| 590BC20M0000DGR | Skyworks Solutions Inc. | Si590 | 20 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590BC27M0000DGR | Skyworks Solutions Inc. | Si590 | 27 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590BC40M0000DGR | Skyworks Solutions Inc. | Si590 | 40 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590BC117M765DGR | Skyworks Solutions Inc. | Si590 | 117.765 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590BC125M000DGR | Skyworks Solutions Inc. | Si590 | 125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590BC117M675DGR | Skyworks Solutions Inc. | Si590 | 117.675 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590AC50M0700DGR | Skyworks Solutions Inc. | Si590 | 50.07 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 125mA |
| 590AC117M675DGR | Skyworks Solutions Inc. | Si590 | 117.675 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 125mA |
| 590AC117M765DGR | Skyworks Solutions Inc. | Si590 | 117.765 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 125mA |
| 590BG70M6560DGR | Skyworks Solutions Inc. | Si590 | 70.656 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590BG125M000DGR | Skyworks Solutions Inc. | Si590 | 125 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590BG27M0000DGR | Skyworks Solutions Inc. | Si590 | 27 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590FG125M000DGR | Skyworks Solutions Inc. | Si590 | 125 MHz | LVDS | 2.5V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590FB156M250DG | Skyworks Solutions Inc. | Si590 | 156.25 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C | 100mA |
| 590FB201M000DG | Skyworks Solutions Inc. | Si590 | 201 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C | 100mA |
| 590MB156M250DG | Skyworks Solutions Inc. | Si590 | 156.25 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 125mA |
| 590BB160M000DG | Skyworks Solutions Inc. | Si590 | 160 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 100mA |
| 590FB200M000DG | Skyworks Solutions Inc. | Si590 | 200 MHz | LVDS | 2.5V | ±25ppm | -40°C ~ 85°C | 100mA |
| 590AF135M000DG | Skyworks Solutions Inc. | Si590 | 135 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 125mA |
| 590AC100M000DGR | Skyworks Solutions Inc. | Si590 | 100 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 125mA |
| 590AC10M0000DGR | Skyworks Solutions Inc. | Si590 | 10 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 125mA |
| 590AC24M0000DGR | Skyworks Solutions Inc. | Si590 | 24 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 125mA |
| 590AC25M0000DGR | Skyworks Solutions Inc. | Si590 | 25 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 125mA |
| 590AC38M8800DGR | Skyworks Solutions Inc. | Si590 | 38.88 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 125mA |
| 590AC50M0000DGR | Skyworks Solutions Inc. | Si590 | 50 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 125mA |
| 590AC84M0000DGR | Skyworks Solutions Inc. | Si590 | 84 MHz | LVPECL | 3.3V | ±20ppm | -40°C ~ 85°C | 125mA |
| 590BC100M000DGR | Skyworks Solutions Inc. | Si590 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590BC16M9344DGR | Skyworks Solutions Inc. | Si590 | 16.9344 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590NC100M000DGR | Skyworks Solutions Inc. | Si590 | 100 MHz | LVDS | 3.3V | ±20ppm | -40°C ~ 85°C | 100mA |
| 590AD000338DG | Skyworks Solutions Inc. | Si590 | 338 kHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C | 125mA |
| 590AD142M675DG | Skyworks Solutions Inc. | Si590 | 142.675 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C | 125mA |
| 590MD142M675DG | Skyworks Solutions Inc. | Si590 | 142.675 MHz | LVPECL | 3.3V | ±7ppm | -40°C ~ 85°C | 125mA |
| 590AB155M520DG | Skyworks Solutions Inc. | Si590 | 155.52 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 125mA |
| 590AB164M355DG | Skyworks Solutions Inc. | Si590 | 164.355 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 125mA |
| 590AB172M500DG | Skyworks Solutions Inc. | Si590 | 172.5 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 125mA |
| 590AB200M000DG | Skyworks Solutions Inc. | Si590 | 200 MHz | LVPECL | 3.3V | ±25ppm | -40°C ~ 85°C | 125mA |
| 590BB133M000DG | Skyworks Solutions Inc. | Si590 | 133 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 100mA |
| 590BB148M350DG | Skyworks Solutions Inc. | Si590 | 148.35 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 100mA |
| 590BB148M500DG | Skyworks Solutions Inc. | Si590 | 148.5 MHz | LVDS | 3.3V | ±25ppm | -40°C ~ 85°C | 100mA |
京瓷晶振,温补晶振,KT3225K晶振
NKG晶振|01-CR1-02|01-CR1-02-25M000-T18-3050E|HC-49S插件晶振
NKG Crystal|01-CR3-01|01-CR3-01-19M800-T16-2050E|圆柱插件晶振
香港NKG晶振|SCO7|SCO7-9B-16M000-ZTS|2520石英晶振
NKG晶振|SCO3|SCO3-9G-32M000-WTS|5x7石英晶体振荡器
NKG CRYSTAL|SEO6|SEO66D-40.000-WTC1.5|3225进口晶振
NKG晶振|SDO7|SDO76A-120.000-WTS|2520差分晶振
NKG晶振|SHO6|SHO66B-100.000-WTS|差分石英晶体振荡器
NKG晶振|SPP5|SPP59A-150.000-WTS|LV-PECL输出差分晶振
FOX环保无铅晶振,FK122无源音叉晶振,FK122EIHM0.032768-T3汽车收音机晶体
