香港NKG晶振|S4M晶振|S4M26.0000F16M23-EXT|4025mm晶振

产品简介

香港NKG晶振|S4M晶振|S4M26.0000F16M23-EXT|4025mm晶振,香港进口晶振,NKG晶振,S4M贴片石英晶体,无源晶振,S4M26.0000F16M23-EXT晶振,4025mm晶振,SMD晶振,石英晶体谐振器,四脚封装晶振,频率26MHz,负载16pF,频率容差20ppm,工作温度范围-40~85°C,抗震动晶振,高稳定性晶振,耐热性晶振,无线网络晶振,移动电话晶振,智能手机晶振,笔记本电脑晶振.

产品详情

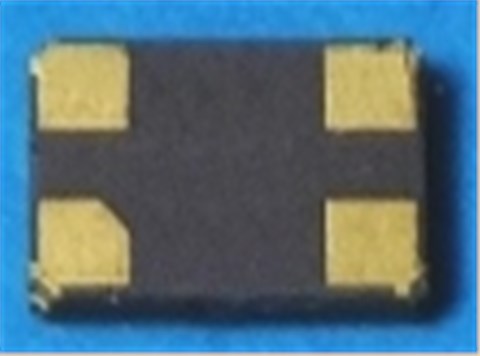

yijin-1 香港NKG晶振|S4M晶振|S4M26.0000F16M23-EXT|4025mm晶振,香港进口晶振,NKG晶振,S4M贴片石英晶体,无源晶振,S4M26.0000F16M23-EXT晶振,4025mm晶振,SMD晶振,石英晶体谐振器,四脚封装晶振,频率26MHz,负载16pF,频率容差20ppm,工作温度范围-40~85°C,抗震动晶振,高稳定性晶振,耐热性晶振,无线网络晶振,移动电话晶振,智能手机晶振,笔记本电脑晶振.

香港NKG晶振|S4M晶振|S4M26.0000F16M23-EXT|4025mm晶振特点：

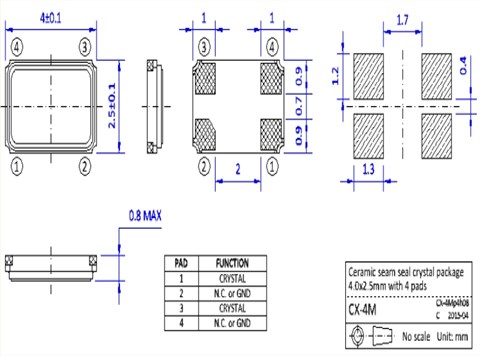

●微型包装尺寸4.0x 2.5x 0.7mm, 4个衬垫。

●优异的耐热性和抗震性。

●高可靠的缝封封装，低老化。

●符合AEC-Q200标准的汽车级产品可供选择

yijin-2 香港NKG晶振|S4M晶振|S4M26.0000F16M23-EXT|4025mm晶振规格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	26MHz	-
Cut and operation mode	-	FUNDAMENTAL	-
Frequency tolerance	Δf/f	±20ppm	Other options available
Stability over operating temp.	TC	±30ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–40°C ~+85°C	Options available
Load capacitance	CL	16pF	Please specify load capacitance
Equivalent series resistance	ESR	40Ω ~ 30Ω MAX	FUND mode 24 ~ 60MHz
Drive level	DL	10µW TYP, 100µW MAX	-
Aging first year	Δf/y1	±3ppm	@+25°C
