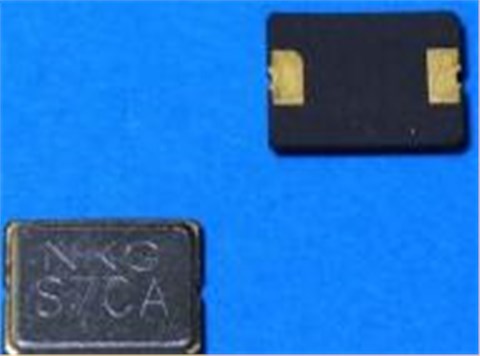

NKG Crystal|S7CA晶振|S7CA54.0000F16M1Y-EXT|6G网络终端晶振

产品简介

NKG Crystal|S7CA晶振|S7CA54.0000F16M1Y-EXT|6G网络终端晶振,NKG Crystal,S7CA进口晶振,无源晶振,S7CA54.0000F16M1Y-EXT晶振,石英晶体谐振器,SMD晶体,7050贴片晶振,二脚封装晶振,频率54MHz,负载16pF,频率容差10ppm,工作温度范围-40~85°C,高精度晶振,高可靠性晶振,无铅环保晶振,6G网络终端晶振,笔记本电脑晶振,数字设备晶振,测试与测量设备晶振.

产品详情

yijin-1 NKG Crystal|S7CA晶振|S7CA54.0000F16M1Y-EXT|6G网络终端晶振,NKG Crystal,S7CA进口晶振,无源晶振,S7CA54.0000F16M1Y-EXT晶振,石英晶体谐振器,SMD晶体,7050贴片晶振,二脚封装晶振,频率54MHz,负载16pF,频率容差10ppm,工作温度范围-40~85°C,高精度晶振,高可靠性晶振,无铅环保晶振,6G网络终端晶振,笔记本电脑晶振,数字设备晶振,测试与测量设备晶振.

NKG Crystal|S7CA晶振|S7CA54.0000F16M1Y-EXT|6G网络终端晶振特点：

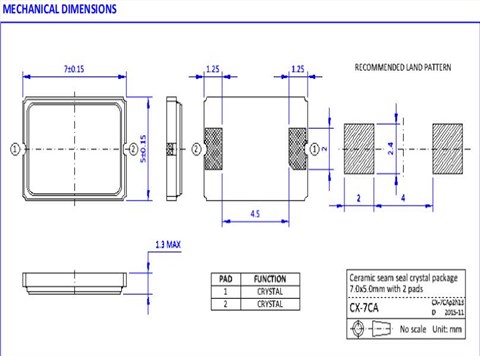

●小包装尺寸7.0x 5.0 x 1.1mm, 2个衬垫。

●优异的耐热性和抗震性。

●高可靠的缝封封装，低老化。

●符合AEC-Q200标准的汽车级产品可供选择。

yijin-2 NKG Crystal|S7CA晶振|S7CA54.0000F16M1Y-EXT|6G网络终端晶振规格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	54MHz	-
Cut and operation mode	-	AT-Cut / FUND or 3rd OT	-
Frequency tolerance	Δf/f	±10ppm	Other options available
Stability over operating temp.	TC	±15ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–40°C ~+85°C	Options available
Load capacitance	CL	16pF	Please specify load capacitance
Equivalent series resistance	ESR	30Ω~20Ω MAX	FUND mode 20 ~ 54MHz
Drive level	DL	100µW TYP, 300µW MAX	-
Aging first year	Δf/y1	±5ppm	@+25°C
