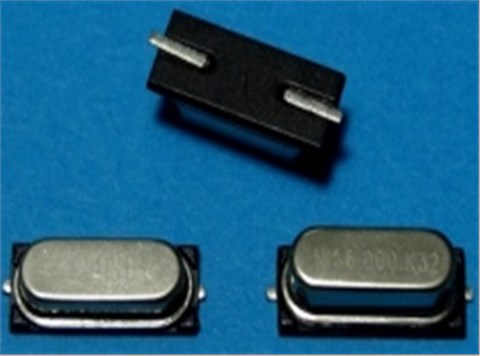

NKG Crystal|01-CR1-03晶振|01-CR1-03-19M800-T18-3050E石英晶振特点：

●传统的HC-49/S封装在SMD形式与2引线

●最适用于低频

●可靠的密封金属罐包装

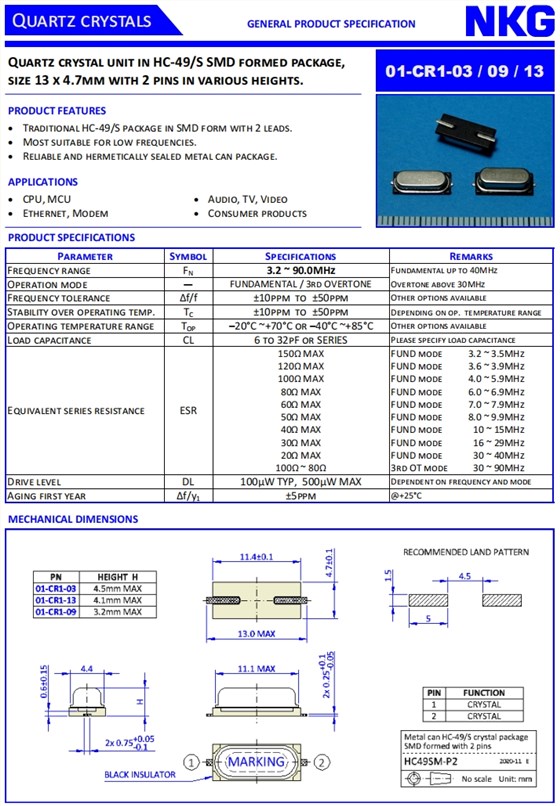

yijin-2 NKG Crystal|01-CR1-03晶振|01-CR1-03-19M800-T18-3050E石英晶振规格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	19.8MHz	-
Cut and operation mode	-	FUNDAMENTAL / 3rd OVERTONE	-
Frequency tolerance	Δf/f	±30ppm	Other options available
Stability over operating temp.	TC	±50ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–20°C ~+70°C	Options available
Load capacitance	CL	18pF	Please specify load capacitance
Equivalent series resistance	ESR	30ΩMAX	FUND mode 16 ~ 29MHz
Drive level	DL	100µW TYP, 500µW MAX	-
Aging first year	Δf/y1	±5ppm	@+25°C
