NKG晶振|01-CR3-38晶振|01-CR3-38-16M384-T20-3050M贴片晶体

产品简介

NKG晶振|01-CR3-38晶振|01-CR3-38-16M384-T20-3050M贴片晶体,NKG晶振,01-CR3-38进口贴片晶振,无源晶振,01-CR3-38-16M384-T20-3050M晶振,陶瓷谐振器,石英晶振,SMD晶体,12.5×4.6×3.6mm晶振,四脚封装晶振,频率16.384MHz,负载20pF,频率容差30ppm,工作温度范围-40~85°C,低成本晶振,高稳定性晶振,高品质晶振,数码产品晶振,网络附属存储晶振,家庭自动化晶振,多媒体设备晶振.

产品详情

yijin-1 NKG晶振|01-CR3-38晶振|01-CR3-38-16M384-T20-3050M贴片晶体,NKG晶振,01-CR3-38进口贴片晶振,无源晶振,01-CR3-38-16M384-T20-3050M晶振,陶瓷谐振器,石英晶振,SMD晶体,12.5×4.6×3.6mm晶振,四脚封装晶振,频率16.384MHz,负载20pF,频率容差30ppm,工作温度范围-40~85°C,低成本晶振,高稳定性晶振,高品质晶振,数码产品晶振,网络附属存储晶振,家庭自动化晶振,多媒体设备晶振.

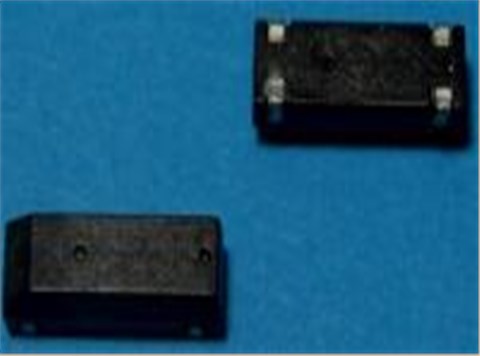

NKG晶振|01-CR3-38晶振|01-CR3-38-16M384-T20-3050M贴片晶体特点：

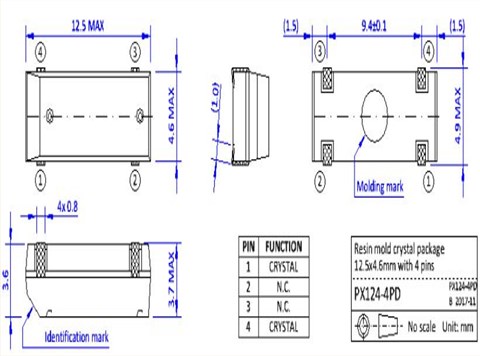

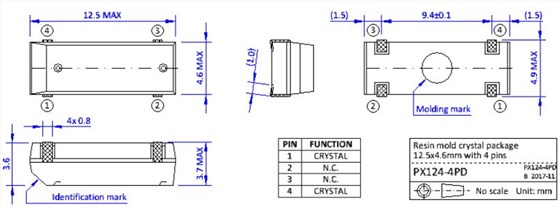

●SMD树脂模具封装尺寸12.5 x 4.6 x 3.6mm与4个j引线

●宽频率范围适用于中等精度的应用

●适用于SMT和回流加工

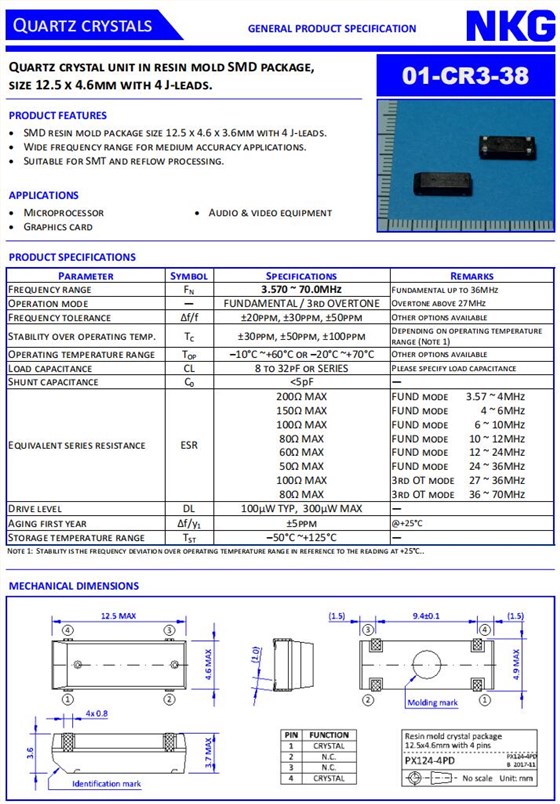

yijin-2 NKG晶振|01-CR3-38晶振|01-CR3-38-16M384-T20-3050M贴片晶体规格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	16.384MHz	-
Cut and operation mode	-	FUNDAMENTAL / 3rd OVERTONE	-
Frequency tolerance	Δf/f	±30ppm	Other options available
Stability over operating temp.	TC	±50ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–40°C ~+85°C	Options available
Load capacitance	CL	20pF	Please specify load capacitance
Equivalent series resistance	ESR	60ΩMAX	FUND mode 12 ~ 24MHz
Drive level	DL	100µW TYP, 300µW MAX	-
Aging first year	Δf/y1	±5ppm	@+25°C
