NKG晶振|01-CR1-02|01-CR1-02-25M000-T18-3050E|HC-49S插件晶振

产品简介

NKG晶振|01-CR1-02|01-CR1-02-25M000-T18-3050E|HC-49S插件晶振,NKG晶振,01-CR1-02无源晶振,进口晶振,01-CR1-02-25M000-T18-3050E晶振,HC-49S插件晶振,石英晶体谐振器,11.3×4.65 ×3.5mm晶振,二脚封装晶振,频率25MHz,负载18pF,频率容差30ppm,工作温度范围-20~70°C,高可靠性晶振,高密封封装晶振,无铅环保晶振,以太网晶振,专业视频设备晶振,CPU晶振,微处理器晶振.

产品详情

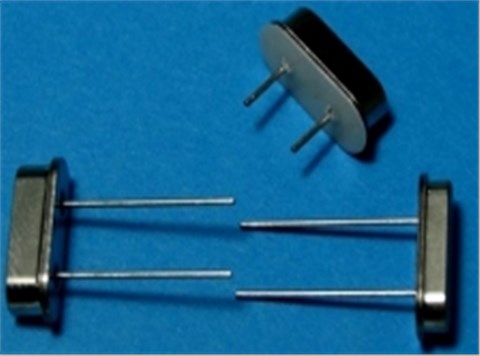

yijin-1 NKG晶振|01-CR1-02|01-CR1-02-25M000-T18-3050E|HC-49S插件晶振,NKG晶振,01-CR1-02无源晶振,进口晶振,01-CR1-02-25M000-T18-3050E晶振,HC-49S插件晶振,石英晶体谐振器,11.3×4.65 ×3.5mm晶振,二脚封装晶振,频率25MHz,负载18pF,频率容差30ppm,工作温度范围-20~70°C,高可靠性晶振,高密封封装晶振,无铅环保晶振,以太网晶振,专业视频设备晶振,CPU晶振,微处理器晶振.

NKG晶振|01-CR1-02|01-CR1-02-25M000-T18-3050E|HC-49S插件晶振特点：

●传统的HC-49/S封装2引线

●最适用于低频，可选间隔和切断引线。

●可靠的密封金属罐包装

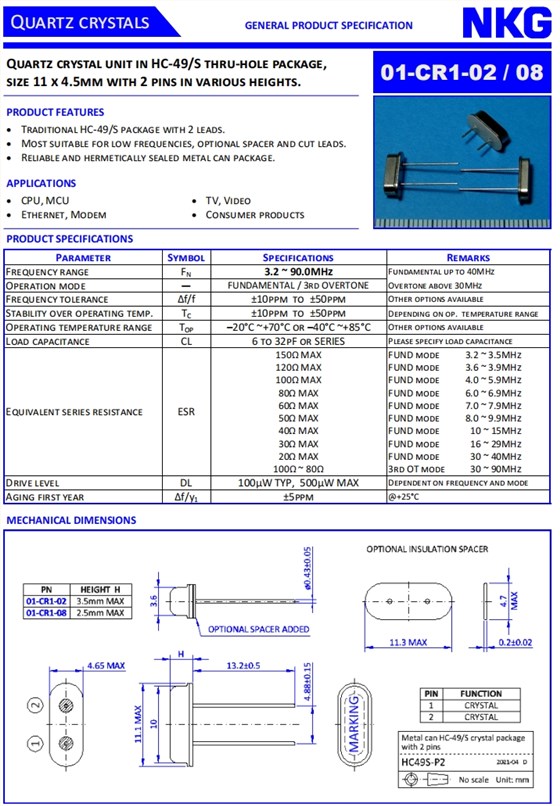

yijin-2 NKG晶振|01-CR1-02|01-CR1-02-25M000-T18-3050E|HC-49S插件晶振规格表

Parameter	Symbol	Specifications	Remarks
Frequency range	FN	25MHz	-
Cut and operation mode	-	FUNDAMENTAL / 3rd OVERTONE	-
Frequency tolerance	Δf/f	±30ppm	Other options available
Stability over operating temp.	TC	±50ppm	Depending on operating temperaturerange, other options available
Operating temperature range	TOP	–20°C ~+70°C	Options available
Load capacitance	CL	18pF	Please specify load capacitance
Equivalent series resistance	ESR	30ΩMAX	FUND mode 16 ~ 29MHz
Drive level	DL	100µW TYP, 500µW MAX	-
Aging first year	Δf/y1	±5ppm	@+25°C
