CTS,49SMD,GL061F23CDT,6.144MHz,18PF,20PPM,-20~70℃

CTS-2

yijin-1

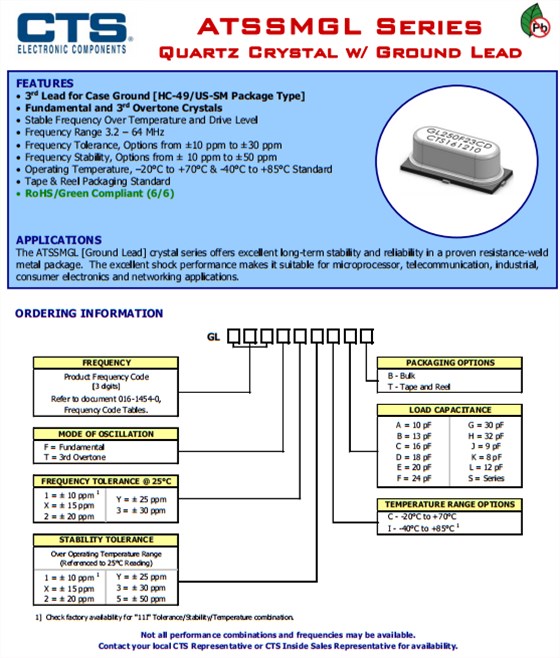

CTS,49SMD,GL061F23CDT,6.144MHz,18PF,20PPM,-20~70℃，美国CTS晶振,第三铅案例地面[HC-49/US-SM包类型]，基本和第三泛音晶体稳定频率，超过温度和驱动水平频率范围3.2-64MHz频率公差，选择±10ppm±30ppm频率稳定性，选择±10ppm±50ppm工作温度，-20°C+70°C和-40°C+85°C标准磁带和卷轴包装标准RoHS/绿色兼容（6/6），ATSSMGL[接地铅]晶体系列提供了优秀的长期稳定性和可靠性，在一个已被证明的电阻焊接金属包装。优异的冲击性能使其适用于微处理器、电信、工业、消费电子和网络应用。

yijin-2

CTS,49SMD,GL061F23CDT,6.144MHz,18PF,20PPM,-20~70℃

参数	数值
频率	3.2 MHz to 64.0 MHz
工作模式	Fundamental or 3rd Overtone
晶体切向	AT-Cut
频率容差	±10, ±15, ±20, ±25, ±30 ppm
频率稳定公差（超过工作温度范围，参考+25°C）	±10, ±15, ±20, ±25, ±30, ± 50 ppm
工作温度	-20°C to +70°C and -40°C to +85°C
等效串联电阻	See ESR Table
负载电容	See Ordering Information
并联电阻	7.0 pF Maximum
驱动电平	100 µW Typical, 1,000 µW Maximum
老化	±3 ppm/yr Typical, ±5 ppm/yr Maximum
储存温度	-40°C to +85°C

CTS,49SMD,GL061F23CDT,6.144MHz,18PF,20PPM,-20~70℃

ATSSMGL(1)

CTS原厂编码	CTS晶振	型号	频率	频率偏差	负载电容	工作温度
GL240F23CDT	CTS晶振	ATSSMGL	24MHz	±20ppm	18pF	-20°C ~ 70°C
GL240F23CET	CTS晶振	ATSSMGL	24MHz	±20ppm	20pF	-20°C ~ 70°C
GL240F33CDT	CTS晶振	ATSSMGL	24MHz	±30ppm	18pF	-20°C ~ 70°C
GL240F33CET	CTS晶振	ATSSMGL	24MHz	±30ppm	20pF	-20°C ~ 70°C
GL240F35CDT	CTS晶振	ATSSMGL	24MHz	±30ppm	18pF	-20°C ~ 70°C
GL240F35CET	CTS晶振	ATSSMGL	24MHz	±30ppm	20pF	-20°C ~ 70°C
GL240F35IDT	CTS晶振	ATSSMGL	24MHz	±30ppm	18pF	-40°C ~ 85°C
GL240F35IET	CTS晶振	ATSSMGL	24MHz	±30ppm	20pF	-40°C ~ 85°C
GL24CF23CDT	CTS晶振	ATSSMGL	24.576MHz	±20ppm	18pF	-20°C ~ 70°C
GL24CF23CET	CTS晶振	ATSSMGL	24.576MHz	±20ppm	20pF	-20°C ~ 70°C
GL24CF33CDT	CTS晶振	ATSSMGL	24.576MHz	±30ppm	18pF	-20°C ~ 70°C
GL24CF33CET	CTS晶振	ATSSMGL	24.576MHz	±30ppm	20pF	-20°C ~ 70°C
GL24CF35CDT	CTS晶振	ATSSMGL	24.576MHz	±30ppm	18pF	-20°C ~ 70°C
GL24CF35CET	CTS晶振	ATSSMGL	24.576MHz	±30ppm	20pF	-20°C ~ 70°C
GL24CF35IDT	CTS晶振	ATSSMGL	24.576MHz	±30ppm	18pF	-40°C ~ 85°C
GL24CF35IET	CTS晶振	ATSSMGL	24.576MHz	±30ppm	20pF	-40°C ~ 85°C
GL250F23CDT	CTS晶振	ATSSMGL	25MHz	±20ppm	18pF	-20°C ~ 70°C
GL250F23CET	CTS晶振	ATSSMGL	25MHz	±20ppm	20pF	-20°C ~ 70°C
GL250F33CDT	CTS晶振	ATSSMGL	25MHz	±30ppm	18pF	-20°C ~ 70°C
GL250F33CET	CTS晶振	ATSSMGL	25MHz	±30ppm	20pF	-20°C ~ 70°C
GL250F35CDT	CTS晶振	ATSSMGL	25MHz	±30ppm	18pF	-20°C ~ 70°C
GL250F35CET	CTS晶振	ATSSMGL	25MHz	±30ppm	20pF	-20°C ~ 70°C
GL250F35IDT	CTS晶振	ATSSMGL	25MHz	±30ppm	18pF	-40°C ~ 85°C
GL250F35IET	CTS晶振	ATSSMGL	25MHz	±30ppm	20pF	-40°C ~ 85°C
GL270F23CDT	CTS晶振	ATSSMGL	27MHz	±20ppm	18pF	-20°C ~ 70°C
GL270F23CET	CTS晶振	ATSSMGL	27MHz	±20ppm	20pF	-20°C ~ 70°C
GL270F33CDT	CTS晶振	ATSSMGL	27MHz	±30ppm	18pF	-20°C ~ 70°C
GL270F33CET	CTS晶振	ATSSMGL	27MHz	±30ppm	20pF	-20°C ~ 70°C
GL270F35CDT	CTS晶振	ATSSMGL	27MHz	±30ppm	18pF	-20°C ~ 70°C
GL270F35CET	CTS晶振	ATSSMGL	27MHz	±30ppm	20pF	-20°C ~ 70°C
GL270F35IDT	CTS晶振	ATSSMGL	27MHz	±30ppm	18pF	-40°C ~ 85°C
GL270F35IET	CTS晶振	ATSSMGL	27MHz	±30ppm	20pF	-40°C ~ 85°C
GL042F23CDT	CTS晶振	ATSSMGL	4.096MHz	±20ppm	18pF	-20°C ~ 70°C
GL042F23CET	CTS晶振	ATSSMGL	4.096MHz	±20ppm	20pF	-20°C ~ 70°C
GL042F33CDT	CTS晶振	ATSSMGL	4.096MHz	±30ppm	18pF	-20°C ~ 70°C
GL042F33CET	CTS晶振	ATSSMGL	4.096MHz	±30ppm	20pF	-20°C ~ 70°C
GL042F35CDT	CTS晶振	ATSSMGL	4.096MHz	±30ppm	18pF	-20°C ~ 70°C
GL042F35CET	CTS晶振	ATSSMGL	4.096MHz	±30ppm	20pF	-20°C ~ 70°C
GL042F35IDT	CTS晶振	ATSSMGL	4.096MHz	±30ppm	18pF	-40°C ~ 85°C
GL042F35IET	CTS晶振	ATSSMGL	4.096MHz	±30ppm	20pF	-40°C ~ 85°C
GL044F23CDT	CTS晶振	ATSSMGL	4.433619MHz	±20ppm	18pF	-20°C ~ 70°C
GL044F23CET	CTS晶振	ATSSMGL	4.433619MHz	±20ppm	20pF	-20°C ~ 70°C
GL044F33CDT	CTS晶振	ATSSMGL	4.433619MHz	±30ppm	18pF	-20°C ~ 70°C
GL044F33CET	CTS晶振	ATSSMGL	4.433619MHz	±30ppm	20pF	-20°C ~ 70°C
GL044F35CDT	CTS晶振	ATSSMGL	4.433619MHz	±30ppm	18pF	-20°C ~ 70°C
GL044F35CET	CTS晶振	ATSSMGL	4.433619MHz	±30ppm	20pF	-20°C ~ 70°C
GL044F35IDT	CTS晶振	ATSSMGL	4.433619MHz	±30ppm	18pF	-40°C ~ 85°C
GL044F35IET	CTS晶振	ATSSMGL	4.433619MHz	±30ppm	20pF	-40°C ~ 85°C
GL045F23CDT	CTS晶振	ATSSMGL	4.5MHz	±20ppm	18pF	-20°C ~ 70°C
GL045F23CET	CTS晶振	ATSSMGL	4.5MHz	±20ppm	20pF	-20°C ~ 70°C
GL045F33CDT	CTS晶振	ATSSMGL	4.5MHz	±30ppm	18pF	-20°C ~ 70°C
GL045F33CET	CTS晶振	ATSSMGL	4.5MHz	±30ppm	20pF	-20°C ~ 70°C
GL045F35CDT	CTS晶振	ATSSMGL	4.5MHz	±30ppm	18pF	-20°C ~ 70°C
GL045F35CET	CTS晶振	ATSSMGL	4.5MHz	±30ppm	20pF	-20°C ~ 70°C
GL045F35IDT	CTS晶振	ATSSMGL	4.5MHz	±30ppm	18pF	-40°C ~ 85°C
GL045F35IET	CTS晶振	ATSSMGL	4.5MHz	±30ppm	20pF	-40°C ~ 85°C
GL049F23CDT	CTS晶振	ATSSMGL	4.9152MHz	±20ppm	18pF	-20°C ~ 70°C
GL049F23CET	CTS晶振	ATSSMGL	4.9152MHz	±20ppm	20pF	-20°C ~ 70°C
GL049F33CDT	CTS晶振	ATSSMGL	4.9152MHz	±30ppm	18pF	-20°C ~ 70°C
GL049F33CET	CTS晶振	ATSSMGL	4.9152MHz	±30ppm	20pF	-20°C ~ 70°C
GL049F35CDT	CTS晶振	ATSSMGL	4.9152MHz	±30ppm	18pF	-20°C ~ 70°C
GL049F35CET	CTS晶振	ATSSMGL	4.9152MHz	±30ppm	20pF	-20°C ~ 70°C
GL049F35IDT	CTS晶振	ATSSMGL	4.9152MHz	±30ppm	18pF	-40°C ~ 85°C
GL049F35IET	CTS晶振	ATSSMGL	4.9152MHz	±30ppm	20pF	-40°C ~ 85°C
GL050F23CDT	CTS晶振	ATSSMGL	5MHz	±20ppm	18pF	-20°C ~ 70°C
GL050F23CET	CTS晶振	ATSSMGL	5MHz	±20ppm	20pF	-20°C ~ 70°C
GL050F33CDT	CTS晶振	ATSSMGL	5MHz	±30ppm	18pF	-20°C ~ 70°C
GL050F33CET	CTS晶振	ATSSMGL	5MHz	±30ppm	20pF	-20°C ~ 70°C
GL050F35CDT	CTS晶振	ATSSMGL	5MHz	±30ppm	18pF	-20°C ~ 70°C
GL050F35CET	CTS晶振	ATSSMGL	5MHz	±30ppm	20pF	-20°C ~ 70°C
GL050F35IDT	CTS晶振	ATSSMGL	5MHz	±30ppm	18pF	-40°C ~ 85°C
GL050F35IET	CTS晶振	ATSSMGL	5MHz	±30ppm	20pF	-40°C ~ 85°C
GL060F23CDT	CTS晶振	ATSSMGL	6MHz	±20ppm	18pF	-20°C ~ 70°C
GL060F23CET	CTS晶振	ATSSMGL	6MHz	±20ppm	20pF	-20°C ~ 70°C
GL060F33CDT	CTS晶振	ATSSMGL	6MHz	±30ppm	18pF	-20°C ~ 70°C
GL060F33CET	CTS晶振	ATSSMGL	6MHz	±30ppm	20pF	-20°C ~ 70°C
GL060F35CDT	CTS晶振	ATSSMGL	6MHz	±30ppm	18pF	-20°C ~ 70°C
GL060F35CET	CTS晶振	ATSSMGL	6MHz	±30ppm	20pF	-20°C ~ 70°C
GL060F35IDT	CTS晶振	ATSSMGL	6MHz	±30ppm	18pF	-40°C ~ 85°C
GL060F35IET	CTS晶振	ATSSMGL	6MHz	±30ppm	20pF	-40°C ~ 85°C
GL061F23CDT	CTS晶振	ATSSMGL	6.144MHz	±20ppm	18pF	-20°C ~ 70°C
GL061F23CET	CTS晶振	ATSSMGL	6.144MHz	±20ppm	20pF	-20°C ~ 70°C
GL061F33CDT	CTS晶振	ATSSMGL	6.144MHz	±30ppm	18pF	-20°C ~ 70°C
