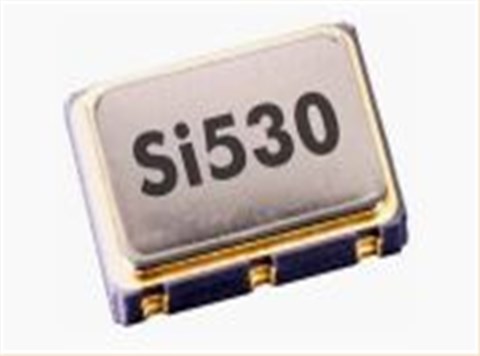

欧美Skyworks晶振,530FC200M000DG六脚晶振,6G通讯LVDS晶振

欧美Skyworks晶振,530FC200M000DG六脚晶振,6G通讯LVDS晶振欧美Skyworks晶振,530FC200M000DG六脚晶振,6G通讯LVDS晶振

产品简介

欧美Skyworks晶振,530FC200M000DG六脚晶振,6G通讯LVDS晶振，美国Skyworks晶振公司，高品质进口晶振，欧美晶振，有源晶振，贴片晶振，7050晶振，六脚晶振，小体积晶振，差分晶振 ，LVDS晶振，530FC200M000DG晶振，石英晶振，金属面晶振，可提供10 MHz至945 MHz的任意速率输出频率，并可选择频率至1.4 GHz的第三代DSPLL®，具有卓越的抖动性能，频率稳定性比基于saw的振荡器高3倍。内部固定晶体频率确保高可靠性和低老化。可提供CMOS, LVPECL, LVDS和CML输出3.3,2.5和1.8 V电源选项，行业标准5 x 7 mm封装和引脚无pb / rohs兼容

产品详情

yijin-1

欧美Skyworks晶振,530FC200M000DG六脚晶振,6G通讯LVDS晶振，美国Skyworks晶振公司，高品质进口晶振，欧美晶振，有源晶振，贴片晶振，7050晶振，六脚晶振，小体积晶振，差分晶振 ，LVDS晶振，530FC200M000DG晶振，石英晶振，金属面晶振，可提供10 MHz至945 MHz的任意速率输出频率，并可选择频率至1.4 GHz的第三代DSPLL®，具有卓越的抖动性能，频率稳定性比基于saw的振荡器高3倍。内部固定晶体频率确保高可靠性和低老化。可提供CMOS, LVPECL, LVDS和CML输出3.3,2.5和1.8 V电源选项，行业标准5 x 7 mm封装和引脚无pb / rohs兼容

yijin-2

欧美Skyworks晶振,530FC200M000DG六脚晶振,6G通讯LVDS晶振

参数 标志 条件 最小值 典型的 最大值 单位
电源电压 VDD 3.3 V option 2.97 3.3 3.63 V
2.5 V option 2.25 2.5 2.75 V
1.8 V option 1.71 1.8 1.89 V
供应电流 IDD Output enabled LVPECL
CML LVDS CMOS 		—
—
—
— 		111
99
90
81 		121
108
98
88 		mA
Tristate mode — 60 75 mA
输出启用(OE)2 VIH 0.75 x VDD — — V
VIL — — 0.5 V
工作温度范围 TA –40 — 85 ºC
标称频率 fO LVPECL/LVDS/CML 10 — 945 MHz
CMOS 10 — 160 MHz
最初的准确性 fi Measured at +25 °C at time of shipping — ±1.5 — ppm
温度稳定度 –7
–20
–50 		—
—
— 		+7
+20
+50 		ppm
老化 fa Frequency drift over first year — — ±3 ppm
Frequency drift over 20 year life — — ±10 ppm

yijin-3

欧美Skyworks晶振,530FC200M000DG六脚晶振,6G通讯LVDS晶振

Si530

Si530(1)

Si530(2)

Skywork原厂编码 生产商 型号 类型 频率 输出 电源电压
530BB125M000DG Skyworks晶振 Si530 XO (Standard) 125 MHz LVDS 3.3V
530BA125M000DG Skyworks晶振 Si530 XO (Standard) 125 MHz LVDS 3.3V
530CA25M0000DG Skyworks晶振 Si530 XO (Standard) 25 MHz CMOS 3.3V
530CA28M6000DG Skyworks晶振 Si530 XO (Standard) 28.6 MHz CMOS 3.3V
530GB25M0000DG Skyworks晶振 Si530 XO (Standard) 25 MHz CMOS 2.5V
530FC200M000DG Skyworks晶振 Si530 XO (Standard) 200 MHz LVDS 2.5V
530EC125M000DG Skyworks晶振 Si530 XO (Standard) 125 MHz LVPECL 2.5V
530BC100M000DG Skyworks晶振 Si530 XO (Standard) 100 MHz LVDS 3.3V
530AC622M080DGR Skyworks晶振 Si530 XO (Standard) 622.08 MHz LVPECL 3.3V
530CB20M0000DG Skyworks晶振 Si530 XO (Standard) 20 MHz CMOS 3.3V
530BC114M285DG Skyworks晶振 Si530 XO (Standard) 114.285 MHz LVDS 3.3V
530CC19M2000DG Skyworks晶振 Si530 XO (Standard) 19.2 MHz CMOS 3.3V
530CA26M0000DG Skyworks晶振 Si530 XO (Standard) 26 MHz CMOS 3.3V
530EB50M0000DGR Skyworks晶振 Si530 XO (Standard) 50 MHz LVPECL 2.5V
530EA312M500DG Skyworks晶振 Si530 XO (Standard) 312.5 MHz LVPECL 2.5V
530FC311M040DG Skyworks晶振 Si530 XO (Standard) 311.04 MHz LVDS 2.5V
530FC233M250DGR Skyworks晶振 Si530 XO (Standard) 233.25 MHz LVDS 2.5V
530AB25M0000DG Skyworks晶振 Si530 XO (Standard) 25 MHz LVPECL 3.3V
530FB125M000DG Skyworks晶振 Si530 XO (Standard) 125 MHz LVDS 2.5V
530EB121M109DG Skyworks晶振 Si530 XO (Standard) 121.109 MHz LVPECL 2.5V
530AC125M000DG Skyworks晶振 Si530 XO (Standard) 125 MHz LVPECL 3.3V
530BC125M000DG Skyworks晶振 Si530 XO (Standard) 125 MHz LVDS 3.3V
530FC125M000DG Skyworks晶振 Si530 XO (Standard) 125 MHz LVDS 2.5V
530BA156M250DG Skyworks晶振 Si530 XO (Standard) 156.25 MHz LVDS 3.3V
530FA200M000DG Skyworks晶振 Si530 XO (Standard) 200 MHz LVDS 2.5V
530AC156M250DG Skyworks晶振 Si530 XO (Standard) 156.25 MHz LVPECL 3.3V
530BC156M250DG Skyworks晶振 Si530 XO (Standard) 156.25 MHz LVDS 3.3V
530FC156M250DG Skyworks晶振 Si530 XO (Standard) 156.25 MHz LVDS 2.5V
530AC200M000DG Skyworks晶振 Si530 XO (Standard) 200 MHz LVPECL 3.3V
530BC148M500DG Skyworks晶振 Si530 XO (Standard) 148.5 MHz LVDS 3.3V
530FB100M000DG Skyworks晶振 Si530 XO (Standard) 100 MHz LVDS 2.5V
530CB50M0000DG Skyworks晶振 Si530 XO (Standard) 50 MHz CMOS 3.3V
530FA156M250DG Skyworks晶振 Si530 XO (Standard) 156.25 MHz LVDS 2.5V
530FB200M000DG Skyworks晶振 Si530 XO (Standard) 200 MHz LVDS 2.5V
530FC50M0000DG Skyworks晶振 Si530 XO (Standard) 50 MHz LVDS 2.5V
530AC250M000DG Skyworks晶振 Si530 XO (Standard) 250 MHz LVPECL 3.3V
530BC622M080DG Skyworks晶振 Si530 XO (Standard) 622.08 MHz LVDS 3.3V
530CB50M0000DGR Skyworks晶振 Si530 XO (Standard) 50 MHz CMOS 3.3V
530BC125M000DGR Skyworks晶振 Si530 XO (Standard) 125 MHz LVDS 3.3V
530AC155M520DGR Skyworks晶振 Si530 XO (Standard) 155.52 MHz LVPECL 3.3V
530BB156M250DG Skyworks晶振 Si530 XO (Standard) 156.25 MHz LVDS 3.3V
530EC156M250DG Skyworks晶振 Si530 XO (Standard) 156.25 MHz LVPECL 2.5V
530BC187M500DG Skyworks晶振 Si530 XO (Standard) 187.5 MHz LVDS 3.3V
530BC200M000DG Skyworks晶振 Si530 XO (Standard) 200 MHz LVDS 3.3V
530BB100M000DG Skyworks晶振 Si530 XO (Standard) 100 MHz LVDS 3.3V
530BC312M500DG Skyworks晶振 Si530 XO (Standard) 312.5 MHz LVDS 3.3V
530BC250M000DG Skyworks晶振 Si530 XO (Standard) 250 MHz LVDS 3.3V
530AC106M250DG Skyworks晶振 Si530 XO (Standard) 106.25 MHz LVPECL 3.3V
530FC106M250DG Skyworks晶振 Si530 XO (Standard) 106.25 MHz LVDS 2.5V
530EB50M0000DG Skyworks晶振 Si530 XO (Standard) 50 MHz LVPECL 2.5V
530AA156M250DG Skyworks晶振 Si530 XO (Standard) 156.25 MHz LVPECL 3.3V
530EC148M500DG Skyworks晶振 Si530 XO (Standard) 148.5 MHz LVPECL 2.5V
530FC148M500DG Skyworks晶振 Si530 XO (Standard) 148.5 MHz LVDS 2.5V
530AB156M250DG Skyworks晶振 Si530 XO (Standard) 156.25 MHz LVPECL 3.3V
530AC25M0000DG Skyworks晶振 Si530 XO (Standard) 25 MHz LVPECL 3.3V
530CA36M0000DG Skyworks晶振 Si530 XO (Standard) 36 MHz CMOS 3.3V
530AA40M0790DGR Skyworks晶振 Si530 XO (Standard) 40.079 MHz LVPECL 3.3V
530FA40M0790DGR Skyworks晶振 Si530 XO (Standard) 40.079 MHz LVDS 2.5V
530CA36M0000DGR Skyworks晶振 Si530 XO (Standard) 36 MHz CMOS 3.3V
530AA127M000DGR Skyworks晶振 Si530 XO (Standard) 127 MHz LVPECL 3.3V
530AA40M0790DG Skyworks晶振 Si530 XO (Standard) 40.079 MHz LVPECL 3.3V
530FA40M0790DG Skyworks晶振 Si530 XO (Standard) 40.079 MHz LVDS 2.5V
530AA127M000DG Skyworks晶振 Si530 XO (Standard) 127 MHz LVPECL 3.3V
530AB24M0000DGR Skyworks晶振 Si530 XO (Standard) 24 MHz LVPECL 3.3V
530AB24M5760DGR Skyworks晶振 Si530 XO (Standard) 24.576 MHz LVPECL 3.3V
530BB122M880DGR Skyworks晶振 Si530 XO (Standard) 122.88 MHz LVDS 3.3V
530DB10M0000DGR Skyworks晶振 Si530 XO (Standard) 10 MHz CML 3.3V
530NB122M880DGR Skyworks晶振 Si530 XO (Standard) 122.88 MHz LVDS 3.3V
530AB24M0000DG Skyworks晶振 Si530 XO (Standard) 24 MHz LVPECL 3.3V
530AB24M5760DG Skyworks晶振 Si530 XO (Standard) 24.576 MHz LVPECL 3.3V
530BB122M880DG Skyworks晶振 Si530 XO (Standard) 122.88 MHz LVDS 3.3V
530DB10M0000DG Skyworks晶振 Si530 XO (Standard) 10 MHz CML 3.3V
530NB122M880DG Skyworks晶振 Si530 XO (Standard) 122.88 MHz LVDS 3.3V
530CA96M0000DG Skyworks晶振 Si530 XO (Standard) 96 MHz CMOS 3.3V
530CA98M3040DG Skyworks晶振 Si530 XO (Standard) 98.304 MHz CMOS 3.3V
530GA100M000DG Skyworks晶振 Si530 XO (Standard) 100 MHz CMOS 2.5V
530GA103M000DG Skyworks晶振 Si530 XO (Standard) 103 MHz CMOS 2.5V
530GA106M250DG Skyworks晶振 Si530 XO (Standard) 106.25 MHz CMOS 2.5V
530GA125M000DG Skyworks晶振 Si530 XO (Standard) 125 MHz CMOS 2.5V
530GA12M4000DG Skyworks晶振 Si530 XO (Standard) 12.4 MHz CMOS 2.5V
530GA13M5000DG Skyworks晶振 Si530 XO (Standard) 13.5 MHz CMOS 2.5V
530GA16M8000DG Skyworks晶振 Si530 XO (Standard) 16.8 MHz CMOS 2.5V
530GA22M5792DG Skyworks晶振 Si530 XO (Standard) 22.5792 MHz CMOS 2.5V
530GA24M0000DG Skyworks晶振 Si530 XO (Standard) 24 MHz CMOS 2.5V
530GA24M2500DG Skyworks晶振 Si530 XO (Standard) 24.25 MHz CMOS 2.5V
530GA24M5760DG Skyworks晶振 Si530 XO (Standard) 24.576 MHz CMOS 2.5V
530GA25M0000DG Skyworks晶振 Si530 XO (Standard) 25 MHz CMOS 2.5V
530GA25M7500DG Skyworks晶振 Si530 XO (Standard) 25.75 MHz CMOS 2.5V
530GA28M8000DG Skyworks晶振 Si530 XO (Standard) 28.8 MHz CMOS 2.5V
530GA30M0000DG Skyworks晶振 Si530 XO (Standard) 30 MHz CMOS 2.5V
530GA35M3280DG Skyworks晶振 Si530 XO (Standard) 35.328 MHz CMOS 2.5V
530GA36M0000DG Skyworks晶振 Si530 XO (Standard) 36 MHz CMOS 2.5V
530GA40M0000DG Skyworks晶振 Si530 XO (Standard) 40 MHz CMOS 2.5V
530GA48M0000DG Skyworks晶振 Si530 XO (Standard) 48 MHz CMOS 2.5V
530GA50M0000DG Skyworks Solutions Inc. Si530 XO (Standard) 50 MHz CMOS 2.5V
530GA60M0000DG Skyworks Solutions Inc. Si530 XO (Standard) 60 MHz CMOS 2.5V
530GA96M0000DG Skyworks Solutions Inc. Si530 XO (Standard) 96 MHz CMOS 2.5V
530GA97M0000DG Skyworks Solutions Inc. Si530 XO (Standard) 97 MHz CMOS 2.5V
530JA100M000DG Skyworks Solutions Inc. Si530 XO (Standard) 100 MHz CMOS 1.8V
530JA10M0000DG Skyworks Solutions Inc. Si530 XO (Standard) 10 MHz CMOS 1.8V
530JA125M000DG Skyworks Solutions Inc. Si530 XO (Standard) 125 MHz CMOS 1.8V
530JA24M0000DG Skyworks Solutions Inc. Si530 XO (Standard) 24 MHz CMOS 1.8V
530JA25M0000DG Skyworks Solutions Inc. Si530 XO (Standard) 25 MHz CMOS 1.8V
530JA28M6363DG Skyworks Solutions Inc. Si530 XO (Standard) 28.6363 MHz CMOS 1.8V
530JA35M8400DG Skyworks Solutions Inc. Si530 XO (Standard) 35.84 MHz CMOS 1.8V
