ECS晶振封装扩展影响了六种流行的表面贴装音叉石英晶体，尺寸范围从2.0mmx1.2mm到3.2mmx1.5mm。选择包括STMicroelectronics推荐用于STM32 AN2867或符合AEC-Q200标准的音叉的32.768kHz音叉晶体。每个受影响的音叉都可以采用 TR（卷带式）包装、3,000片卷盘或 TR9包装、9,000片卷盘提供。

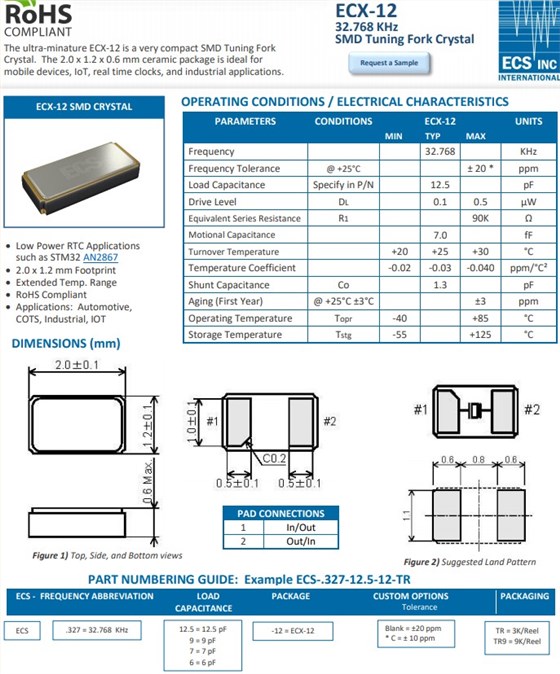

超微型ECX-12是一个非常紧凑的表面贴装音叉石英晶体，32.768k晶体谐振器，小体积晶振尺寸2.0x1.2x0.6mm陶瓷封装，两脚贴片晶振，低功耗RTC应用，比如STM32 AN2867，扩展温度。范围，符合RoHS标准，非常适合移动设备、物联网、实时时钟和工业，汽车、IOT工业用胶辊应用。
SMD音叉晶体ECS-.327-12.5-12-TR非常适合实时时钟和工业应用
| 原厂编码 | 品牌 | 贴片晶振 | Type 系列 | 频率 | 工作温度 |
| ECS-.327-12.5-12-TR | ECScrystal | ECX-12 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-12-TR | ECScrystal | ECX-12 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-12-TR | ECScrystal | ECX-12 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-7-12-TR | ECScrystal | ECX-12 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-7-12-TR | ECScrystal | ECX-12 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-7-12-TR | ECScrystal | ECX-12 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-6-12-TR | ECScrystal | ECX-12 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-6-12-TR | ECScrystal | ECX-12 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-6-12-TR | ECScrystal | ECX-12 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-9-12-TR | ECScrystal | ECX-12 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-9-12-TR | ECScrystal | ECX-12 | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-9-12-TR | ECScrystal | ECX-12 | kHz Crystal (Tuning Fork) | 32.768k | -40°C ~ 85°C |
| ECS-240-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 24MHz | -40°C ~ 85°C |
| ECS-240-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 24MHz | -40°C ~ 85°C |
| ECS-240-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 24MHz | -40°C ~ 85°C |
| ECS-.327-12.5-12L-TR | ECScrystal | ECX-12L | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-12L-TR | ECScrystal | ECX-12L | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-.327-12.5-12L-TR | ECScrystal | ECX-12L | kHz Crystal (Tuning Fork) | 32.768kHz | -40°C ~ 85°C |
| ECS-260-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 26MHz | -40°C ~ 85°C |
| ECS-260-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 26MHz | -40°C ~ 85°C |
| ECS-260-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 26MHz | -40°C ~ 85°C |
| ECS-360-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 36MHz | -40°C ~ 85°C |
| ECS-360-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 36MHz | -40°C ~ 85°C |
| ECS-360-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 36MHz | -40°C ~ 85°C |
| ECS-480-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 48MHz | -40°C ~ 85°C |
| ECS-480-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 48MHz | -40°C ~ 85°C |
| ECS-480-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 48MHz | -40°C ~ 85°C |
| ECS-320-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 32MHz | -40°C ~ 85°C |
| ECS-320-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 32MHz | -40°C ~ 85°C |
| ECS-320-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 32MHz | -40°C ~ 85°C |
| ECS-400-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 40MHz | -40°C ~ 85°C |
| ECS-400-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 40MHz | -40°C ~ 85°C |
| ECS-400-8-47-JTN-TR | ECScrystal | ECX-1247 | MHz Crystal | 40MHz | -40°C ~ 85°C |
SMD音叉晶体ECS-.327-12.5-12-TR非常适合实时时钟和工业应用
ECS Inc.晶振集团是一家私人控股的全球领先企业,在维护全球日益增长的高可靠性创新频率控制设备需求方面处于领先地位.一流的研究公司和电子设备设计者,是全球领先的15家开发和生产创新频率控制解决方案的石英晶振,贴片晶振,石英晶体振荡器制造商,超过600家.ECS Inc晶振支持劳动力在香港、韩国、韩国、烟台、中国和美国的生产设施和物流中心超过225家.
