ECS-240-18-33-JEN-TR3非常适合电路板空间至关重要的应用

2023-02-13 09:28:11

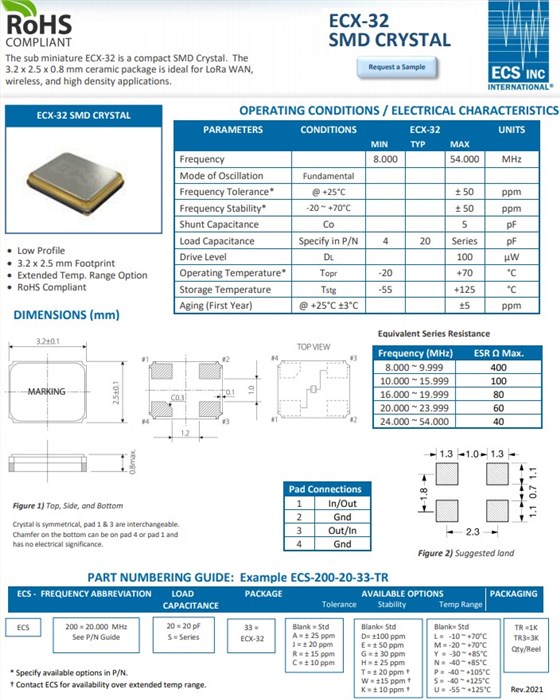

ECS晶振ECX-32系列紧凑型3.2毫米x2.5毫米x0.8mm陶瓷封装,四脚贴片晶振,MHz石英晶体提供8MHz至54MHz的宽频率范围。这些晶体具有10ppm的严格稳定性和容差选项,以及-50°C至+125°C的扩展温度范围选项。标准器件提供20pF负载电容,但额外提供8pF、10pF、12pF和18pF负载电容选项。这些石英晶体ECS-240-18-33-JEN-TR3非常适合电路板空间至关重要的应用LoRa WAN、无线、移动、物联网、Wi-Fi和蓝牙的理想选择。

图片 编码 频率 频率稳定性 操作温度范围
ECS-240-18-33-JEN-TR3
24 MHz

±50ppm

-40°C ~ +85°C
ECS-80-10-33-CKM-TR3 8 MHz ±10ppm -20°C ~ +70°C
ECS-160-18-33-AEN-TR3 16 MHz ±50ppm -40°C ~ +85°C
ECS-200-18-33-JGN-TR3 20 MHz ±30ppm -40°C ~ +85°C
ECS-250-10-33-AGM-TR3 25 MHz ±30ppm -20°C ~ +70°C
ECS-100-18-33-AGM-TR3 10 MHz ±30ppm -20°C ~ +70°C

ECS-240-18-33-JEN-TR3非常适合电路板空间至关重要的应用

特点:
小体积尺寸:3.2x2.5x0.8mm四脚贴片晶振
频率范围:8兆赫~ 54兆赫
标准工业温度范围:-20℃至+70℃
提供扩展温度范围选项
严格的10ppm容差
紧密的10ppm稳定性
符合RoHS和REACH标准
应用:
无线的
移动的
无线保真
蓝牙
物联网

无源晶振 厂家 型号 频率 工作温度 包装/封装
ECS-250-20-33-CKM-TR ECS Crystal ECX-32 25MHz -20°C ~ 70°C 4-SMD, No Lead
ECS-250-20-33-CKM-TR ECS Crystal ECX-32 25MHz -20°C ~ 70°C 4-SMD, No Lead
ECS-250-20-33-CKM-TR ECS Crystal ECX-32 25MHz -20°C ~ 70°C 4-SMD, No Lead
ECS-120-20-33-CKM-TR ECS Crystal ECX-32 12MHz -20°C ~ 70°C 4-SMD, No Lead
ECS-120-20-33-CKM-TR ECS Crystal ECX-32 12MHz -20°C ~ 70°C 4-SMD, No Lead
ECS-120-20-33-CKM-TR ECS Crystal ECX-32 12MHz -20°C ~ 70°C 4-SMD, No Lead
ECS-240-20-33-CKM-TR ECS Crystal ECX-32 24MHz -20°C ~ 70°C 4-SMD, No Lead
ECS-240-20-33-CKM-TR ECS Crystal ECX-32 24MHz -20°C ~ 70°C 4-SMD, No Lead
ECS-240-20-33-CKM-TR ECS Crystal ECX-32 24MHz -20°C ~ 70°C 4-SMD, No Lead
ECS-270-20-33-CKM-TR ECS Crystal ECX-32 27MHz -20°C ~ 70°C 4-SMD, No Lead
ECS-270-20-33-CKM-TR ECS Crystal ECX-32 27MHz -20°C ~ 70°C 4-SMD, No Lead
ECS-270-20-33-CKM-TR ECS Crystal ECX-32 27MHz -20°C ~ 70°C 4-SMD, No Lead
ECS-184-20-33-CKM-TR ECS Crystal ECX-32 18.432MHz -20°C ~ 70°C 4-SMD, No Lead
ECS-184-20-33-CKM-TR ECS Crystal ECX-32 18.432MHz -20°C ~ 70°C 4-SMD, No Lead
ECS-184-20-33-CKM-TR ECS Crystal ECX-32 18.432MHz -20°C ~ 70°C 4-SMD, No Lead
ECS-184-20-33-DU-TR ECS Crystal ECX-32 18.432MHz -55°C ~ 125°C 4-SMD, No Lead
ECS-184-20-33-DU-TR ECS Crystal ECX-32 18.432MHz -55°C ~ 125°C 4-SMD, No Lead
ECS-184-20-33-DU-TR ECS Crystal ECX-32 18.432MHz -55°C ~ 125°C 4-SMD, No Lead
ECS-120-20-33-DU-TR ECS Crystal ECX-32 12MHz -55°C ~ 125°C 4-SMD, No Lead
ECS-120-20-33-DU-TR ECS Crystal ECX-32 12MHz -55°C ~ 125°C 4-SMD, No Lead
ECS-120-20-33-DU-TR ECS Crystal ECX-32 12MHz -55°C ~ 125°C 4-SMD, No Lead
ECS-250-20-33-TR ECS Crystal ECX-32 25MHz -20°C ~ 70°C 4-SMD, No Lead
ECS-250-20-33-TR ECS Crystal ECX-32 25MHz -20°C ~ 70°C 4-SMD, No Lead
ECS-250-20-33-TR ECS Crystal ECX-32 25MHz -20°C ~ 70°C 4-SMD, No Lead
ECS-120-20-33-TR ECS Crystal ECX-32 12MHz -20°C ~ 70°C 4-SMD, No Lead
ECS-120-20-33-TR ECS Crystal ECX-32 12MHz -20°C ~ 70°C 4-SMD, No Lead
ECS-120-20-33-TR ECS Crystal ECX-32 12MHz -20°C ~ 70°C SMD晶振
ECS-240-20-33-TR ECS Crystal ECX-32 24MHz -20°C ~ 70°C 4-SMD, No Lead
ECS-240-20-33-TR ECS Crystal ECX-32 24MHz -20°C ~ 70°C 4-SMD, No Lead
ECS-240-20-33-TR ECS Crystal ECX-32 24MHz -20°C ~ 70°C 4-SMD, No Lead
ECS-160-20-33-TR ECS Crystal ECX-32 16MHz -20°C ~ 70°C 4-SMD, No Lead
ECS-160-20-33-TR ECS Crystal ECX-32 16MHz -20°C ~ 70°C 4-SMD, No Lead
ECS-160-20-33-TR ECS Crystal ECX-32 16MHz -20°C ~ 70°C 4-SMD, No Lead
ECS-162.57-20-33-TR ECS Crystal ECX-32 16.257MHz -20°C ~ 70°C 4-SMD, No Lead
ECS-162.57-20-33-TR ECS Crystal ECX-32 16.257MHz -20°C ~ 70°C 4-SMD, No Lead

ECX-32
