CITIZEN贴片晶振包装规范
1.包装编带尺寸符合JISC0806和EIAJRC-1009B标准,并在包装盒中放入1000/2000或3000个一盘.
2.在晶振包装盒/卷轴顶部附上指定必要物品的实际型号参数标签.
3.将包装盒装在包装箱中并发送.

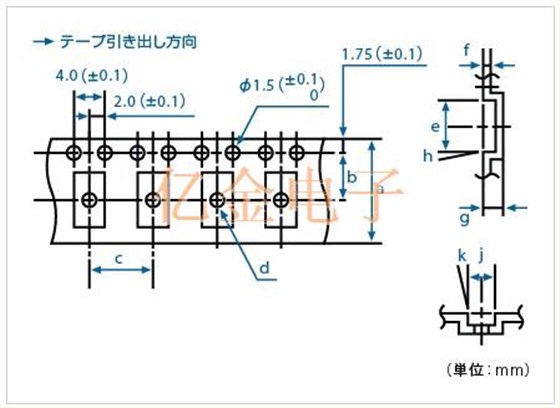

编带尺寸
（符合JISC0806/TB1208N和EIAJRC-1009BTE1208N标准）

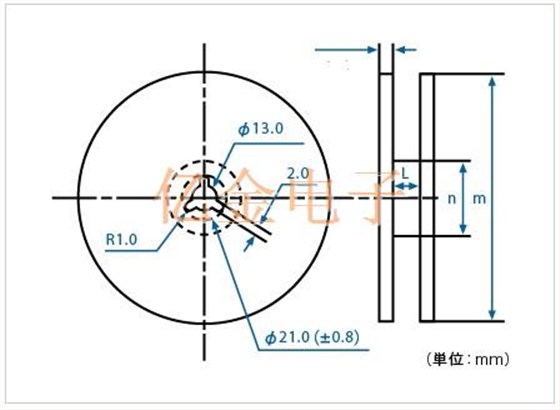

卷轴尺寸
（符合JISC0806/R12R和EIAJRC-1009BR15标准）
| 西铁城晶振型号 | 部位 | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
梱包単位 pcs/reel |
a | b | c |
d (Φ) |
e | f | g | h | j | k | L |
m (Φ) |
n (Φ) |
|
| CMR200T晶振 | 2,000 | 16.0 | 7.5 | 8.0 | - | 9.4 | 0.3 | 2.15 | - | 5.0 | - | 17.5 | 330 | 100 |
| CMJ206T晶振 | 3,000 | 16.0 | 9.2 | 8.0 | - | 9.5 | 0.3 | 2.1 | - | 3.0 | 5° | 17.5 | 330 | 100 |
| CM200C晶振 | 3,000 | 16.0 | 7.5 | 8.0 | 1.0 | 8.2 | 0.3 | 2.65 | 5° | 4.0 | 5° | 17.5 | 330 | 100 |
| CM250C贴片晶振 | 3,000 | 16.0 | 7.5 | 8.0 | 1.0 | 8.2 | 0.3 | 2.65 | 5° | 4.0 | 5° | 17.5 | 330 | 100 |
| CM130晶振 | 3,000 | 16.0 | 7.5 | 4.0 | 1.0 | 7.2 | 0.3 | 1.4 | 5° | 1.55 | 5° | 17.0 | 180 | 50 |
| CM519晶振 | 3,000 | 12.0 | 5.5 | 4.0 | 1.0 | 5.3 | 0.3 | 1.1 | 5° | 2.1 | 5° | 13.0 | 180 | 60 |
| CM415晶振 | 3,000 | 12.0 | 5.5 | 4.0 | 1.0 | 4.5 | 0.3 | 1.0 | 5° | 1.9 | 5° | 13.0 | 180 | 60 |
| CM315D晶振 | 3,000 | 12.0 | 5.5 | 4.0 | 1.0 | 3.6 | 0.3 | 1.0 | 5° | 1.9 | 5° | 13.0 | 180 | 60 |
| CM315DL贴片晶振 | 3,000 | 12.0 | 5.5 | 4.0 | 1.0 | 3.6 | 0.3 | 1.0 | 5° | 1.9 | 5° | 13.0 | 180 | 60 |
| CM315E晶振 | 3,000 | 12.0 | 5.5 | 4.0 | 1.0 | 3.6 | 0.3 | 1.0 | 5° | 1.9 | 5° | 13.0 | 180 | 60 |
| CM2012H晶振 | 3,000 | 8.0 | 3.5 | 4.0 | 1.0 | 7.2 | 0.3 | 1.4 | 5° | 1.55 | 5° | 17.0 | 180 | 50 |
| CM1610H晶振 | 3,000 | 8.0 | 3.5 | 4.0 | 1.0 | 7.2 | 0.3 | 1.4 | 5° | 1.55 | 5° | 17.0 | 180 | 50 |
| HCM49贴片晶振 | 1,000 | 24.0 | 11.5 | 12.0 | 2.0 | 16.1 | 0.4 | 4.3 | 5° | 5.1 | 5° | 25.5 | 330 | 100 |
| CM309E晶振 | 1,000 | 24.0 | 11.5 | 12.0 | 1.5 | 11.9 | 0.4 | 4.0 | 5° | 4.9 | 5° | 25.5 | 330 | 100 |
| CS325S晶振 | 3,000 | 8.0 | 3.5 | 4.0 | 1.1 | 3.5 | 0.25 | 0.75 | 5° | 2.8 | - | 11.4 | 180 | 60 |
| CSX-750F晶振 | 2,000 | 16.0 | 7.5 | 8.0 | 1.5 | 7.4 | 0.3 | 1.9 | 5° | 5.4 | 5° | 17.5 | 254 | 100 |
| SSX-750P贴片晶振 | 2,000 | 16.0 | 7.5 | 8.0 | 1.55 | 7.4 | 0.3 | 2.0 | 5° | 5.4 | 5° | 17.5 | 254 | 100 |
| CSX-252F晶振 | 3,000 | 8.0 | 3.5 | 4.0 | 1.1 | 2.7 | 0.25 | 1.15 | 5° | 2.25 | 5° | 9.0 | 180 | 60 |
