KDS晶振成立至今在国内享有重要地位,成为世界一流的晶体元件生产制造商.不仅拥有领先业界的生产技术,并且能够为广大用户提供多种产品应用解决方案,成为业内领头羊.以下为亿金电子提供日本进口晶振,包括精工爱普生晶体,NDK晶振,KDS晶振,西铁城晶振,京瓷晶振,大河晶振等品牌.以下为亿金电子所提供的DSX321G晶振型号编码,欢迎广大用户收藏选用.
DSX321G晶振参数
3225晶振具有陶瓷面封装以及金属面封装,而DSX321G晶振属于陶瓷面封装.提供7.9M~64MHZ频率,常规负载电容可供8PF,10PF,12PF等,精度可控制在正负20PPM以内.DSX321G晶振满足不同领域需求,可提供工业级和汽车级,具有使用可靠性高,性能稳定等优势之选.
DSX321G晶振编码
晶振编码
品牌
型号
频率
尺寸
1C208000CE0H
KDS
8.000MHZ
3.2x2.5mm
1C209830CC0C
KDS
DSX321G晶振
9.8304MHZ
3.2x2.5mm
1C208000BB0B
KDS
DSX321G晶振
8.000MHZ
3.2x2.5mm
1C211059EE0K
KDS
DSX321G晶振
11.0592MHZ
3.2x2.5mm
1C211289EE0C
KDS
DSX321G晶振
11.2896MHZ
3.2x2.5mm
1C212000AA0H
KDS
DSX321G晶振
12.000MHZ
3.2x2.5mm
1N212000BC0AK
KDS
DSX321G晶振
12.000MHZ
3.2x2.5mm
1C212288EE0B
KDS
DSX321G晶振
12.288MHZ
3.2x2.5mm
1B214318CC0F
KDS
DSX321G晶振
14.31818MHZ
3.2x2.5mm
1C214745BC0D
KDS
DSX321G晶振
14.7456MHZ
3.2x2.5mm
1N214745CE0F
KDS
14.7456MHZ
3.2x2.5mm
1N216000AB0AT
KDS
DSX321G晶振
16.000MHZ
3.2x2.5mm
1N216000CC0B
KDS
DSX321G晶振
16.000MHZ
3.2x2.5mm
1C319200AA0A
KDS
DSX321G晶振
19.200MHZ
3.2x2.5mm
1N220000AB0B
KDS
DSX321G晶振
20.000MHZ
3.2x2.5mm
1N224000BC0E
KDS
DSX321G晶振
24.000MHZ
3.2x2.5mm
1C225000BC0AV
KDS
DSX321G晶振
25.000MHZ
3.2x2.5mm
1N225000BC0J
KDS
DSX321G晶振
25.000MHZ
3.2x2.5mm
1N225000BC0M
KDS
DSX321G晶振
25.000MHZ
3.2x2.5mm
1C326000AB0AR
KDS
DSX321G晶振
26.000MHZ
3.2x2.5mm
1N326000AB0AR
KDS
DSX321G晶振
26.000MHZ
3.2x2.5mm
1N326000AA0AS
KDS
DSX321G晶振
26.000MHZ
3.2x2.5mm
1N226000AA0D
KDS
DSX321G晶振
26.000MHZ
3.2x2.5mm
1N226000AA0E
KDS
DSX321G晶振
26.000MHZ
3.2x2.5mm
1N226000AA0G
KDS
DSX321G晶振
26.000MHZ
3.2x2.5mm
1N226000AA0L
KDS
DSX321G晶振
26.000MHZ
3.2x2.5mm
1C227120CC0E
KDS
DSX321G晶振
27.120MHZ
3.2x2.5mm
1N230000AB0C
KDS
DSX321G晶振
30.000MHZ
3.2x2.5mm
1N230000EE0N
KDS
DSX321G晶振
30.000MHZ
3.2x2.5mm
1N232000AA0G
KDS
DSX321G晶振
32.000MHZ
3.2x2.5mm
1N232000AA0N
KDS
DSX321G晶振
32.000MHZ
3.2x2.5mm
1C338400AA0B
KDS
DSX321G晶振
38.400MHZ
3.2x2.5mm
1N240000AB0J
KDS
DSX321G晶振
40.000MHZ
3.2x2.5mm
1C244395BC0A
KDS
DSX321G晶振
44.395MHZ
3.2x2.5mm
1C254000CC0C
KDS
DSX321G晶振
54.000MHZ
3.2x2.5mm
1C255466CC0J
KDS
DSX321G晶振
55.46667MHZ
3.2x2.5mm
1C262400CC0A
KDS
DSX321G晶振
62.400MHZ
3.2x2.5mm
1C262400CC0N
KDS
DSX321G晶振
62.400MHZ
3.2x2.5mm
1N262400CC0N
KDS
DSX321G晶振
62.400MHZ
3.2x2.5mm

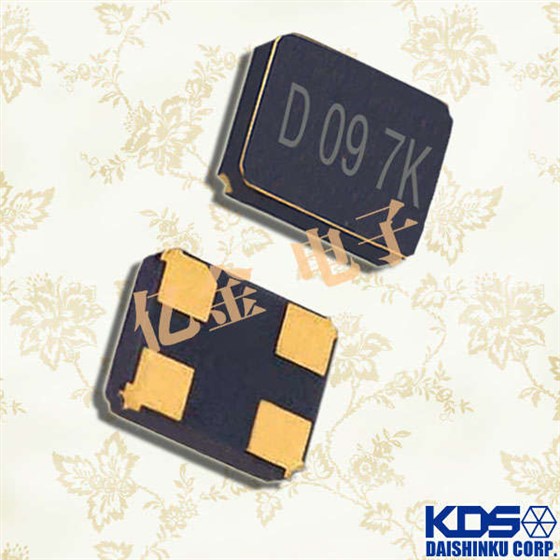

日本DSX321G晶振是采用黑色陶瓷面的石英晶体谐振器,体积为3.2x2.5mm,在产品中使用具有耐高温,低功耗,电气性强等特点.文中所列举的为KDS晶振市场常用频率晶振编码,我们都知道每个晶振都有专属自己的编码,代表不同的参数,更多KDS晶振编码参数请致电0755-27876565.
