FP0600038 6.0000MHz 16PF 30PPM -40~85℃ 7050

产品简介

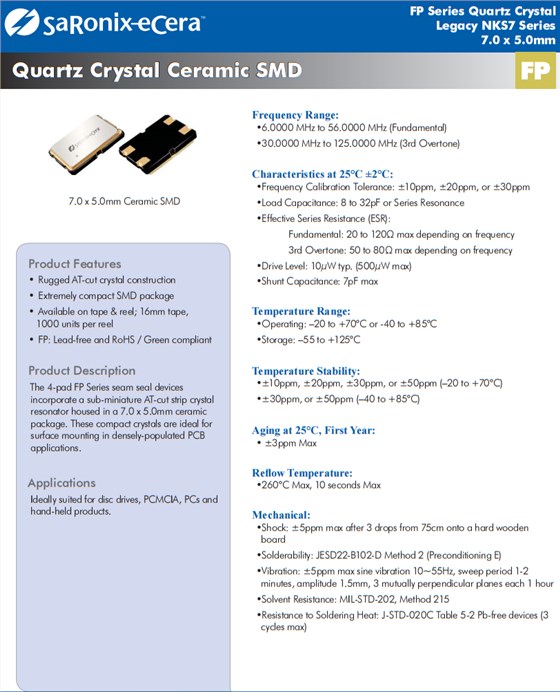

FP0600038 6.0000MHz 16PF 30PPM -40~85℃ 7050，台湾Diodes贴片晶振,坚固的AT-cut晶体结构非常紧凑的SMD包可在磁带和卷轴；16mm磁带，每卷1000单位FP：无铅和RoHS /绿色兼容，4垫FP系列接缝密封装置采用亚切割带晶体，封装在7.0 x 5.0mm的范围内。这些协议可用于在密集的PCB应用中的表面安装。非常适合磁盘驱动器，PCMCIA，个人电脑和手持式产品。

产品详情

BLT-2

yijin-1

yijin-2

FP0600038 6.0000MHz 16PF 30PPM -40~85℃ 7050

亚陶晶振规格	单位	FP晶振频率	石英晶振基本条件
标准频率	f_nom	6MHZ	标准频率
储存温度	T_stg	-55°C ～ +125°C	裸存
工作温度	T_use	-40°C ～ +85°C	标准温度
激励功率	DL	200μW Max.	推荐:1μW ～ 100μW
频率公差	f_— l	±50 × 10-6(标准), (±15 × 10-6～ ±50 × 10-6可用)	+25°C 对于超出标准的规格说明, 请联系我们以便获取相关的信息,http://www.vc-tcxo.com
频率温度特征	f_tem	±30 × 10-6/-20°C ～ +70°C	超出标准的规格请联系我们.
负载电容	CL	8pF ,10PF,12PF,20PF	超出标准说明,请联系我们.

yijin-3

FP0600038 6.0000MHz 16PF 30PPM -40~85℃ 7050

Diodes零件编号	制造商	系列	类型	频率	频率稳定性	频率容差	负载电容
FP0800018	Diodes晶振	FP	MHz 晶体	8 MHz	±50ppm	±50ppm	18pF
FP0800056Z	Diodes晶振	FP	MHz 晶体	8 MHz	±30ppm	±30ppm	18pF
FP2500070	Diodes晶振	FP	MHz 晶体	25 MHz	±10ppm	±10ppm	10pF
FP1070001	Diodes晶振	FP	MHz 晶体	10.779375 MHz	±10ppm	±10ppm	12pF
FP1200039	Diodes晶振	FP	MHz 晶体	12 MHz	±50ppm	±30ppm	18pF
FP1200040	Diodes晶振	FP	MHz 晶体	12 MHz	±30ppm	±30ppm	20pF
FP1200042	Diodes晶振	FP	MHz 晶体	12 MHz	±50ppm	±50ppm	22pF
FP2500053	Diodes晶振	FP	MHz 晶体	25 MHz	±30ppm	±30ppm	20pF
FP2500054	Diodes晶振	FP	MHz 晶体	25 MHz	±30ppm	±30ppm	18pF
FP2500060	Diodes晶振	FP	MHz 晶体	25.001875 MHz	±15ppm	±10ppm	12pF
FP2500068	Diodes晶振	FP	MHz 晶体	25 MHz	±20ppm	±20ppm	20pF
FP2650002	Diodes晶振	FP	MHz 晶体	26.5625 MHz	±30ppm	±30ppm	10pF
FP2650003	Diodes晶振	FP	MHz 晶体	26.5625 MHz	±30ppm	±30ppm	15pF
FP3000013	Diodes晶振	FP	MHz 晶体	30 MHz	±20ppm	±20ppm	20pF
FP0600026	Diodes晶振	FP	MHz 晶体	6 MHz	±50ppm	±30ppm	20pF
FP0600027	Diodes晶振	FP	MHz 晶体	6 MHz	±30ppm	±20ppm	18pF
FP0600035	Diodes晶振	FP	MHz 晶体	6 MHz	±30ppm	±30ppm	20pF
FP0600038	Diodes晶振	FP	MHz 晶体	6 MHz	±30ppm	±30ppm	16pF
FP0600039	Diodes晶振	FP	MHz 晶体	6 MHz	±50ppm	±20ppm	18pF
FP0600040	Diodes晶振	FP	MHz 晶体	6 MHz	±50ppm	±30ppm	12pF
FP0600041	Diodes晶振	FP	MHz 晶体	6 MHz	±30ppm	±30ppm	12pF
FP0730001	Diodes晶振	FP	MHz 晶体	-	-	-	-
FP0730013	Diodes晶振	FP	MHz 晶体	7.3728 MHz	±50ppm	±50ppm	20pF
FP0730016	Diodes晶振	FP	MHz 晶体	7.3728 MHz	±30ppm	±30ppm	20pF
FP0800013	Diodes晶振	FP	MHz 晶体	-	-	-	-
FP0800043	Diodes晶振	FP	MHz 晶体	-	-	-	-
FP0800046	Diodes晶振	FP	MHz 晶体	8 MHz	±15ppm	±10ppm	20pF
FP0800047	Diodes晶振	FP	MHz 晶体	8 MHz	±50ppm	±30ppm	18pF
FP0800049	Diodes晶振	FP	MHz 晶体	8 MHz	±30ppm	±20ppm	18pF
FP0810004	Diodes晶振	FP	MHz 晶体	-	-	-	-
FP0810005	Diodes晶振	FP	MHz 晶体	-	-	-	-
FP0980008	Diodes晶振	FP	MHz 晶体	9.8304 MHz	±50ppm	±30ppm	20pF
FP6400002	Diodes晶振	FP	MHz 晶体	64 MHz	±30ppm	±30ppm	18pF
FP0600044Q	Diodes晶振	FP	MHz 晶体	6 MHz	±40ppm	±10ppm	18pF
FP0730017Z	Diodes晶振	FP	MHz 晶体	7.3728 MHz	±30ppm	±30ppm	18pF
