日本富士圆柱无源晶振,FCT2T03276809P3插件晶振,6G路由器晶振,日本Fujicom晶振公司，富士晶振，高精度晶振，圆柱晶振，2*6晶振，石英晶振，二脚晶振，无源晶振，KHz晶振，插件晶振，6G通讯专用晶振，6G路由i去晶振，高品质晶振，FCT-2T晶振，小尺寸φ2×6mm，大量的标准频率，更高的频率可拉性和更低的等效串联电阻，钟表的最佳选择，符合RoHS标准/无铅

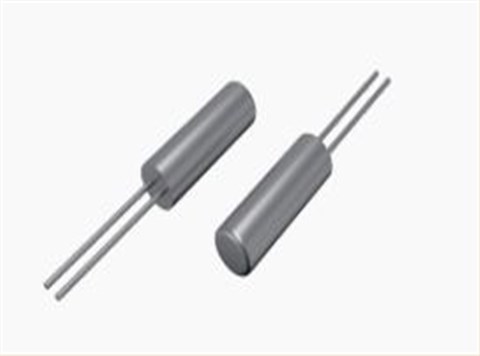

日本富士圆柱无源晶振,FCT2T03276809P3插件晶振,6G路由器晶振
| 项目 | 技术规格 | ||||
| 频率 | 30~40 | 40~60 | 60~70 | 70~200 | 200~350 |
| 负载电容 | 6 ~ 12.5pF, or specify | ||||
| 频率容差 | ±5ppm ~ ±100ppm | ||||
| 工作温度 | -20 ~ +70℃, −40 ~ +125℃ or Specify | ||||
| 周转温度 | 25±5°C | ||||
| 频率温度曲线 | (−0.034± 10%) x 10-6/ºC2 | ||||
| 等效串联电阻最大值 | 40kΩ | 30kΩ | 25kΩ | 22kΩ | 20kΩ |
| 驱动电平（标准） | 0.1µW | ||||
| 驱动电平（最大） | 1µW | ||||
| 分流电容 | 1.5pF Typ. | ||||
| 绝缘电阻 | More than 500Mohms at DC100V | ||||
| 储存温度 | −40 ~ +85℃ | ||||
| 老化 | ±3ppm/year, ±5ppm/year | ||||
日本富士圆柱无源晶振,FCT2T03276809P3插件晶振,6G路由器晶振
| FUJI原厂编码 | 生产商品牌 | 型号 | 类型 | 频率 | 频率容差 | 负载电容 | 工作温度 |
| FCT2T032768C5T3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 12.5pF | -30°C ~ 85°C |
| FCT2T032768C5R3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 12.5pF | -30°C ~ 70°C |
| FCT2T032768C5Y3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | ±20ppm | 12.5pF | -40°C ~ 85°C |
| FCT2T032768C5E3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 12.5pF | -20°C ~ 70°C |
| FCT2T032768C5D3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 12.5pF | -10°C ~ 70°C |
| FCT2T032768C5P3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 12.5pF | -10°C ~ 60°C |
| FCT2T032768C5W3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 12.5pF | 0°C ~ 70°C |
| FCT2T03276806D3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 6pF | -10°C ~ 70°C |
| FCT2T032768C5W1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 12.5pF | 0°C ~ 70°C |
| FCT2T03276809E1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 9pF | -20°C ~ 70°C |
| FCT2T03276806P1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 6pF | -10°C ~ 60°C |
| FCT2T03276808R1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 8pF | -30°C ~ 70°C |
| FCT2T03276807P1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 7pF | -10°C ~ 60°C |
| FCT2T03276809R1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 9pF | -30°C ~ 70°C |
| FCT2T03276808E1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 8pF | -20°C ~ 70°C |
| FCT2T03276807T1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 7pF | -30°C ~ 85°C |
| FCT2T03276808P1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 8pF | -10°C ~ 60°C |
| FCT2T03276808T1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 8pF | -30°C ~ 85°C |
| FCT2T03276807W1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 7pF | 0°C ~ 70°C |
| FCT2T03276806T1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 6pF | -30°C ~ 85°C |
| FCT2T03276806W1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 6pF | 0°C ~ 70°C |
| FCT2T03276807R1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 7pF | -30°C ~ 70°C |
| FCT2T03276809P1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 9pF | -10°C ~ 60°C |
| FCT2T03276809Y1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 9pF | -40°C ~ 85°C |
| FCT2T03276809D1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 9pF | -10°C ~ 70°C |
| FCT2T03276806R1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 6pF | -30°C ~ 70°C |
| FCT2T03276807E1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 7pF | -20°C ~ 70°C |
| FCT2T03276807Y1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 7pF | -40°C ~ 85°C |
| FCT2T03276809T1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 9pF | -30°C ~ 85°C |
| FCT2T03276808W1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 8pF | 0°C ~ 70°C |
| FCT2T03276808Y1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 8pF | -40°C ~ 85°C |
| FCT2T03276809W1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 9pF | 0°C ~ 70°C |
| FCT2T03276806Y1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 6pF | -40°C ~ 85°C |
| FCT2T03276807D1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 7pF | -10°C ~ 70°C |
| FCT2T03276808D1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 8pF | -10°C ~ 70°C |
| FCT2T03276806E1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 6pF | -20°C ~ 70°C |
| FCT2T03276806D1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 6pF | -10°C ~ 70°C |
| FCT2T03276809W3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 9pF | 0°C ~ 70°C |
| FCT2T03276807Y3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 7pF | -40°C ~ 85°C |
| FCT2T03276806Y3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 6pF | -40°C ~ 85°C |
| FCT2T03276807W3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 7pF | 0°C ~ 70°C |
| FCT2T03276808W3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 8pF | 0°C ~ 70°C |
| FCT2T03276807D3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 7pF | -10°C ~ 70°C |
| FCT2T032768C5T1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 12.5pF | -30°C ~ 85°C |
| FCT2T03276809T3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 9pF | -30°C ~ 85°C |
| FCT2T03276806R3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 6pF | -30°C ~ 70°C |
| FCT2T03276806T3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 6pF | -30°C ~ 85°C |
| FCT2T03276809D3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 9pF | -10°C ~ 70°C |
| FCT2T03276808P3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 8pF | -10°C ~ 60°C |
| FCT2T032768C5Y1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 12.5pF | -40°C ~ 85°C |
| FCT2T03276809Y3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 9pF | -40°C ~ 85°C |
| FCT2T032768C5D1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 12.5pF | -10°C ~ 70°C |
| FCT2T03276809P3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 9pF | -10°C ~ 60°C |
| FCT2T03276807E3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 7pF | -20°C ~ 70°C |
| FCT2T032768C5R1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 12.5pF | -30°C ~ 70°C |
| FCT2T03276809E3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 9pF | -20°C ~ 70°C |
| FCT2T03276807T3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 7pF | -30°C ~ 85°C |
| FCT2T03276808E3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 8pF | -20°C ~ 70°C |
| FCT2T032768C5E1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 12.5pF | -20°C ~ 70°C |
| FCT2T03276806E3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 6pF | -20°C ~ 70°C |
| FCT2T03276808Y3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 8pF | -40°C ~ 85°C |
| FCT2T03276807R3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 7pF | -30°C ~ 70°C |
| FCT2T03276806P3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 6pF | -10°C ~ 60°C |
| FCT2T03276806W3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 6pF | 0°C ~ 70°C |
| FCT2T03276807P3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 7pF | -10°C ~ 60°C |
| FCT2T03276809R3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 9pF | -30°C ~ 70°C |
| FCT2T032768C5P1 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 12.5pF | -10°C ~ 60°C |
| FCT2T03276808R3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 8pF | -30°C ~ 70°C |
| FCT2T03276808T3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 8pF | -30°C ~ 85°C |
| FCT2T03276808D3 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 8pF | -10°C ~ 70°C |
| FCT2T032768C5E7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 12.5pF | -20°C ~ 70°C |
| FCT2T032768C5Y7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 12.5pF | -40°C ~ 85°C |
| FCT2T03276807D7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 7pF | -10°C ~ 70°C |
| FCT2T03276808D7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 8pF | -10°C ~ 70°C |
| FCT2T03276806T7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 6pF | -30°C ~ 85°C |
| FCT2T03276806R7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 6pF | -30°C ~ 70°C |
| FCT2T032768C5P7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 12.5pF | -10°C ~ 60°C |
| FCT2T03276809E7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 9pF | -20°C ~ 70°C |
| FCT2T03276807P7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 7pF | -10°C ~ 60°C |
| FCT2T03276809R7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 9pF | -30°C ~ 70°C |
| FCT2T03276807T7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 7pF | -30°C ~ 85°C |
| FCT2T03276807R7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 7pF | -30°C ~ 70°C |
| FCT2T03276809D7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 9pF | -10°C ~ 70°C |
| FCT2T03276808R7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 8pF | -30°C ~ 70°C |
| FCT2T032768C5W7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 12.5pF | 0°C ~ 70°C |
| FCT2T03276809P7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 9pF | -10°C ~ 60°C |
| FCT2T03276809W7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 9pF | 0°C ~ 70°C |
| FCT2T03276807E7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 7pF | -20°C ~ 70°C |
| FCT2T03276808P7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 8pF | -10°C ~ 60°C |
| FCT2T032768C5D7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 12.5pF | -10°C ~ 70°C |
| FCT2T03276806P7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 6pF | -10°C ~ 60°C |
| FCT2T03276808Y7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 8pF | -40°C ~ 85°C |
| FCT2T03276808E7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 8pF | -20°C ~ 70°C |
| FCT2T03276806E7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 6pF | -20°C ~ 70°C |
| FCT2T03276806W7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 6pF | 0°C ~ 70°C |
| FCT2T03276809Y7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 9pF | -40°C ~ 85°C |
| FCT2T03276807Y7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 7pF | -40°C ~ 85°C |
| FCT2T032768C5T7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 12.5pF | -30°C ~ 85°C |
| FCT2T03276809T7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 9pF | -30°C ~ 85°C |
| FCT2T03276807W7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 7pF | 0°C ~ 70°C |
| FCT2T03276808W7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 8pF | 0°C ~ 70°C |
| FCT2T03276806D7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 6pF | -10°C ~ 70°C |
| FCT2T032768C5R7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 12.5pF | -30°C ~ 70°C |
| FCT2T03276806Y7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 6pF | -40°C ~ 85°C |
| FCT2T03276808T7 | Fuji晶振 | FCT-2T | kHz Crystal (Tuning Fork) | 32.768 kHz | - | 8pF | -30°C ~ 85°C |
