ELSADV-16.000MHz-LK-T,AEL晶振,16MHz,2016贴片晶振,进口有源晶振

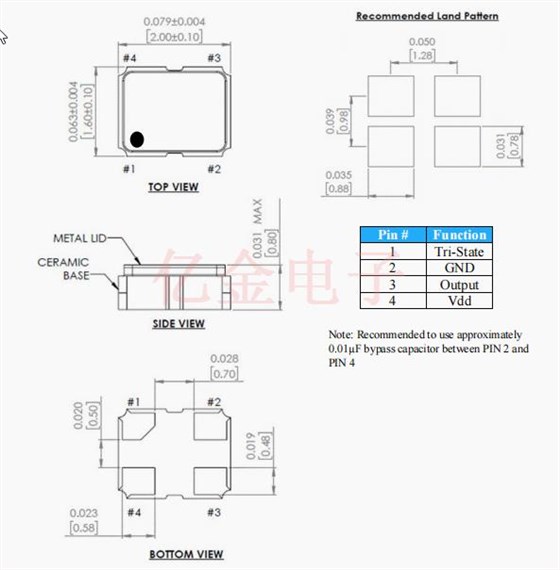

随着科技的高速发展,贴片晶振也逐渐跟着小型化,体积从早期的 7050mm,5032mm 等体积到现如今的 2016 贴片晶振,体积的变小也是产品带来了更高的稳定性能。AEL晶振中型号为：ELSADV，编码是：ELSADV-16.000MHz-LK-T，频率为：16MHz，电源电压是：1.6V~3.63V，频率稳定性为：±30ppm，工作温度范围是：-40℃至+85℃，电流为：3mA，小体积晶振尺寸：2.0x1.6x0.8mm封装，为2016贴片晶振，进口有源晶振，贴片晶振，无铅环保晶振。具有小体积，轻薄型，高性能，高品质，高温度等特点。被广泛应用于：通讯设备晶振，车载电子晶振，智能家居晶振，无线蓝牙晶振，物联网晶振，安防设备等应用中。
ELSADV-16.000MHz-LK-T,AEL晶振,16MHz,2016贴片晶振,进口有源晶振

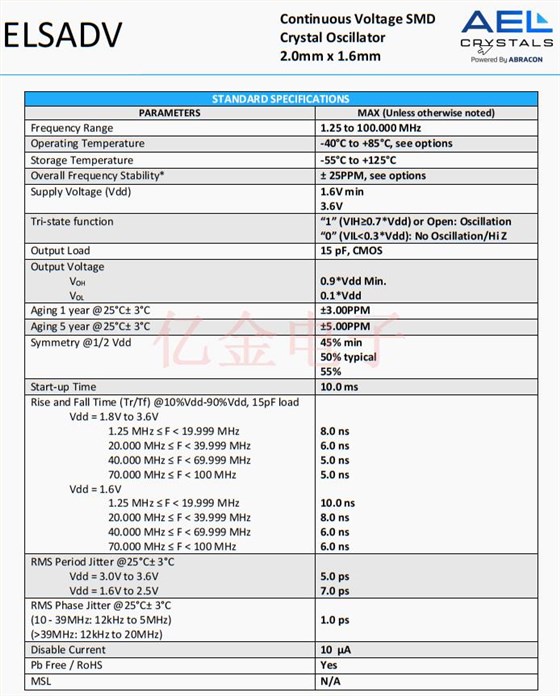

| 品牌 | AEL |
| 编码 | ELSADV-16.000MHz-LK-T |
| 型号 | ELSADV |
| 频率 | 16MHz |
| 频率稳定度 | ±30ppm |
| 电压 | 1.6V~3.63V |
| 尺寸 | 2.0x1.6mm |
| 工作温度 | -40°C~85°C |
| 电流 | 3mA |
ELSADV-16.000MHz-LK-T,AEL晶振,16MHz,2016贴片晶振,进口有源晶振
更多相关晶振参考
| 编码 | 品牌 | 类型 | 工作温度 | 频率 | 电压 |
| ELSADV-16.000MHz-LK-T | AEL晶振 | XO | -40°C~85°C | 16MHz | 1.6V~3.63V |
| ELSDDV-20.000MHz-LJ-T | AEL | XO | -40°C~85°C | 20MHz | 3.3V |
| ELSEDV-50.000MHz-ER-T | AEL | XO | -10°C~70°C | 50MHz | 3.3V |
| ELSFL1-26.000MHz-DC-T | AEL | XO | -40°C~85°C | 26MHz | 3.3V |
| ELTX-11-F-19.680MHz-D25-T | AEL | TCXO | -30°C~75°C | 19.68MHz | 2V |
| ELVTX-11-A-16.800MHz-F10-T | AEL | VCTCXO | -40°C~85°C | 16.8MHz | 2.9V |
| M25M000000S034 | AEL | XO | -20°C~70°C | 25MHz | 3.3V |
| M32K768000S003 | AEL | XO | -40°C~85°C | 32.768kHz | 1.5V~3.63V |
| M32K768000S014 | AEL | XO | -40°C~85°C | 32.768kHz | 1.5V~3.63V |
| M40M000000S011 | AEL | XO | -40°C~85°C | 40MHz | 2.25V~3.6V |
| M47M333300S004 | AEL | XO | -40°C~85°C | 47.3333MHz | 3.3V |
| M70M500000S002 | AEL | XO | -40°C~85°C | 70.5MHz | 3.3V |
| O100M000000S008 | AEL | XO | -10°C~70°C | 100MHz | 3.3V |
| O10M000000S202 | AEL | XO | -40°C~85°C | 10MHz | 5V |
| O125M000000S002 | AEL | XO | -10°C~70°C | 125MHz | 5V |
| O24M000000L006 | AEL | XO | -40°C~85°C | 24MHz | 5V |
| O2M000000S004 | AEL | XO | -10°C~70°C | 2MHz | 3.3V |
| O50M000000S048 | AEL | XO | -10°C~70°C | 50MHz | 3.3V |
| T10M000000S019 | AEL | TCXO | -40°C~85°C | 10MHz | 5V |
| T19M680000S007 | AEL | TCXO | -30°C~75°C | 19.68MHz | 2V |
| T24M000000S006 | AEL | TCXO | -30°C~75°C | 24MHz | 3.3V |
| V13M000000S005 | AEL | VCTCXO | -30°C~75°C | 13MHz | 3V |
| V13M000000S009 | AEL | VCTCXO | -30°C~85°C | 13MHz | 3V |
| V14M400000S004 | AEL | VCTCXO | -30°C~85°C | 14.4MHz | 2.8V |
| V16M800000S001 | AEL | VCTCXO | -40°C~85°C | 16.8MHz | 2.9V |
| V19M200000S008 | AEL | VCTCXO | 0°C~70°C | 19.2MHz | 3V |
| V19M200000S012 | AEL | VCTCXO | -40°C~85°C | 19.2MHz | 3V |
| V19M200000S025 | AEL | VCTCXO | -20°C~85°C | 19.2MHz | 3V |
| V27M000000S016 | AEL | VCTCXO | -40°C~85°C | 27MHz | 1.8V |
