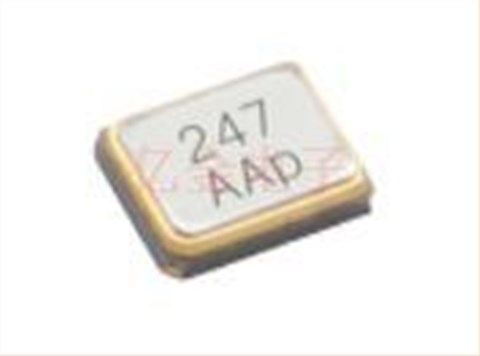

C16-32.000-8-3030-X-R,32M,30PPM,8PF,-40~85℃,1612,AKER

SITIME-2

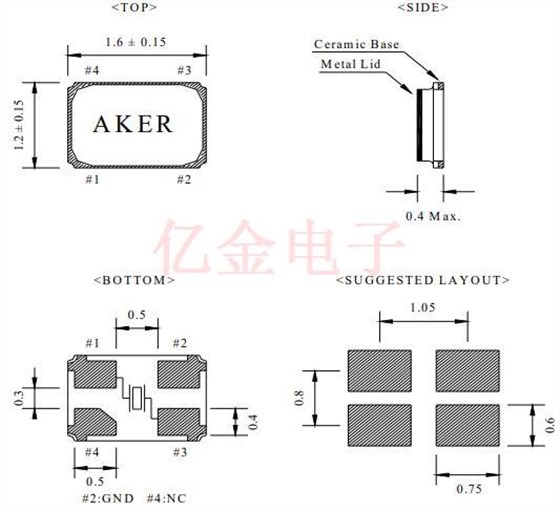

C16-32.000-8-3030-X-R,32M,30PPM,8PF,-40~85℃,1612,AKER，台产石英晶体，微处理器，台系晶振,AKER晶振,C16晶振,贴片晶振,石英晶振,无源晶振,C16-32.000-8-3030-X-R晶振,高品质晶振,高精度晶振,四脚晶振,1612晶振,智能手表晶振,医疗设备晶振水晶单元汽车级，1.6 x 1.2毫米，表面安装，-4垫通用产品规格。

yijin-2

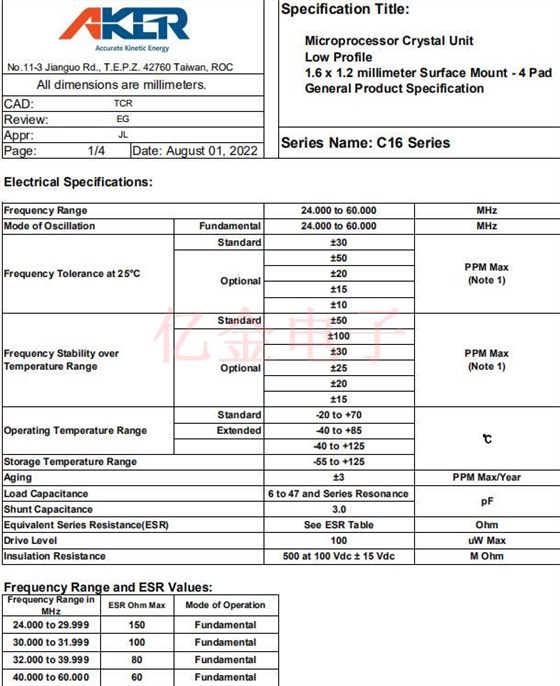

C16-32.000-8-3030-X-R,32M,30PPM,8PF,-40~85℃,1612,AKER

频率

24.000 to 60.000

MHz

工作模式

Fundamental

24.000 to 60.000

MHz

Third Overtone

40.000 to 133.00

MHz

频率容差at25°C

Standard

±30

PPMMax(Note1)

Optional

±50

±20

±15

±10

温度下的频率偏差度

Standard

±50

PPMMax(Note1)

Optional

±100

±30

±25

±20

±15

工作温度范围

Standard

-20to+70

℃

Extended

-40to+85

-40to+125

储存温度范围

-55to+125

老化

±3

PPMMax/Year

负载电容

6to47andSeriesResonance

并联电路

3.0

等效串联电阻(ESR)

SeeESRTable

Ohm

驱动电平

100

uWMax

绝缘电阻

500at100Vdc±15Vdc

MOhm

yijin-3

C16-32.000-8-3030-X-R,32M,30PPM,8PF,-40~85℃,1612,AKER

AKER制造商零件编号	供应商	系列	频率	频率稳定性	频率容差	负载电容	工作温度
C16-32.000-8-1515-X-R	Aker晶振	C16	32 MHz	±15ppm	±15ppm	8pF	-40°C ~ 85°C
C2E-25.000-10-3030-X-M	Aker晶振	C2E	25 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
C1E-25.000-20-2030-R	Aker晶振	C1E	25 MHz	±30ppm	±20ppm	20pF	-20°C ~ 70°C
C16-32.000-8-3030-X-R	Aker晶振	C16	32 MHz	±30ppm	±30ppm	8pF	-40°C ~ 85°C
C2E-16.000-8-1530-X-R	Aker晶振	C2E	16 MHz	±30ppm	±15ppm	8pF	-40°C ~ 85°C
C1E-32.000-8-1515-R	Aker晶振	C1E	32 MHz	±15ppm	±15ppm	8pF	-20°C ~ 70°C
C2E-24.000-10-1010-R	Aker晶振	C2E	24 MHz	±10ppm	±10ppm	10pF	-10°C ~ 70°C
C1E-24.000-10-1010-R	Aker晶振	C1E	24 MHz	±10ppm	±10ppm	10pF	-10°C ~ 70°C
C2E-25.000-10-3030-X-R	Aker晶振	C2E	25 MHz	±30ppm	±30ppm	10pF	-40°C ~ 85°C
C5S-8.000-18-3030-R	Aker晶振	C5S	8 MHz	±30ppm	±30ppm	18pF	-20°C ~ 70°C
C2E-16.000-10-1010-R	Aker晶振	C2E	16 MHz	±10ppm	±10ppm	10pF	-10°C ~ 70°C
C16-26.000-8-1520-R	Aker晶振	C16	26 MHz	±20ppm	±15ppm	8pF	-20°C ~ 70°C
C1E-32.000-10-1015-X-R	Aker晶振	C1E	32 MHz	±15ppm	±10ppm	10pF	-40°C ~ 85°C
C1E-24.000-10-1015-M	Aker晶振	C1E	24 MHz	±15ppm	±10ppm	10pF	-20°C ~ 70°C
C1E-32.000-8-1015-X-R	Aker晶振	C1E	32 MHz	±15ppm	±10ppm	8pF	-40°C ~ 85°C
C1E-24.000-10-1015-R	Aker晶振	C1E	24 MHz	±15ppm	±10ppm	10pF	-20°C ~ 70°C
C2E-16.000-12-3030-X-R	Aker晶振	C2E	16 MHz	±30ppm	±30ppm	12pF	-40°C ~ 85°C
C7S-8.000-18-1020-R	Aker晶振	C7S	8 MHz	±20ppm	±10ppm	18pF	-10°C ~ 70°C
C5S-12.000-18-1020-R	Aker晶振	C5S	12 MHz	±20ppm	±10ppm	18pF	-10°C ~ 70°C
C3E-20.000-8-3050-X1-R	Aker晶振	C3E X1	20 MHz	±50ppm	±30ppm	8pF	-40°C ~ 125°C
C3E-20.000-10-3050-X1-R	Aker晶振	C3E X1	20 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
C3E-16.000-10-2050-X1-R	Aker晶振	C3E X1	10 MHz	±50ppm	±20ppm	10pF	-40°C ~ 125°C
C3E-12.000-8-2050-X1-R	Aker晶振	C3E X1	12 MHz	±50ppm	±20ppm	8pF	-40°C ~ 125°C
C2E-12.000-10-2050-X1-R	Aker晶振	C2E X1	12 MHz	±50ppm	±20ppm	10pF	-40°C ~ 125°C
C2E-12.000-8-2050-X1-R	Aker晶振	C2E X1	12 MHz	±50ppm	±20ppm	8pF	-40°C ~ 125°C
C3E-16.000-10-3050-X1-R	Aker晶振	C3E X1	16 MHz	±50ppm	±30ppm	10pF	-40°C ~ 125°C
C2E-20.000-10-2050-X1-R	Aker晶振	C2E X1	20 MHz	±50ppm	±20ppm	10pF	-40°C ~ 125°C
C3E-30.000-8-2050-X1-R	Aker晶振	C3E X1	8 MHz	±50ppm	±20ppm	8pF	-40°C ~ 125°C
C3E-16.000-8-2050-X1-R	Aker晶振	C3E X1	16 MHz	±50ppm	±20ppm	8pF	-40°C ~ 125°C
C7S-8.000-18-1030-X-R	Aker晶振	C7S	8 MHz	±30ppm	±10ppm	18pF	-40°C ~ 85°C
C2E-12.000-18-1020-X-R	Aker晶振	C2E	12 MHz	±20ppm	±10ppm	18pF	-40°C ~ 85°C
C2E-12.000-18-1020-R	Aker晶振	C2E	12 MHz	±20ppm	±10ppm	18pF	-10°C ~ 70°C
C2E-19.200-13-2030-X-R	Aker晶振	C2E	19.2 MHz	±30ppm	±20ppm	13pF	-40°C ~ 85°C
