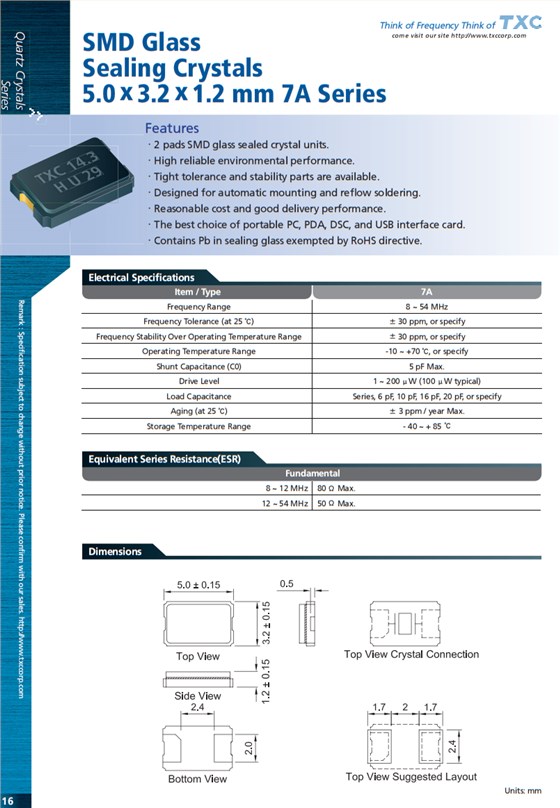

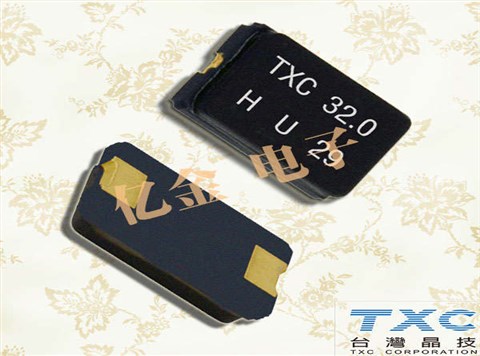

7A-20.000MAAJ-T TXC 2-SMD 5032mm 20MHz 30PPM,TXC晶振,石英晶体谐振器,SMD玻璃密封晶体5.0 x 3.2 x 1.2 mm 7A系列.2个垫片SMD玻璃密封晶体单元。高可靠的环境性能。有紧密的公差和稳定性部件。设计用于自动安装和回流焊。成本合理，交货性能好。便携式PC、PDA、DSC、USB接口卡的最佳选择。在被RoHS指令豁免的密封玻璃中含有铅。
7A-20.000MAAJ-T TXC 2-SMD 5032mm 20MHz 30PPM
| 项目 | 7A |
| 频率 | 8 ~ 54 MHz |
| 频率容差 | ± 30 ppm, or specify |
| 工作温度范围内的频率偏差度 | ± 30 ppm, or specify |
| 工作温度范围 | -10 ~ +70 C, or specify |
| 并联电容 | 5 pF Max. |
| 驱动电平 | 1 ~ 200 μW (100 μW typical) |
| 负载电容 | Series, 6 pF, 10 pF, 16 pF, 20 pF, or specify |
| 老化 | ± 3 ppm / year Max. |
| 储存温度 | - 40 ~ + 85 C |
7A-20.000MAAJ-T TXC 2-SMD 5032mm 20MHz 30PPM
| TXC原厂编码 | 生产厂家 | 型号 | 频率 | 工作温度 | 频率稳定度 |
| 7A-27.120MAAE-T | TXC Crystal | 7A | 27.12MHz | -20°C ~ 70°C | ±30ppm |
| 7A-27.120MAAE-T | TXC Crystal | 7A | 27.12MHz | -20°C ~ 70°C | ±30ppm |
| 7A-27.120MAAE-T | TXC Crystal | 7A | 27.12MHz | -20°C ~ 70°C | ±30ppm |
| 7A-24.000MAAJ-T | TXC Crystal | 7A | 24MHz | -20°C ~ 70°C | ±30ppm |
| 7A-24.000MAAJ-T | TXC Crystal | 7A | 24MHz | -20°C ~ 70°C | ±30ppm |
| 7A-24.000MAAJ-T | TXC Crystal | 7A | 24MHz | -20°C ~ 70°C | ±30ppm |
| 7A-16.000MAAJ-T | TXC Crystal | 7A | 16MHz | -20°C ~ 70°C | ±30ppm |
| 7A-16.000MAAJ-T | TXC Crystal | 7A | 16MHz | -20°C ~ 70°C | ±30ppm |
| 7A-16.000MAAJ-T | TXC Crystal | 7A | 16MHz | -20°C ~ 70°C | ±30ppm |
| 7A-8.000MAAJ-T | TXC Crystal | 7A | 8MHz | -20°C ~ 70°C | ±30ppm |
| 7A-8.000MAAJ-T | TXC Crystal | 7A | 8MHz | -20°C ~ 70°C | ±30ppm |
| 7A-8.000MAAJ-T | TXC Crystal | 7A | 8MHz | -20°C ~ 70°C | ±30ppm |
| 7A-12.000MAAJ-T | TXC Crystal | 7A | 12MHz | -20°C ~ 70°C | ±30ppm |
| 7A-12.000MAAJ-T | TXC Crystal | 7A | 12MHz | -20°C ~ 70°C | ±30ppm |
| 7A-12.000MAAJ-T | TXC Crystal | 7A | 12MHz | -20°C ~ 70°C | ±30ppm |
| 7A-25.000MAAJ-T | TXC Crystal | 7A | 25MHz | -20°C ~ 70°C | ±30ppm |
| 7A-25.000MAAJ-T | TXC Crystal | 7A | 25MHz | -20°C ~ 70°C | ±30ppm |
| 7A-25.000MAAJ-T | TXC Crystal | 7A | 25MHz | -20°C ~ 70°C | ±30ppm |
| 7A-27.120MAAJ-T | TXC Crystal | 7A | 27.12MHz | -20°C ~ 70°C | ±30ppm |
| 7A-27.120MAAJ-T | TXC Crystal | 7A | 27.12MHz | -20°C ~ 70°C | ±30ppm |
| 7A-27.120MAAJ-T | TXC Crystal | 7A | 27.12MHz | -20°C ~ 70°C | ±30ppm |
| 7A-24.000MAHE-T | TXC Crystal | 7A | 24MHz | -40°C ~ 85°C | ±30ppm |
| 7A-24.000MAHE-T | TXC Crystal | 7A | 24MHz | -40°C ~ 85°C | ±30ppm |
| 7A-24.000MAHE-T | TXC Crystal | 7A | 24MHz | -40°C ~ 85°C | ±30ppm |
| 7A-10.000MAAJ-T | TXC Crystal | 7A | 10MHz | -20°C ~ 70°C | ±30ppm |
| 7A-10.000MAAJ-T | TXC Crystal | 7A | 10MHz | -20°C ~ 70°C | ±30ppm |
| 7A-10.000MAAJ-T | TXC Crystal | 7A | 10MHz | -20°C ~ 70°C | ±30ppm |
| 7A-25.000MAAE-T | TXC Crystal | 7A | 25MHz | -20°C ~ 70°C | ±30ppm |
| 7A-25.000MAAE-T | TXC Crystal | 7A | 25MHz | -20°C ~ 70°C | ±30ppm |
| 7A-25.000MAAE-T | TXC Crystal | 7A | 25MHz | -20°C ~ 70°C | ±30ppm |
| 7A-10.000MAAE-T | TXC Crystal | 7A | 10MHz | -20°C ~ 70°C | ±30ppm |
| 7A-10.000MAAE-T | TXC Crystal | 7A | 10MHz | -20°C ~ 70°C | ±30ppm |
| 7A-10.000MAAE-T | TXC Crystal | 7A | 10MHz | -20°C ~ 70°C | ±30ppm |
| 7A-14.7456MAAJ-T | TXC Crystal | 7A | 14.7456MHz | -20°C ~ 70°C | ±30ppm |
| 7A-14.7456MAAJ-T | TXC Crystal | 7A | 14.7456MHz | -20°C ~ 70°C | ±30ppm |
| 7A-14.7456MAAJ-T | TXC Crystal | 7A | 14.7456MHz | -20°C ~ 70°C | ±30ppm |
| 7A-18.432MAAJ-T | TXC Crystal | 7A | 18.432MHz | -20°C ~ 70°C | ±30ppm |
| 7A-18.432MAAJ-T | TXC Crystal | 7A | 18.432MHz | -20°C ~ 70°C | ±30ppm |
| 7A-18.432MAAJ-T | TXC Crystal | 7A | 18.432MHz | -20°C ~ 70°C | ±30ppm |
| 7A-12.288MAAJ-T | TXC Crystal | 7A | 12.288MHz | -20°C ~ 70°C | ±30ppm |
| 7A-12.288MAAJ-T | TXC Crystal | 7A | 12.288MHz | -20°C ~ 70°C | ±30ppm |
| 7A-12.288MAAJ-T | TXC Crystal | 7A | 12.288MHz | -20°C ~ 70°C | ±30ppm |
| 7A-20.000MAAJ-T | TXC Crystal | 7A | 20MHz | -20°C ~ 70°C | ±30ppm |
| 7A-20.000MAAJ-T | TXC Crystal | 7A | 20MHz | -20°C ~ 70°C | ±30ppm |
| 7A-20.000MAAJ-T | TXC Crystal | 7A | 20MHz | -20°C ~ 70°C | ±30ppm |
