蓝牙模块应用晶振CX532Z-A5B3C5-70-12.0D18

2023-06-06 10:13:29

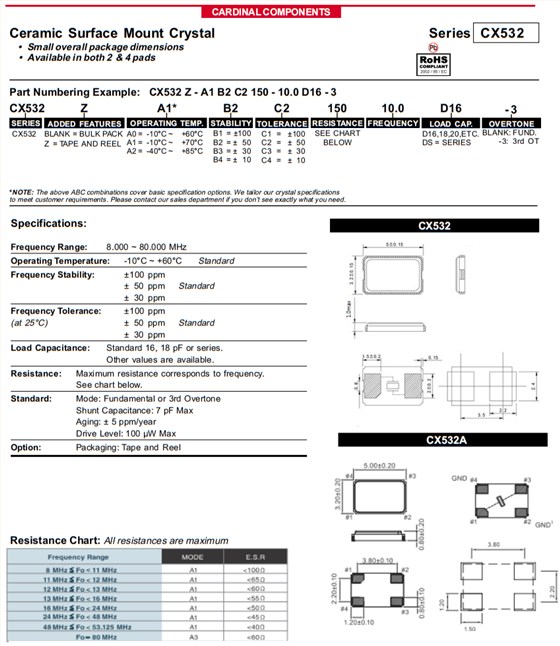

美国进口Cardinal卡迪纳尔晶振CX532,是一款小体积晶振尺寸5.0x3.2mm表面贴装晶体,整体封装尺寸小,CX532晶振两脚贴片晶振和CX532A晶振四脚贴片晶振可供选择,无源晶振,石英贴片晶振,石英晶体谐振器,频率范围:8MHz-80MHz,频率稳定度:±30ppm,工作温度范围:-40℃至+85℃,无铅环保晶振,该石英晶体谐振器具有超小型,轻薄型,耐热及耐环境特点,被广泛用于通讯设备,无线局域网,蓝牙模块晶振,汽车电子,医疗设备,数码电子,平板电脑,物联网,微处理时钟应用等。蓝牙模块应用晶振CX532Z-A5B3C5-70-12.0D18

cx532

进口晶振编码 厂家 型号 系列 频率 频率稳定度
CX5Z-A5B2C5-70-7.37280D18 Cardinal晶振 CX5 MHz Crystal 7.3728MHz ±50ppm
CX532Z-A2B3C5-70-12.288D18 Cardinal晶振 CX532 MHz Crystal 12.288MHz ±30ppm
CX532Z-A2B3C5-70-16.0D18 Cardinal晶振 CX532 MHz Crystal 16MHz ±30ppm
CX5Z-ARB2C5-70-7.3728D18 Cardinal晶振 CX5 MHz Crystal 7.3728MHz ±50ppm
CX532Z-A2B3C5-70-12.0D18 Cardinal晶振 CX532 MHz Crystal 12MHz ±30ppm
CX5Z-A5B2C5-40-27.0D18 Cardinal晶振 CX5 MHz Crystal 27MHz ±50ppm
CX5Z-A5B2C5-40-24.0D18 Cardinal晶振 CX5 MHz Crystal 24MHz ±50ppm
CX5Z-A5B2C5-40-24.576D18 Cardinal晶振 CX5 MHz Crystal 24.576MHz ±50ppm
CX5Z-A5B2C5-70-8.0D18 Cardinal晶振 CX5 MHz Crystal 8MHz ±50ppm
CX5Z-A1B2C5-40-24.0D18 Cardinal晶振 CX5 MHz Crystal 24MHz ±50ppm
CX5Z-A5B2C5-50-16.0D18 Cardinal晶振 CX5 MHz Crystal 16MHz ±50ppm
CX5Z-A0B2C5-50-16.0D18 Cardinal晶振 CX5 MHz Crystal 16MHz ±50ppm
CX5Z-A2B2C5-40-10.0D18 Cardinal晶振 CX5 MHz Crystal 10MHz ±50ppm
CX532Z-A2B3C5-70-1966080D18 Cardinal晶振 CX532 MHz Crystal 19.6608MHz ±30ppm
CX532Z-A2B3C5-70-33.0D18 Cardinal晶振 CX532 MHz Crystal 33MHz ±30ppm
CX532Z-A2B3C5-70-27.0D18 Cardinal晶振 CX532 MHz Crystal 27MHz ±30ppm
CX532Z-A5B3C5-70-20.0D18 Cardinal晶振 CX532 无源晶体 20MHz ±30ppm
CX532Z-A2B3C5-70-14.7456D18 Cardinal晶振 CX532 MHz Crystal 14.7456MHz ±30ppm
CX532Z-A5B3C5-70-12.0D18 Cardinal晶振 CX532 MHz Crystal 12MHz ±30ppm
CX532Z-A2B3C5-70-50.0D18 Cardinal晶振 CX532 MHz Crystal 50MHz ±30ppm
CX532Z-A2B3C5-70-30.0D18 Cardinal晶振 CX532 MHz Crystal 30MHz ±30ppm
CX532Z-A5B3C5-70-27.0D18 Cardinal晶振 CX532 MHz Crystal 27MHz ±30ppm
CX532AZ-A5B2C5-70-25.0D18 Cardinal晶振 CX532 MHz Crystal 25MHz ±50ppm
CX532Z-A5B3C5-70-25.0D18 Cardinal晶振 CX532 MHz Crystal 25MHz ±30ppm
CX532Z-A2B3C5-70-20.0D18 Cardinal晶振 CX532 MHz Crystal 20MHz ±30ppm
CX5Z-A2B2C5-70-8.0D18 Cardinal晶振 CX5 MHz Crystal 8MHz ±50ppm
CX5Z-A2B2C5-40-25D18 Cardinal晶振 CX5 MHz Crystal 25MHz ±50ppm
CX532Z-A2B3C5-70-8.0D18 Cardinal晶振 CX532 MHz Crystal 8MHz ±30ppm
CX5Z-A2B2C5-40-12.0D18 Cardinal晶振 CX5 MHz Crystal 12MHz ±50ppm
CX5Z-A5B2C5-40-12.0D18 Cardinal晶振 CX5 MHz Crystal 12MHz ±50ppm
CX5Z-A5B2C5-40-10.0D18 Cardinal晶振 CX5 MHz Crystal 10MHz ±50ppm
CX5Z-A5B2C5-40-25D18 Cardinal晶振 CX5 MHz Crystal 25MHz ±50ppm
CX532Z-A5B3C5-70-18.432D18 Cardinal晶振 CX532 MHz Crystal 18.432MHz ±30ppm
CX532Z-A2B3C5-70-25.0D18 Cardinal晶振 CX532 MHz Crystal 25MHz ±30ppm
蓝牙模块应用晶振CX532Z-A5B3C5-70-12.0D18,Cardinal Components是一家面向服务的垂直集成供应商,提供高混频频率控制和RF产品解决方案。我们投资于石英晶体技术,为那些需要频率控制设备的客户提供最新的大批量产品。我们成立了合资企业和子公司,以提供最高频率、最高质量的零件。Cardinal晶振致力于通过提高产量、降低成本、提高客户满意度以及满足员工对培训、安全和士气的期望来持续提高质量。
